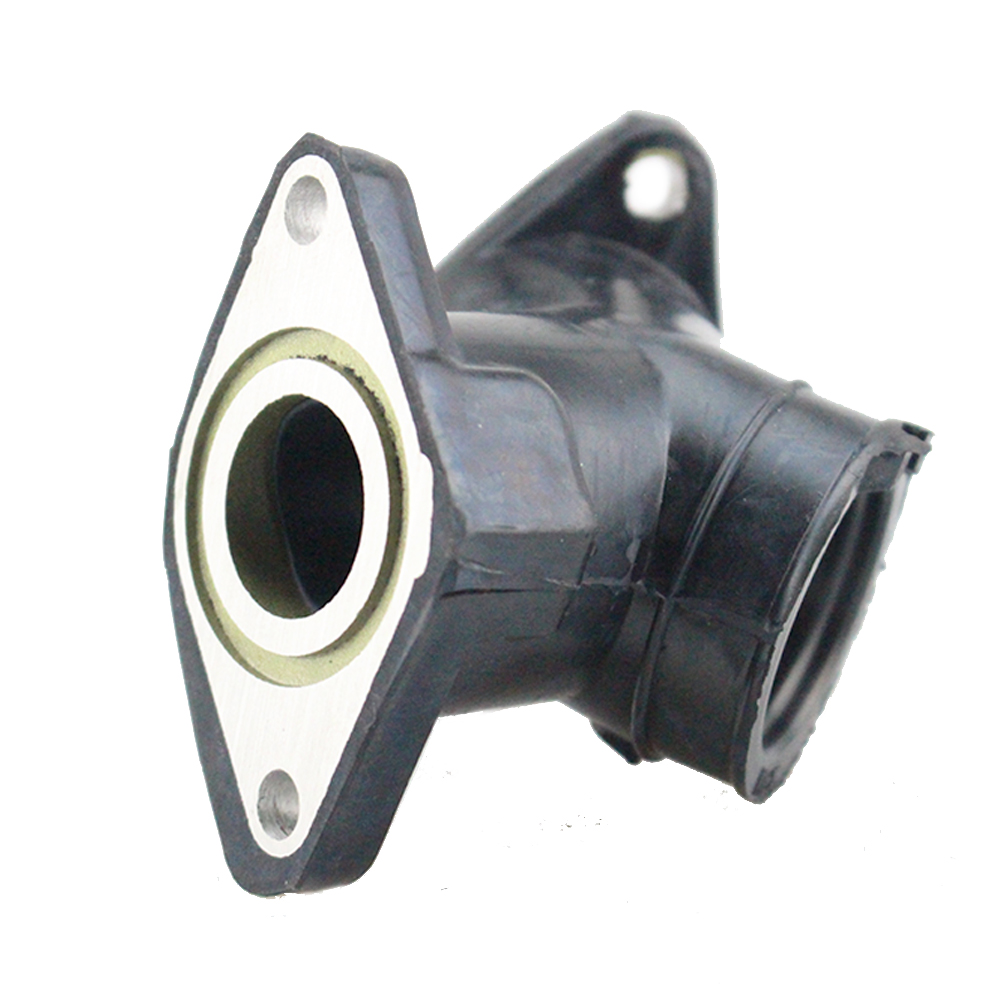

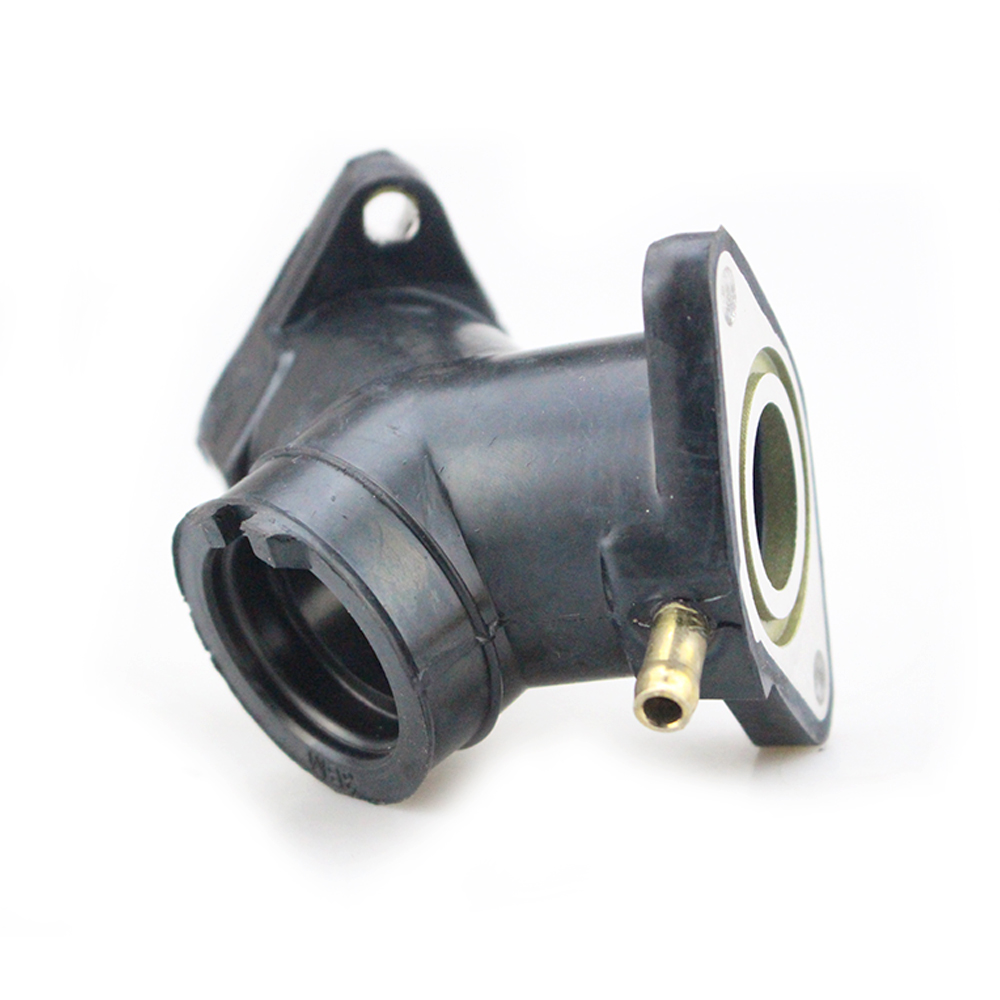

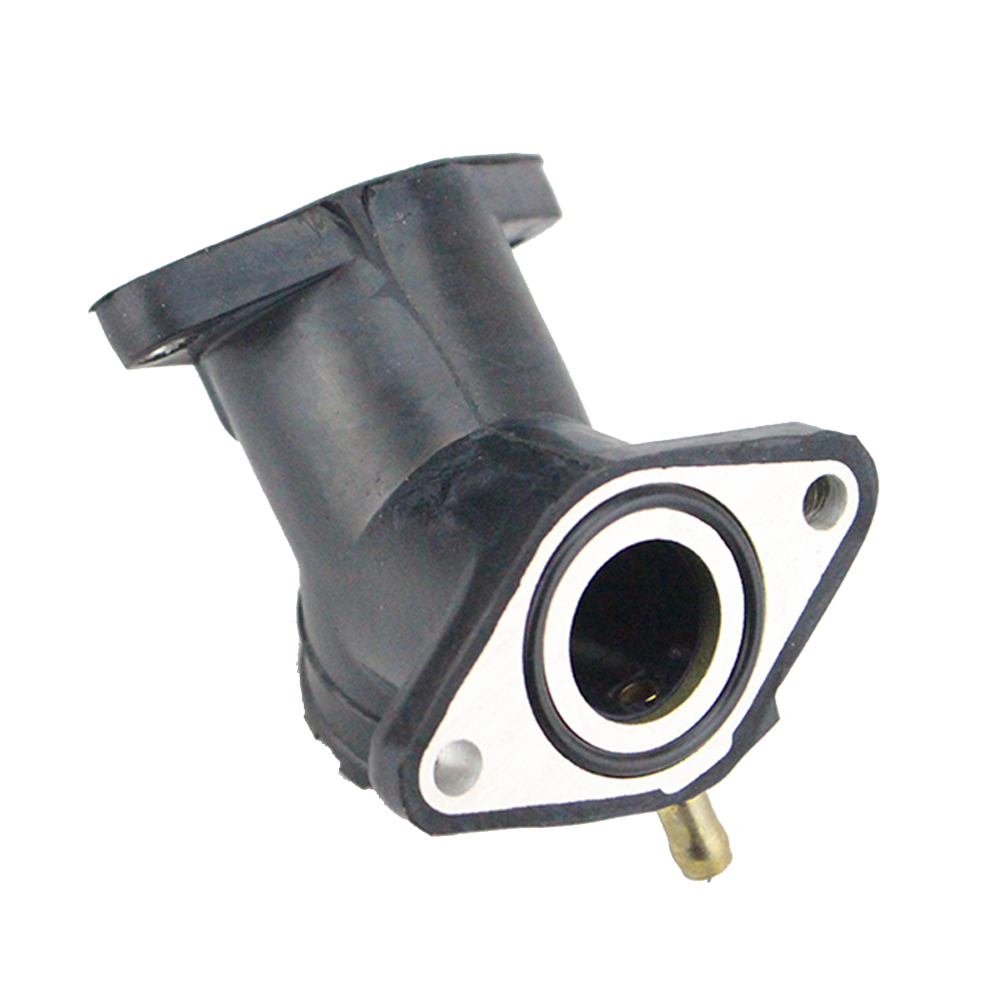

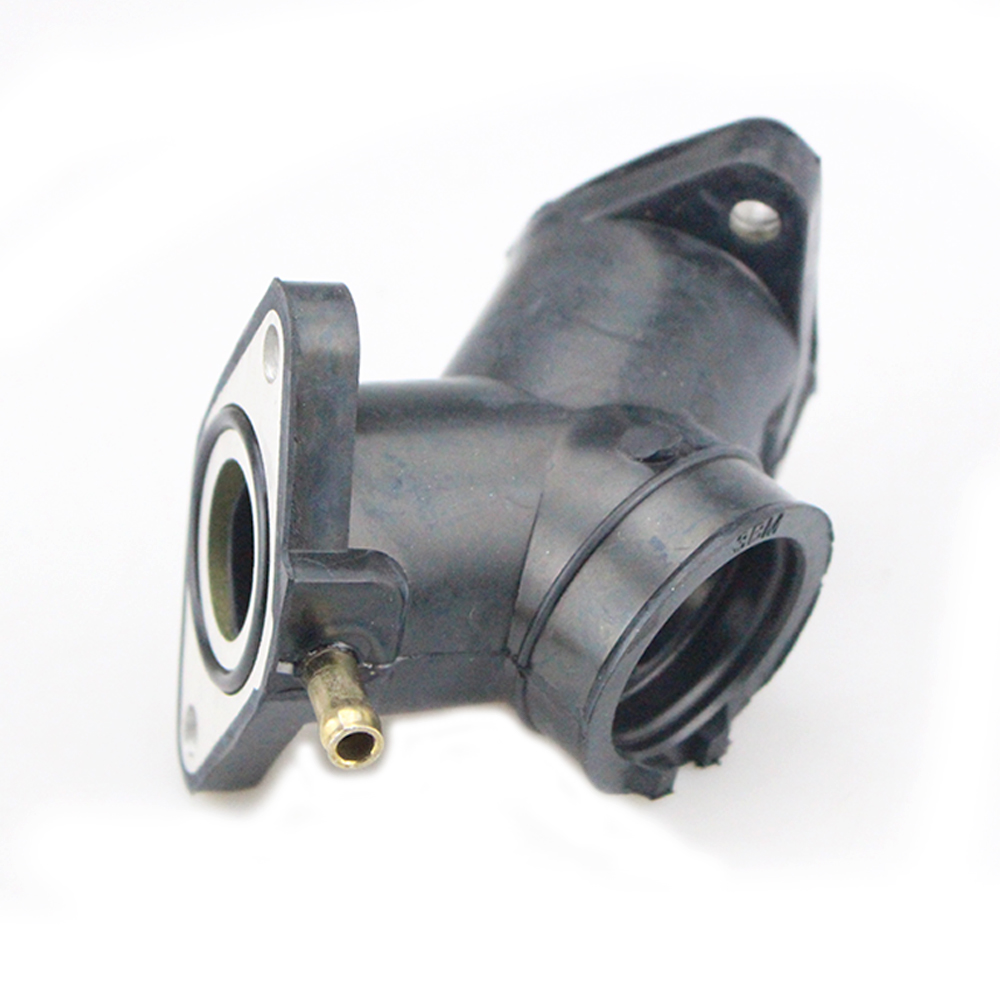

Installation Guide for Motorcycle Carburetor Manifold Intake Adapter

Tools Required:

1. Socket wrench or ratchet and socket set
2. Torx screwdriver (for some models)
3. Pliers or wrench for adjusting carburetor adjustment screws
4. Safety glasses and gloves (recommended)
5. Clean rag or cloth for cleaning surfaces
6. Optional: carburetor cleaner or degreaser for thorough cleaning

Step 1: Prepare the Motorcycle

1. Make sure the motorcycle is parked on a level surface and the engine is turned off.
2. Disconnect the battery to prevent any accidental starts.
3. Remove any unnecessary accessories or covers to access the carburetor area.

Step 2: Remove the Old Intake Manifold

1. Locate the old intake manifold and remove any electrical connections or vacuum hoses.
2. Use a wrench or socket to loosen the bolts holding the intake manifold in place.
3. Gently pull the old intake manifold away from the engine.

Step 3: Install the New Adapter

1. Inspect the new intake adapter for any damage or debris.
2. Apply a thin layer of lubricant to the O-ring or gasket on the adapter.
3. Carefully insert the new adapter into the engine block, ensuring it is properly seated and aligned.
4. Use a wrench or socket to tighten the bolts in a star pattern to avoid damaging the threads.

Step 4: Reconnect the Carburetor

1. Reconnect any electrical connections or vacuum hoses to the carburetor.
2. Adjust the carburetor adjustment screws according to the manufacturer's instructions.
3. Check for proper airflow and engine performance.

Step 5: Test the Motorcycle

1. Start the engine and listen for any unusual noises or vibrations.
2. Take the motorcycle for a test ride to ensure proper performance and acceleration.

Tips and Reminders:

• Always refer to the manufacturer's instructions for specific installation procedures.
• Use proper safety equipment when working with tools and machinery.
• Keep the work area clean and well-lit to avoid accidents.
• Consult a professional mechanic if you are unsure about any aspect of the installation process.
