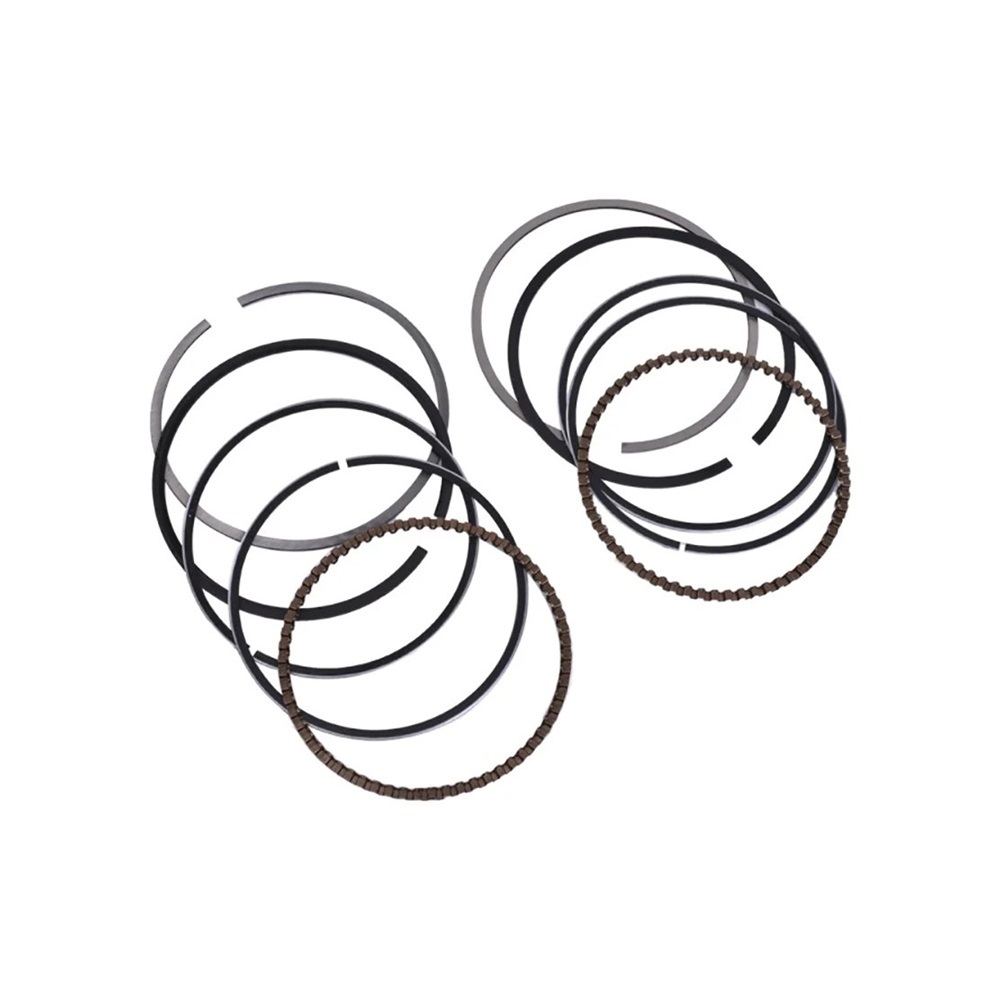

Installation Instructions for 64.5mm Engine Parts Piston Rings Set for NT400 VRX400 Models

Tools Required:

1. Piston Ring Separator Tool - For safely removing and installing piston rings without damaging them.

2. Torque Wrench - To ensure proper torque settings when reassembling the engine components.

3. Ratchet and Socket Set - For removing and tightening bolts on the engine.

4. Screwdriver Set - Both flat-head and Phillips screwdrivers may be necessary for various screws.

5. Pliers - Useful for gripping and manipulating small parts.

6. Engine Oil - For lubricating the piston rings and other engine components during installation.

7. Clean Rags - To clean the components and wipe away any excess oil.

8. Gasket Scraper - For removing old gaskets if necessary.

9. Measuring Tools - Including calipers to check tolerances and ensure accurate fit.

Installation Steps:

1. Preparation: Make sure you have all the necessary tools and parts handy before beginning. Ensure the engine is cool and disconnected from any power source.

2. Remove the Engine Cover: Use appropriate tools to carefully take off the engine cover and expose the piston assembly.

3. Remove Old Piston Rings: Use the piston ring separator tool to safely remove the old piston rings.

4. Clean the Piston: Make sure the piston is clean before installing new rings. Use clean rags and check for any damage.

5. Install New Piston Rings: Carefully install the new 64.5mm piston rings onto the piston. Ensure they are seated properly and in the correct orientation.

6. Reassemble Engine Components: Follow the reverse order of disassembly and use a torque wrench to tighten bolts to manufacturer specifications.

7. Apply Engine Oil: Before starting the engine, lubricate the new piston rings and other moving parts with clean engine oil.

8. Final Checks: Verify that all components are secured, and there are no loose parts left.

9. Start Engine: After ensuring everything is reassembled correctly, start the engine and check for proper operation.

Important Notes:

• Always refer to the specific service manual for your NT400 or VRX400 model for detailed guidance on torque settings and assembly.

• If you are unsure about any steps, consider consulting a professional mechanic.

By following these instructions and using the recommended tools, you should be able to successfully install the 64.5mm Engine Parts Piston Rings Set and improve your engine's performance.
