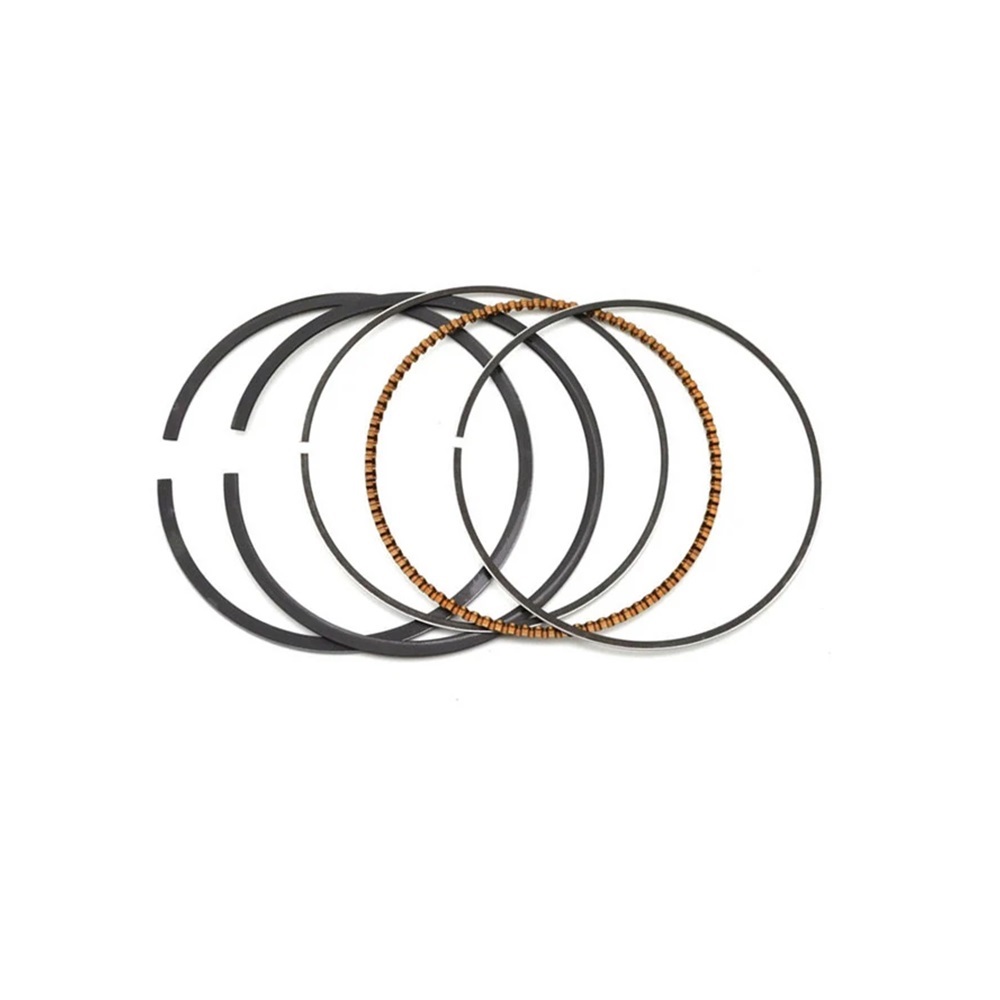

Installation Instructions for Motorcycle Engine Parts Piston Rings Kit (Standard Bore Size 74mm to 75mm)

This piston rings kit is designed for various motorcycle models from 1998 to 2003, ensuring easy installation and replacement. Follow these steps for a successful inst allation.

Tools Required:

1. Socket and Ratchet Set
2. Torque Wrench
3. Piston Ring Compressor
4. Screwdrivers (Flahead and Phillips)
5. Pliers
6. Clean Rags
7. Engine Oil (for lubrication)
8. Gasket Scraper or Razor Blade (for old gasket removal)
9. Torque Specifications Manual (for reference)
10. Safety Gear (gloves and goggles)

Installation Steps:

1. Preparation:

   • Gather all tools and safety gear before starting the installation process.
   • Ensure you have a clean, well-lit work area to perform the installation.

2. Remove the Engine:

   • Detach the engine from the motorcycle according to your model’s service manual.
   • Place the engine on a clean workbench.

3. Disassemble the Cylinder Head:

   • Use the appropriate socket size to remove the cylinder head bolts.
   • Carefully lift the cylinder head off and set aside.

4. Remove the Old Piston Rings:

   • Compress the piston ring using the piston ring compressor tool.
   • Remove the old piston rings from the piston and discard them.

5. Install New Piston Rings:

   • Clean the piston and ensure it’s free of debris.
   • Apply a thin layer of engine oil to the new piston rings for lubrication.
   • Carefully install the new piston rings onto the piston, ensuring they are oriented correctly as per the instructions provided with the kit.

6. Reassemble the Cylinder Head:

   • Place the cylinder head back onto the engine block.
   • Use a torque wrong to tighten the cylinder head bolts to the specified torque settings found in your torque specifications manual.

7. Reattach the Engine to the Motorcycle:

   • Follow the disassembly steps in reverse to reattach the engine.

8. Final Checks:

   • Double-check all connections and ensure everything is securely fastened.
   • Start the engine and allow it to idle for a few minutes, checking for any leaks or unusual noises.

Conclusion:

By following these steps and utilizing the right tools, you can successfully install the Motorcycle Engine Parts Piston Rings Kit. Enjoy enhanced performance a nd longevity from your motorcycle engine!
