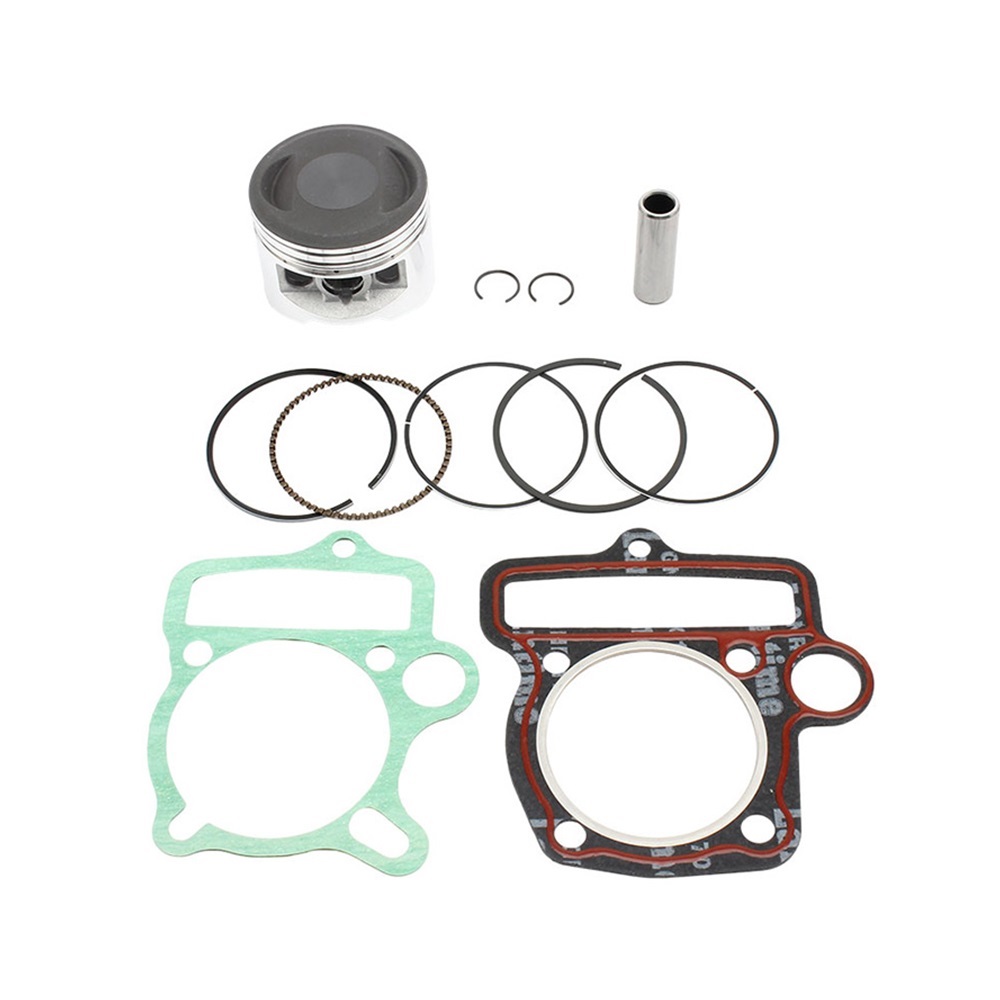

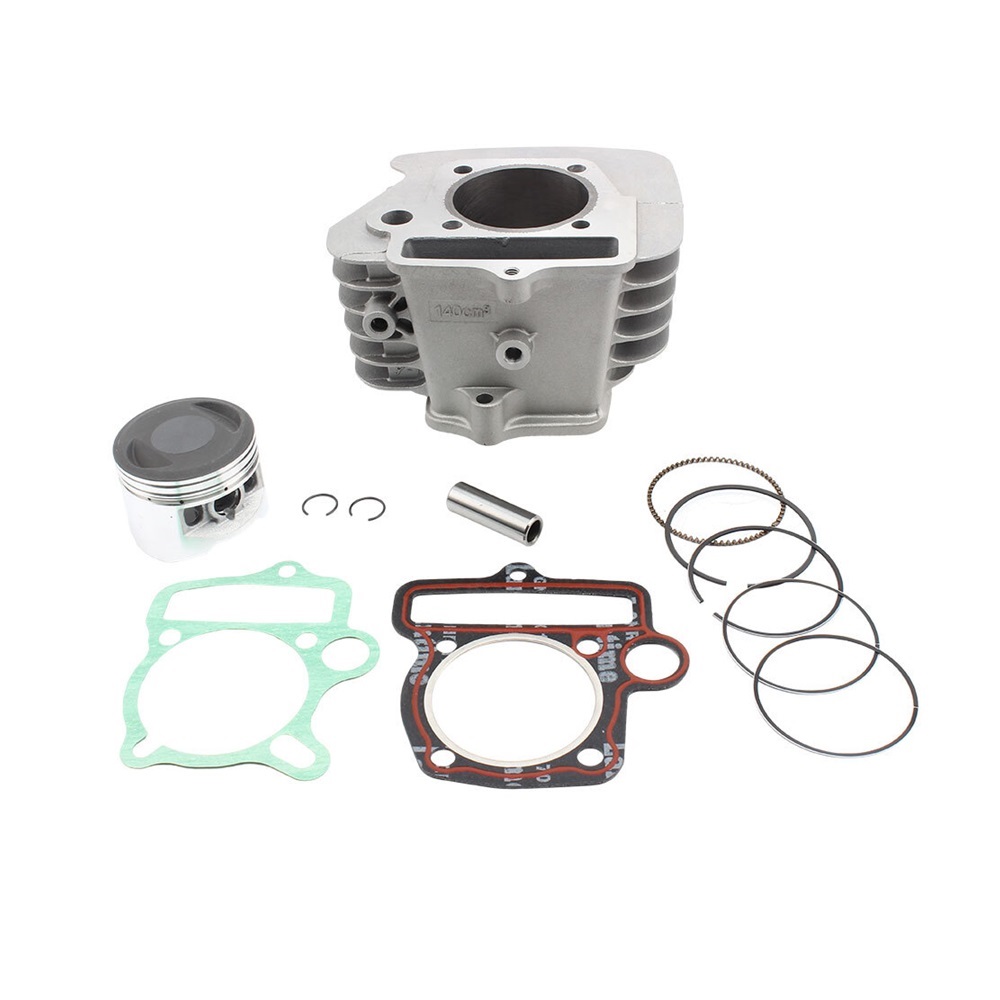

Installation Instructions for Compatible 56mm Bore Cylinder Piston Kit for 140cc Enduro Quad ATV Motorcycle Parts

Required Tools:**

1. Socket set (metric)
2. Torque wrong
3. Screwdrivers (flathead and Phillips)
4. Piston ring compressor
5. Gasket scraper or razor blade
6. Clean clothes or paper towels
7. Engine oil (for lubrication)
8. Safety glasses
9. Work gloves

Installation Steps:

1. Preparation:

   • Ensure the ATV is on a stable surface and the engine is cool.
   • Disconnect the battery to prevent any accidental starts.

2. Remove the Old Cylinder Head:

   • Use the socket set to remove the bolts holding the cylinder head in place.
   • Carefully lift off the cylinder head and set it aside.
   • Keep track of the bolts for reinstallation.

3. Remove the Old Piston:

   • Use the gasket scraper to remove the old gasket material from the cylinder base.
   • Remove the wrist pin clip and slide the old piston out of the cylinder.

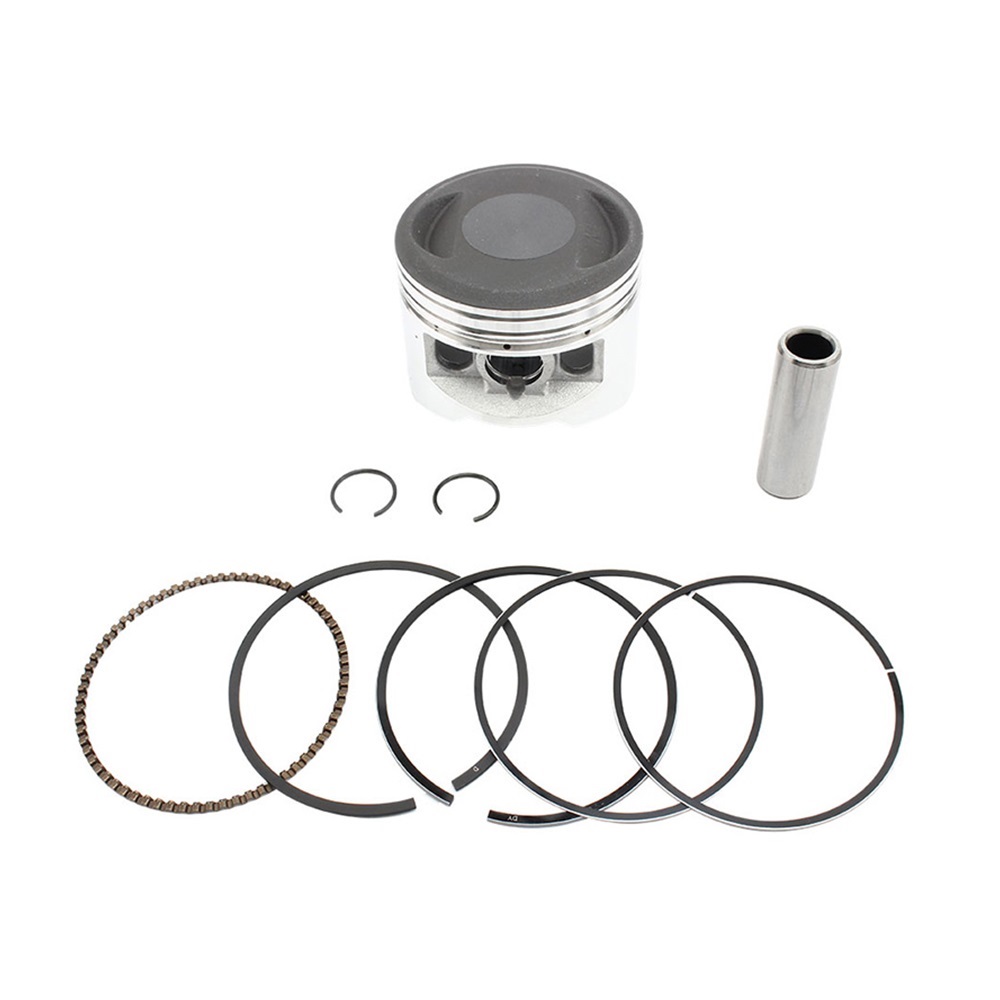

4. Install the New Piston:

   • Apply a thin layer of engine oil to the new piston and rings for lubrication.
   • Use the pinton ring compressor to compress the pinton rings and insert the new pinton into the cylinder.
   • Ensure the piston is oriented correctly according to the manufacturer’s instructions.

5. Reinstall the Wrist Pin:

   • Slide the wrist pin through the pin and connecting rod, securing it with the wrist pin clips.

6. Install the New Cylinder Head:

   • Place the new gasket onto the cylinder base, ensuring proper alignment.
   • Reattach the cylinder head and tighten the bolts to the recommended torque specifications using a torque wrong.

7. Reassemble Other Components:

   • Reinstall any other components that were removed during the disassembly. Ensure all connections are secure.

8. Final Checks:

   • Reconnect the battery.
   • Check all screws and bolts to ensure they are tightened properly.

9. Test Run:

   • Start the engine and allow it to idle for a few minutes, checking for any leaks or irregular noises.
   • Take the ATV for a short test drive to ensure everything is functioning correctly.

Safety Note:
Always wear safety glasses and work gloves when performing maintenance on your ATV. Ensure you have a well-ventilated area to work in, and dispose of old parts response sibly.

By following these instructions, you will successfully replace the cylinder piston kit and enhance the performance of your 140cc Enduro Quad ATV motorcycle. Happy riding!
