Installation Instructions for Ignition Coil Suitable for CB125T 30520 KC1 981

Product Overview:

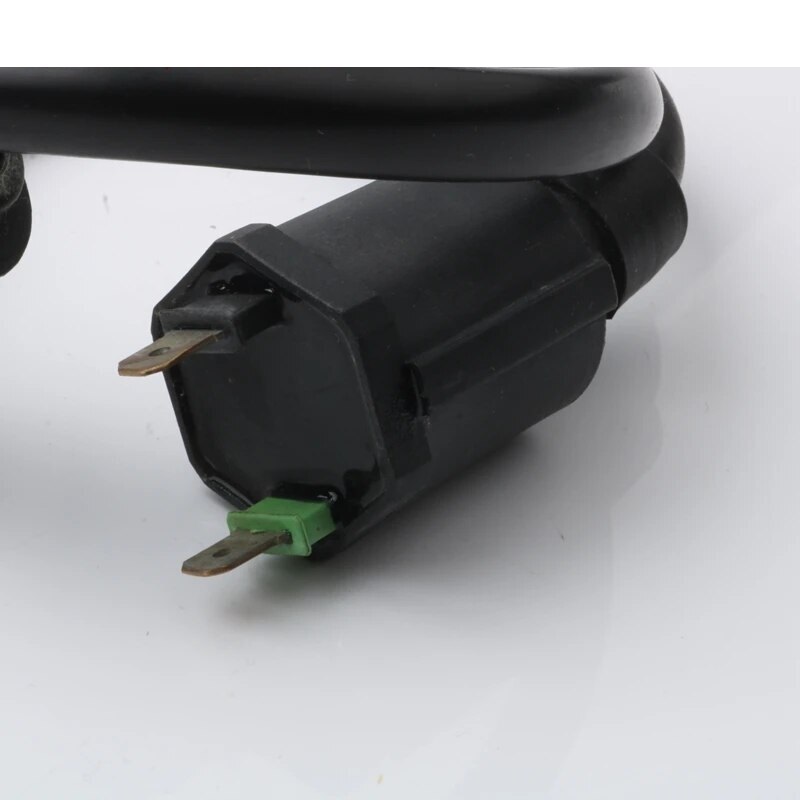

This ignition coil is specifically designed for the CB125T motorcycle model and meets the 30520 KC1 981 standard, ensuring a perfect fit for easy replacement. With stable performance, it boosts ignition efficiency, guarantees rapid engine startup, and provides reliable support for your ride.

Tools Needed:
To successfully install the ignition coil, please prepare the following tools:

1. Socket Wrench Set - For removing and tightening bolts.
2. Screwdriver Set - Flathead and Phillips screwdrivers may be required for removing panel covers.
3. Pliers - Useful for handling wires and connectors.
4. Wire Cutters/Strippers - If any wiring adjustments are necessary.
5. Torque Wrench - To ensure bolts are tightened to the manufacturer's specifications (optional).
6. Safety Glasses - To protect your eyes while working.
7. Gloves - For hand protection during installation.
8. Clean Cloth - For wiping any excess oil or debris.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat, stable surface.
   • Disconnect the motorcycle battery to prevent any electrical issues during installation.

2. Remove the Old Ignition Coil:

   • Locate the ignition coil on your CB125T motorcycle. It will typically be mounted near the engine.
   • Carefully remove any screws or bolts securing the old ignition coil using the socket wrench or screwdriver.
   • Disconnect the electrical connectors from the old coil.

3. Install the New Ignition Coil:

   • Position the new ignition coil in place, ensuring it fits correctly according to the manufacturer’s specifications.
   • Reconnect the electrical connectors, ensuring they are secure.
   • Use the socket wrench or screwdriver to fasten the screws or bolts that hold the ignition coil in place.

4. Final Checks:

   • Ensure all connections are tight and secure.
   • Reconnect the motorcycle battery.
   • Start the engine to verify that the installation was successful and the ignition coil is functioning properly.

5. Clean Up:

   • Dispose of the old ignition coil and any packaging materials responsibly.
   • Store your tools safely for future use.

Conclusion:
With this ignition coil installation, you can enhance your motorcycle's performance while ensuring a hassle-free replacement process. Enjoy your ride with increased reliability and efficiency.
