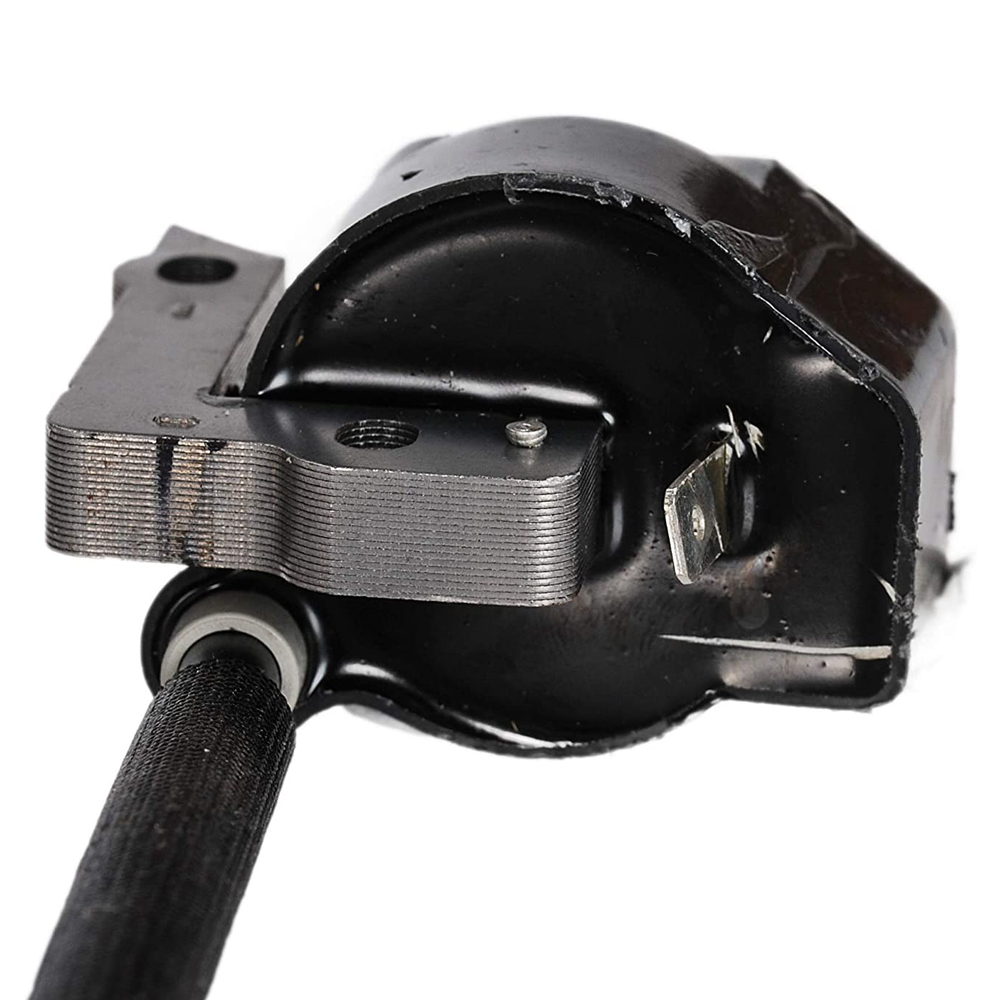

Installation Instructions for Compatible Ignition Coil for 4130 400 1300

Suitable Models: FC44, FS36, FS40, FS44

Tools Required:

1. Screwdriver (Flathead and Phillips)
2. Socket/Wrench Set
3. Pliers
4. Torque Wrench (optional)
5. Work Gloves
6. Safety Goggles

Installation Steps:

1. Preparation:

   • Ensure your trimmer is turned off and disconnected from any power source.
   • Wear safety gloves and goggles for protection.

2. Remove the Spark Plug:

   • Use a socket or wrench to remove the spark plug from the trimmer. This prevents accidental starts during the installation.

3. Access the Ignition Coil:

   • Locate the ignition coil on your trimmer. You may need to remove the casing or cover to access it.
   • Use a screwdriver to remove any screws holding the casing in place and set it aside.

4. Disconnect the Old Ignition Coil:

   • Carefully disconnect the wires attached to the old ignition coil. Make a note of their positions for reinstallation.
   • Remove the screws or bolts securing the old coil and take it out.

5. Install the New Ignition Coil:

   • Position the new ignition coil into the designated area and secure it with the screws or bolts.
   • Reconnect the wires according to the notes you took earlier, ensuring they are securely attached.

6. Reassemble the Trimmer:

   • Replace the trimmer's casing or cover, making sure it is securely fastened.
   • Reinstall the spark plug and tighten it properly.

7. Final Check:

   • Double-check all connections and ensure everything is secure.
   • Start the trimmer to test the new ignition coil's functionality.

Tips:

• Refer to your trimmer's user manual for specific diagrams and additional instructions.
• If you encounter any issues during installation, consider consulting a professional technician.

Now you are ready to use your trimmer with improved performance!
