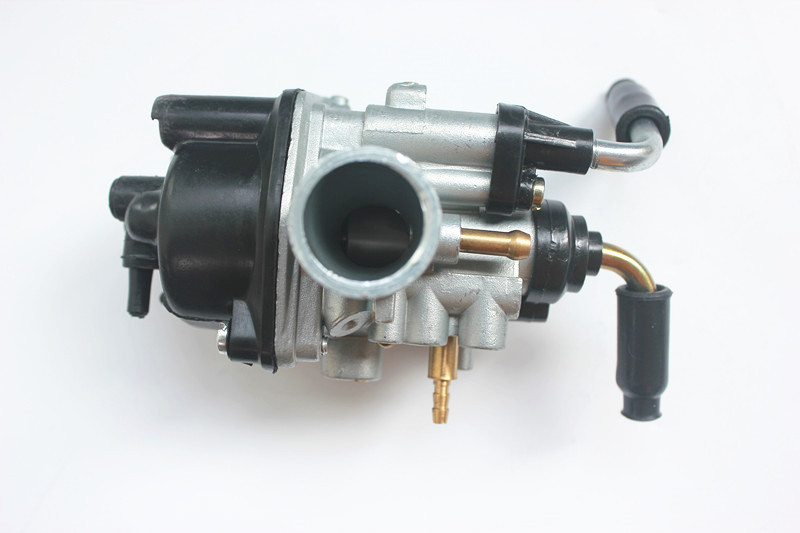

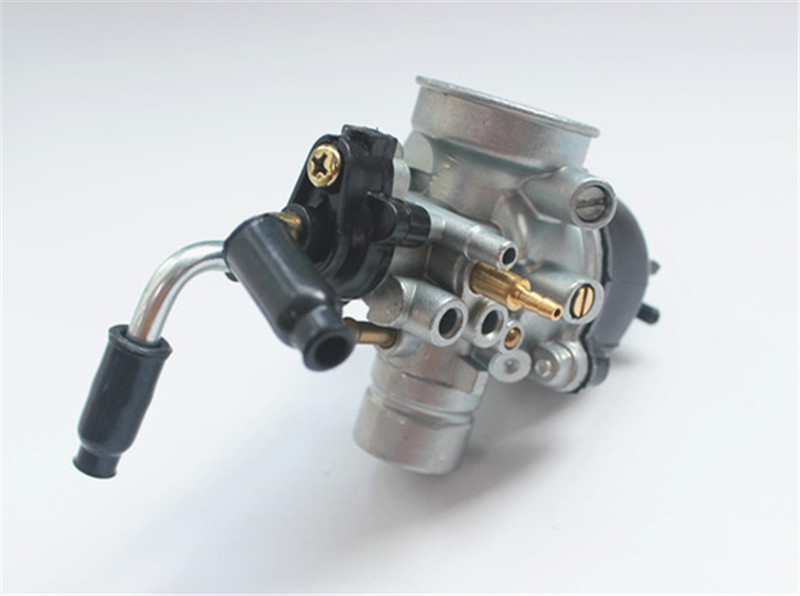

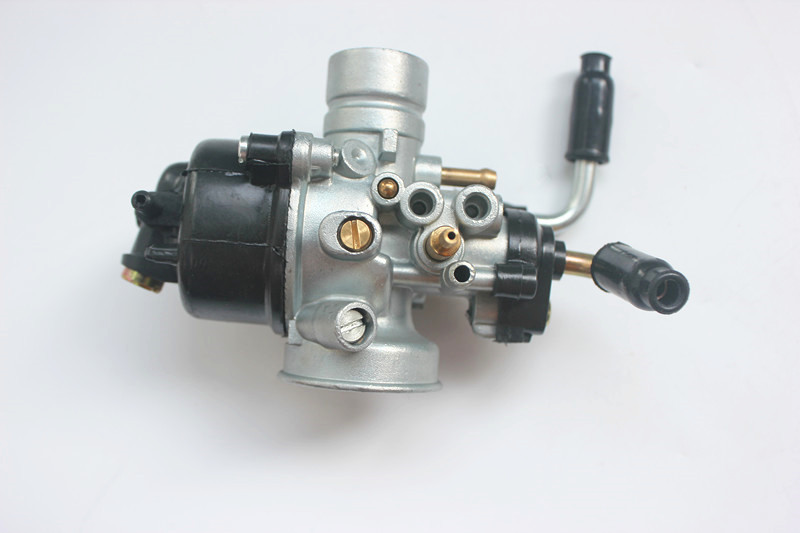

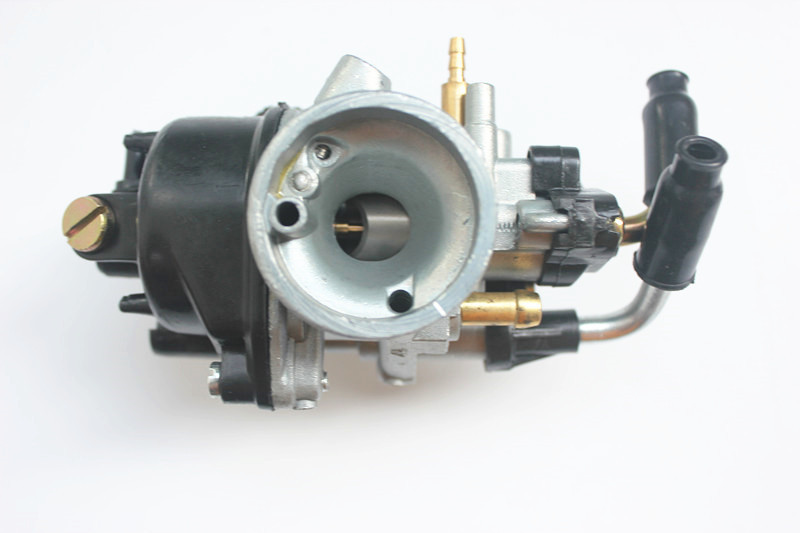

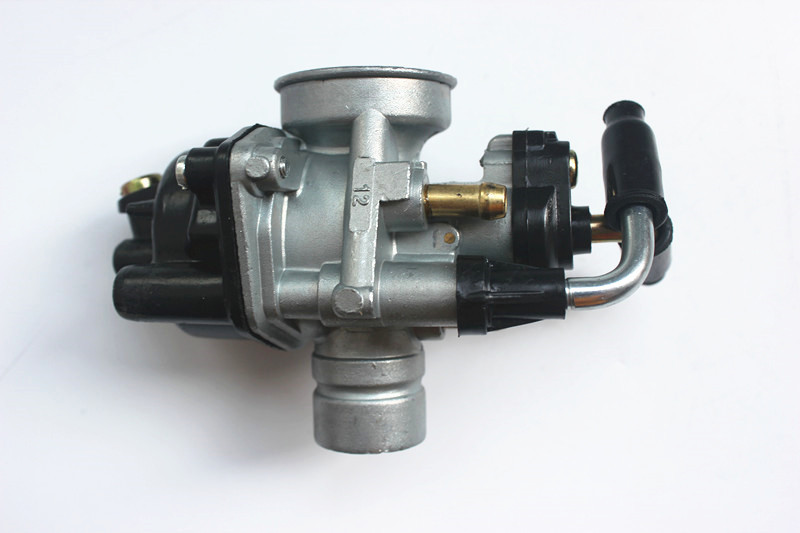

Installation Guide for Universal 12mm Carburetor

Preparation:

To ensure a smooth installation process, please prepare the following tools and materials:

1. Basic toolkit:

• Socket wrench or adjustable wrench
• Torx screwdriver (if required)
• Pliers
• Screwdrivers (flathead and Phillips)

2. Cleaning materials:
   *Soft brush

• Cloth or paper towels

3. Assembly and adjustment tools:

• Carburetor gasket (if not included)
• Fuel line wrench (if required)
• Air filter wrench (if required)

4. Safety equipment:

• Work gloves
  *Safety glasses
• Protective clothing

Step 1: Remove the Old Carburetor

1. Disconnect the negative battery cable to prevent any accidental engine start-ups.
2. Remove the air filter and any other components that may interfere with the carburetor removal.
3. Use a socket wrench or adjustable wrench to loosen the carburetor mounting bolts.
4. Gently pull the carburetor away from the engine and disconnect the fuel line, throttle cable, and any other attached components.

Step 2: Clean the Engine Area

1. Use a soft brush to remove any debris or dirt from the engine area.
2. Wipe down the engine and surrounding surfaces with a cloth or paper towels.

Step 3: Install the New Carburetor

1. Place the new carburetor in position and align it with the engine mounts.
2. Hand-tighten the carburetor mounting bolts in a star pattern to ensure even tightening.
3. Tighten the bolts in a clockwise direction until they are snug, then tighten an additional 1-2 turns.

Step 4: Connect the Fuel Line and Throttle Cable

1. Connect the fuel line to the carburetor, making sure it is securely attached.
2. Connect the throttle cable to the carburetor, ensuring it is properly seated and secured.

Step 5: Adjust the Air Filter and Idle Mixture

1. Reinstall the air filter and ensure it is properly seated.
2. Adjust the idle mixture by turning the idle mixture screw clockwise to richen the mixture or counterclockwise to lean it out.

Step 6: Test the Engine

1. Start the engine and listen for any unusual sounds or vibrations.
2. Check for leaks around the carburetor and fuel line connections.
3. Gradually increase the engine speed to check for proper performance.

Tips and Reminders:

• Make sure to refer to your vehicle's repair manual for specific instructions and recommendations.
• If you are not comfortable with this installation, consider seeking professional assistance.
• Always follow proper safety protocols when working with fuel and electrical systems.

By following these steps and tips, you should be able to successfully install your Universal 12mm Carburetor.
