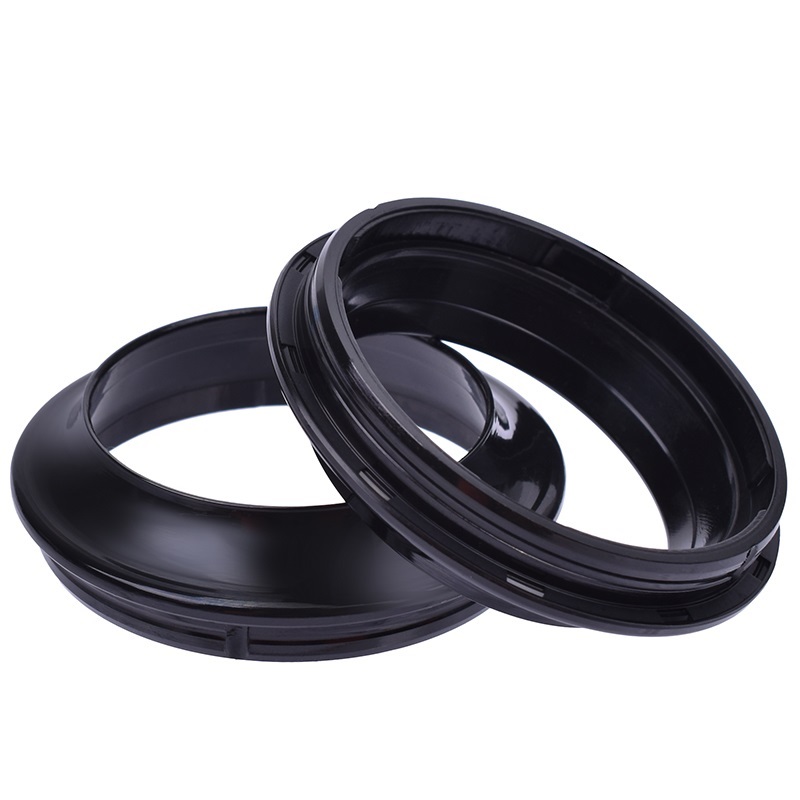

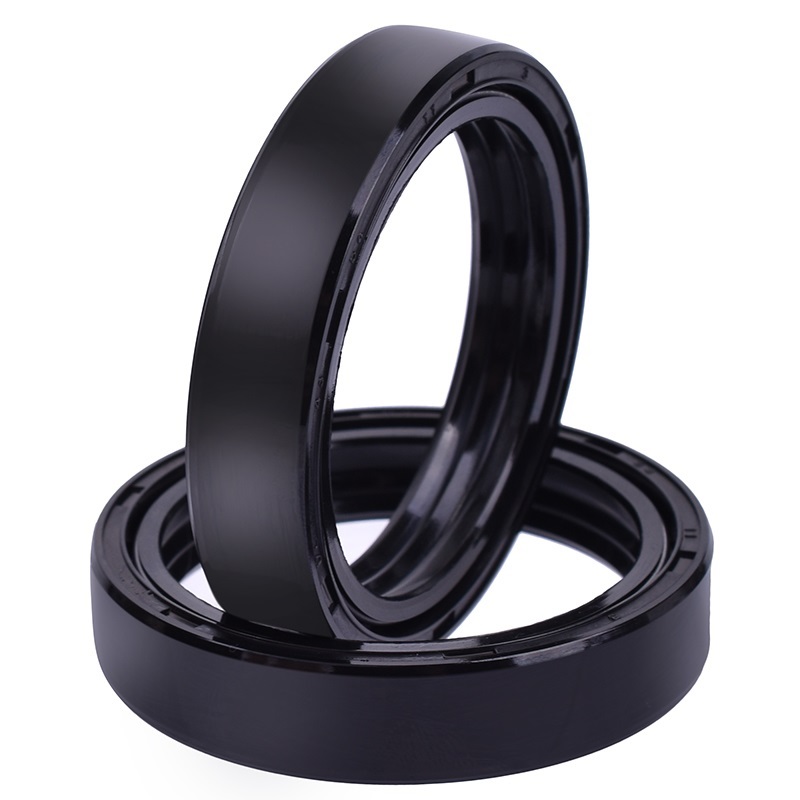

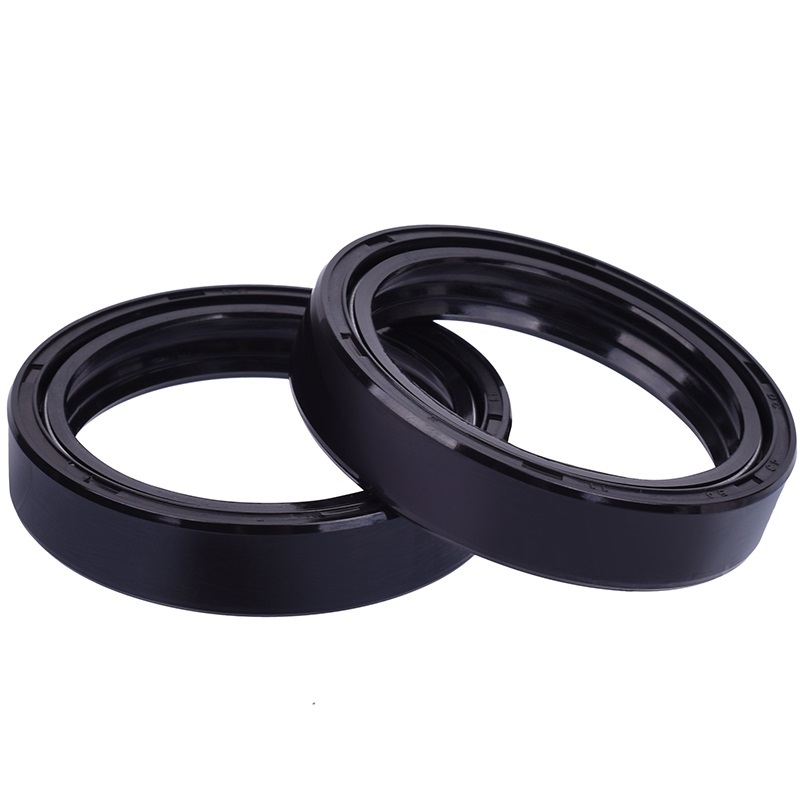

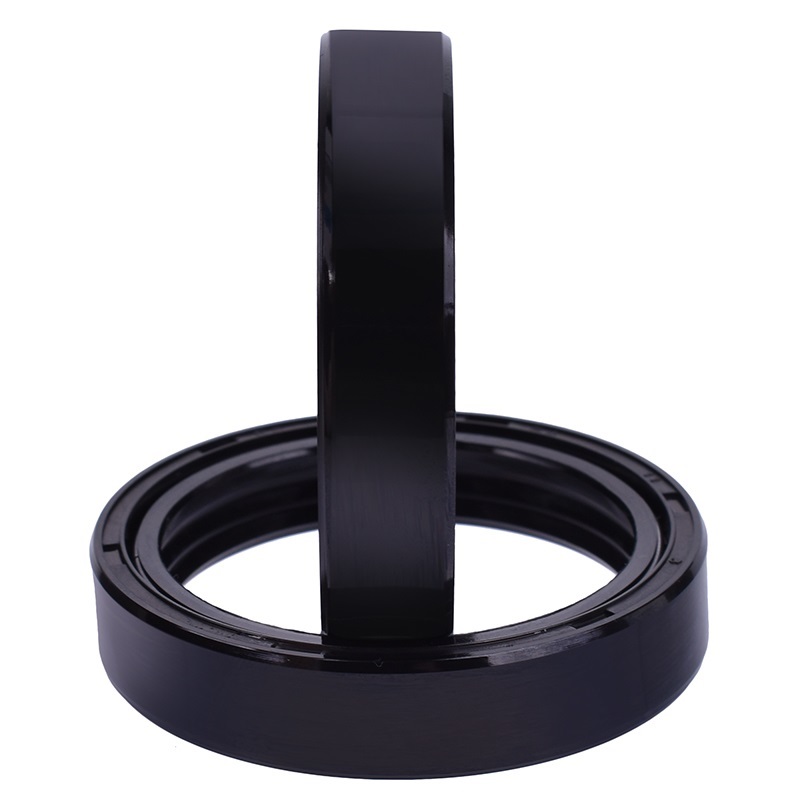

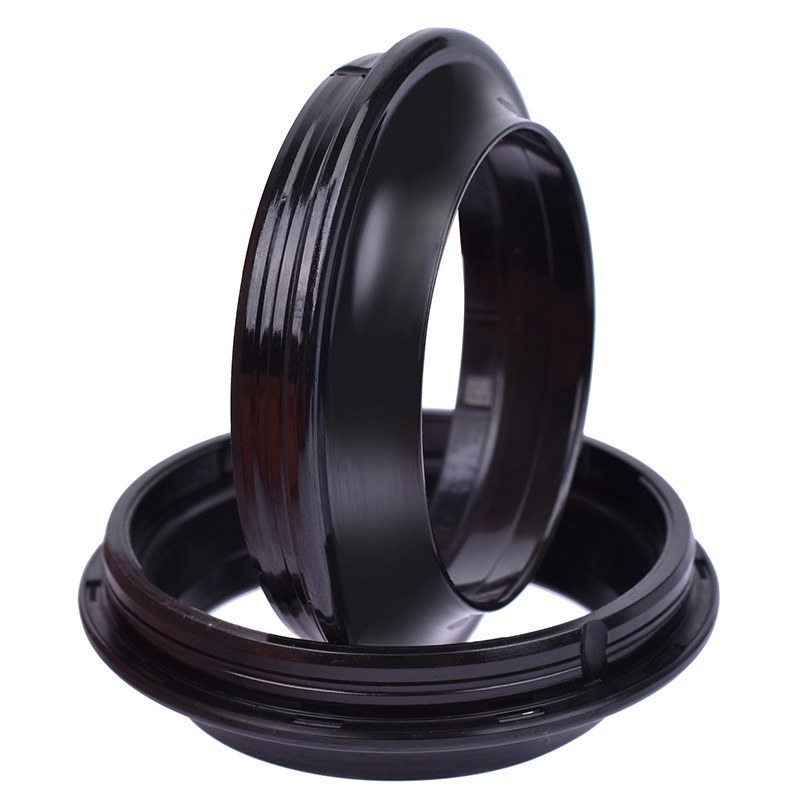

Installation Instructions for Front Fork Suspension Damper Oil Seal Dust Cover 43x54x11 Compatible with DL650 V-Strom 650 (2017 Onward)

Tools Required:

1. Socket Set: Ensure you have a complete set to remove and install bolts.
2. Torque Wrench: To ensure bolts are tightened to manufacturer specifications.
3. Flathead Screwdriver: Useful for prying off old seals if necessary.
4. Phillips Head Screwdriver: For assisting with any screws that may need removal.
5. Pliers: To help grip and remove components if needed.
6. Clean Cloth or Rag: To clean the area before installation and to remove any old grease or debris.
7. Grease: To lubricate the new seal for easier installation and better performance.
8. Replacement Oil (if necessary): Depending on the condition of your existing damper oil, consider replacing it during this installation.
9. Safety Glasses: Always wear safety glasses for protection during installation.

Installation Steps:

1. Preparation:

   • Park your motorcycle on a stable surface and ensure it is secured.
   • Loosen the front wheel axle and remove the front wheel to access the fork.

2. Remove the Old Dust Seal:

   • Gently pry off the old dust cover using the flathead screwdriver. Be cautious not to damage the fork tube.

3. Clean the Area:

   • Use the clean cloth to wipe the fork tube and ensure no dirt or debris remains that could interfere with the new seal.

4. Install the New Dust Cover:

   • Before installing the new dust cover, apply a thin layer of grease to the inside of the dust cover.
   • Position the new dust cover onto the fork tube and press it firmly into place until it is seated properly.

5. Reassemble Fork Components:

   • Reinstall any components you removed to access the dust cover.
   • Make sure to tighten bolts to the manufacturer specifications using the torque wrench.

6. Reinstall the Front Wheel:

   • Place the front wheel back onto the bike and securely tighten the axle.

7. Final Checks:

   • Check the installation for any visible gaps or misalignment.
   • Ensure everything is secured before taking the motorcycle for a test ride.

Conclusion:
Following these steps will help ensure a proper installation of the Front Fork Suspension Damper Oil Seal Dust Cover. Regular maintenance and attention to your motorcycle's suspension will result in improved ride quality and longevity of your suspension components.
