Installation Instructions for Universal Carburetor Repair Kit

Tools Required:

• Screwdrivers (flathead and Phillips)
• Wrenches (various sizes)
  -Torque wrench
  -Carburetor cleaning spray
  -Soft brush or rag
  -Pliers
• Needle-nose pliers
• Safety glasses
• Shop towel
  -Container for small parts

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat surface and the engine is cool.
   • Disconnect the battery to prevent any electrical shorts.

2. Remove the Carburetor:

   • Use a wrench to disconnect the fuel line from the carburetor.
   • Carefully remove throttle and choke cables using pliers.
   • Unscrew the mounting brackets holding the carburetor in place with the appropriate screwdriver.

3. Disassemble the Carburetor:

   • Carefully open the carburetor. Keep track of all small parts in a container to prevent loss.
   • Use the carburetor cleaning spray and a soft brush to clean any debris or old fuel deposits inside the carburetor.

4. Replace the Diaphragms and Gaskets:

   • Remove old diaphragms and gaskets. Make sure all remnants of old parts are cleaned from the carburetor.

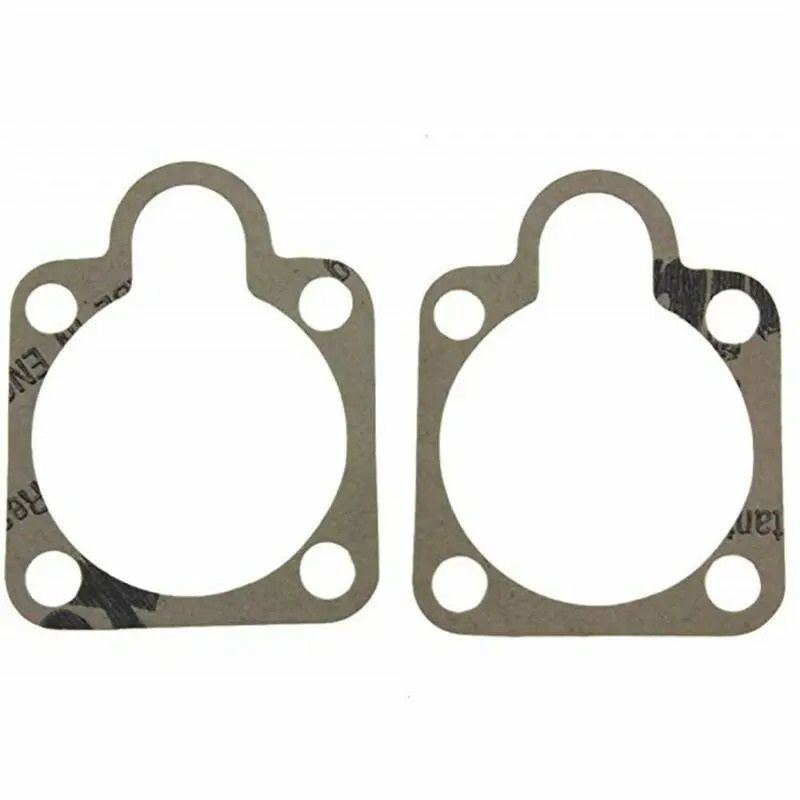

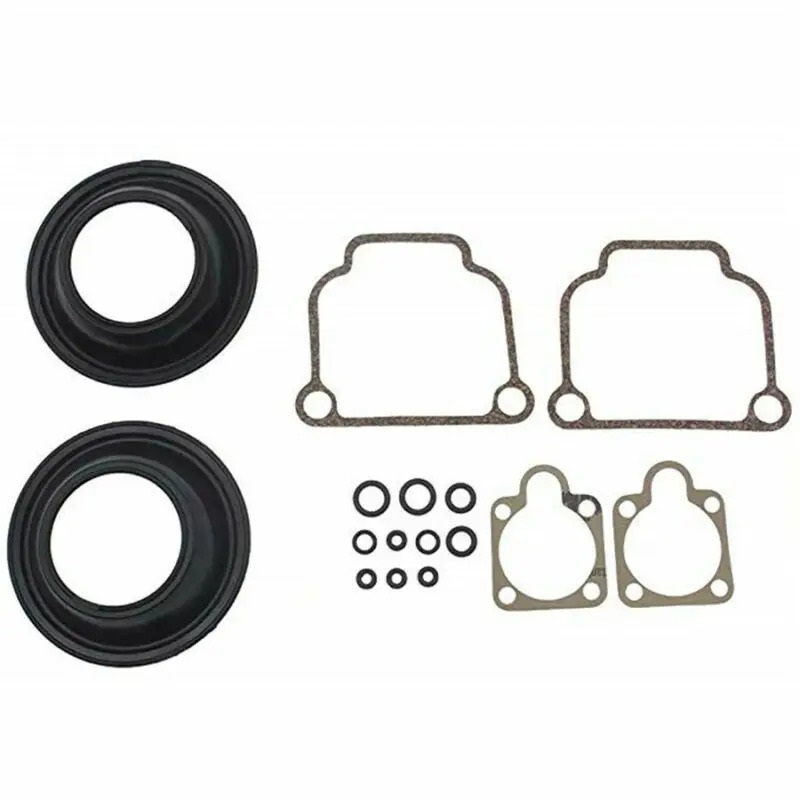

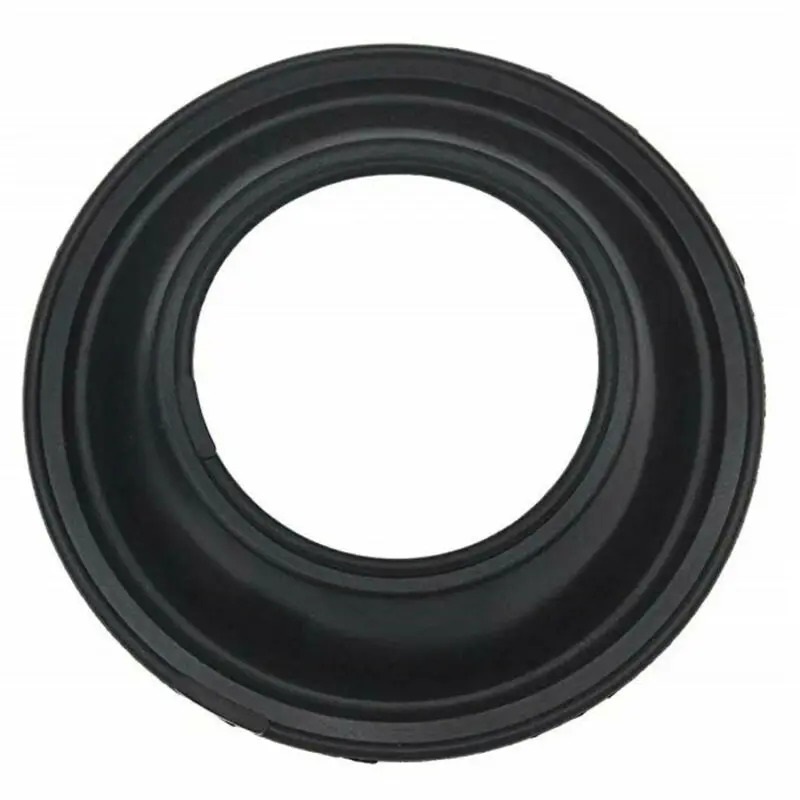

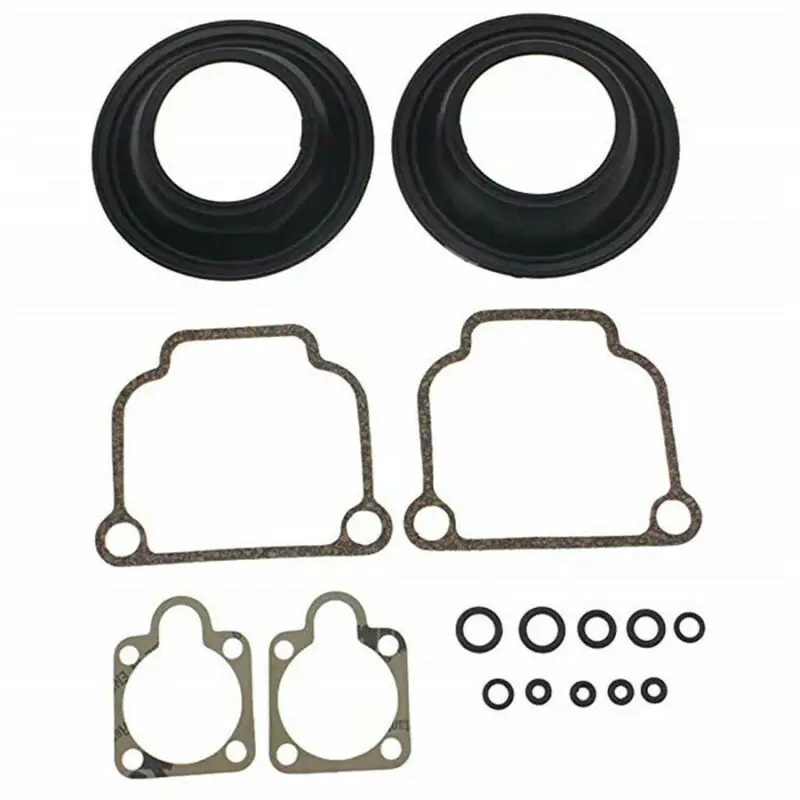

   • Install the new diaphragms and gaskets included in the repair kit. Ensure they are seated properly.

5. Replace O-rings:

   • Identify the O-rings needing replacement and remove them.

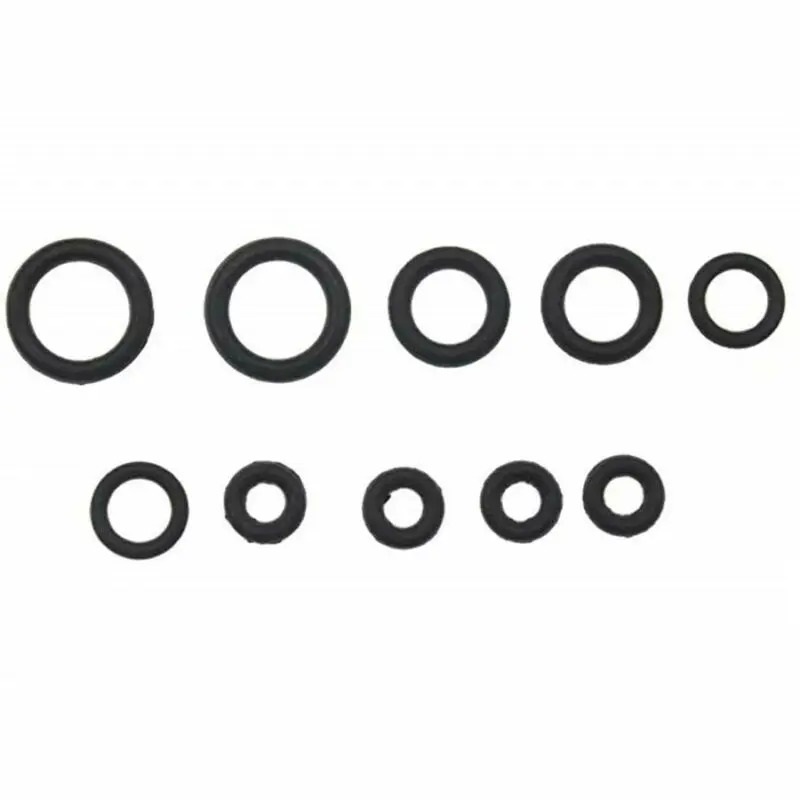

   • Install the new O-rings from the kit in their respective locations, making sure they fit snugly.

6. Reassemble the Carburetor:

   • Carefully reassemble the carburetor, ensuring all components are correctly aligned.
   • Tighten screws to the manufacturer's specifications using the torque wrench.

7. Reinstall the Carburetor:

   • Position the carburetor back onto the motorcycle and secure it in place using the mounting brackets.
   • Reconnect the throttle and choke cables, followed by the fuel line.

8. Final Checks:

   • Reconnect the battery.
   • Start the engine and allow it to idle while checking for any leaks around the carburetor and adjusting as necessary.
   • Make any adjustments required for optimal performance as per the motorcycle's manual.

Conclusion:

By following these steps and using the aforementioned tools, you can successfully install the Universal Carburetor Repair Kit, ensuring that your motorcycle operates smoothly and efficiently. Enjoy your ride!
