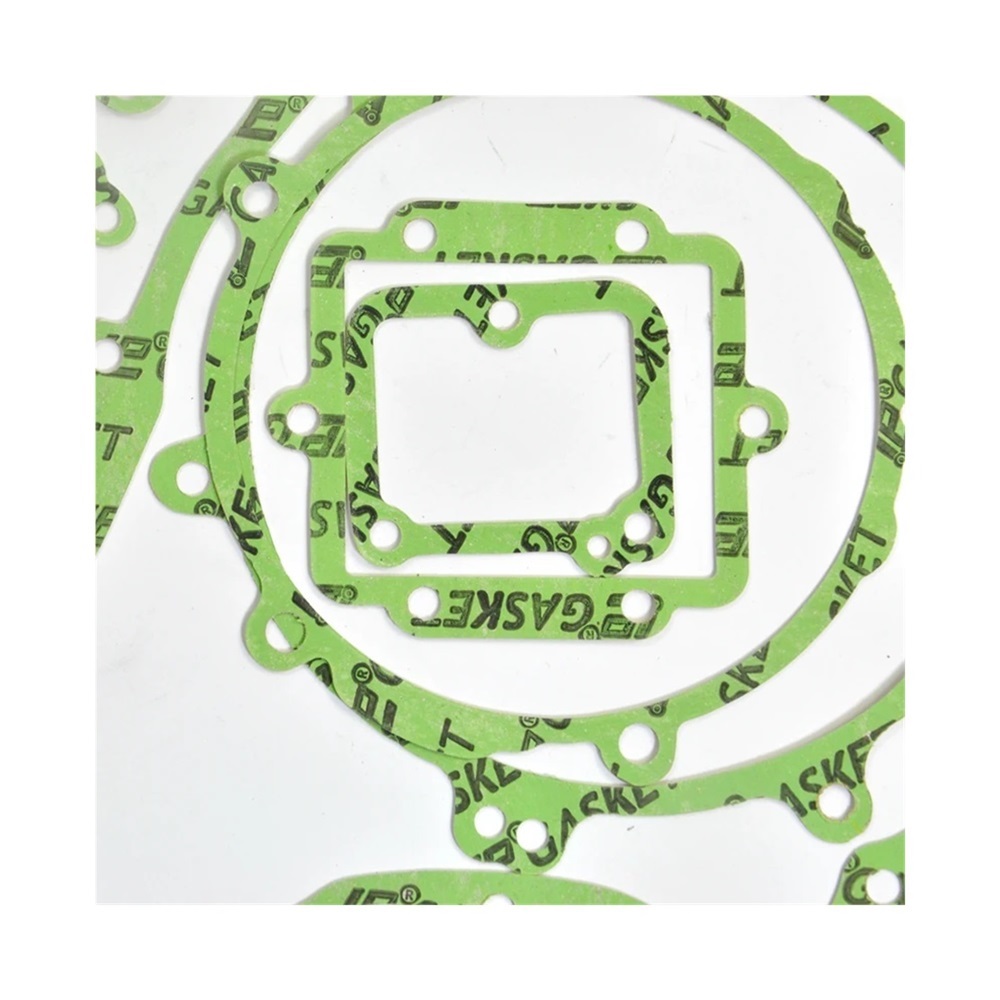

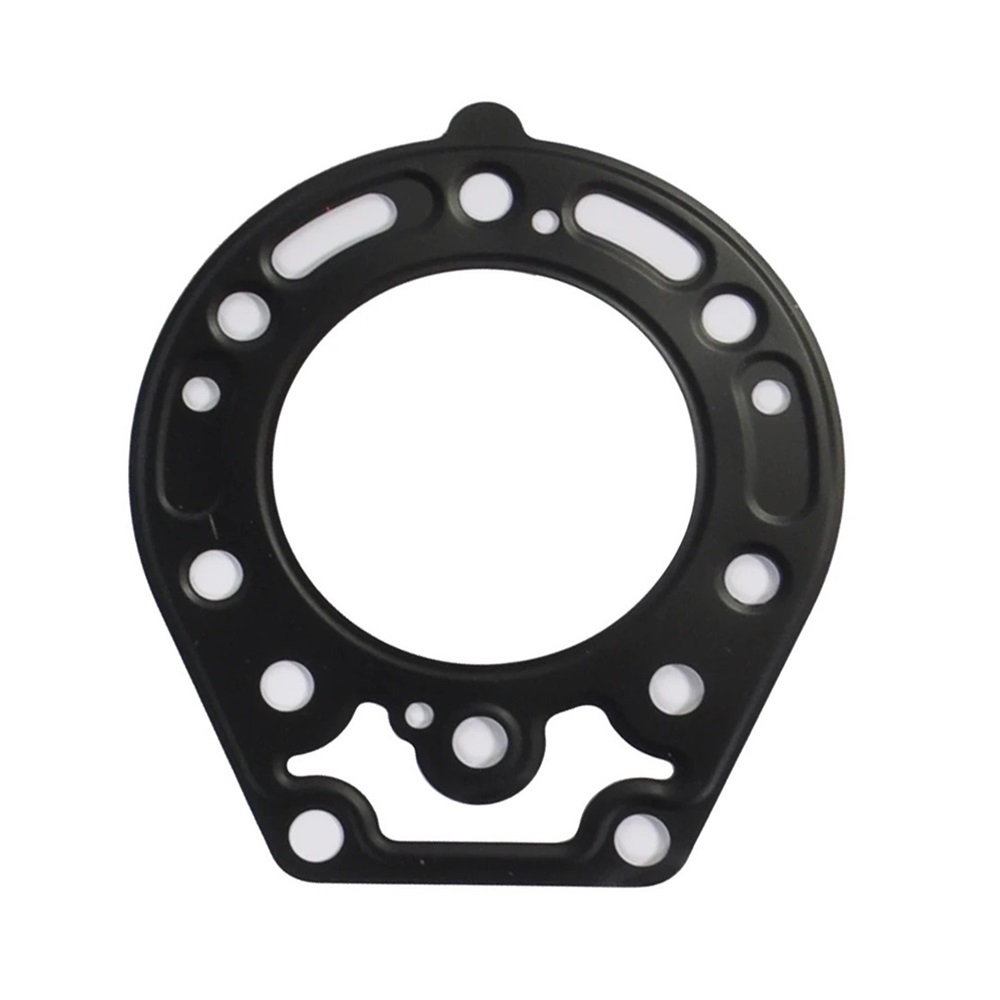

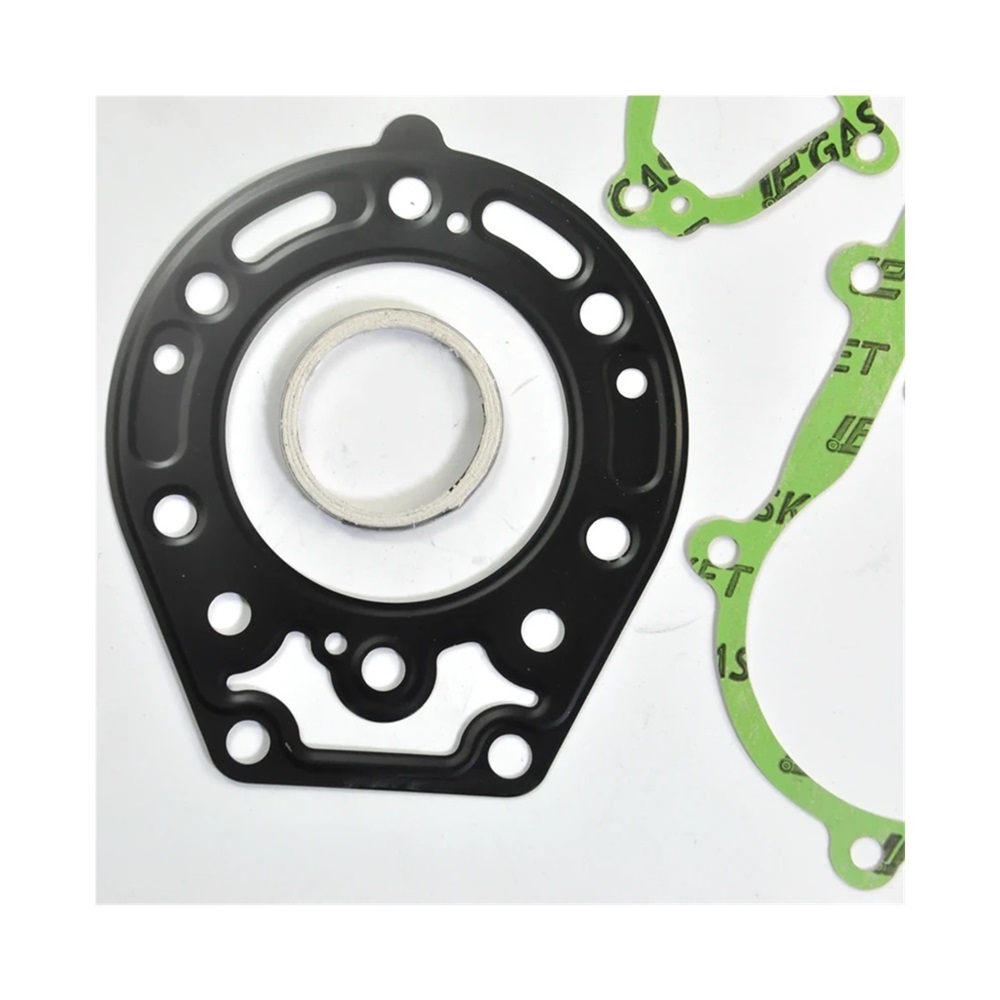

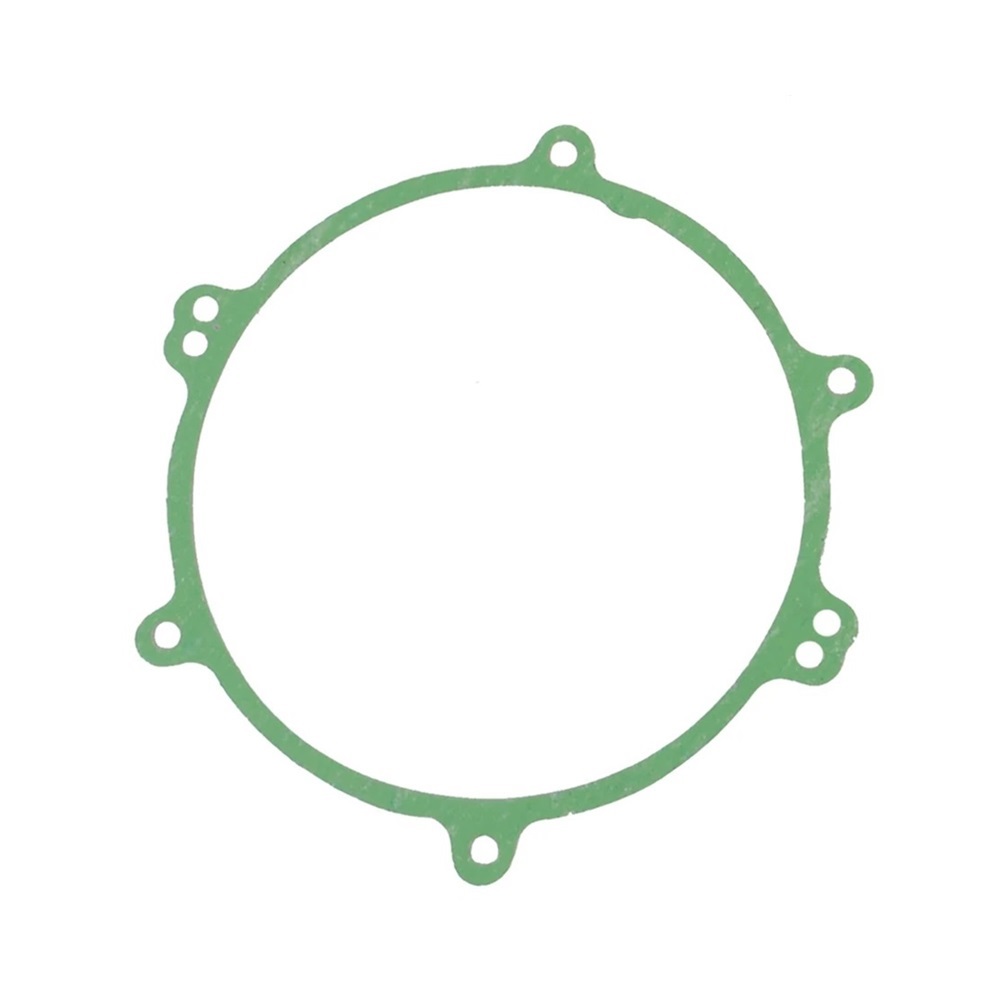

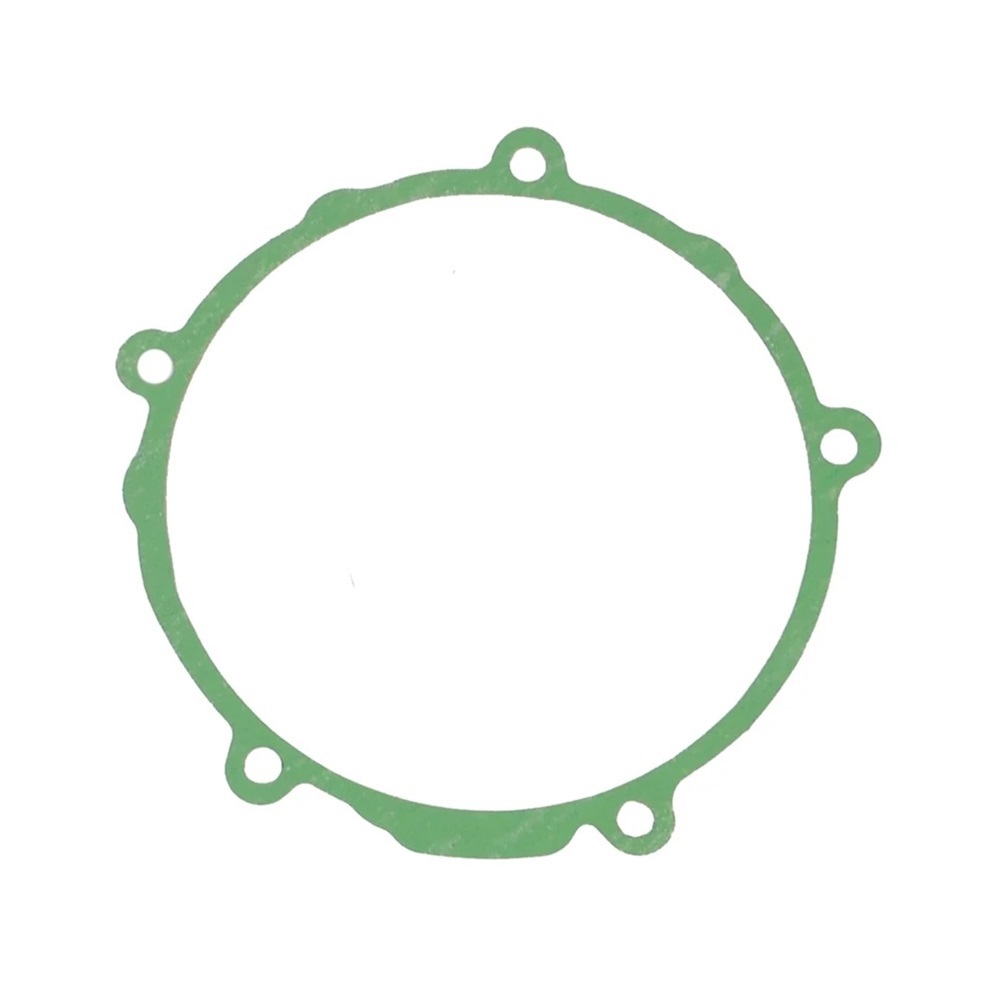

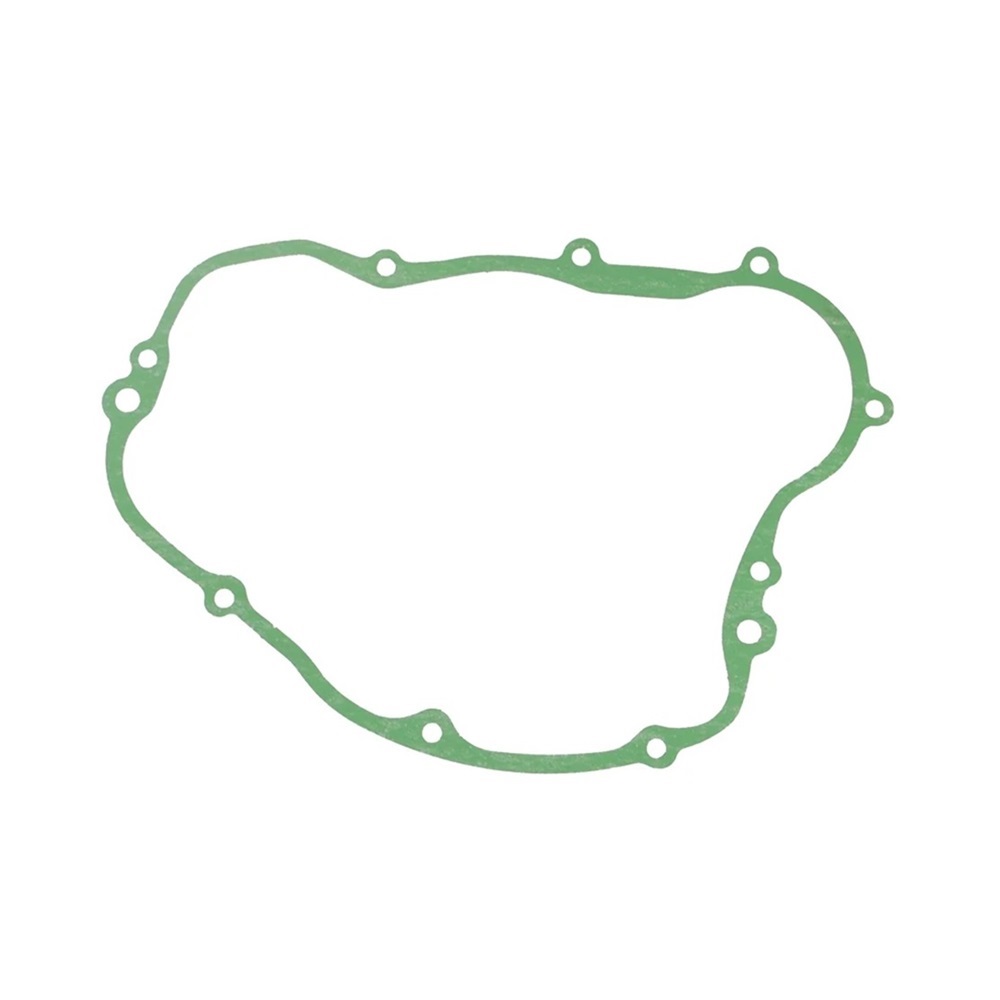

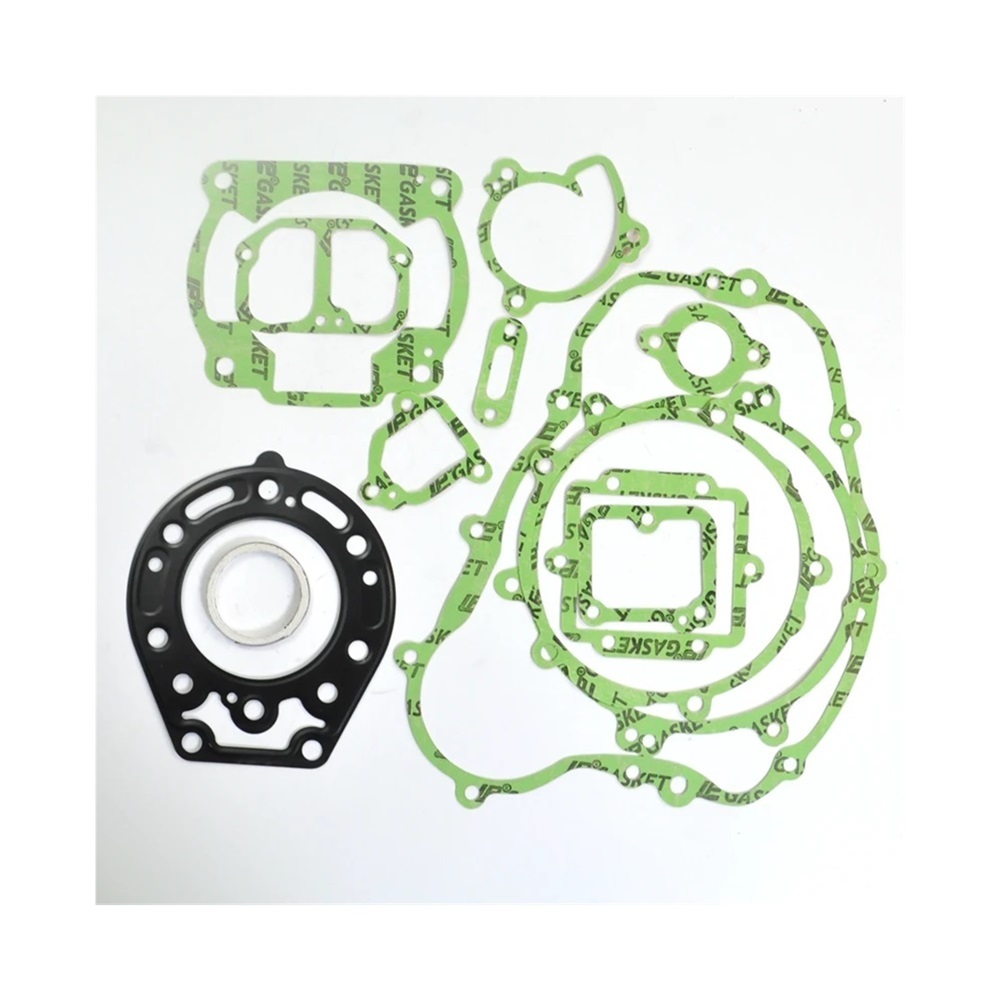

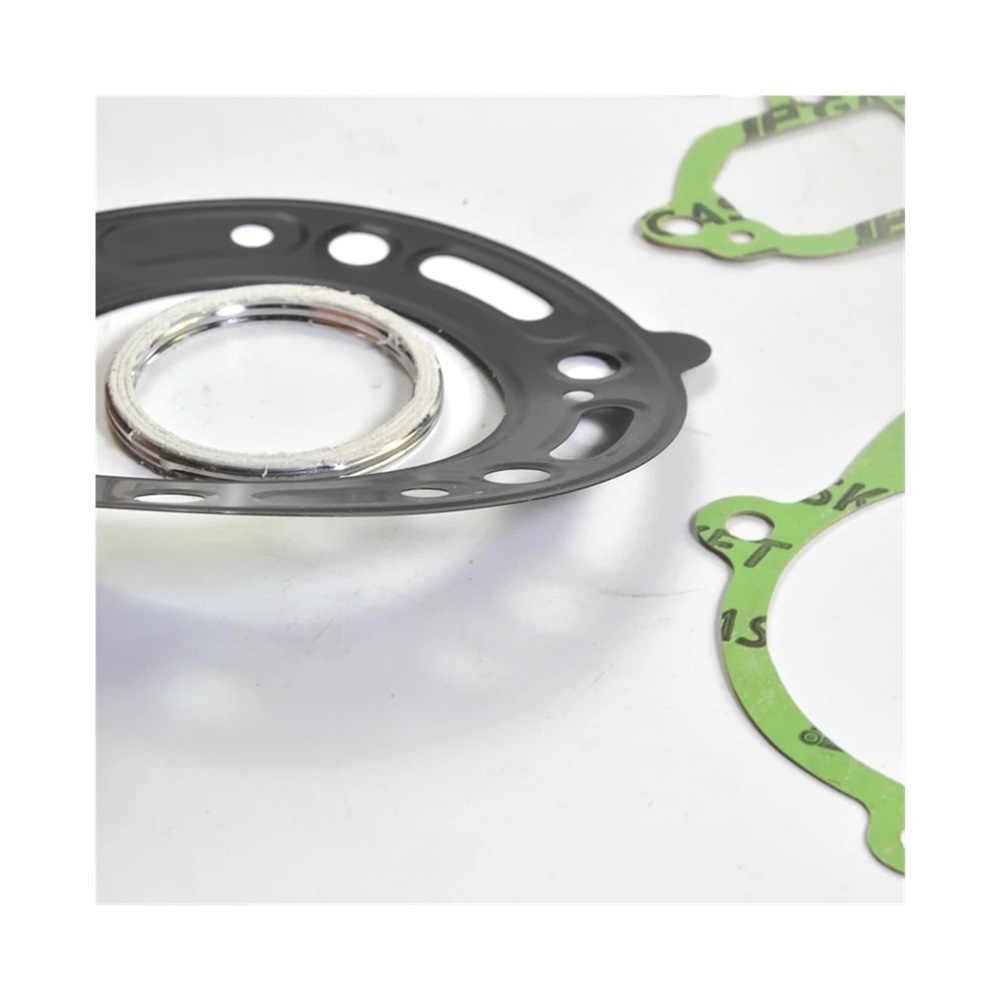

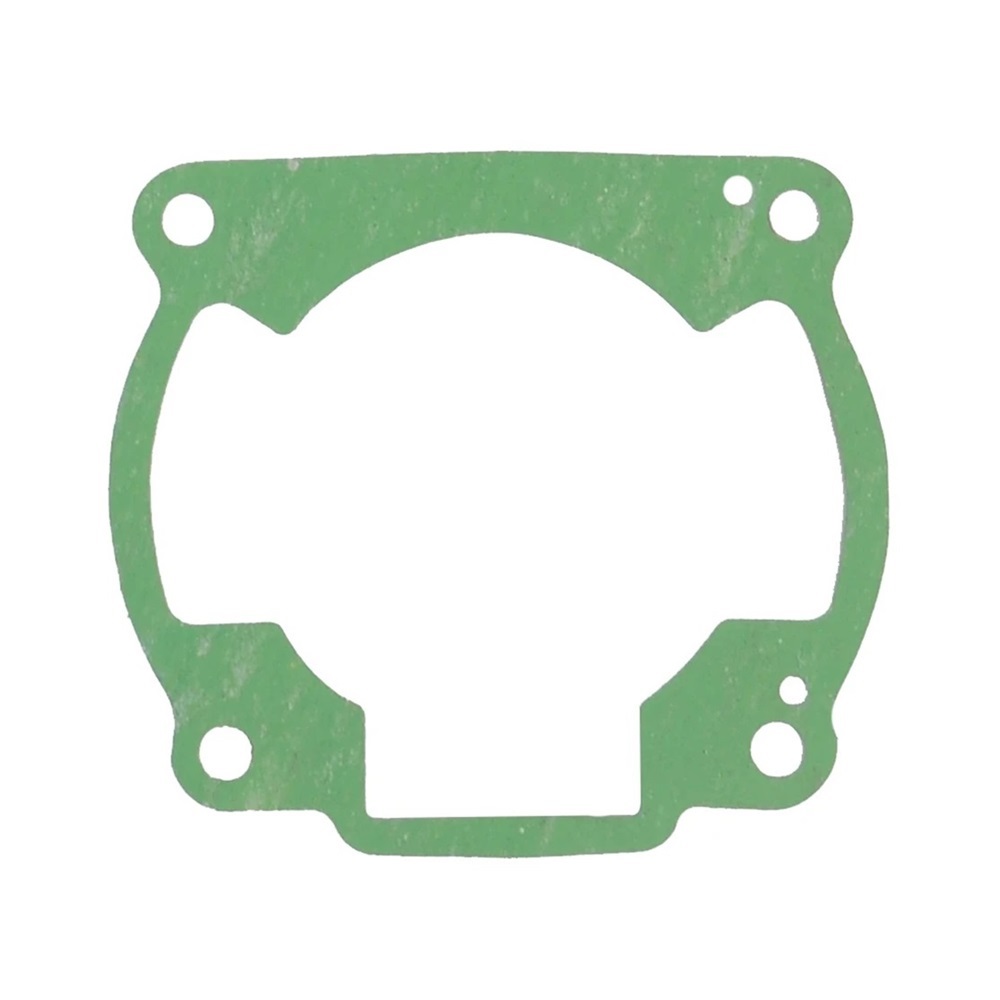

Product Installation Instructions for Motorcycle Crankcase Cover Gasket Kit for KDX200 Models (1995 to 2006)

Installation Overview:

This kit is designed for easy installation on KDX200 models from 1995 to 2006. Following these instructions will ensure a smooth and efficient replacement of the crankcase cover gasket.

Tools Required:

1. Socket Wrench Set - To remove the crankcase cover bolts.
2. Torque Wrench - To properly torque the bolts upon reinstallation.
3. Gasket Scraper or Razor Blade - For removing the old gasket material.
4. Cleaning Cloths - To clean the surfaces before applying the new gasket.
5. Engine Oil or Gasket Sealant - To improve gasket adhesion (if recommended).
6. Flathead Screwdriver - For prying or gently assisting in the removal of components if needed.
7. Safety Goggles and Gloves - To protect your eyes and hands during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the engine is cool.
   • Disconnect the battery to prevent any electrical issues.

2. Remove Crankcase Cover:

   • Use the socket wrench to carefully remove the bolts holding the crankcase cover in place.
   • Keep track of the bolts and any washers that may be used.

3. Clean Old Gasket Material:

   • Gently scrape off any remnants of the old gasket from the crankcase and the cover using the gasket scraper or razor blade.
   • Wipe the surfaces clean with a cleaning cloth to ensure proper adhesion for the new gasket.

4. Prepare New Gasket:

   • If using gasket sealant, apply a thin layer to one side of the new gasket (if recommended).
   • Align the new gasket with the holes on the crankcase cover.

5. Reinstall Crankcase Cover:

   • Carefully position the crankcase cover back onto the engine, ensuring that the gasket is properly seated.
   • Hand-tighten the bolts initially, then use the torque wrench to tighten them to the manufacturer's specified torque setting.

6. Final Checks:

   • Reconnect the battery.
   • Start the engine and check for any oil leaks around the crankcase cover.
   • Allow the engine to reach normal operating temperature, then perform a final inspection for leaks.

By following these steps and using the tools mentioned, you can successfully replace the crankcase cover gasket and improve the performance and reliability of your KDX200 motorcycle.
