Outboard Motor Fuel Filter Strainer Installation Instructions

Tools Required:

• Socket Wrench Set (various sizes)
• Pliers
• Screwdriver (flathead and Phillips)
• Fuel Line Wrench (for easier removal of fuel lines)
• Clean Cloths or Paper Towels (for cleanup)
• Container (to catch any fuel spills)
• Safety Glasses (for eye protection)

Installation Steps:

1. Safety First:

   • Before starting, ensure the outboard motor is turned off and disconnect the battery to prevent any accidental starts during installation.

2. Prepare the Work Area:

   • Clear the area around the outboard motor to have ample working space. Place a container beneath the fuel line to catch any spills.

3. Remove the Old Filter Strainer:

   • Use the fuel line wrench to carefully disconnect the fuel lines attached to the old filter strainer. Take precautions to avoid fuel spills.
   • Remove any mounting bolts using the socket wrench and take out the old filter strainer from its housing.

4. Clean the Area:

   • Use clean cloths or paper towels to wipe down the area where the old filter strainer was installed. Ensure no debris is left that could contaminate the new filter.

5. Install the New Filter Strainer:

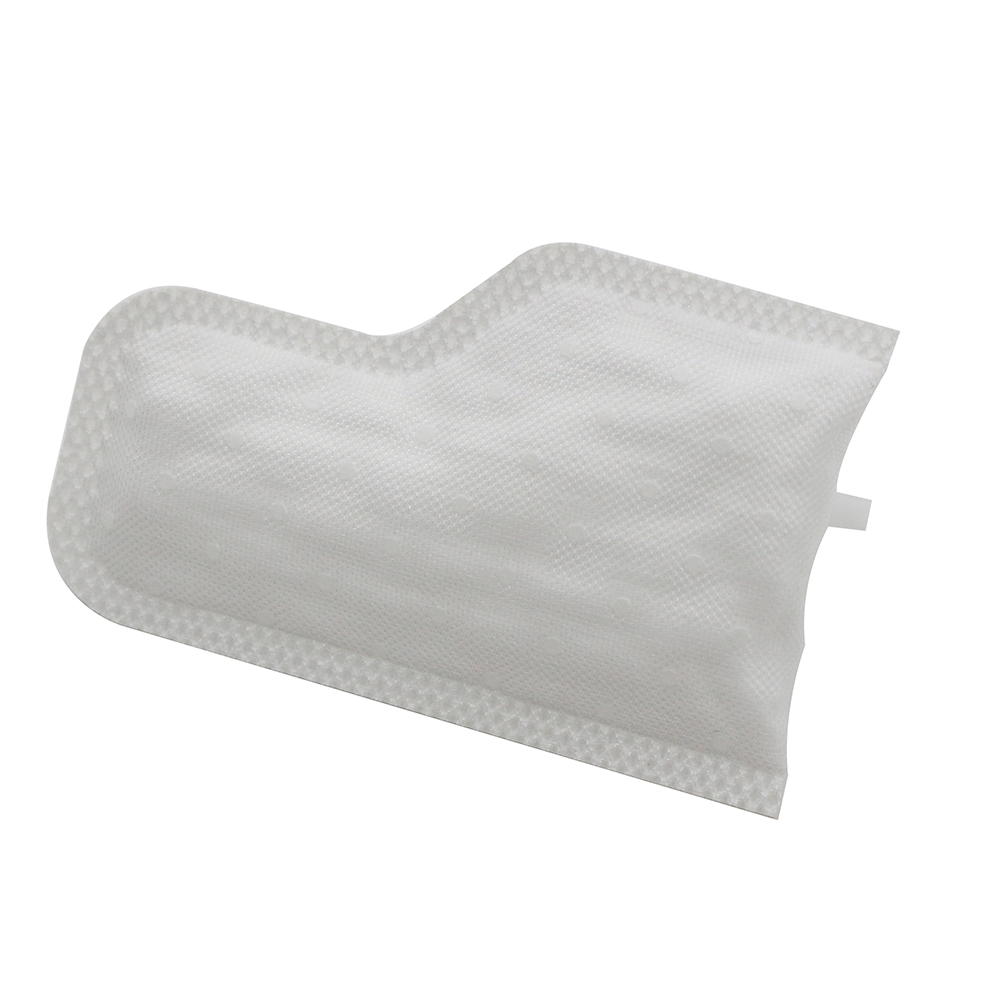

   • Position the new fuel filter strainer (compatible with part numbers 6BG-13915-00 and 6BG-13915-01) into the housing.
   • Secure it in place using the mounting bolts, tightening them with the socket wrench to ensure it’s firmly attached.

6. Reconnect the Fuel Lines:

   • Reattach the fuel lines to the new filter strainer. Make sure they are connected securely to prevent any leaks.

7. Double-Check Connections:

   • Inspect all connections for tightness and ensure that there are no kinks or damages in the fuel lines.

8. Reconnect the Battery:

   • Once everything is securely in place, reconnect the battery to the outboard motor.

9. Test the Installation:

   • Start the outboard motor and let it run for a few minutes. Check for any leaks around the new filter strainer and fuel lines.

10. Final Check:

• Turn off the motor and inspect the work area. Ensure everything is clean, and any tools used are accounted for.

Congratulations! You have successfully installed the Outboard Motor Fuel Filter Strainer. Enjoy enhanced engine performance and longevity.
