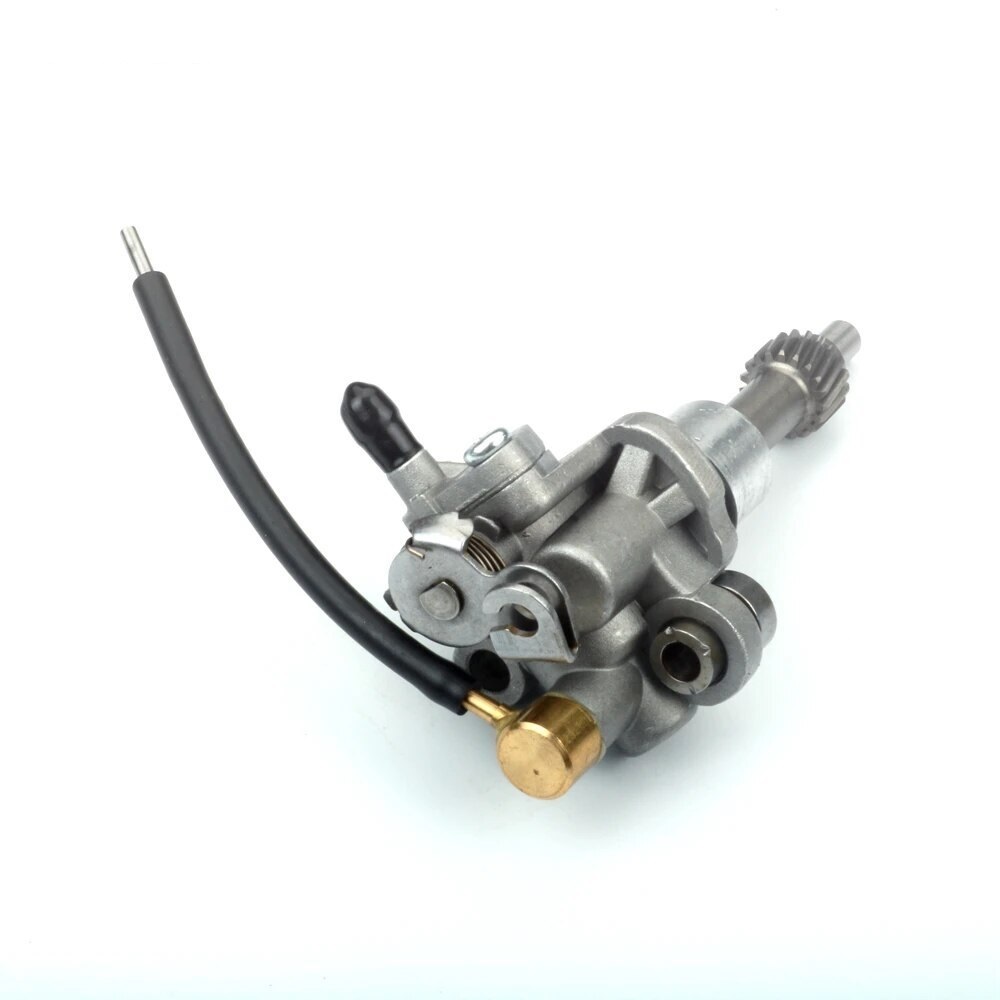

Product Installation Instructions for Scooter Oil Pump Assembly (50cc 2-Stroke Engines AF18, AF27, AF28, AF42, AF29)

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Phillips and Flathead)
3. Pliers
4. Torque Wrench
   5.Clean Rag or Cloth
5. Oil Drain Pan
6. Replacement Oil (suitable for 2-stroke engines)
7. Safety Gloves
8. Safety Goggles

Installation Steps:

1. Preparation:

   • Before starting the installation, ensure the scooter is parked on a flat surface and the engine is turned off and cooled down.
   • Wear safety gloves and goggles to protect yourself during the installation process.

2. Remove the Old Oil Pump:

   • Using the appropriate screwdriver and socket wrench, carefully remove any screws or bolts securing the old oil pump.
   • Disconnect the oil lines and take out the old oil pump. Make sure to place the oil drain pan underneath to catch any oil that might spill.

3. Clean the Area:

   • Use a clean rag to wipe any residue or debris around the oil pump area. This ensures a clean installation surface for the new pump.

4. Install the New Oil Pump:

   • Position the new scooter oil pump assembly in place.
   • Connect the oil lines to the appropriate ports on the new pump.
   • Secure the pump using screws or bolts, ensuring they are tightened to the manufacturer's specifications using a torque wrench.

5. Fill the Oil Reservoir:

   • Fill the oil reservoir with the appropriate oil for 2-stroke engines. Refer to the scooter's manual for the correct oil type and quantity.

6. Test the System:

   • Start the engine and allow it to run for a few minutes. Check for any leaks around the oil pump and ensure that oil is being supplied correctly.
   • If everything is functioning properly, turn off the engine and clean any spills.

7. Final Checks:

   • After confirming that there are no leaks and the oil supply is adequate, your installation is complete.

Conclusion:
Congratulations on successfully installing your new scooter oil pump assembly! Proper maintenance will enhance your engine's performance and prolong its life. If you have any doubts during the installation, please consult a professional mechanic for assistance.
