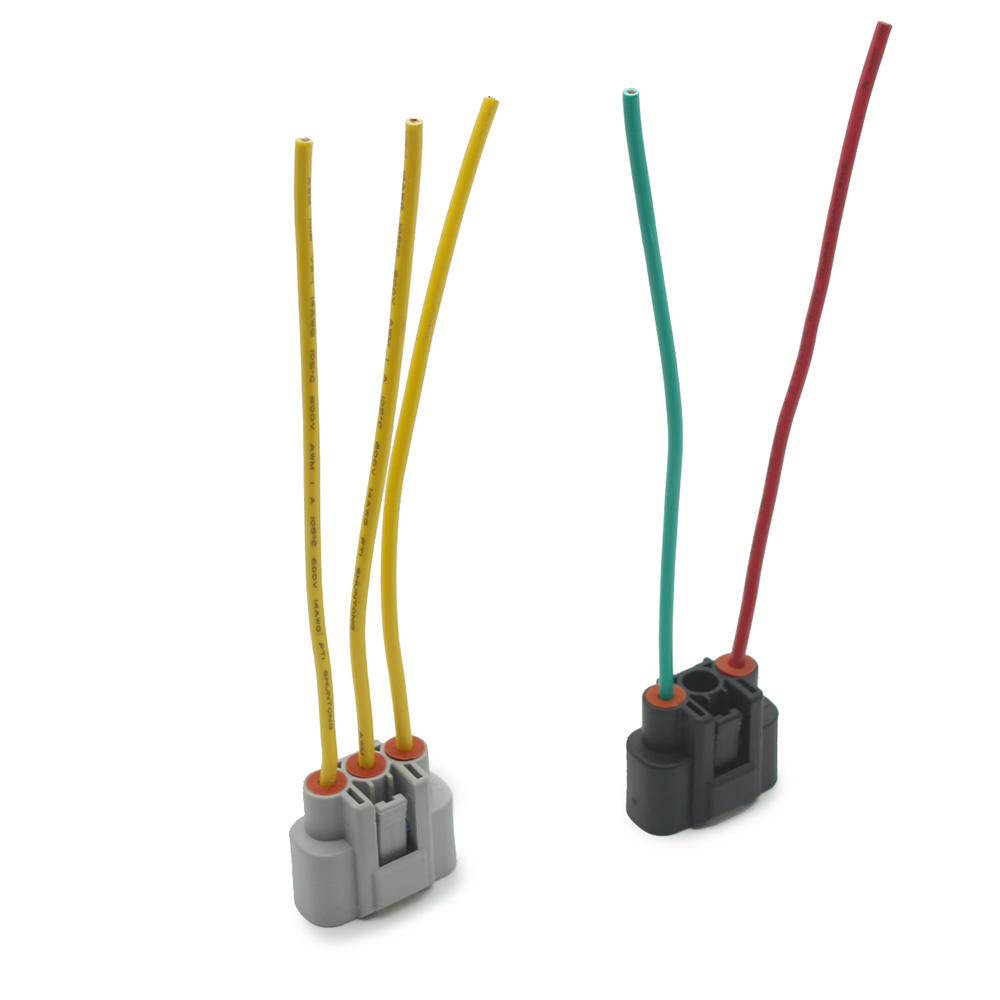

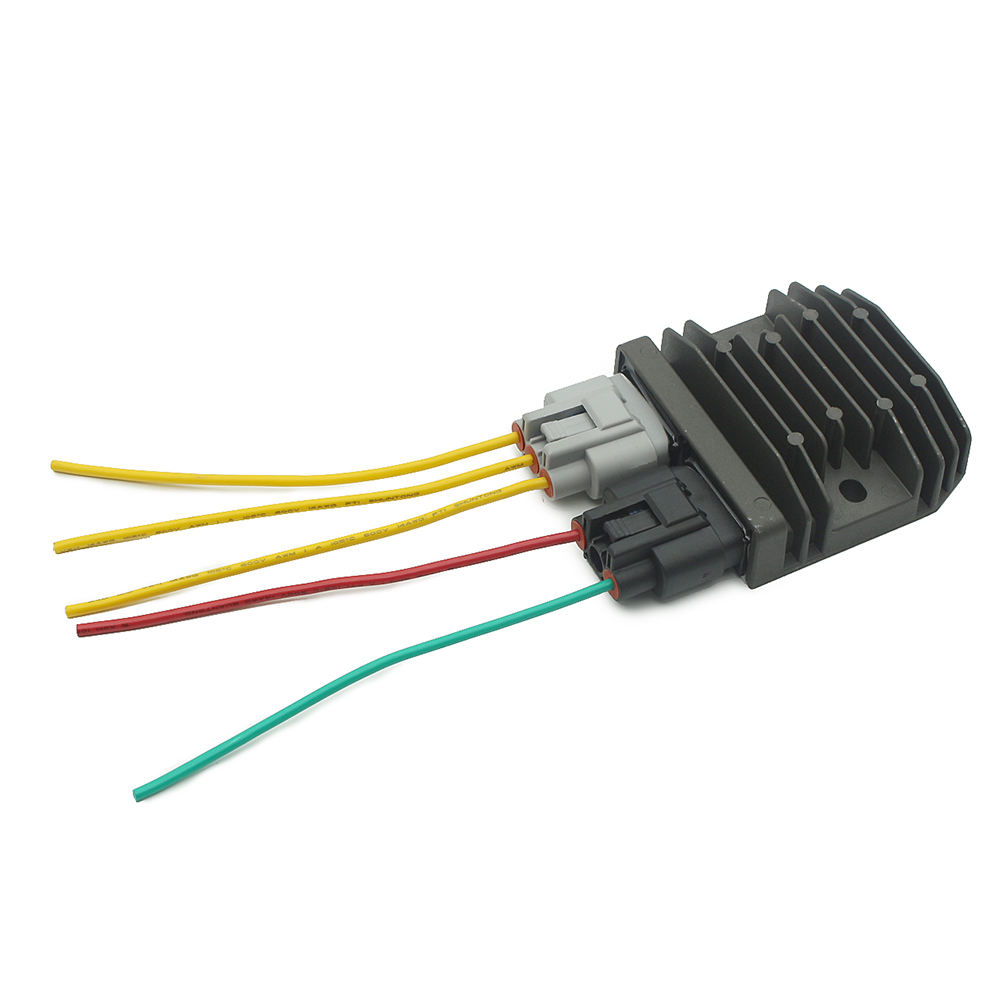

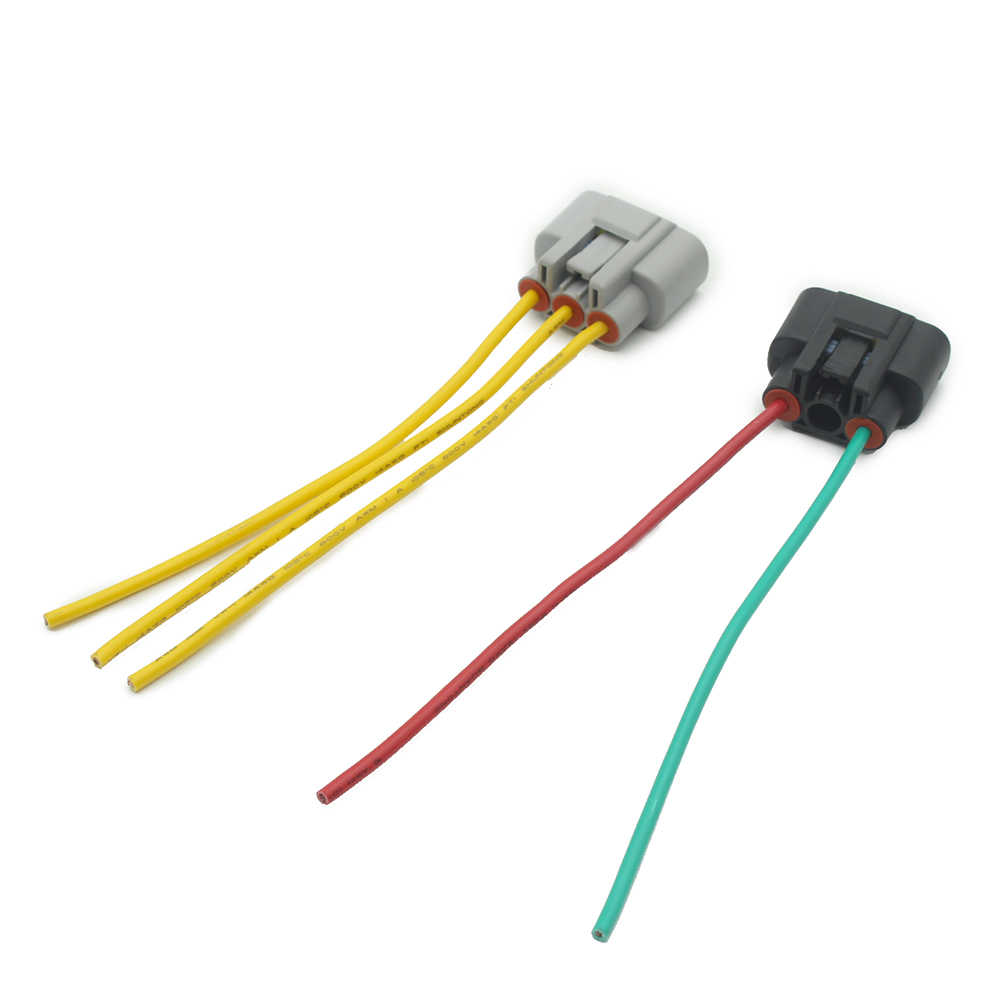

Product Installation Instructions for Motorcycle Regulator Rectifier Female Connectors

Compatibility:
Suitable for various motorcycle models, including CB500F, CBR600RR, CBR650F, TRX420, AN650, FZ09, YZF R1, and more.

Installation Tools Required:

1. Screwdriver Set: A standard screwdriver set (Philips and flathead) will be needed to remove any existing components or covers.

2. Wire Cutters/Strippers: To cut and strip the wires if modifications to the existing wiring are necessary.

3. Heat Shrink Tubing: For insulating any exposed wires after connecting the new plugs.

4. Soldering Iron and Solder (if applicable): If you need to solder the connections for a more permanent installation.

5. Multimeter: To check voltage and ensure proper connections during installation.

6. Electrical Tape: For additional insulation and securing connections.

7. Wrench Set (if applicable): Depending on your motorcycle model, you may need wrenches to remove mounting brackets or other components.

Installation Steps:

1. Safety First:

   • Ensure the motorcycle is on a stable surface and the ignition is turned off. Disconnect the battery to avoid any electrical shorts.

2. Remove Old Connectors:

   • Use the screwdriver or wrench to remove any parts blocking access to the regulator rectifier.
   • Disconnect the old connectors by gently pulling them apart.

3. Prepare New Connectors:

   • If necessary, cut and strip the ends of the wires to expose enough copper for connection.

4. Connect New Plugs:

   • If using solder, connect the wires by soldering them together or using the appropriate connector method.
   • Ensure a secure connection, and cover any exposed wire with heat shrink tubing or electrical tape.

5. Test Connections:

   • Use a multimeter to check the voltage and confirm that the connections are correct.

6. Install New Connectors:

   • Secure the new connectors in place, ensuring they fit snugly to prevent disconnection.
   • Replace any removed components and ensure everything is properly fastened.

7. Reattach Battery:

   • Once everything is securely installed, reconnect the battery and turn on the ignition to test if the new connectors are functioning properly.

8. Final Check:

   • Recheck all connections, ensuring there are no loose wires or exposed copper.

Following these instructions will help ensure a smooth installation process for your Motorcycle Regulator Rectifier Female Connectors. Enjoy enhanced performance and reliability on your ride!
