Installation Instructions for 70mm Big Bore Cylinder Kit for 150cc Engines Upgrade to 233cc

Introduction:

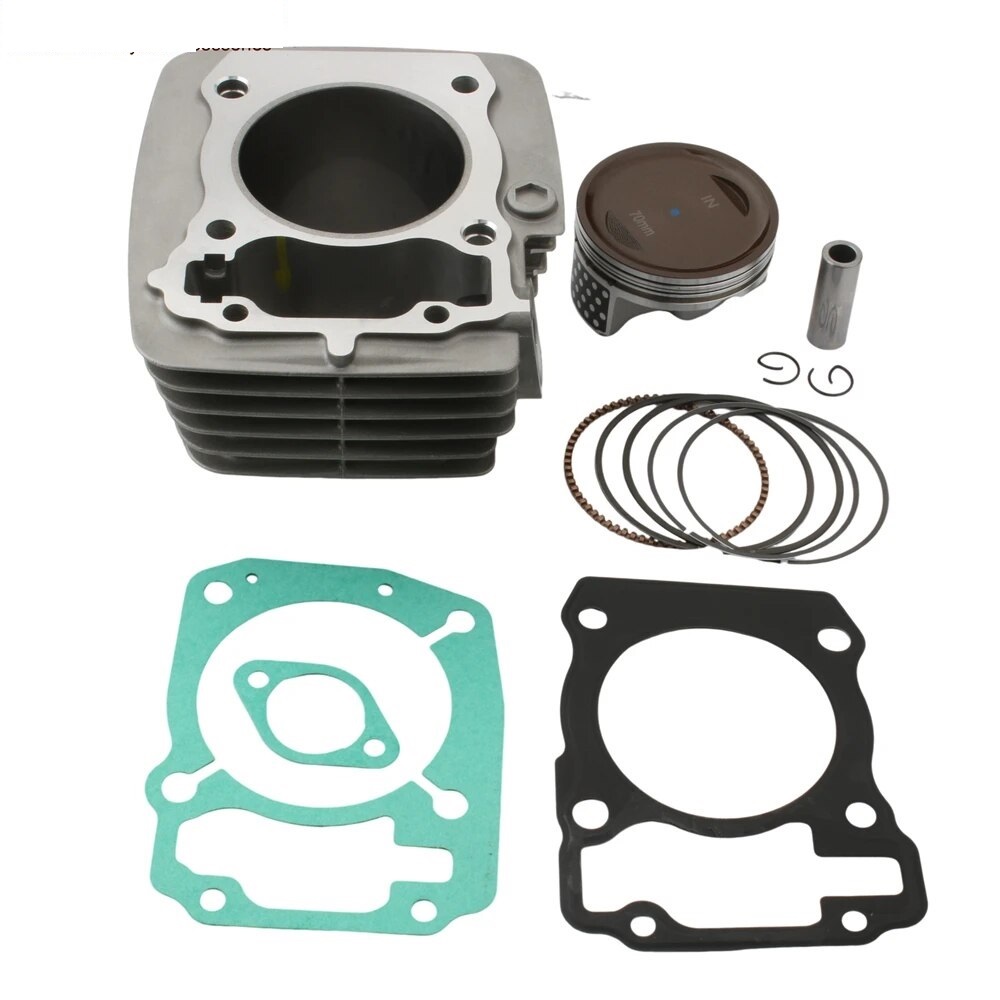

Congratulations on your purchase of the 70mm Big Bore Cylinder Kit! This kit is designed to upgrade your 150cc engine to a powerful 233cc configuration, enhancing performance, acceleration, and overall riding experience. Follow the instructions carefully to ensure a successful installation.

Tools Required:

1. Socket set (metric)
2. Torque wrench
3. Screwdriver set (flathead and Phillips)
4. Pliers
5. Allen wrench set
6. Engine gasket scraper or razor blade
   7.Clean cloth or rags
7. Engine oil (for lubrication)
8. Sealant (if recommended)
9. Safety goggles
   11.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is parked on a flat surface.
   • Disconnect the negative terminal of the battery to prevent any electrical shorts.
   • Allow the engine to cool completely.

2. Remove the Existing Cylinder:

   • Drain the coolant and oil from the engine.
   • Remove the seat and side panels for better access.
   • Disconnect the intake and exhaust components from the existing cylinder.
   • Carefully remove the cylinder head bolts using a torque wrench and socket.
   • Gently lift the existing cylinder off, being cautious not to damage any surrounding components.

3. Clean the Surface:

   • Use the engine gasket scraper to clean the surfaces where the new cylinder will be installed.
   • Ensure there are no remnants of old gasket material or debris.

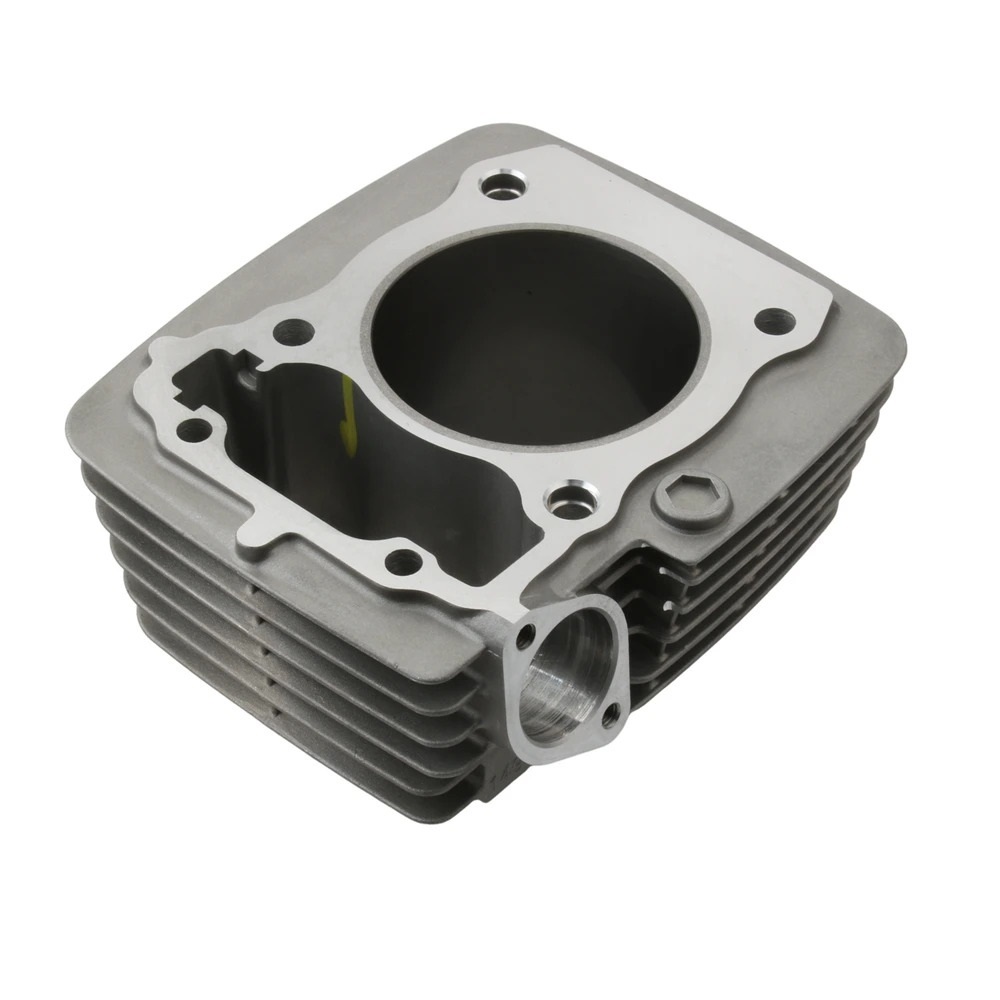

4. Install the 70mm Big Bore Cylinder:

   • Apply a thin layer of sealant (if recommended) to the base of the new cylinder.
   • Carefully place the new cylinder onto the prepared surface, aligning it with the engine.
   • Install the cylinder head and torque the bolts to the manufacturer's specifications using the torque wrench.

5. Reconnect All Components:

   • Reattach the intake and exhaust components securely.
   • Reinstall any other parts that were removed, such as the seat and side panels.
   • Double-check all connections to ensure they are tight and secure.

6. Fill with Fluids:

   • Refill the engine with oil and coolant as per the manufacturer's recommendations.

7. Final Checks:

   • Reconnect the negative terminal of the battery.
   • Conduct a visual inspection to ensure all components are in place and secure.

8. Testing:

   • Start the engine and allow it to warm up for a few minutes.
   • Check for any leaks and listen for abnormal sounds.
   • Take your motorcycle for a test ride to ensure proper performance.

Conclusion:

By following these instructions, you can successfully install the 70mm Big Bore Cylinder Kit and enjoy the enhanced performance of your motorcycle. If you encounter any issues, please consult a professional mechanic for assistance. Enjoy your ride!
