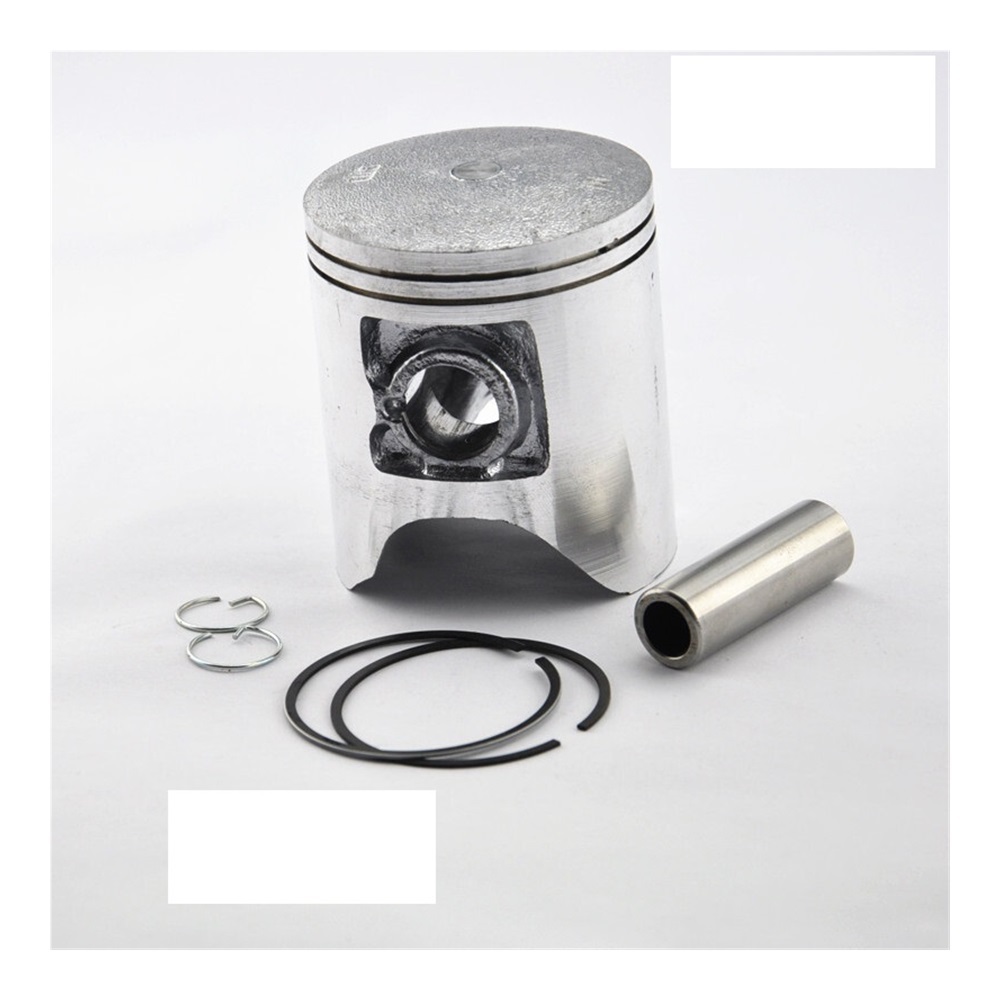

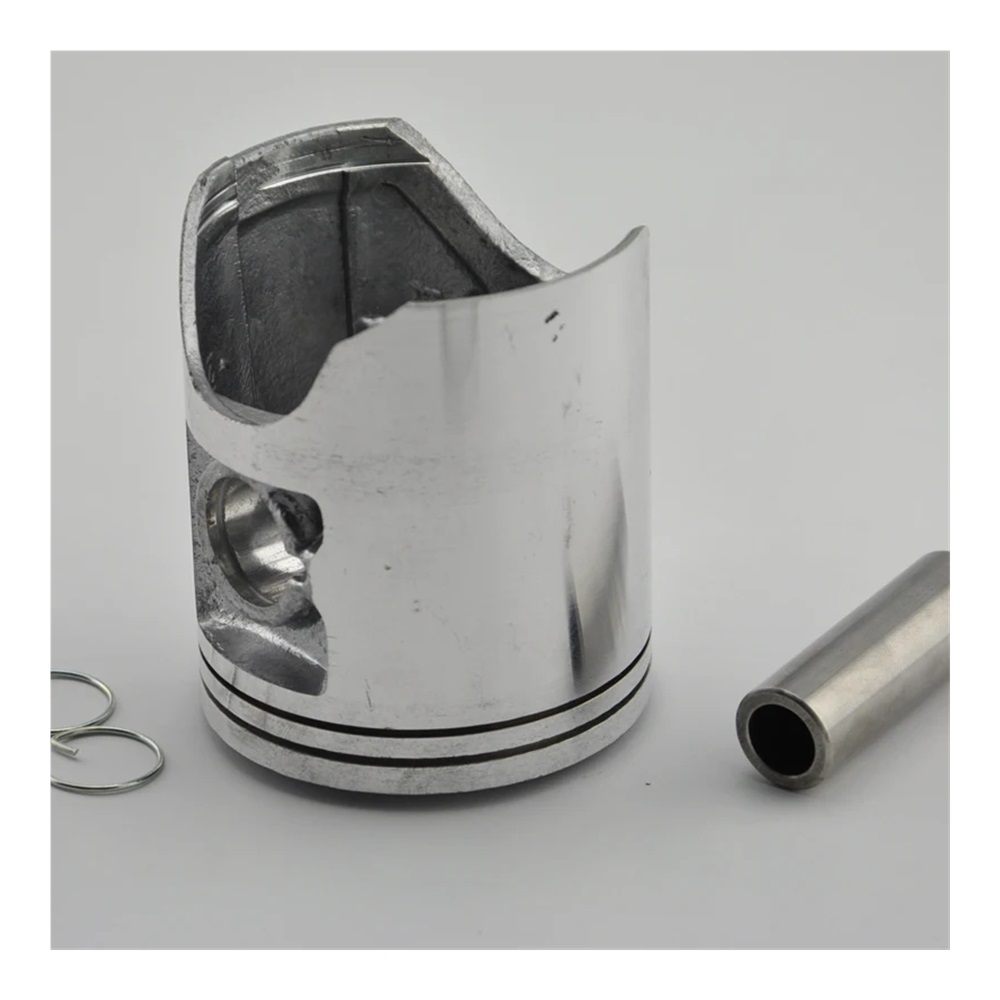

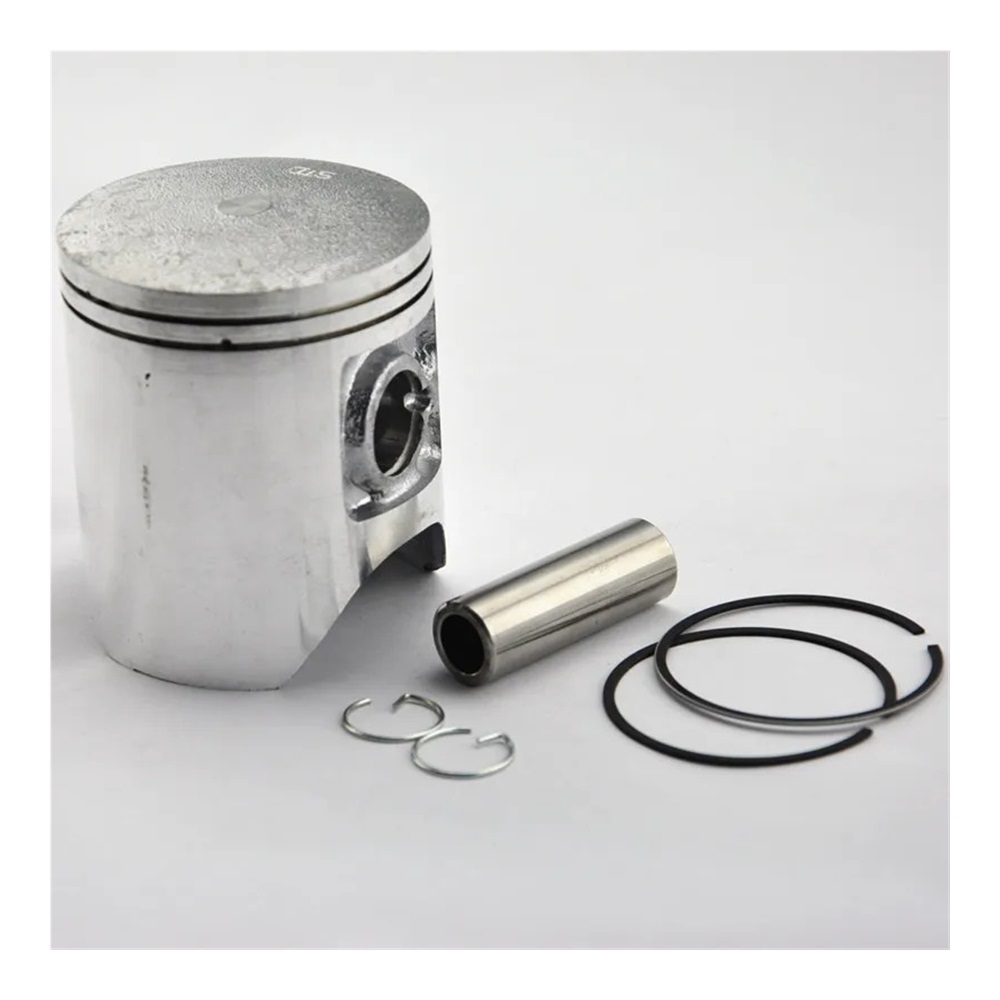

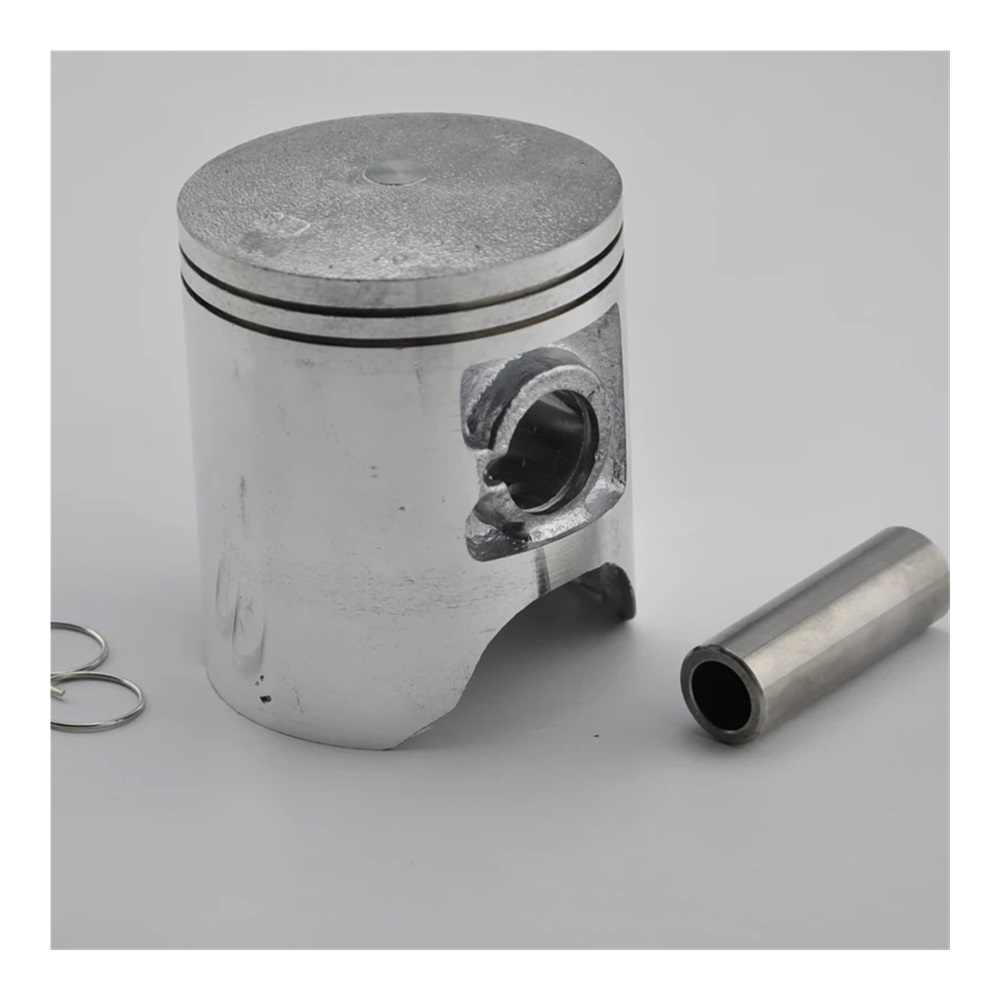

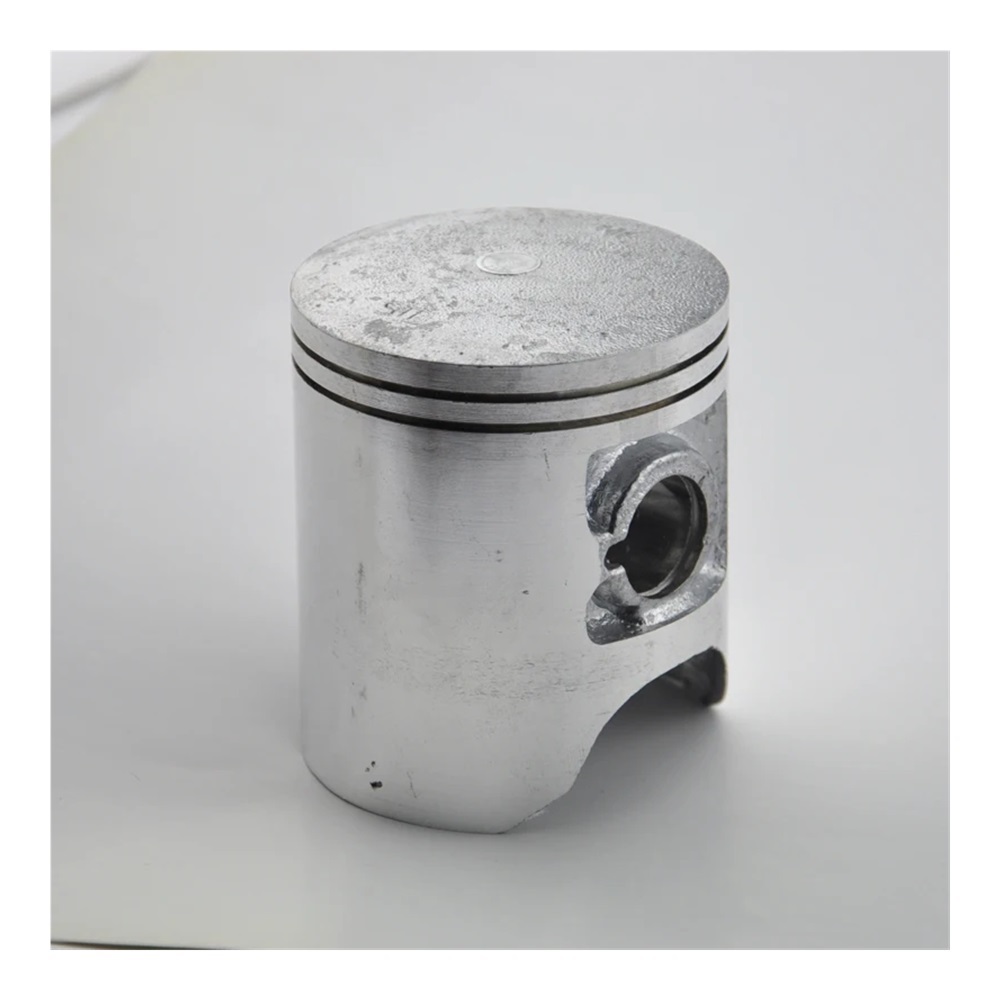

Product Installation Instructions for Motorcycle Cylinder Piston Kit Rings Set

Compatibility:
This piston kit is designed for various CRM250 models and supports multiple bore size options (66mm, 66.25mm, 66.5mm, 66.75mm, 67mm) to ensure broad compatibility.

Tools Required:

1. Socket Set:

   • Various sizes for removing and installing engine components.

2. Torque Wrench:

   • To ensure bolts are tightened to the manufacturer’s specifications.

3. Piston Ring Compressor:

   • For safely compressing the piston rings during installation.

4. Feeler Gauge:

   • To check the clearance and ensure proper fit.

5. Wrenches:

   • A set of open-end and box wrenches for various fasteners.

6. Screwdrivers:

   • Flathead and Philips heads to remove or install any screws.

7. Rubber Mallet:

   • For gently tapping components into place without damage.

8. Scraper or Gasket Remover:

   • To clean any old gasket material from the engine surfaces.

9. Shop Rag or Clean Cloth:

   • To keep the work area clean and wipe components as needed.

10. Oil or Assembly Lubricant:

• To lubricate parts during installation for better performance and sealing.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is positioned securely on a stable stand.
   • Remove necessary panels or components to access the engine.

2. Disassemble:

   • Using the socket set and wrenches, carefully remove the necessary engine components to access the piston.

3. Remove Old Parts:

   • Take out the old piston and rings, ensuring to keep the workspace clean.

4. Install New Piston and Rings:

   • Carefully install the new piston rings onto the piston using the piston ring compressor.
   • Insert the new piston into the cylinder, ensuring proper alignment.

5. Reassemble:

   • Follow the reverse order of disassembly to reattach engine components. Use the torque wrench to tighten bolts to the specified settings.

6. Final Checks:

   • Double-check all connections and ensure everything is securely fastened.
   • Change any oil filters if necessary and refill with appropriate engine oil.

7. Test Ride:

   • Start the engine and allow it to reach operating temperature. Take a short test ride to ensure proper functioning.

Note:
Always consult your motorcycle's service manual for specific details related to your model and follow safety precautions while performing any installation tasks.
