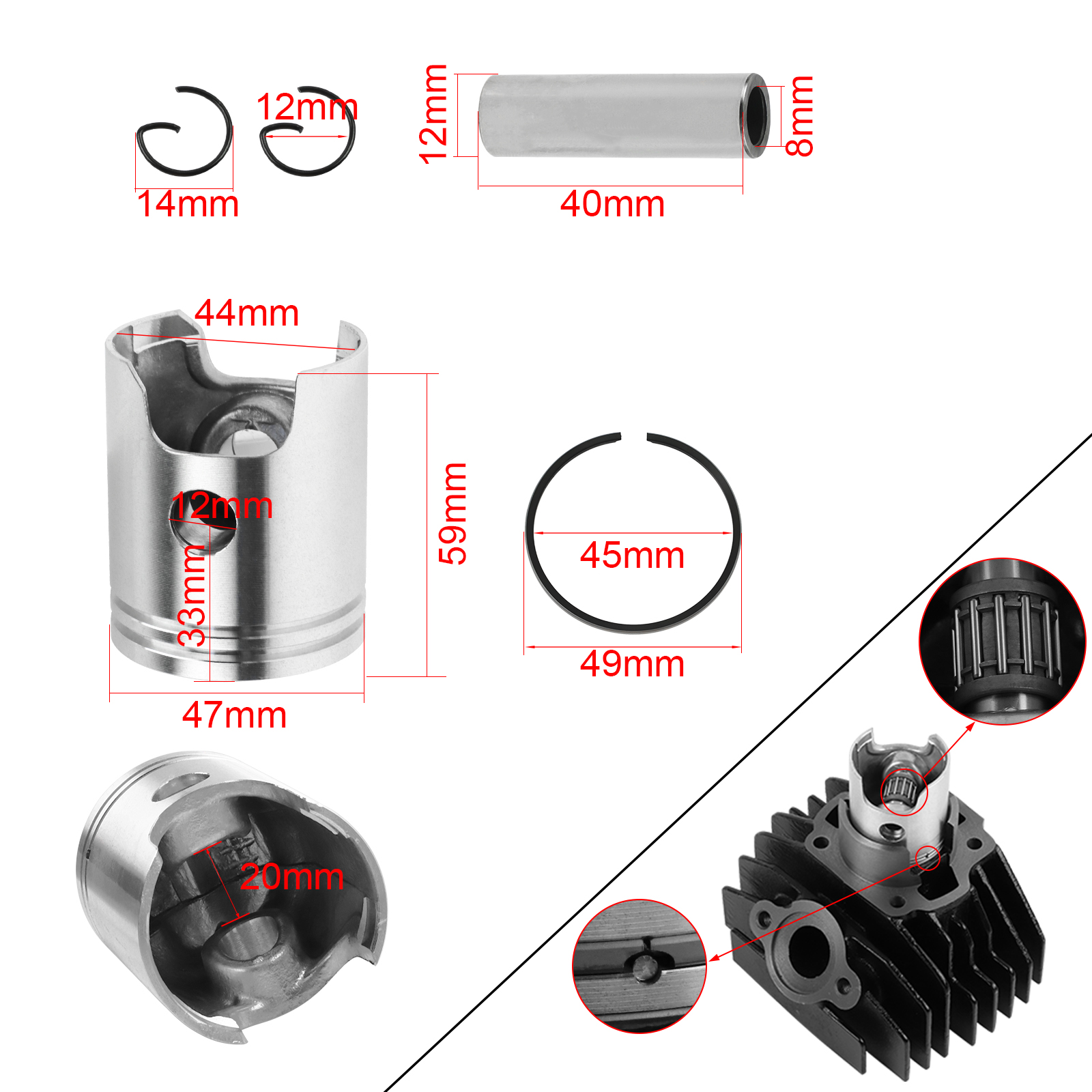

Installation Instructions for the 47mm Piston Pin Ring Gasket Needle Set for 80cc Motorbikes

Package Contents:

• 47mm Piston Pin Ring
• Gasket
  -Needle Bearing
• Installation Tools (if included)

Required Tools:

1. Socket Wrench Set
2. Screwdriver Set (Phillips and Flathead)
3. Pliers
4. Torque Wrench
5. Piston Ring Installer Tool (optional, for easier installation)
   6.Cleaning Cloth
6. Engine Oil (for lubrication)

Installation Steps:

1. Preparation:

   • Ensure the motorbike is on a stable and flat surface.
   • Disconnect the battery for safety.
   • Remove any necessary panels or covers to access the engine.

2. Remove the Old Components:

   • Carefully take out the existing piston pin ring and gasket.
   • Clean the area around the piston and cylinder head to remove dirt and debris.

3. Install the New Gasket:

   • Place the new gasket onto the designated area, ensuring it is properly aligned.

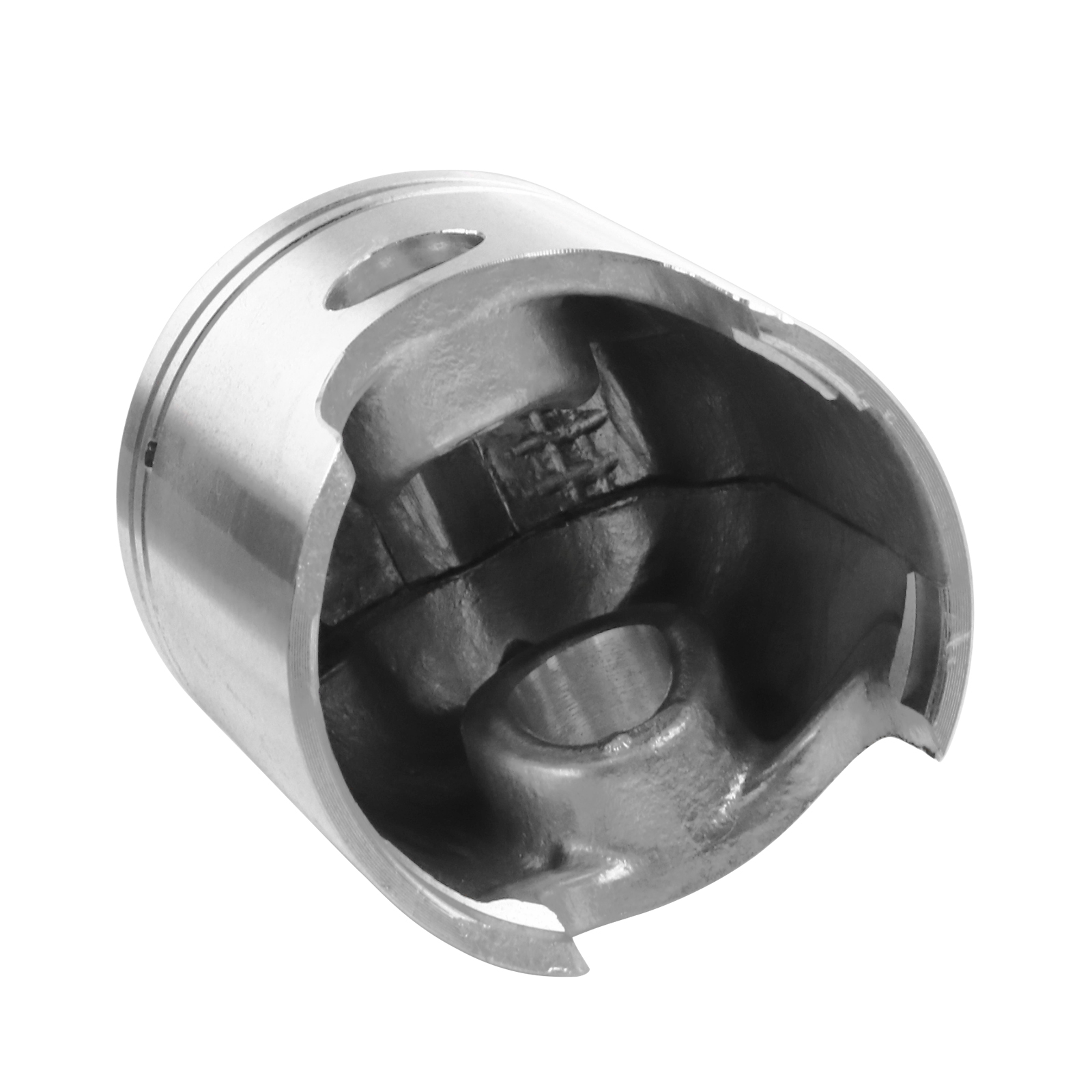

4. Install the Piston Pin Ring:

   • If using a piston ring installer tool, gently slide the new piston pin ring onto the piston.
   • Ensure the ring is fitted snugly without gaps.

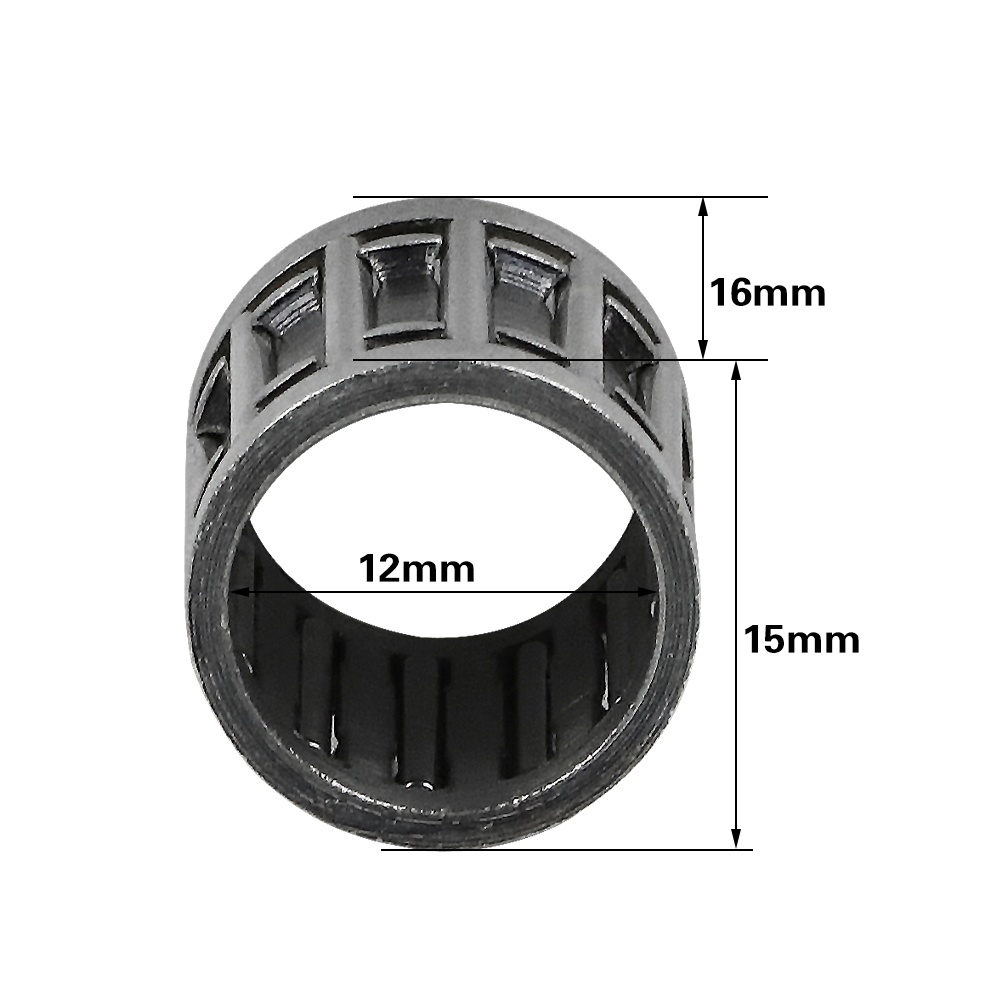

5. Insert the Needle Bearing:

   • Apply a small amount of engine oil to the needle bearing for lubrication.
   • Insert the needle bearing into its designated slot.

6. Reassemble the Engine:

   • Carefully reattach any components you removed earlier, tightening screws and bolts to manufacturer specifications using a torque wrench.

7. Final Checks:

   • Inspect everything to ensure proper installation.
   • Reconnect the battery.

8. Testing:

   • Start the engine and let it run for a few minutes to check for any leaks or unusual noises.
   • Take the bike for a short test ride to ensure optimal performance.

Notes:

• Always refer to your motorcycle’s manual for specific torque settings and additional instructions.
• Wear protective gloves and safety goggles during the installation process.

By following these steps and using the required tools, you will ensure a successful installation of the 47mm Piston Pin Ring Gasket Needle Set, enhancing your 80cc motorbike's performance and reliability.
