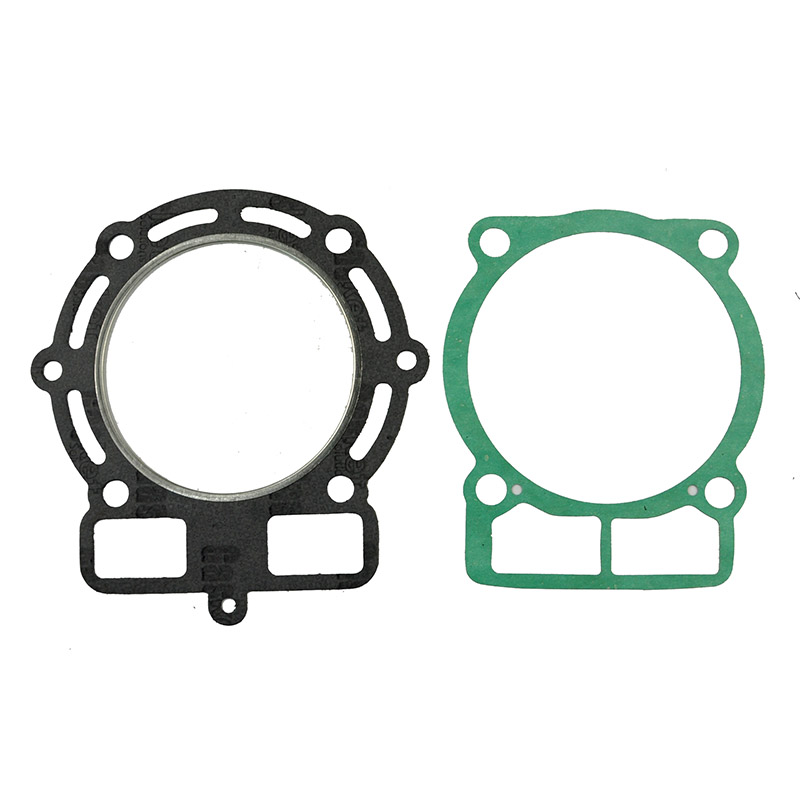

Installation Instructions for 95.3mm Motorcycle Engine Complete Gasket Set (450, 520, 525 Models 2003-2006)

Tools Required:

1. Socket Set
   • Various sizes (commonly 8mm, 10mm, and 12mm)
2. Torque Wrench
3. Screwdriver Set
   • Flathead and Phillips
4. Gasket Scraper or Razor Blade
5. Clean Cloth or Shop Towels
6. Engine Oil (for lubrication)
   7.Torque Specifications Reference
7. Safety Goggles
   9.Gloves
8. Pliers

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is on a stable, flat surface.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove Old Gaskets:

   • Use a gasket scraper or razor blade to carefully remove the old gaskets from the crankcase, clutch cover, starter, and generator cover.
   • Clean the surfaces thoroughly with a clean cloth to ensure no debris or old gasket material remains.

3. Inspect Surfaces:

   • Check for any damages or imperfections on the sealing surfaces. Repair or replace any damaged components as necessary.

4. Apply Engine Oil:

   • Lightly coat the new gaskets with engine oil to help them seal better and make installation easier.

5. Install New Gaskets:

   • Carefully position the new gaskets on the appropriate surfaces: crankcase, clutch, starter, and generator cover.

6. Reassemble Components:

   • Reattach the crankcase, clutch cover, starter, and generator cover. Start by hand-tightening bolts/screws to hold them in place.
   • Refer to your motorcycle's torque specifications and use a torque wrench to tighten all bolts to the manufacturer's recommended settings.

7. Final Check:

   • Double-check all connections and ensure there are no leaks.

8. Reconnect the Battery:

   • Reattach the battery cables and ensure all connections are secure.

9. Testing:

   • Start the motorcycle and let it run for a few minutes. Check for leaks around the installed gaskets.
   • If everything is functioning correctly, you have successfully installed the complete gasket set.

Safety Reminder:

• Always wear gloves and safety goggles when working on your motorcycle to protect against any potential injuries.

Your 95.3mm Motorcycle Engine Complete Gasket Set is now installed and ready to ensure optimal performance for your 450, 520, or 525 model motorcycle. Enjoy your ride!
