Installation Instructions for Carburetor Components for XL600V Transalp (1989-1999)

Required Tools:

1. Screwdriver Set: Flathead and Phillips screwdrivers to remove and install screws.
2. Socket Wrench Set: To loosen and tighten nuts and bolts on the carburetor.
3. Pliers: To grip and manipulate small components.
4. Carburetor Cleaner: To ensure all components are clean before installation.
5. Clean Cloth or Rag: For cleaning surfaces and wiping down components.
6. Torque Wrench: To ensure all fasteners are tightened to manufacturer specifications.
7. Fuel Line Wrench (optional): For easy disconnecting and connecting of fuel lines.
8. Safety Gloves: To protect your hands during installation.

Installation Steps:

1. Preparation: Ensure the motorcycle is on a stable surface and the fuel supply is turned off. Disconnect the battery for safety.

2. Remove the Carburetor: Use the screwdriver and socket wrench to carefully detach the carburetor from the motorcycle. Keep track of the screws and components for reassembly.

3. Clean the Carburetor: Before installing the new components, clean the carburetor using carburetor cleaner and a clean cloth. This will prevent any debris from affecting performance.

4. Replace Components:

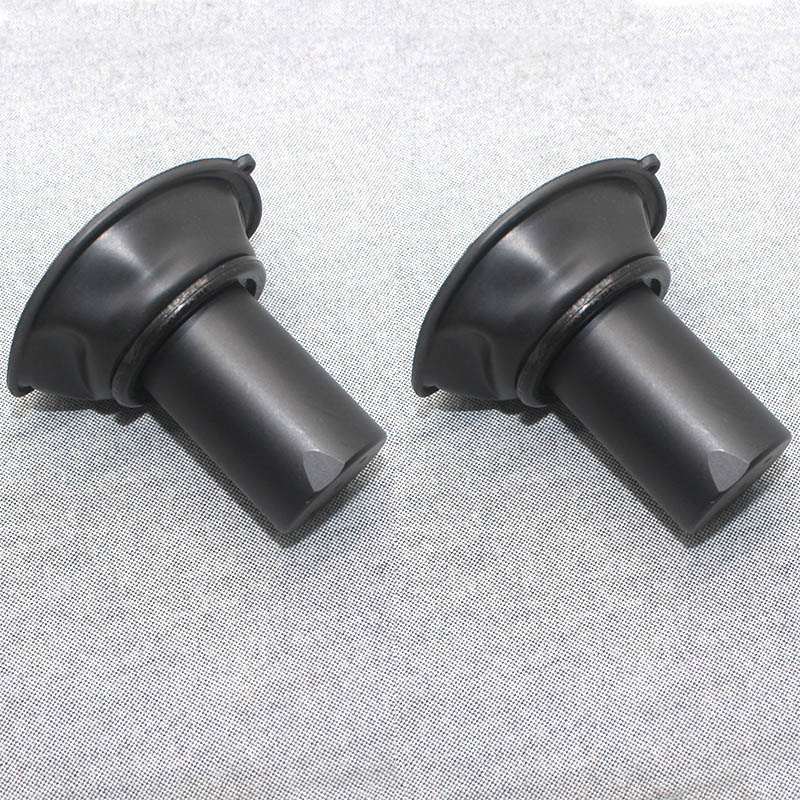

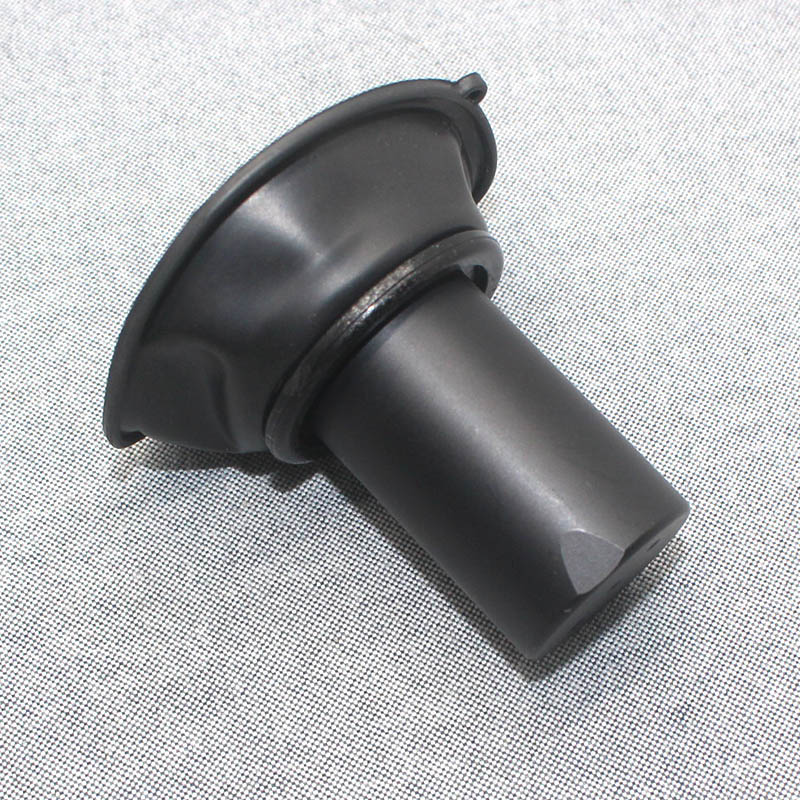

   • Install the new plunger diaphragm and ensure it is seated correctly.
   • Replace any gaskets or seals as needed to ensure a proper fit and prevent leaks.

5. Reinstall the Carburetor: Carefully reattach the carburetor to the motorcycle, ensuring all components are securely fastened. Use the torque wrench to tighten bolts according to specifications.

6. Reconnect Fuel Lines: If disconnected, reconnect the fuel lines securely. Ensure there are no leaks.

7. Reconnect the Battery: Once everything is reassembled, reconnect the battery and turn the fuel supply back on.

8. Test the Engine: Start the motorcycle to check for smooth operation and any fuel leaks. Make adjustments as necessary.

Maintenance Tip: Regularly check and replace these components to enhance engine lifespan and performance.
