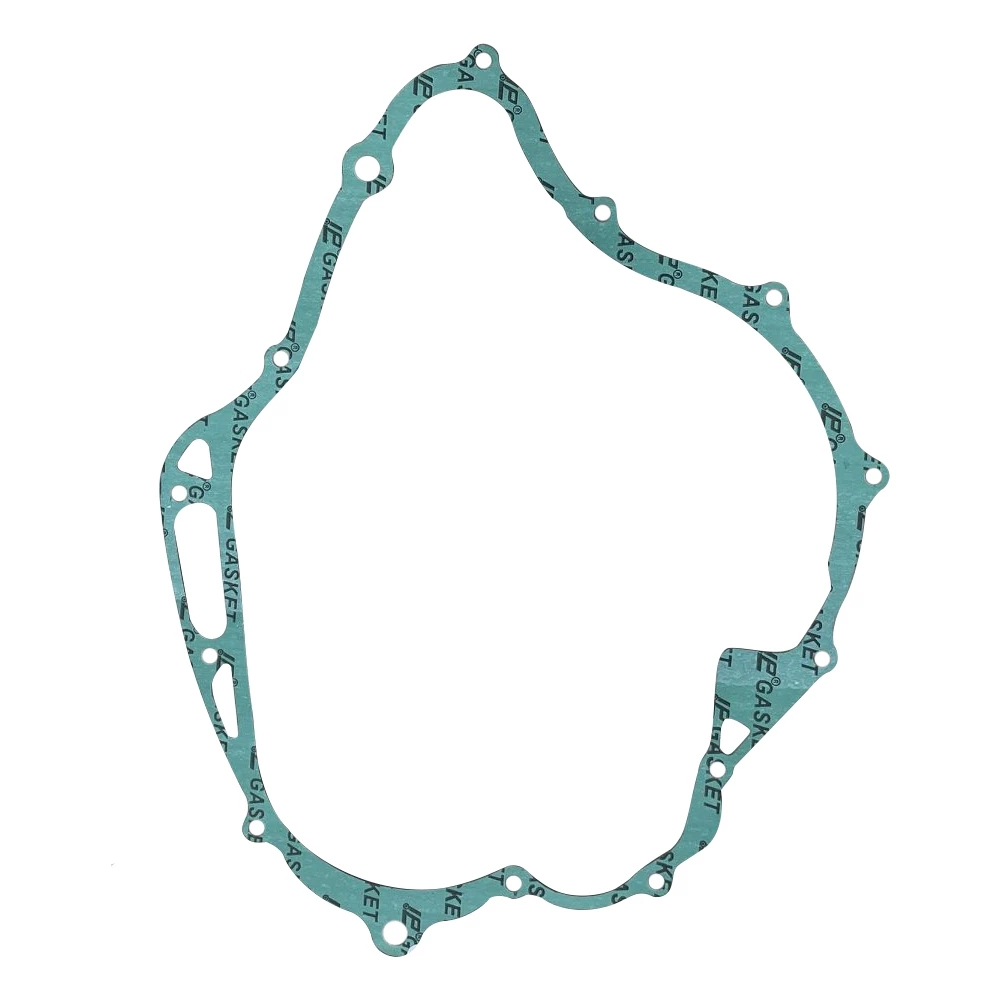

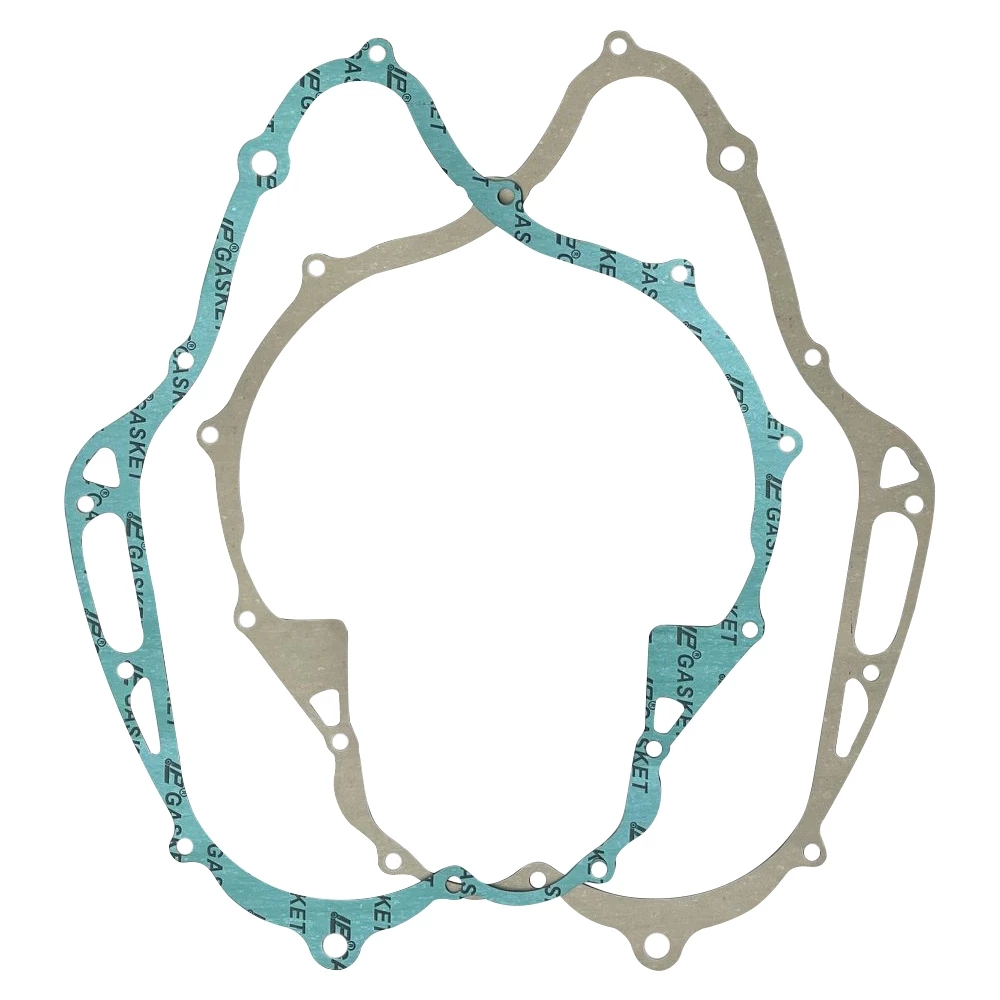

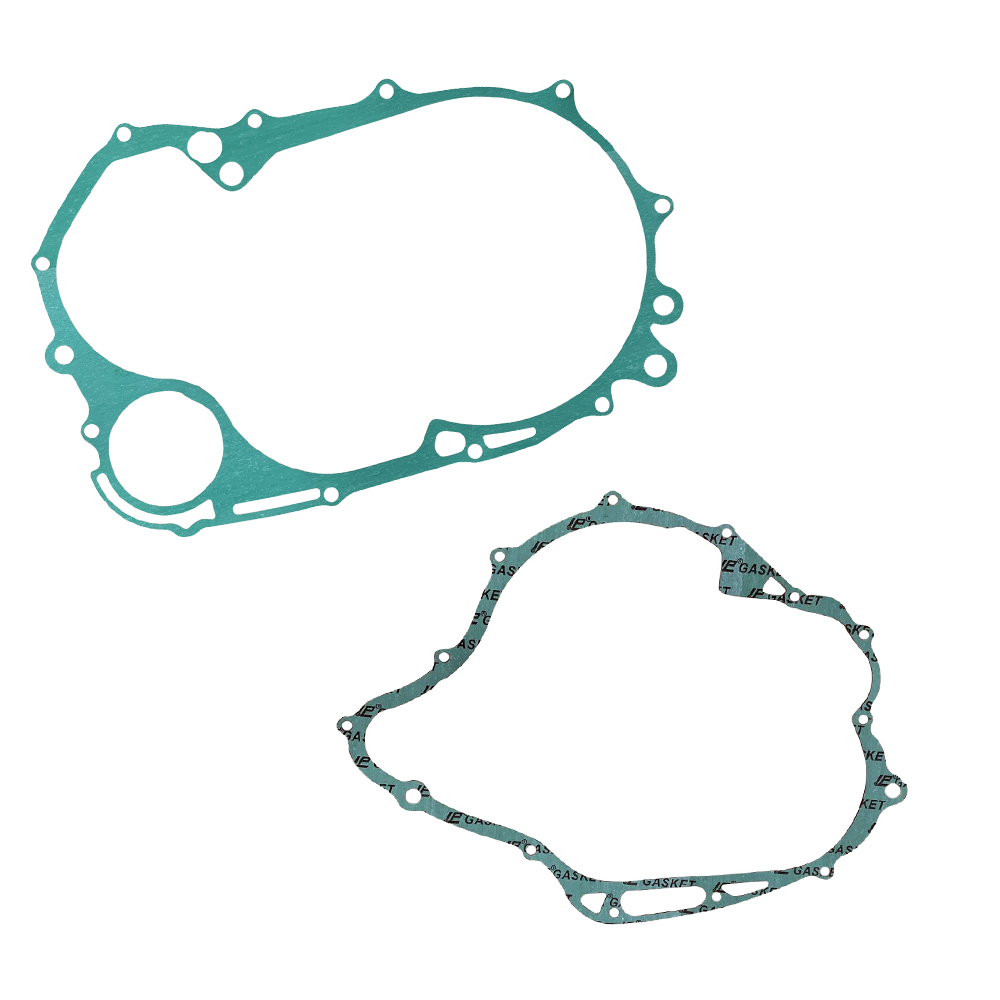

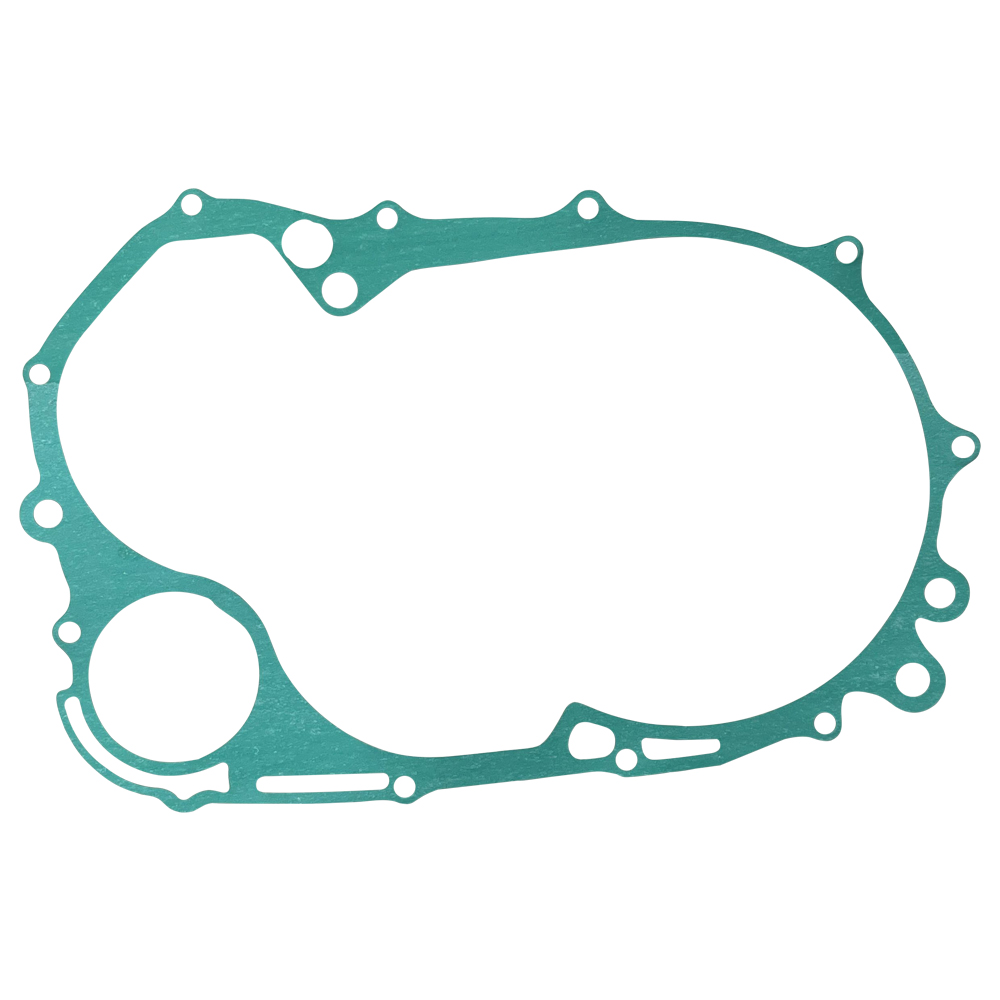

Installation Instructions for Motorcycle Engine Crankcase Clutch Cover Gasket

Product Compatibility:
Designed specifically for Virago 1000, 1100, and various related models including XV1000 (1984-1985), XV1100 (1986-1999), XV920, XV700, and XV750 (1981-1997) for a perfect fit with the engine and clutch cover.

Required Tools:

1. Socket wrench set
2. Torque wrench
3. Screwdrivers (flathead and Phillips)
4. Gasket scraper or wire brush (for cleaning old gasket material)
   5.Clean cloths or paper towels
5. Oil pan (to collect any leaking oil during removal)
6. Ratchet extensions (if needed for tighter spaces)
7. Gloves (for protection and cleanliness)
8. Optional: Gasket sealant (if recommended by the manufacturer)

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a flat surface.
   • Gather all necessary tools and materials.
   • Allow the engine to cool down completely before starting.

2. Oil Drain (if necessary):

   • Place an oil pan underneath the engine and drain any oil that may spill during the process.

3. Remove the Clutch Cover:

   • Using the socket wrench, remove the bolts securing the clutch cover.
   • Carefully detach the cover, taking care not to damage any components.

4. Clean the Surface:

   • Use the gasket scraper or wire brush to remove any remnants of the old gasket from the clutch cover and engine surface.
   • Ensure the area is clean to allow for a proper seal.

5. Install the New Gasket:
   -Align the new gasket onto the clutch cover.

   • Ensure it fits properly and is positioned correctly.

6. Reattach the Clutch Cover:

   • Carefully place the clutch cover back onto the engine.
   • Hand-tighten the bolts to hold the cover in place.

7. Torquing:

   • Use the torque wrench to tighten the bolts to the manufacturer’s specified torque settings. This ensures a secure and leak-free installation.

8. Final Checks:

   • Double-check that all bolts are properly secured.
   • Clean up any excess gasket material or spill oils around the installation area.

9. Refill Oil (if drained):

   • Refill the engine with oil if you drained it earlier.

10. Test Run:

• Start the engine and let it run for a few minutes.
• Inspect for any signs of leakage around the new gasket.

Congratulations on successfully installing your new Crankcase Clutch Cover Gasket! Enjoy optimized performance and improved efficiency from your motorcycle.
