Installation Instructions for Carburetor Repair Kit for F650 and Pegaso 650

Introduction

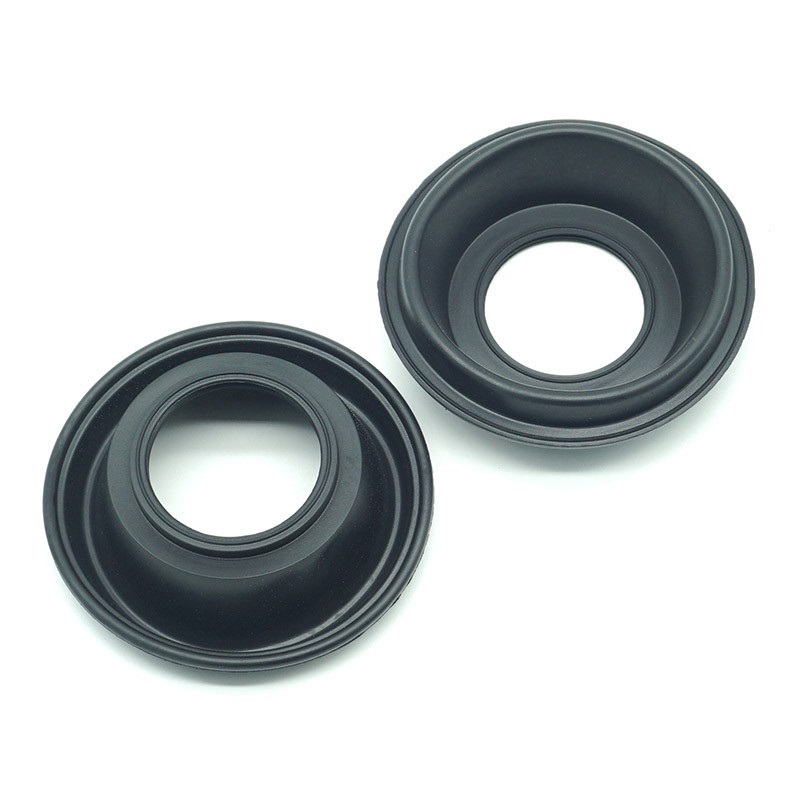

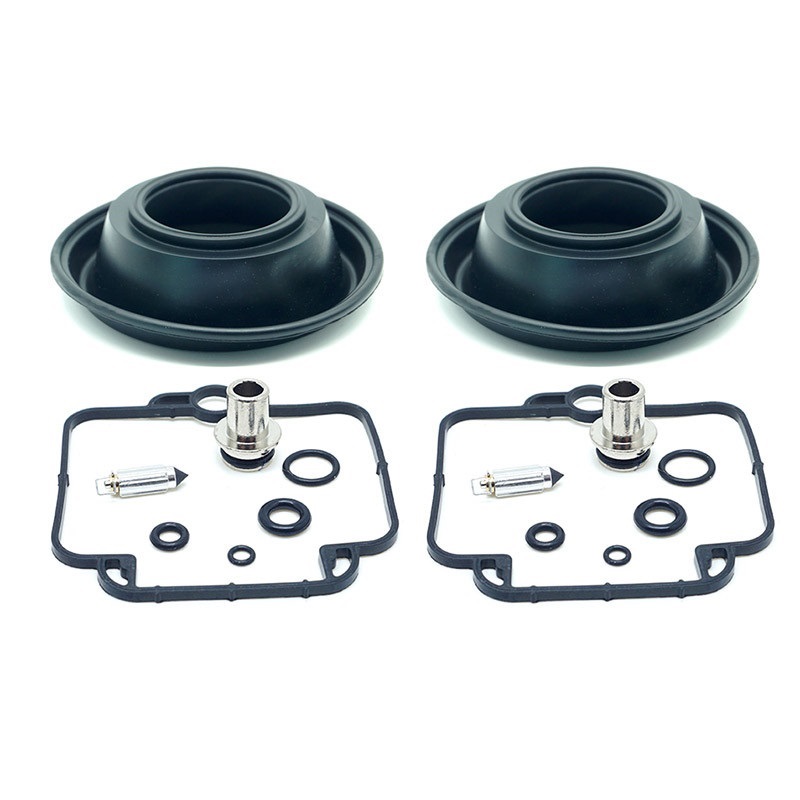

Congratulations on your purchase of the Carburetor Repair Kit designed specifically for F650 and Pegaso 650 motorcycles. This kit includes vacuum diaphragms for Mikuni BST carburetors, ensuring a precise fit and smooth operation. Follow these instructions for a successful installation.

Tools Required
Before you begin the installation, please ensure you have the following tools ready:

1. Screwdriver Set (Flathead and Phillips)
2. Socket Wrench Set
3. Pliers
4. Torque Wrench
5. Rubber Gloves (to keep components clean)
6. Cleaning Brush or Rag
7. Carburetor Cleaner (optional for maintenance)
8. Small Container (to hold screws and small parts)
9. Safety Glasses (for eye protection)

Installation Steps

1. Preparation

   • Ensure the motorcycle is parked on a level surface and the engine is off.
   • Disconnect the negative terminal of the battery for safety.

2. Remove the Carburetor

   • Locate the carburetor on your motorcycle.
   • Use the socket wrench to remove the bolts securing the carburetor.
   • Carefully disconnect any cables, hoses, and the throttle linkage attached to the carburetor.
   • Gently lift the carburetor off the engine.

3. Disassemble the Carburetor

   • Place the carburetor in a clean working area.
   • Use the screwdriver to remove the screws and disassemble the carburetor.
   • Take note of the order of components for easy reassembly.

4. Replace the Vacuum Diaphragms

   • Remove the old vacuum diaphragms carefully.
   • Install the new diaphragms from the repair kit, ensuring they are seated correctly.

5. Clean the Carburetor

   • Use carburetor cleaner and a brush to clean all parts of the carburetor.
   • Make sure to remove any dirt or debris from the jets and passages.

6. Reassemble the Carburetor

   • Follow your notes to reassemble the carburetor in the same order as it was disassembled.
   • Ensure all screws and components are tightened adequately with the torque wrench.

7. Reinstall the Carburetor

   • Carefully position the carburetor back onto the engine.
   • Reattach the throttle linkage and any hoses that were disconnected.
   • Secure the carburetor with bolts and check for any missing connections.

8. Reconnect the Battery

   • Reconnect the negative terminal of the battery.

9. Start the Engine

   • Turn on your motorcycle and let the engine idle.
   • Check for any leaks and ensure the carburetor is functioning properly.

Conclusion
You're now ready to enjoy the enhanced performance and reliability of your motorcycle with the new Carburetor Repair Kit! If you encounter any issues during installation, consider consulting a professional mechanic.
