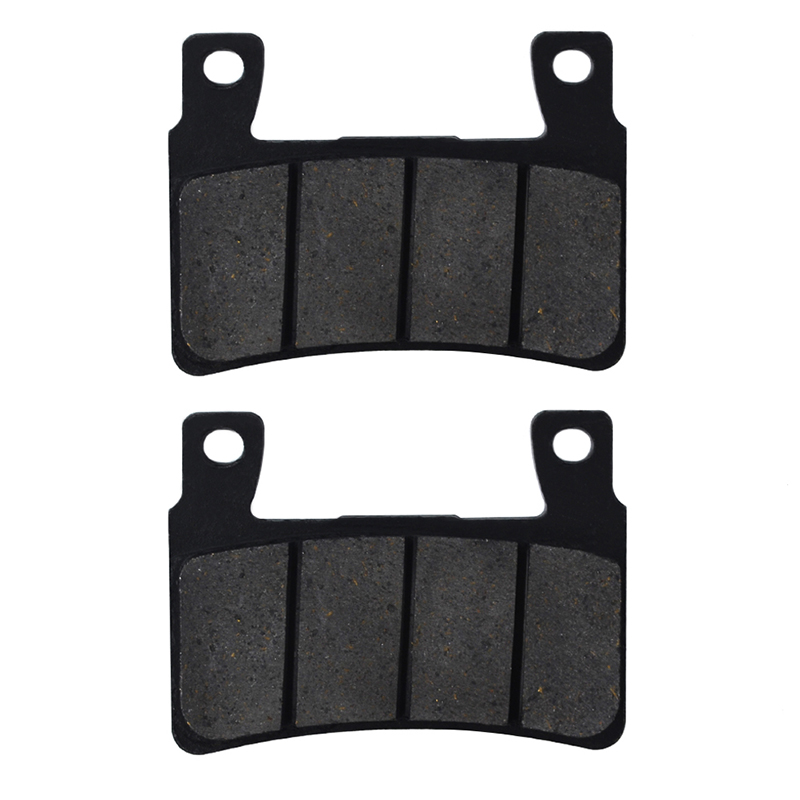

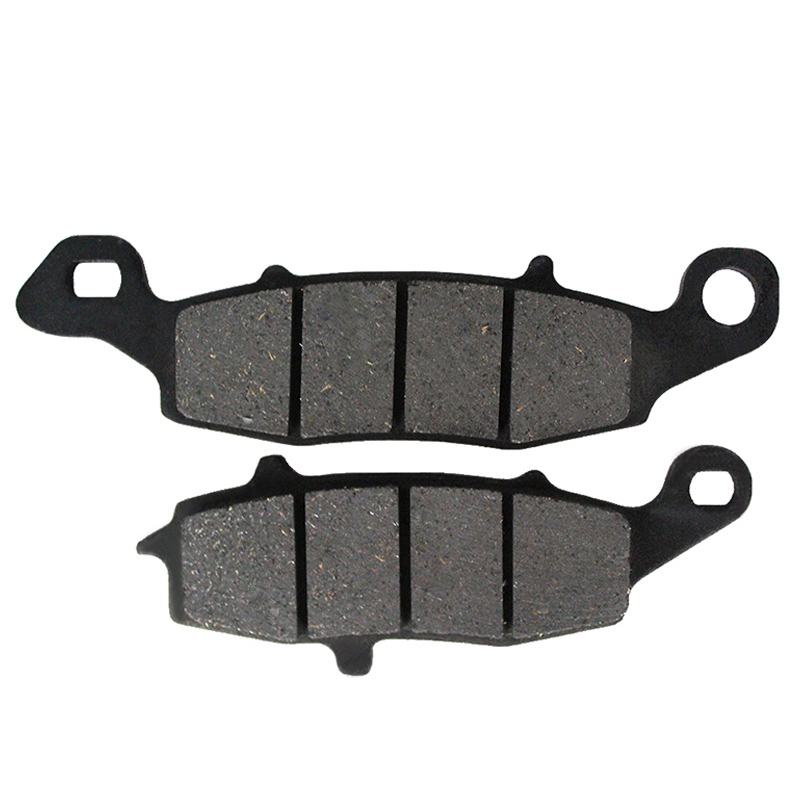

Product Installation Instructions for Front and Rear Brake Pads for VZR1800 K R Z Boulevard 2006-2014 M109R R2 VZR 1800 R Intruder 2006-2013

Tools Needed:

1. Socket Wrench Set

   • To remove the wheel and caliper bolts.

2. Torque Wrench

   • To ensure all bolts are tightened to the manufacturer's specifications.

3. Pliers

   • For removing any retaining clips or pins if applicable.

4. Flathead Screwdriver

   • To help pry off the old brake pads if necessary.

5. C-clamp or Brake Caliper Tool

   • To compress the caliper pistons before installation of the new pads.

6. Brake Cleaner

   • To clean the caliper and brake components before installation.

7. Gloves

   • To keep your hands clean and protect against brake dust.

8. Safety Goggles

   • To protect your eyes during the installation process.

Installation Steps:

1. Preparation

   • Ensure the motorcycle is parked on a level surface and secured with a stand.

2. Remove the Wheel

   • Use the socket wrench to remove the appropriate bolts and take off the wheel to access the brake calipers.

3. Remove the Brake Caliper

   • Unbolt the caliper using the socket wrench. Carefully slide it off the rotor.

4. Remove the Old Brake Pads

   • Take out the old brake pads from the caliper. Use the flathead screwdriver to gently pry them off if they're stuck.

5. Compress the Caliper Pistons

   • Use a C-clamp or brake caliper tool to compress the pistons back into the caliper. This will make room for the new, thicker brake pads.

6. Install the New Brake Pads

   • Insert the new brake pads into the caliper, ensuring they are properly aligned.

7. Reattach the Caliper

   • Slide the caliper back over the rotor and bolt it into place, ensuring it is secure.

8. Reinstall the Wheel

   • Place the wheel back on the motorcycle and secure it with the wheel bolts.

9. Final Checks

   • Double-check that all bolts are tightened to the manufacturer's specifications using a torque wrench.

10. Test Brake Functionality

• Before riding, pump the brake lever a few times to ensure proper contact between the pads and rotor.

Safety Note: Always consult your motorcycle's owner manual for any specific instructions and torque specifications. If you are not comfortable completing this installation, seek help from a professional mechanic.
