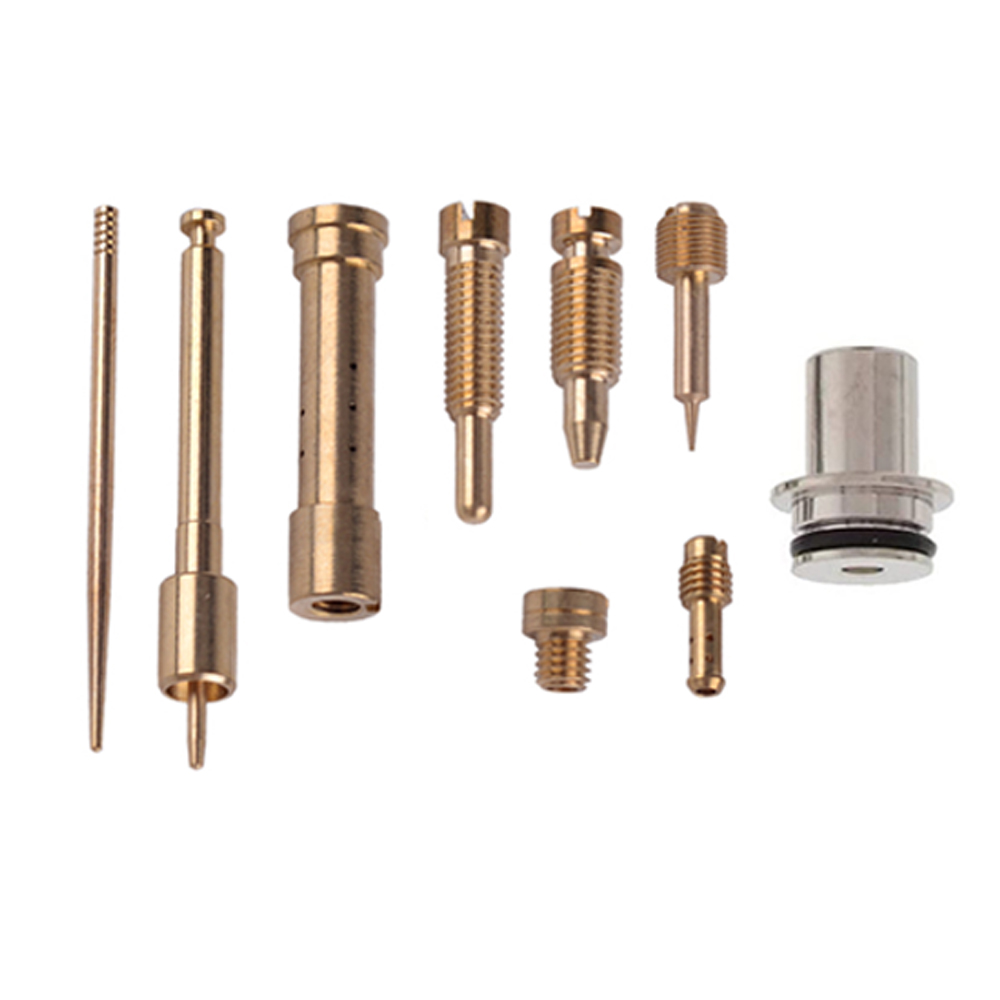

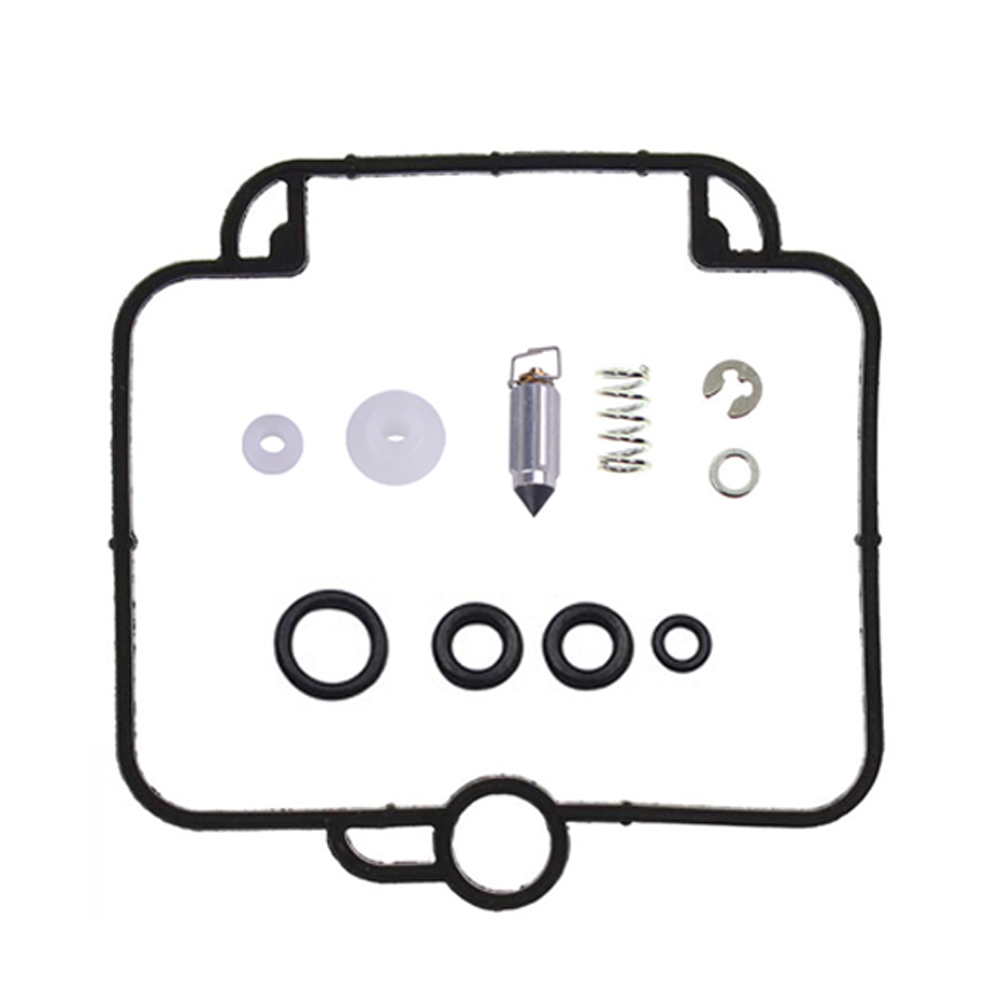

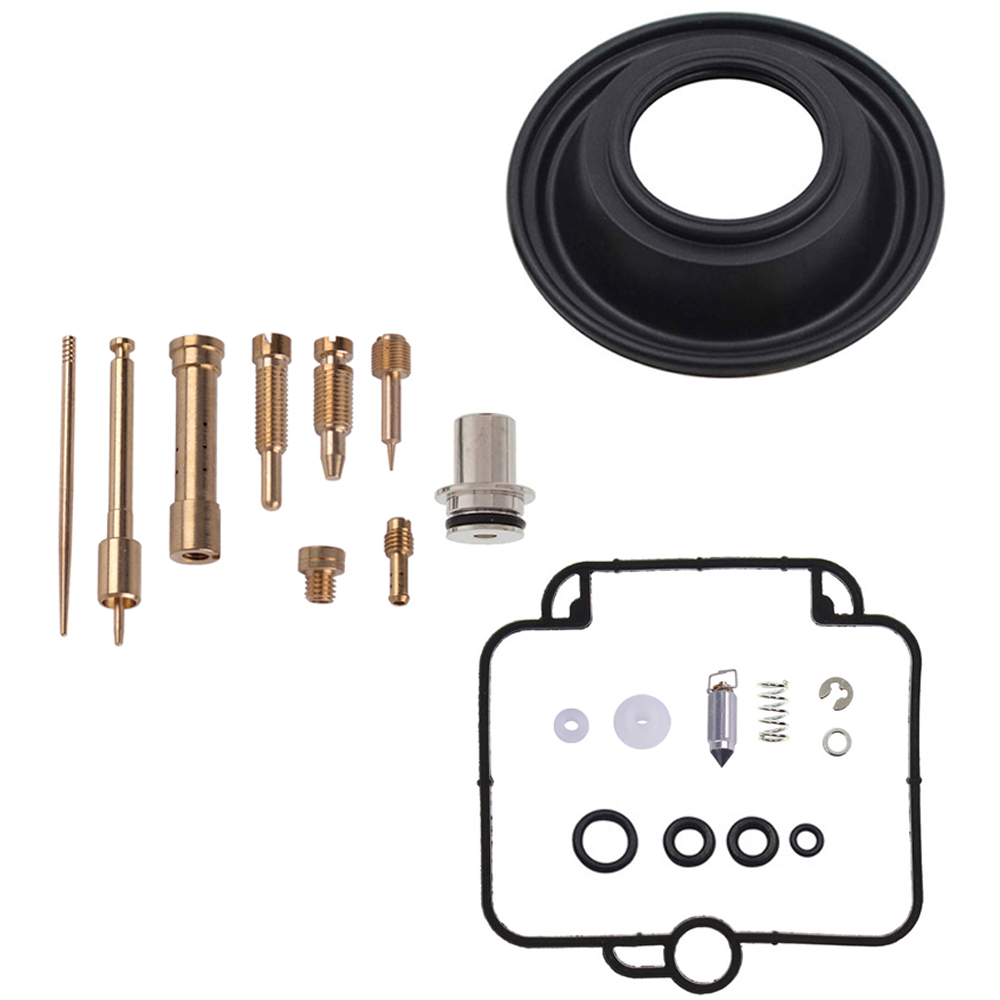

Installation Instructions for Compatible Carburetor Rebuild Repair Kit for BST33 F650 Motorcycle

Tools Required:

1. Screwdriver Set: Phillips and flathead screwdrivers for removing and installing screws.
2. Socket Wrench Set: For loosening and tightening bolts; a 10mm socket is commonly used for carburetor mounting.
3. Pliers: Needle-nose pliers can be handy for removing small parts and clips.
4. Clean Cloth: To wipe down parts and keep the workspace clean.
5. Container for Small Parts: To safely store screws, washers, and small components during disassembly.
6. Fuel Line Disconnect Tool: If necessary, for disconnecting the fuel lines without damage.
7. Torque Wrench: To ensure bolts are tightened to the manufacturer’s specifications for optimal performance.
8. Safety Goggles and Gloves: To protect your eyes and hands during the installation process.

Installation Steps:

1. Preparation: Ensure the motorcycle is on a stable surface and powered off. Remove the seat and any body panels if necessary to access the carburetor.

2. Remove the Old Carburetor:

   • Disconnect the fuel lines and throttle cables from the carburetor using the appropriate tools.
   • Unscrew the carburetor from its mounting using a socket wrench.
   • Carefully remove the old carburetor.

3. Disassemble the Old Carburetor (Optional):

   • If you are reusing any parts, disassemble it to see what needs replacing.

4. Inspect and Clean:

   • Clean the area where the carburetor mounts and inspect the intake manifold for any damage. Replace if necessary.

5. Install the New Components:

   • Refer to the included instruction guide for the exact included parts in your rebuild kit.
   • Install new gaskets and any other components to ensure a proper seal.

6. Reattach the Carburetor:

   • Position the new carburetor onto its mounting spot.
   • Secure it in place by tightening the bolts to the proper torque specification with the torque wrench.

7. Reconnect Fuel Lines and Cables:

   • Carefully reconnect the fuel lines and throttle cables as they were originally configured.

8. Final Checks:

   • Ensure all components are secure and there are no loose parts or leaks.

9. Test the Motorcycle:

   • Start the motorcycle and let it idle. Observe any irregularities in performance and recheck your work as needed.

10. Dispose of Old Parts Responsibly:

    • Throw away any used parts and packaging materials in an environmentally friendly manner.

Conclusion:

With the completion of these steps, your motorcycle should be ready to perform better than before with the new carburetor components installed. Enjoy your ride!
