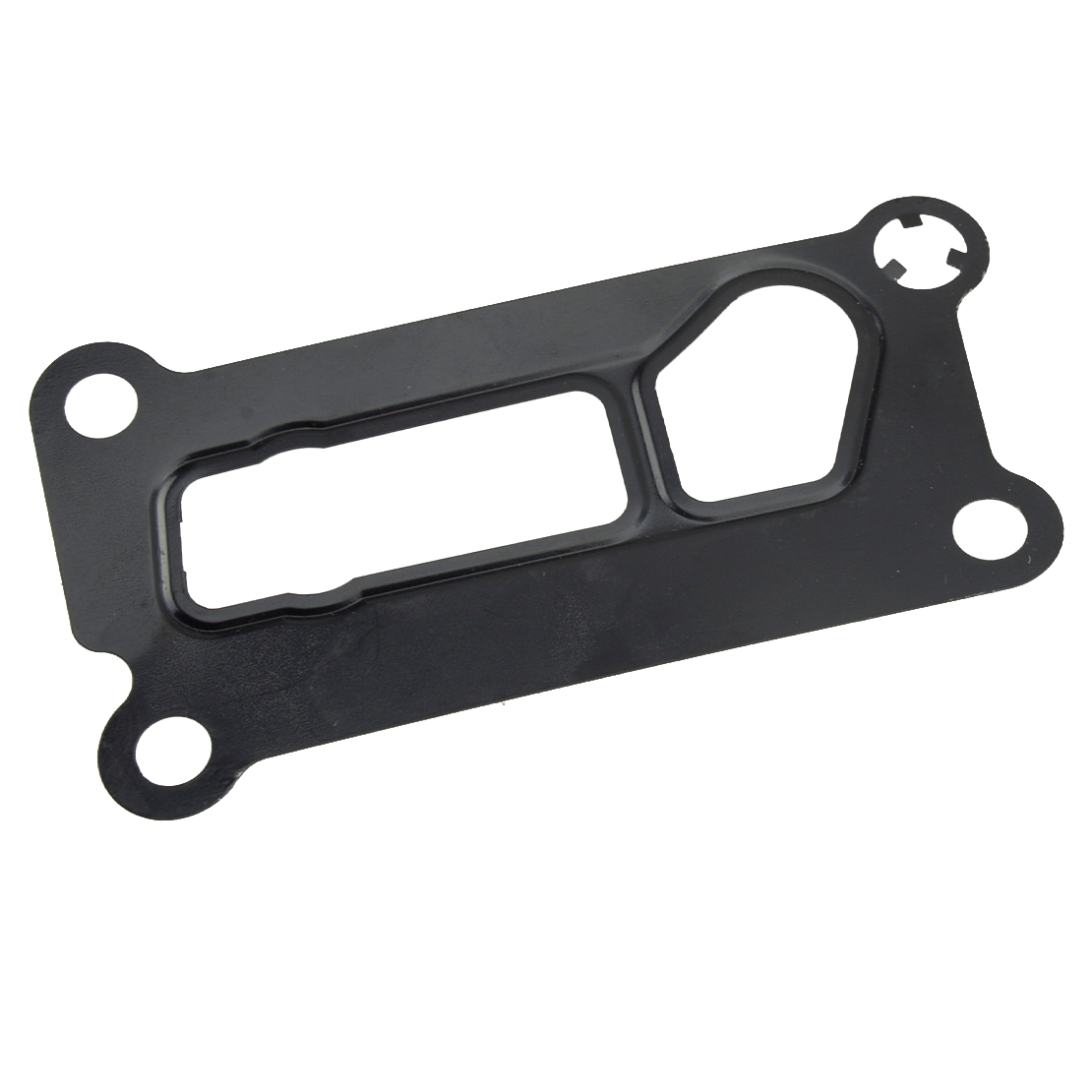

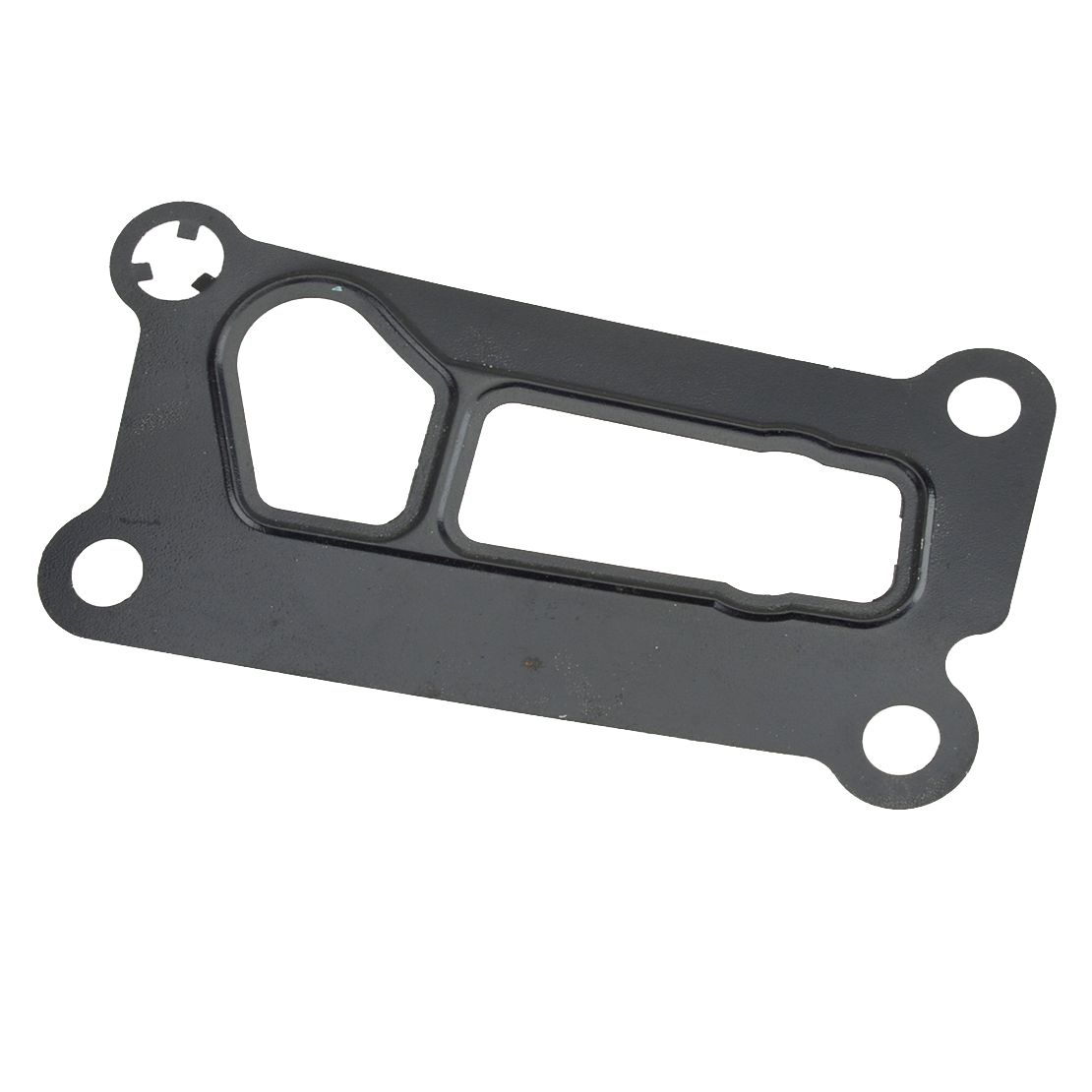

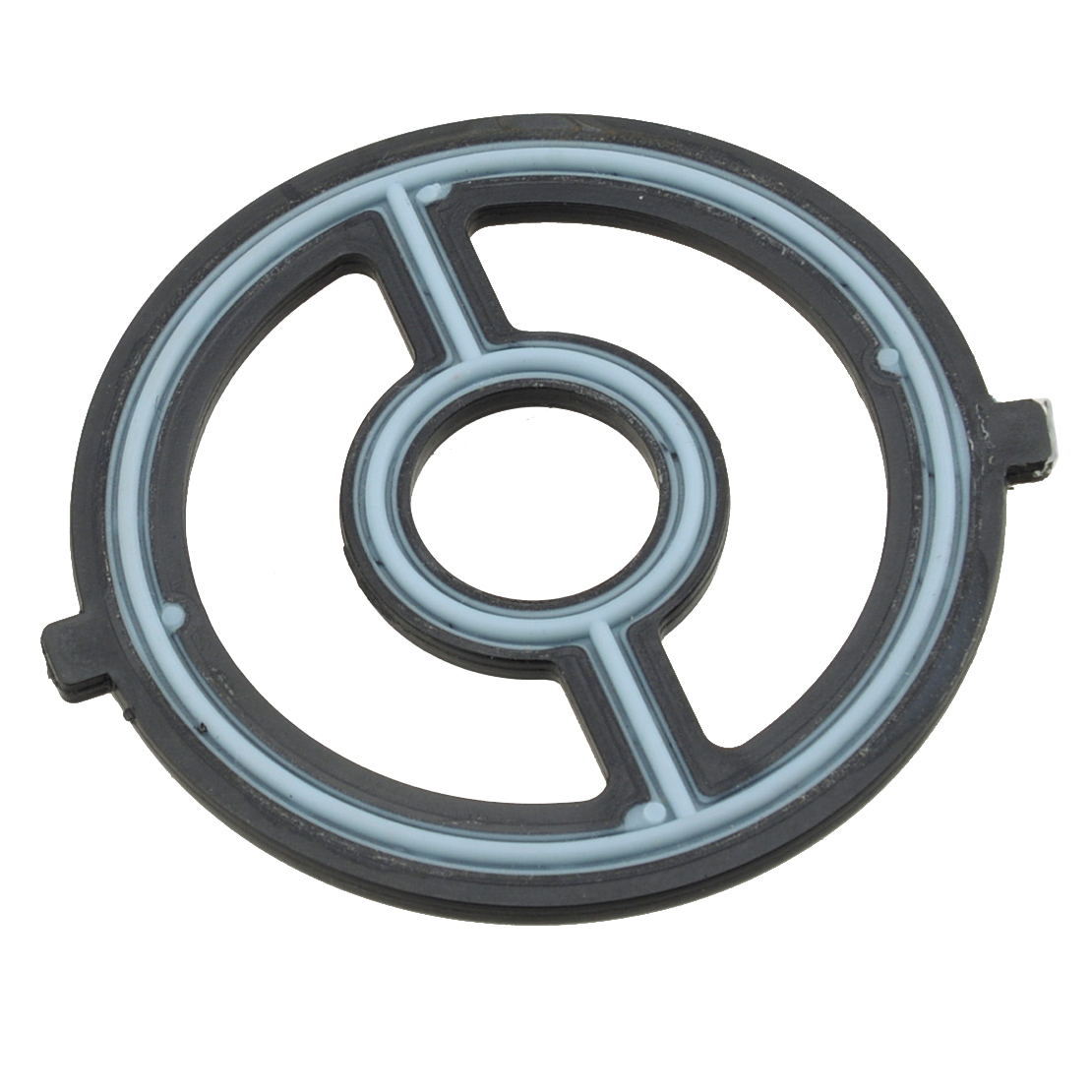

Product Installation Instructions for Engine Oil Cooler Housing Gasket Seal Set of 2

Compatibility: LF0214342, 1S7Z6A642AAA, LF0214700
Applicable Models: 3 Series, 5 Series, 6 Series, CX-7, MX-5, Tribute

Tools Required:

1. Socket Set (including ratchet and various socket sizes)
2. Torque Wrench
3. Screwdriver Set (flathead and Phillips)
4. Gasket Scraper or Razor Blade
5. Engine Oil
   6.Clean Rags
6. Pliers
7. Torque Specifications Manual (for your specific vehicle model)

Installation Steps:

1. Preparation:

   • Ensure the vehicle is parked on a level surface.
   • Set the parking brake and disconnect the battery for safety.
   • Gather all necessary tools and the gasket sets.

2. Drain Engine Oil:

   • Place a drain pan under the oil pan and remove the oil drain plug to drain the engine oil completely. Allow it to fully drain.

3. Remove the Old Gasket:

   • Carefully use the gasket scraper or razor blade to remove the old gasket material from the engine oil cooler housing. Ensure the surface is clean and free of debris.

4. Clean the Surfaces:

   • Wipe down the mating surfaces of the engine oil cooler and the engine block with a clean rag to ensure a good seal with the new gasket.

5. Install New Gaskets:

   • Position the new gaskets from the seal set onto the oil cooler housing. Make sure they are aligned properly.

6. Reinstall the Housing:

   • Carefully place the oil cooler housing back onto the engine and secure it with bolts. Use your socket set to tighten the bolts in a criss-cross pattern to ensure even pressure.

7. Torque the Bolts:

   • Refer to the torque specifications manual for your specific vehicle model and use a torque wrench to tighten the bolts to the recommended torque value.

8. Reconnect Everything:

   • Reinstall the oil drain plug and reconnect the battery.

9. Add Engine Oil:

   • Fill the engine with the appropriate type and amount of engine oil as per your vehicle’s specifications.

10. Check for Leaks:

    • Start the engine and let it idle for a few minutes while checking for any leaks around the oil cooler housing. If leaks are detected, recheck the installation of the gaskets.

11. Final Check:

    • Ensure that all tools are removed from the engine bay, and complete a final inspection of the installation.

Safety Note:
Always wear appropriate safety gear, including gloves and goggles, when working on your vehicle. If unsure about any steps, consult a professional mechanic.

Enjoy improved engine efficiency with your new Engine Oil Cooler Housing Gasket Seal Set!
