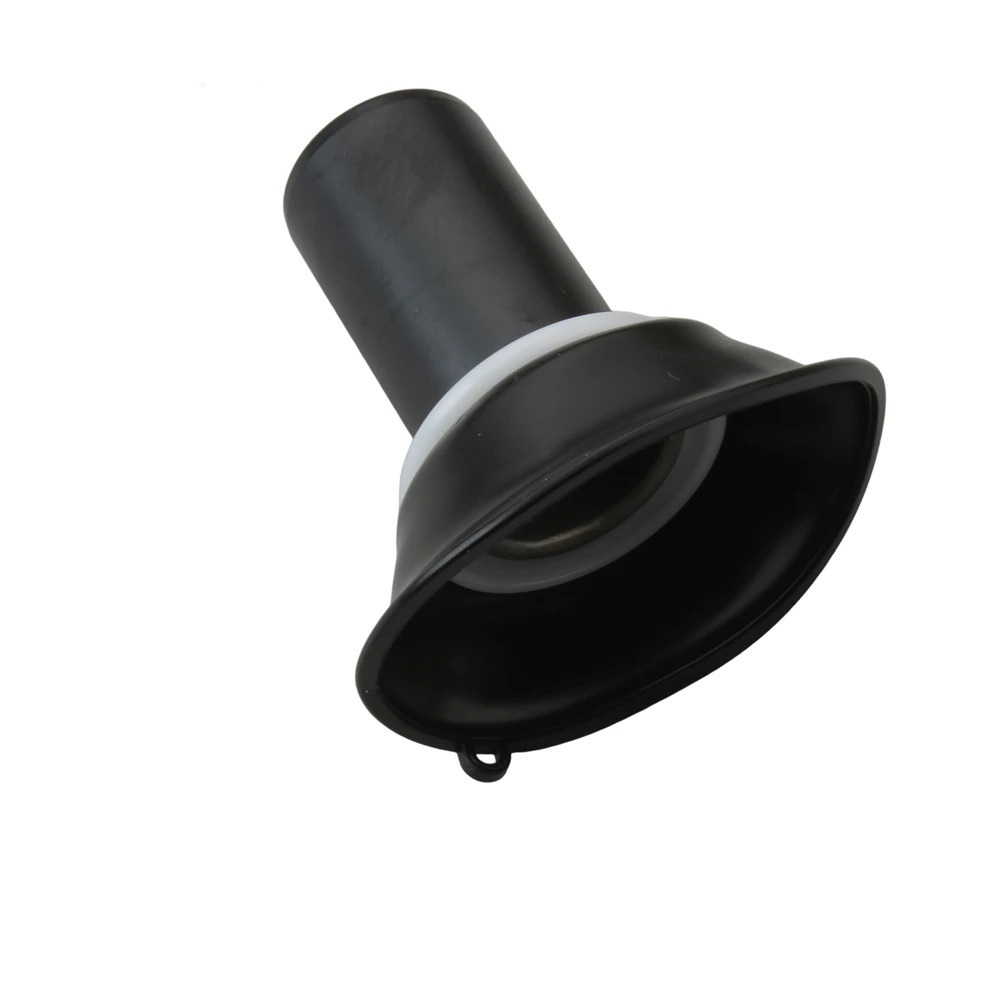

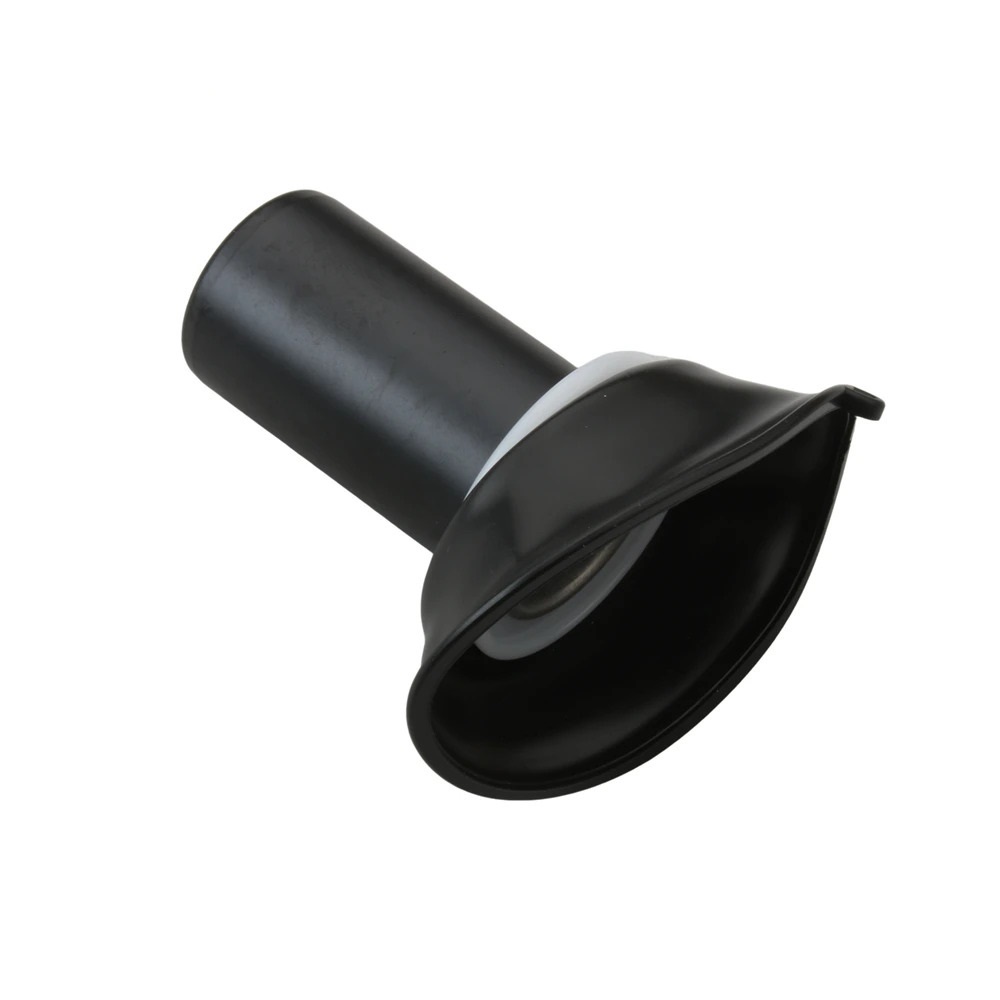

Product Installation Instructions for 28mm Diaphragm Carburetor Membrane

Tools Required:

1. Screwdriver Set - A set of both flathead and Phillips screwdrivers for removing and securing screws.
2. Wrench Set - To loosen and tighten nuts and bolts connected to the carburetor.
3. Pliers - For gripping and pulling any stubborn components or clips.
4. Torque Wrench - To ensure appropriate tightening torque when reassembling components.
5. Gasket Scraper - For cleaning any old gasket material to ensure a proper seal with the new membrane.
6. Cleaning Cloth - To wipe down surfaces and keep your workspace tidy.
7. Safety Glasses - For eye protection while working.
8. Gloves - To keep your hands clean and protected.

Installation Steps:

1. Preparation:

   • Ensure the engine is off and cool.
   • Disconnect the battery for safety.

2. Remove the Carburetor:

   • Locate and detach the carburetor from the engine using appropriate tools.
   • Carefully note the orientation and connections of various hoses and wires.

3. Disassemble the Carburetor:

   • Use the screwdriver and wrench to take apart the carburetor, track keeping of all screws and components.
   • Gently remove the old diaphragm membrane, noting its placement for the new one.

4. Clean the Components:

   • Use a gasket scraper to remove any residual gasket material.
   • Wipe down the carburetor parts with a cleaning cloth to ensure a clean surface for the new membrane.

5. Install the New Diaphragm Membrane:

   • Place the new 28mm diaphragm membrane into position, ensuring it sits correctly and seals properly.
   • Reassemble the carburetor, tightening screws and nuts to the manufacturer’s specifications using a torque wrench.

6. Reconnect the Carburetor:

   • Reattach the carburetor to the engine, making sure all hoses and wires are connected as they were originally.

7. Final Checks:

   • Double-check all connections and ensure everything is secure.
   • Reconnect the battery.

8. Testing:

   • Start the engine and check for any leaks or irregularities in performance.
   • Make final adjustments if necessary.

Note:

Always refer to your engine's service manual for specific details regarding disassembly and reassembly of the carburetor for your particular model.

Enjoy the enhanced performance with your new 28mm diaphragm carburetor membrane!
