Installation Instructions for Universal Motorcycle Hydraulic Clutch Master Cylinder Brake Oil Reservoir Cup Set

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Phillips and Flathead)
3. Allen Wrench Set
4. Pliers
5. Brake Fluid (recommended type)
6. Clean Rags or Paper Towels
7. Funnel (for fluid installation)
8. Safety Goggles (recommended)
9. Gloves (recommended)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and use a paddock stand if necessary.
   • Gather all the tools listed above prior to starting the installation.

2. Remove Old Components:

   • Carefully detach the existing master cylinder and reservoir from your motorcycle using the appropriate socket or screwdriver.
   • Use pliers to disconnect any linked hoses, and be prepared to catch any residual brake fluid.

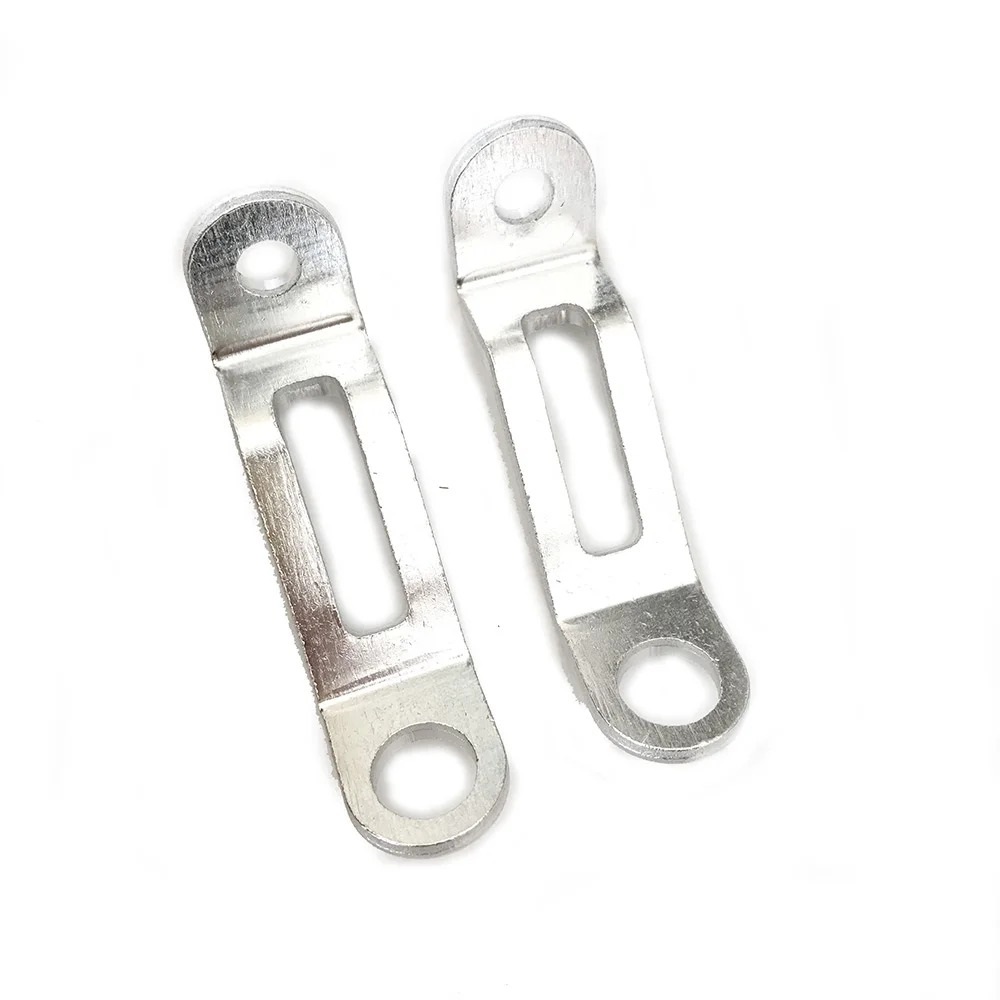

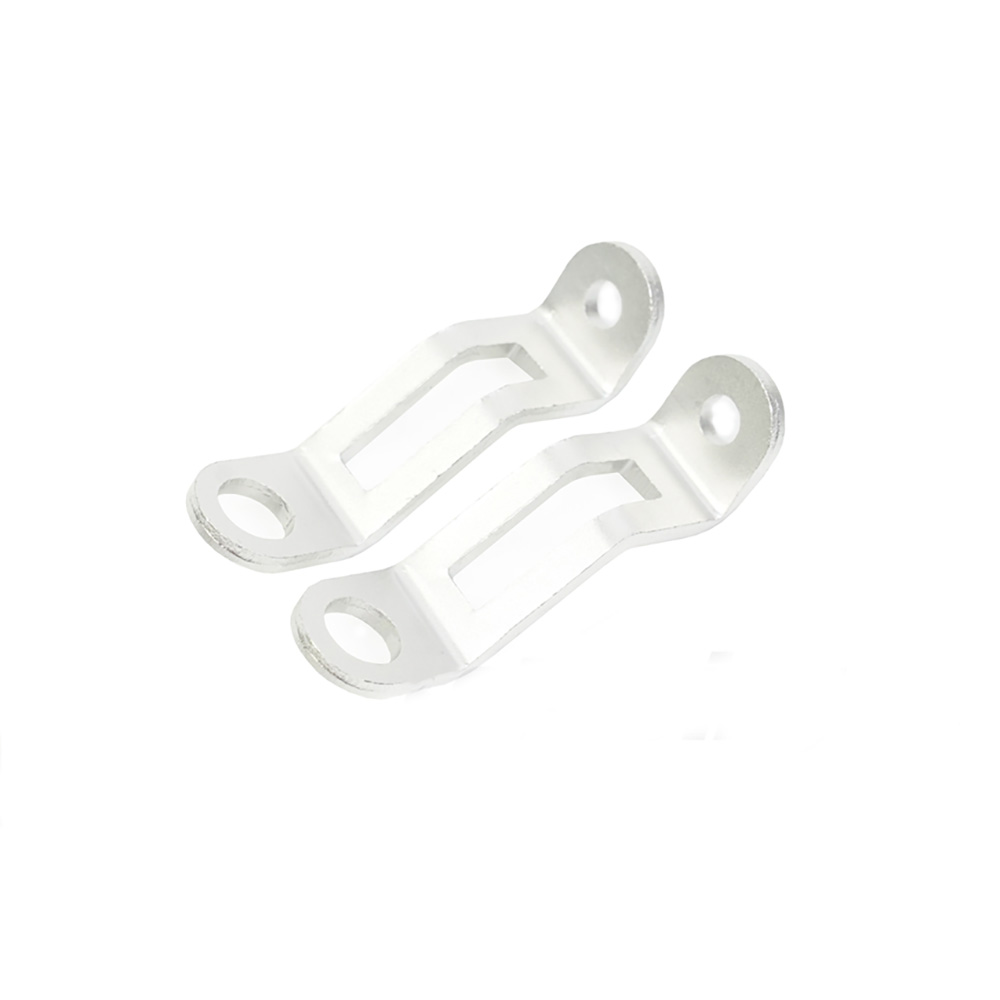

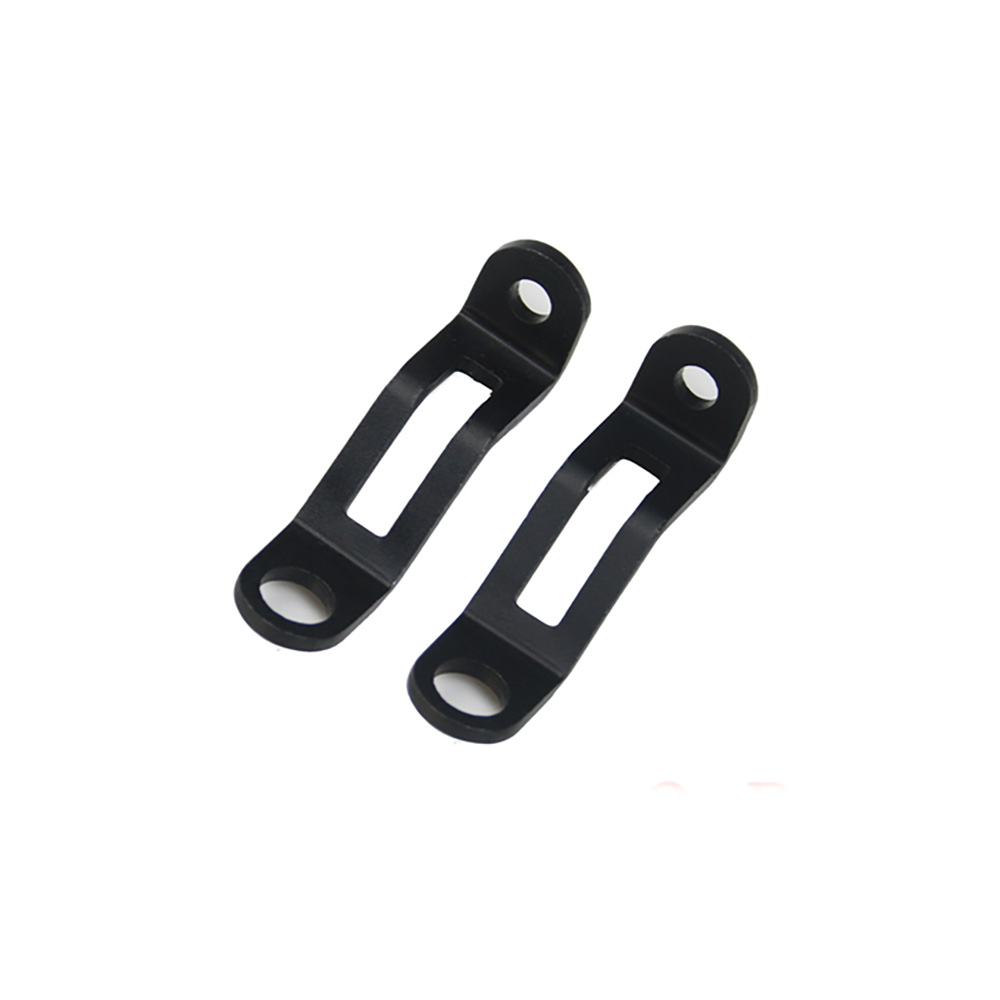

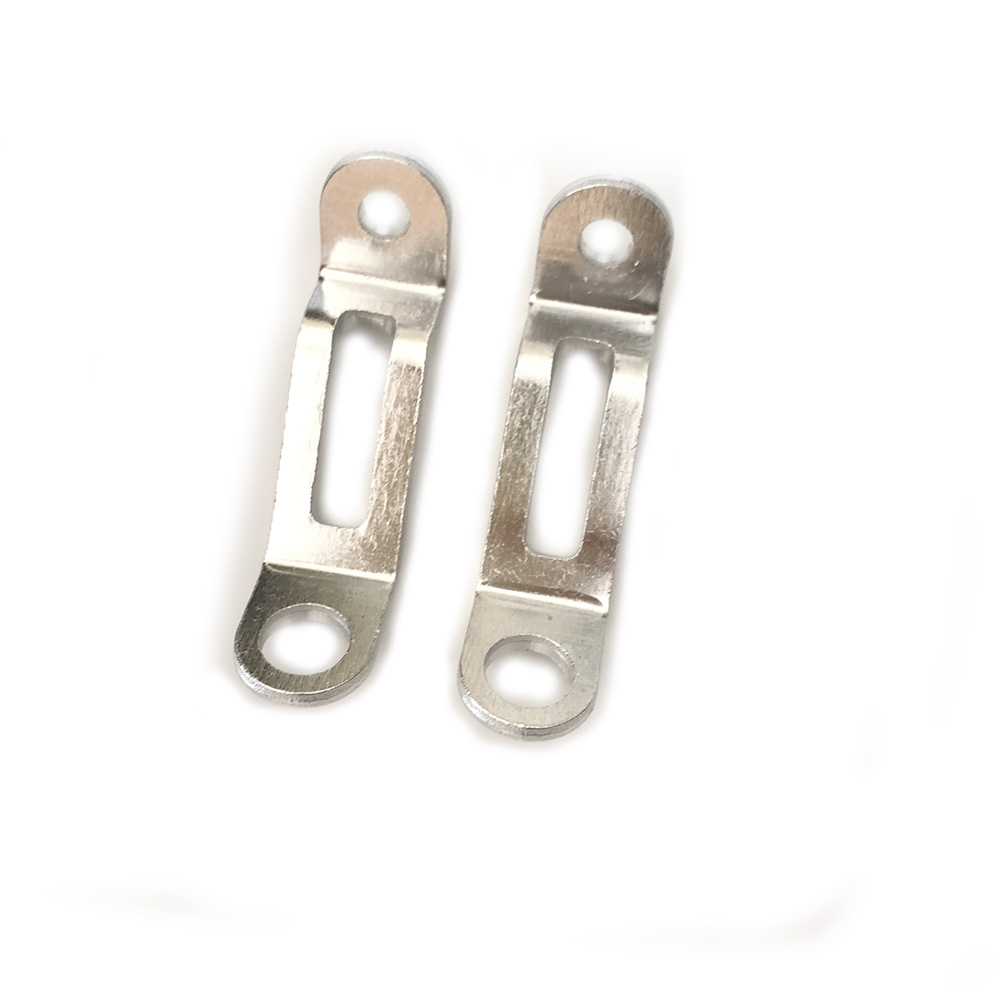

3. Mount the Repair Bracket Holder:

   • Position the repair bracket holder in alignment with the mounting points on your motorcycle.
   • Secure it using the provided bolts and nuts with a socket wrench.

4. Install the Hydraulic Clutch Master Cylinder:

   • Place the new hydraulic clutch master cylinder onto the repair bracket holder.
   • Tighten the mounting bolts securely using the socket wrench.

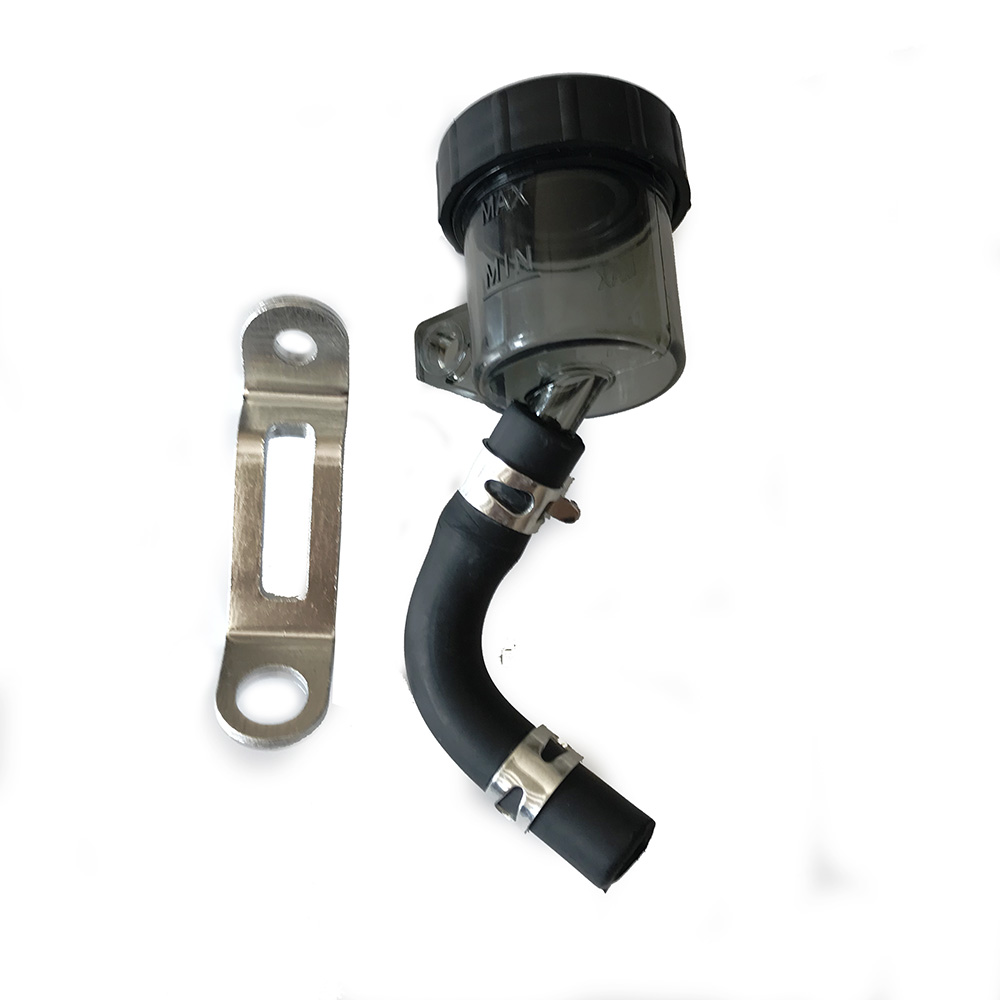

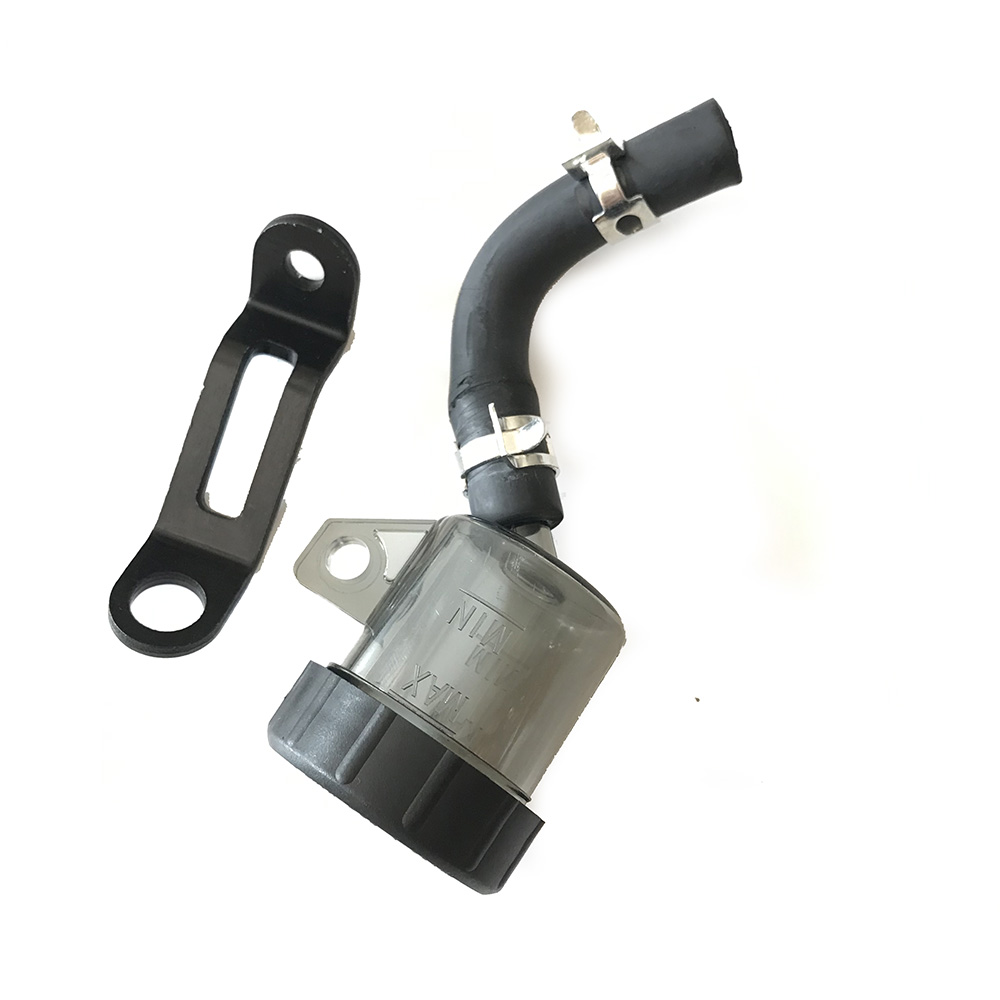

5. Connect the Reservoir Cup:

   • Attach the brake oil reservoir cup to the master cylinder, ensuring it is tightly secured.

6. Attach the Radial Brake Lever:

   • Install the radial brake lever by aligning it with the given mounting points and fastening it using the appropriate screws from the kit.
   • Make sure it moves freely without obstruction.

7. Connect the Hydraulic Lines:

   • If your setup includes hydraulic lines, connect them to the new master cylinder and ensure they are tightened.

8. Fill and Bleed the Hydraulic System:

   • Use the funnel to add the recommended brake fluid into the reservoir cup.
   • Bleed the system according to standard procedures (open the bleeder valve and pump the lever until the fluid runs clear, then close the valve).

9. Check for Leaks:

   • Inspect all connections and ensure there are no leaks in the system before finalizing the installation.
   • Wipe away any excess fluid with clean rags.

10. Final Checks:

    • Test the lever operation to ensure smooth engagement.
    • Double-check all fasteners and connections are secure.

11. Safety Check:

    • Re-check the entire system for leaks and functionality before taking your motorcycle for a test ride.
    • Ensure you are wearing safety gear during the test ride.

Enjoy improved control and performance with your newly installed hydraulic clutch master cylinder!
