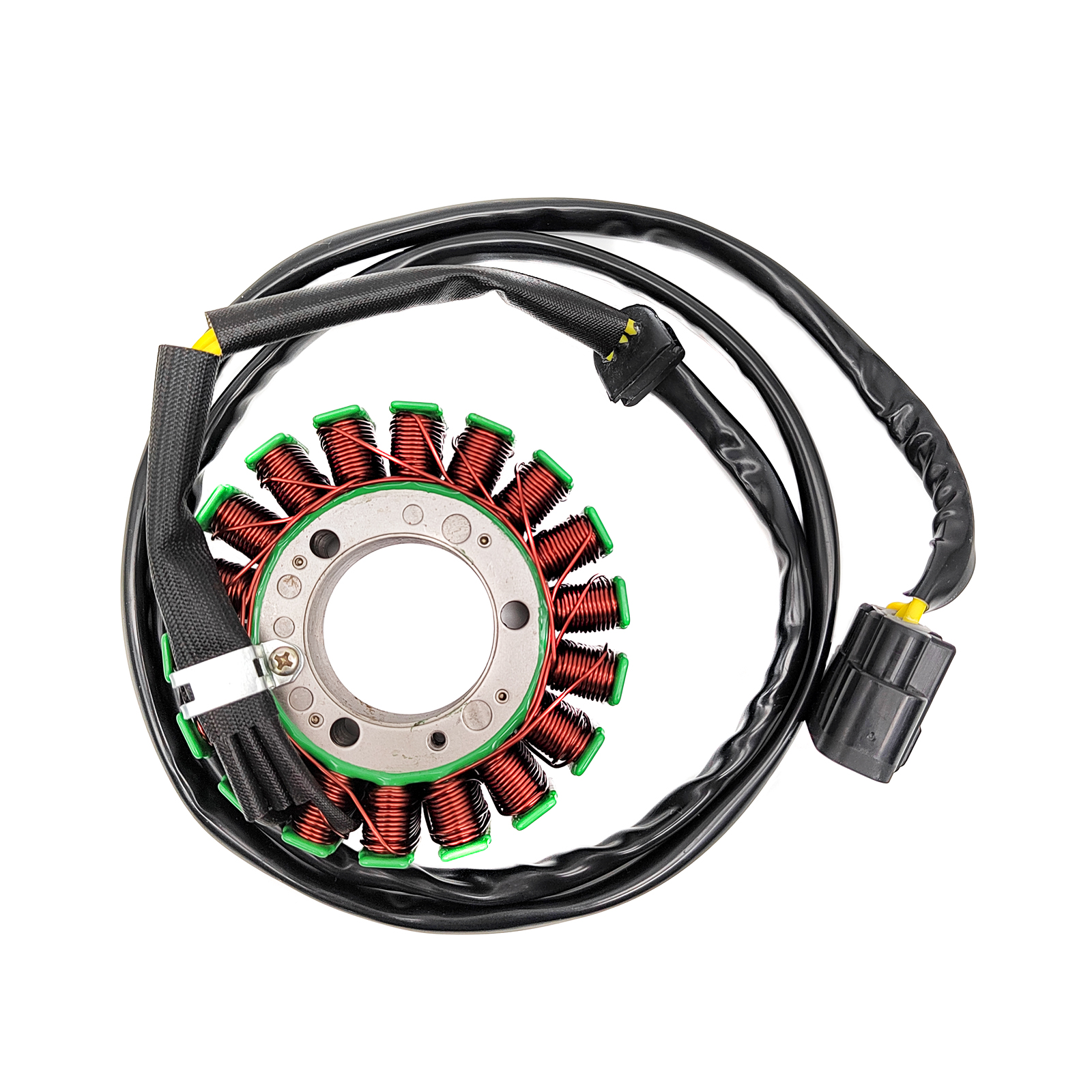

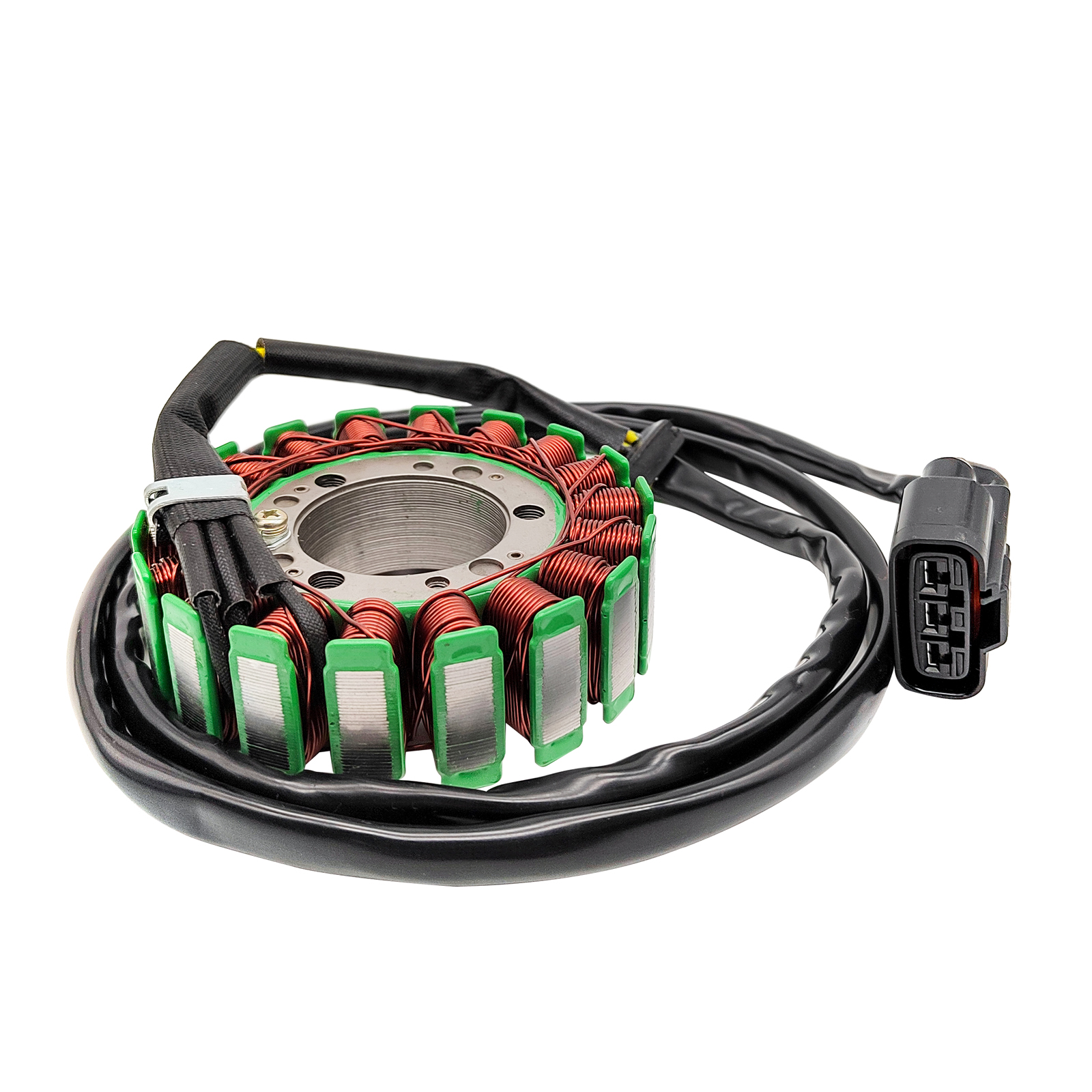

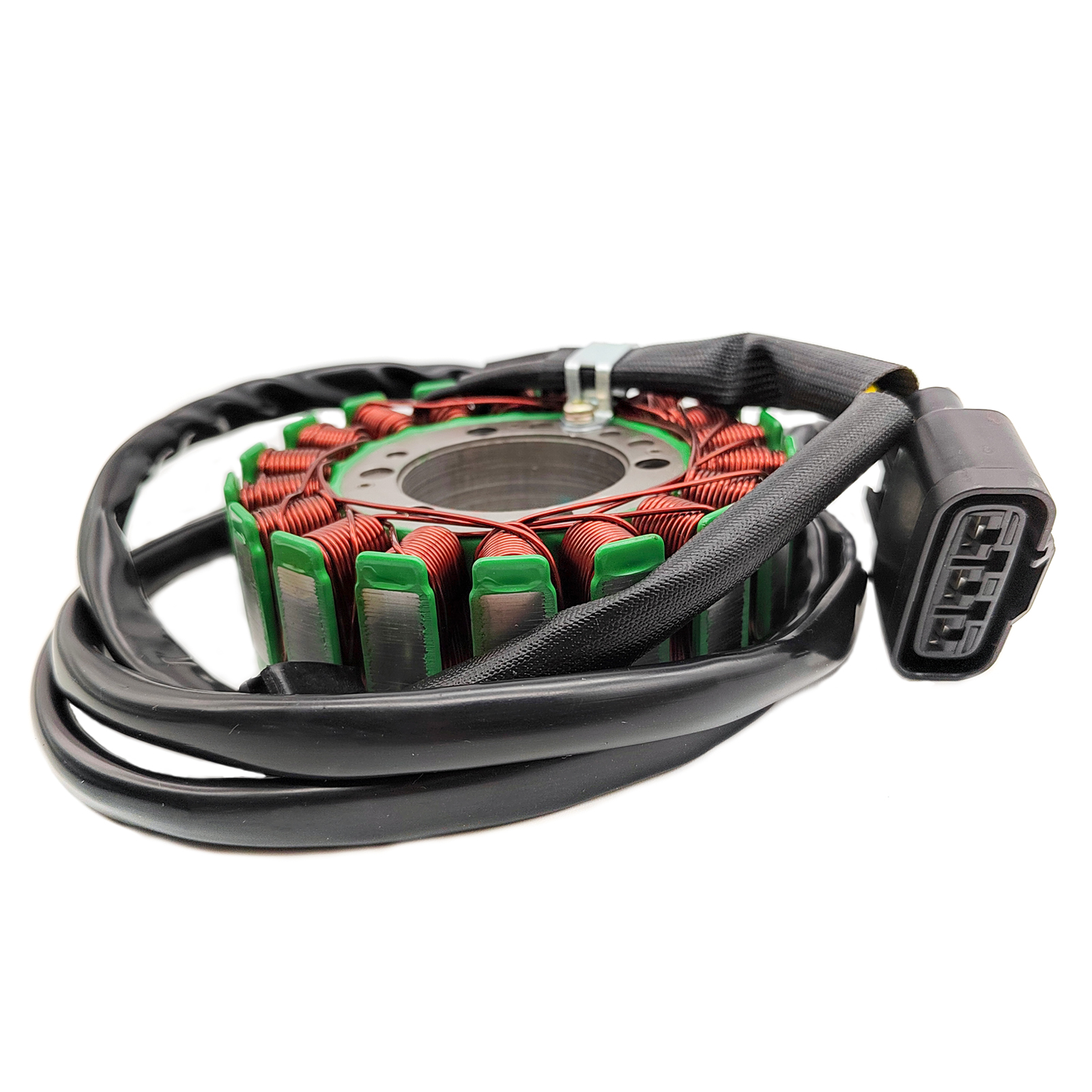

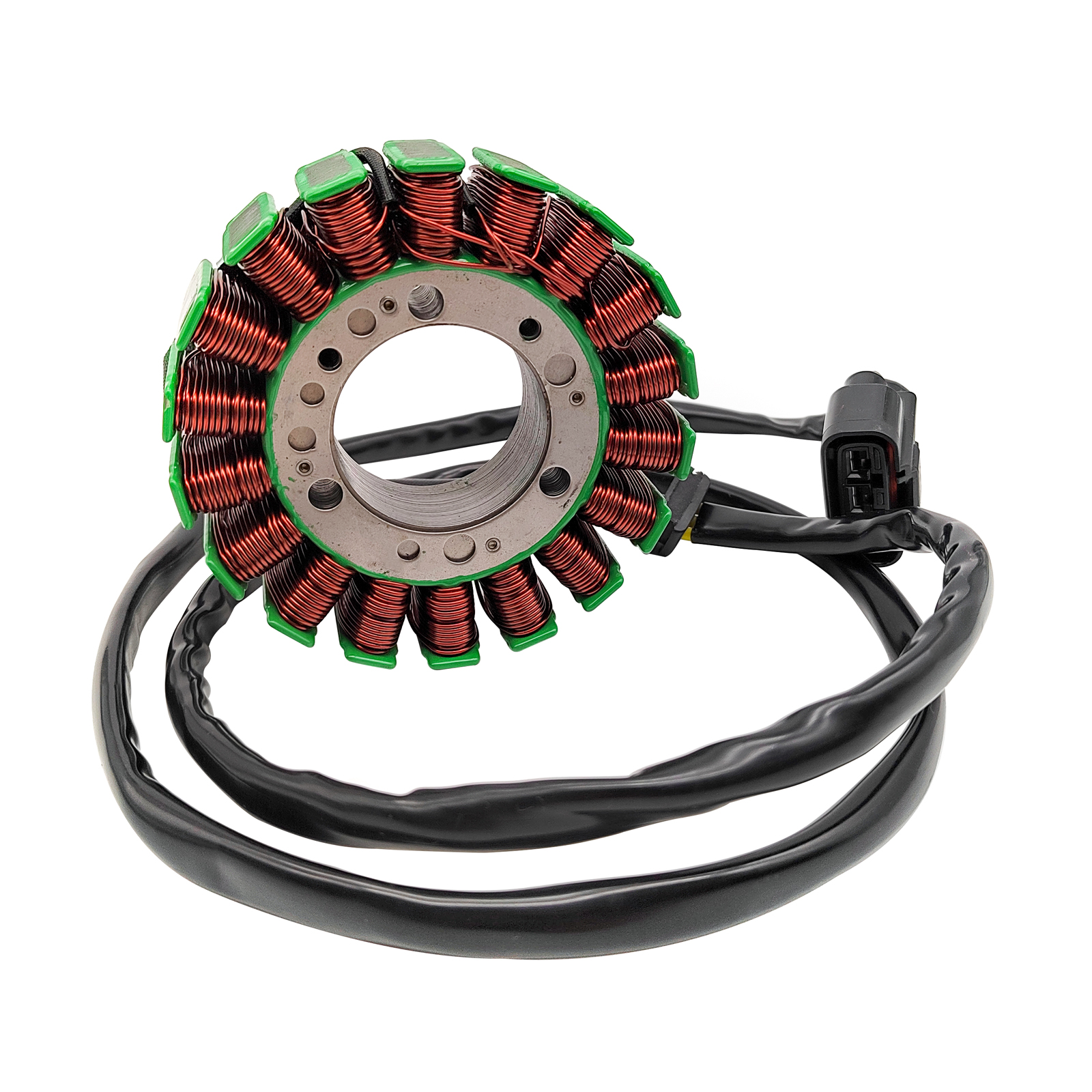

Installation Instructions for Compatible Stator Coil Assembly for 650 800 850 ATV Models (Part Number LU093873)

Tools Needed:

1. Socket Wrench Set
2. Screwdrivers (Flat Head and Phillips)
3. Torque Wrench
4. Pliers
5. Wire Cutters/Strippers
6. Electrical Tape
7. Clean Cloth or Shop Towels
8. Safety Goggles
   9.Gloves

Installation Steps:

1. Preparation:

   • Ensure the ATV is parked on a flat surface and the engine is off.
   • Disconnect the battery by removing the negative terminal to prevent electrical hazards.

2. Accessing the Stator:

   • Remove any necessary panels or covers to gain access to the engine compartment.
   • Consult your ATV’s manual for specific details on accessing the stator location.

3. Removing the Old Stator:

   • Use the socket wrench to remove the bolts securing the existing stator assembly.
   • Gently disconnect the electrical connectors attached to the old stator. Take note of their positions for reinstallation.

4. Installing the New Stator:

   • Carefully position the new stator coil assembly in place, ensuring it aligns with mounting holes.
   • Reconnect the electrical connectors, ensuring a snug fit to prevent any connectivity issues.

5. Securing the Stator:

   • Use the socket wrench to secure the new stator with the previously removed bolts.
   • Refer to your ATV’s manual for the correct torque specifications to ensure proper installation.

6. Final Checks:

   • Double-check all connections and ensure that the stator is securely mounted.
   • Clean the area with a cloth to remove any debris or old grease.

7. Reconnecting the Battery:

   • Reconnect the negative terminal of the battery.

8. Testing:

   • Start the engine and observe for any unusual sounds or warning lights.
   • Ensure that the vehicle operates smoothly and check all functions.

Safety Precautions:

• Always wear safety goggles and gloves during installation to protect against debris and sharp edges.
• Ensure the ATV is stable and secured when working on it.

By following these instructions, you will successfully install the Compatible Stator Coil Assembly, boosting your ATV's performance and reliability. Enjoy your ride!
