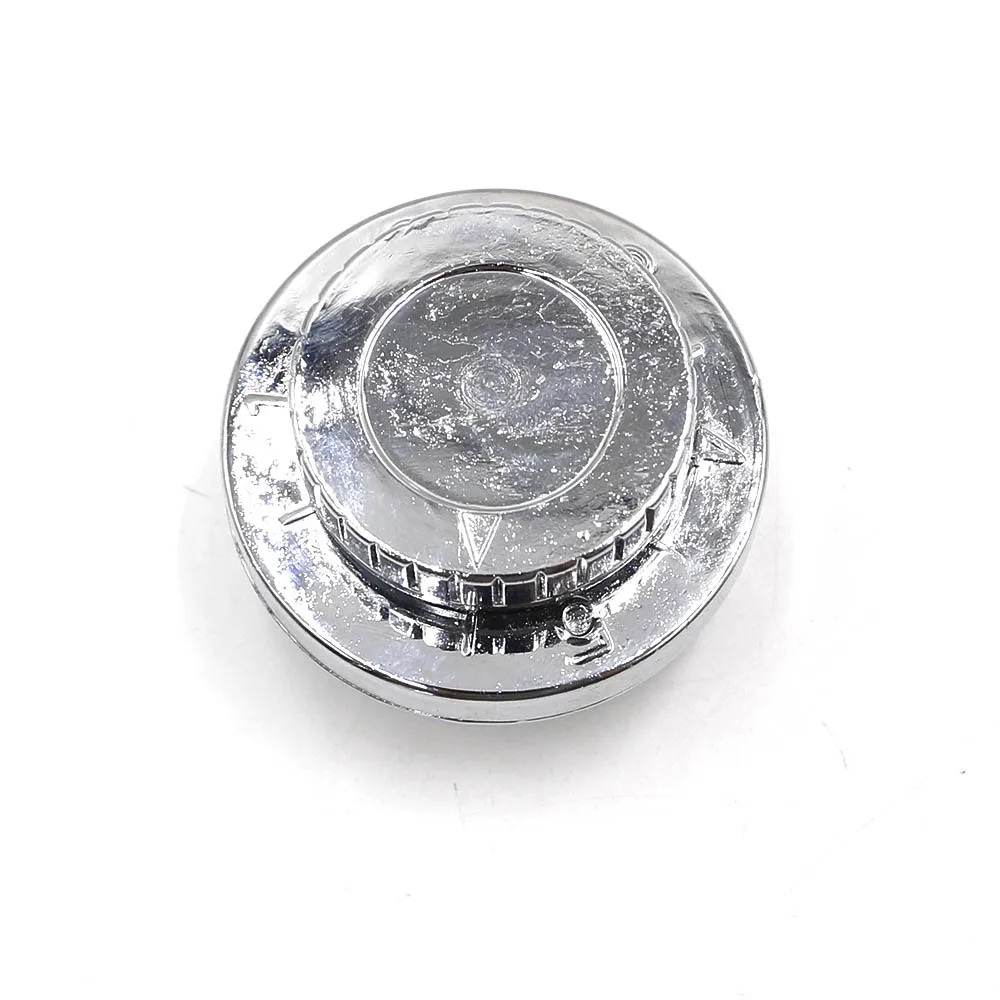

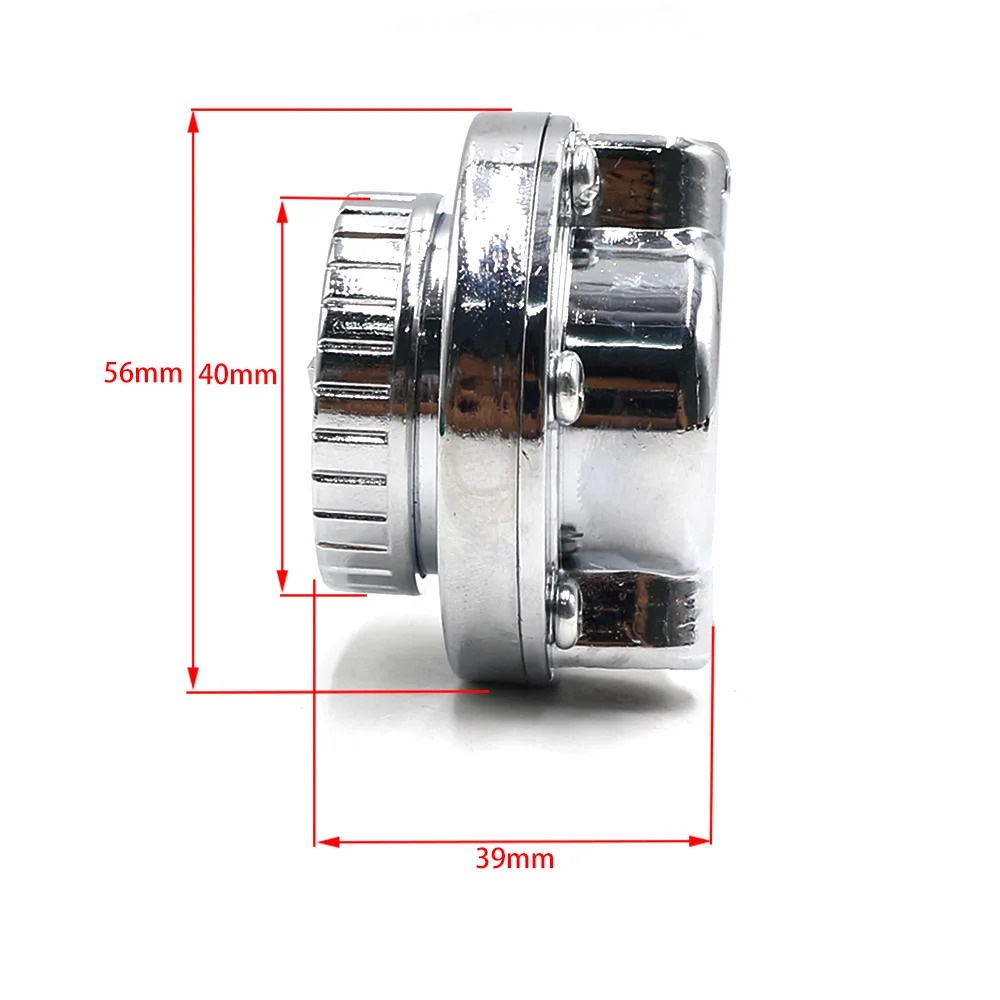

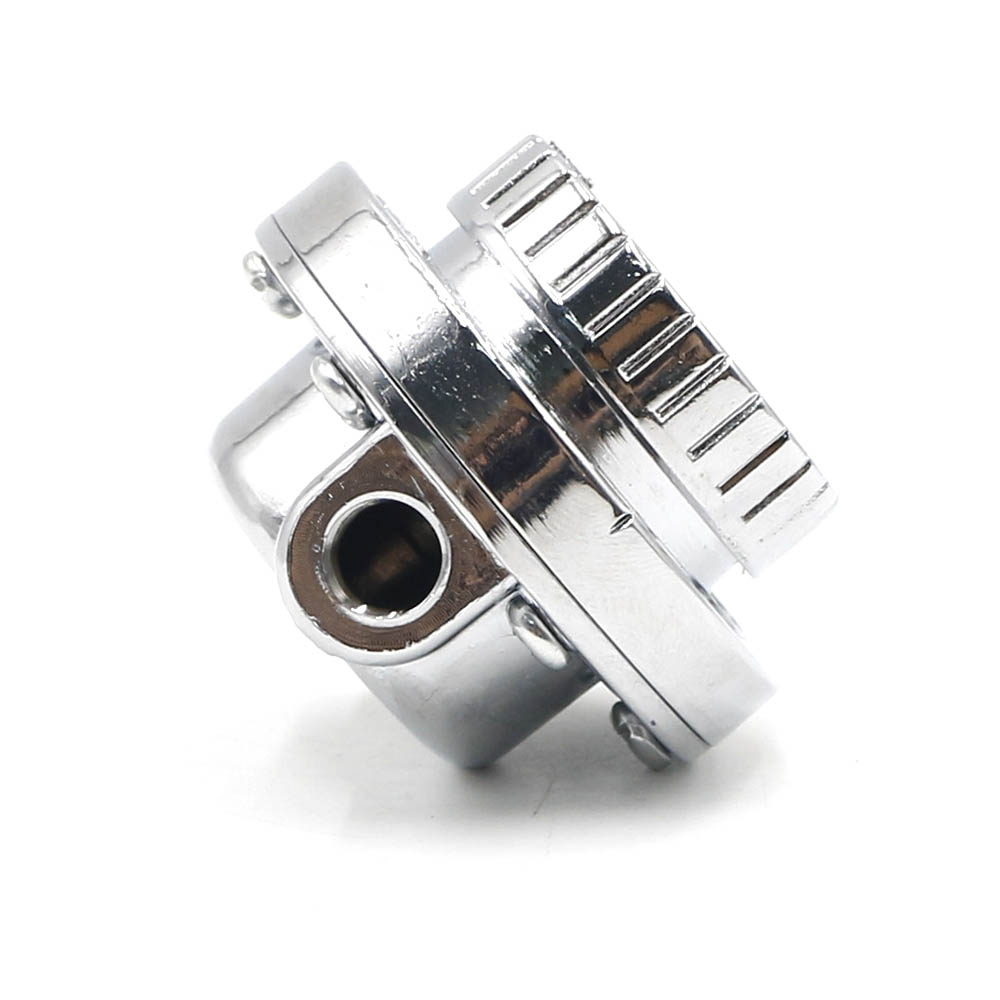

Installation Instructions for Adjustable 1-5 PSI Fuel Pressure Regulator

Product Overview:
The Adjustable 1-5 PSI Fuel Pressure Regulator is designed for carbureted engines and fuel pumps, ensuring optimal fuel supply and enhancing engine performance.

Tools Needed:

• Wrench Set (to remove and tighten fittings)
• Screwdriver Set (for hose clamps and mounting screws)
• Fuel Line Disconnect Tool (if applicable)
• Ratcheting Socket Set (for easier access to tight spaces)
• Clean Cloth or Rags (to catch any spills)
• Safety Glasses (to protect your eyes during installation)
• Fuel-Resistant Gloves (to protect your hands)

Installation Steps:

1. Safety Precautions:

   • Ensure the engine is off and cool before beginning installation.
   • Disconnect the negative battery terminal to prevent any electrical hazards.

2. Remove the Old Regulator:

   • Identify the old fuel pressure regulator located on your fuel line.
   • Using the appropriate wrench, carefully disconnect the fuel lines from the old regulator.
   • Remove any screws or mounting hardware that hold the regulator in place.

3. Prepare the New Regulator:

   • Compare the new adjustable fuel pressure regulator with the old one to ensure compatibility.
   • Make any necessary adjustments to the pressure setting by following the manufacturer’s guidelines.

4. Install the New Regulator:

   • Position the new fuel pressure regulator in the same location as the old one.
   • Secure it in place using screws and/or brackets, as needed.

5. Reconnect Fuel Lines:

   • Reattach the fuel lines to the new regulator, ensuring a tight fit to prevent leaks.

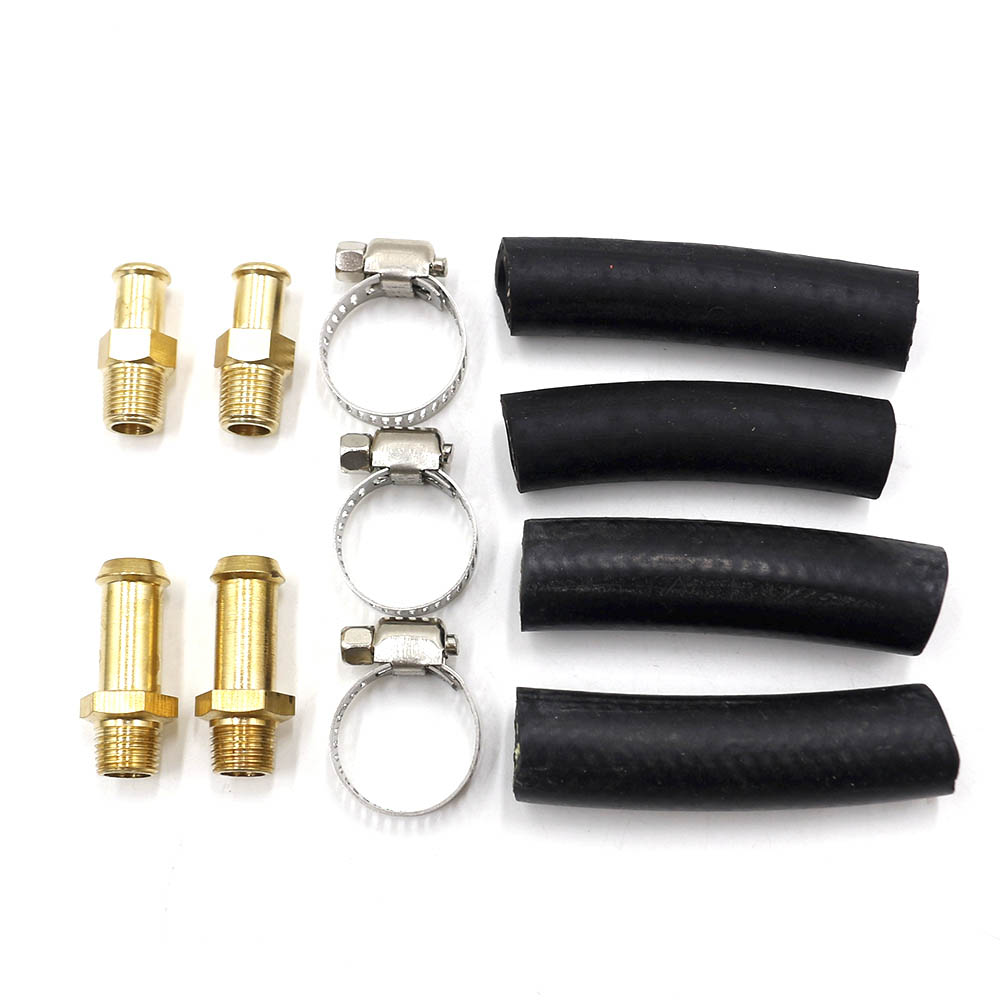

   • Use hose clamps if required to secure the fuel lines.

6. Final Checks:

   • Ensure all connections are tight and properly secured.
   • Check for any leaks before starting the engine.

7. Reconnect the Battery:

   • Reconnect the negative battery terminal to restore power to the vehicle.

8. Test the System:

   • Start the engine and monitor the fuel pressure gauge to ensure it is within the 1-5 PSI range.
   • Check for any leaks or irregularities in fuel delivery.

Note: If you encounter any issues during installation, consult the product manual or seek professional assistance to ensure proper functioning of the fuel pressure regulator.

Enjoy improved engine performance with your new adjustable fuel pressure regulator!
