Product Installation Instructions for Compatible Carburetor Interface Intake Manifold

Tools Required:

1. Socket Wrench Set: For removing and attaching bolts on the intake manifold.
2. Screwdriver Set: A flathead and Phillips screwdriver for securing clamps and connectors.
3. Torque Wrench: To ensure proper torque specifications are met while tightening bolts.
4. Pliers: For handling hoses and securing clamps.
5. Fuel Line Disconnect Tool: If applicable, to safely disconnect the fuel lines.
6. Shop Towels or Rags: For cleaning and wiping excess fluids during the installation process.
7. Engine Cleaner: To clean the surfaces of the intake area before installation.
8. Gasket Scraper: To remove old gaskets from the intake manifold surface.
9. Safety Goggles and Gloves: For protection during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is turned off and cooled down.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove the Old Intake Manifold:

   • Use the socket wrench to carefully remove bolts securing the old intake manifold.
   • Disconnect any hoses or clamps using the pliers and screwdrivers.
   • Gently remove the old manifold and clean the mounting surface with the gasket scraper and engine cleaner.

3. Install the New Intake Manifold:

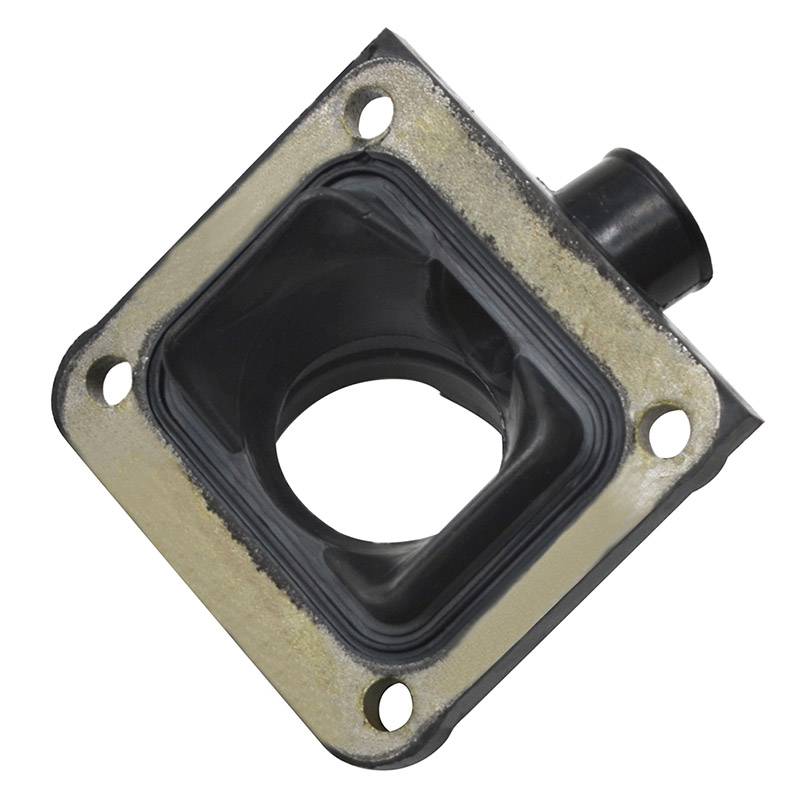

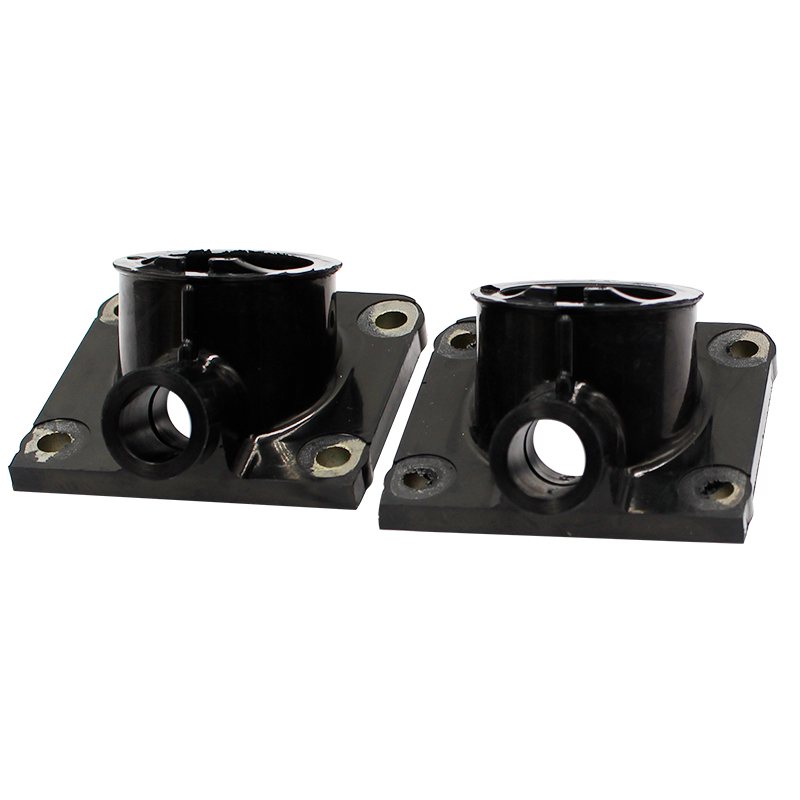

   • Place the new compatible carburetor interface intake manifold onto the mounting surface.
   • Ensure it aligns perfectly with the mounting holes.

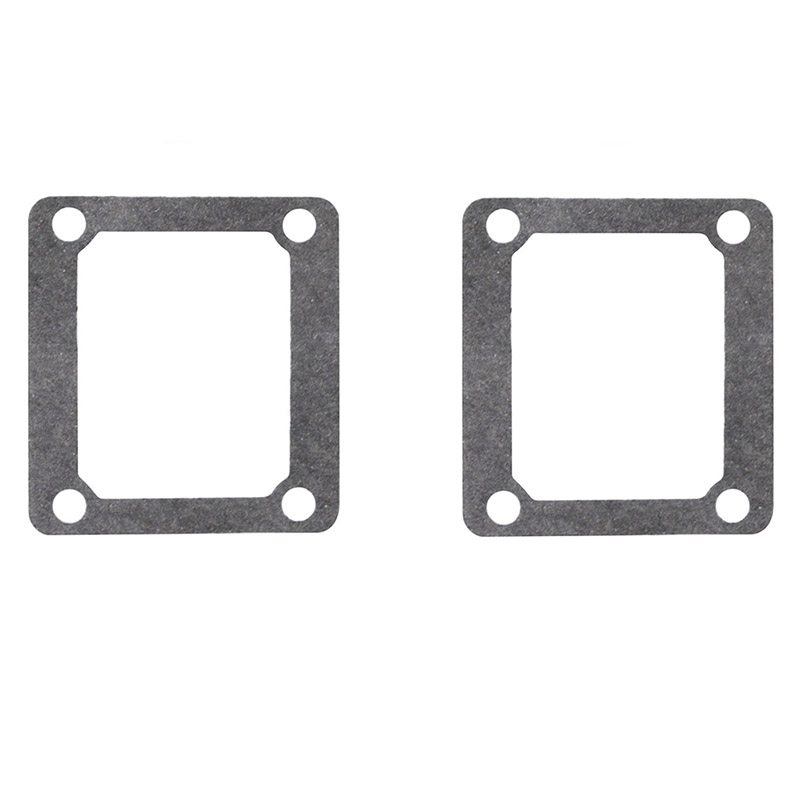

   • Install new gaskets if required, ensuring a proper seal.

4. Secure the Intake Manifold:

   • Use the socket wrench to tighten the bolts in a crisscross pattern, ensuring even pressure.
   • Refer to the torque specifications provided in the product manual.

5. Reconnect Hoses and Clamps:

   • Reattach any hoses or clamps that were disconnected earlier.
   • Ensure all connections are secure and leak-free.

6. Final Checks:

   • Reconnect the battery.
   • Start the engine and check for any leaks or unusual noises.
   • Test drive the motorcycle to ensure proper performance.

Note: Always refer to your motorcycle's service manual for specific instructions and torque specifications related to your model.

Enjoy your enhanced riding experience!
