Installation Instructions for Clutch Plate Pad 3 Shoes for 49cc 2 Stroke Pocket Bike ATV Quad Compatible Engine

Overview:

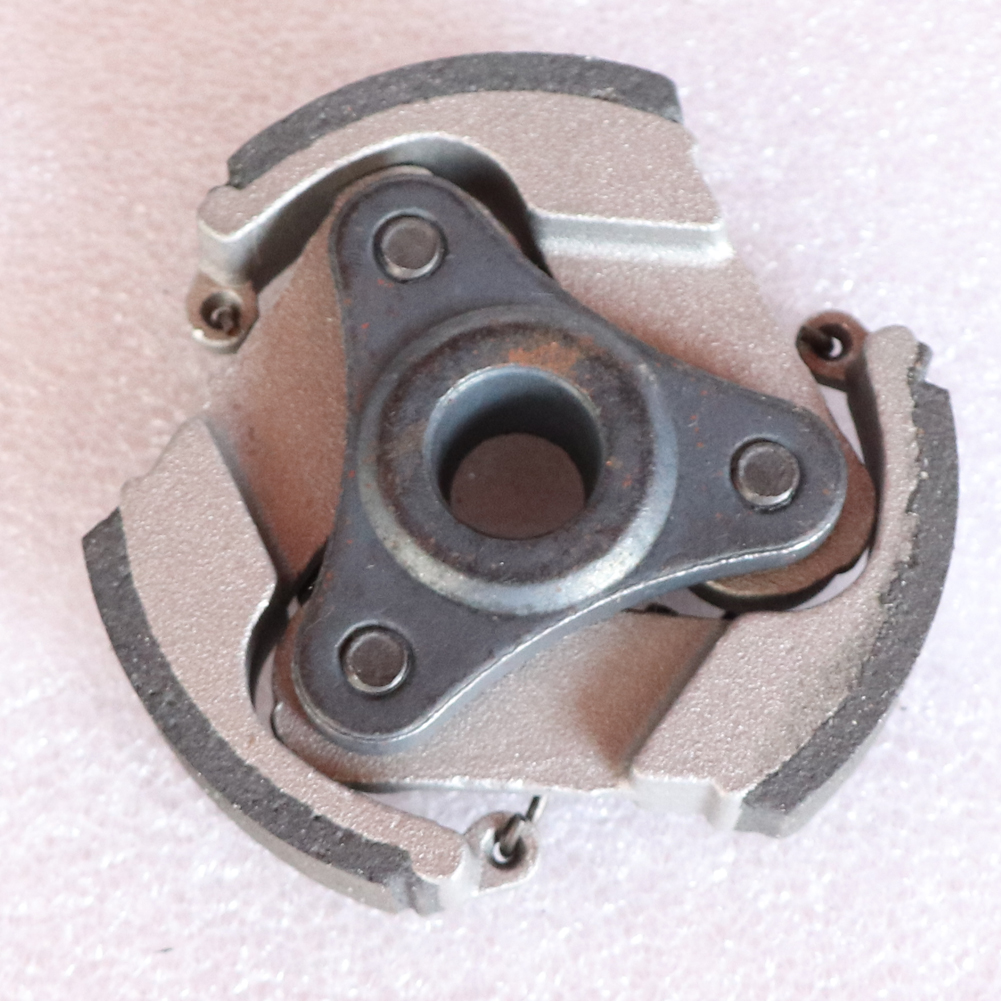

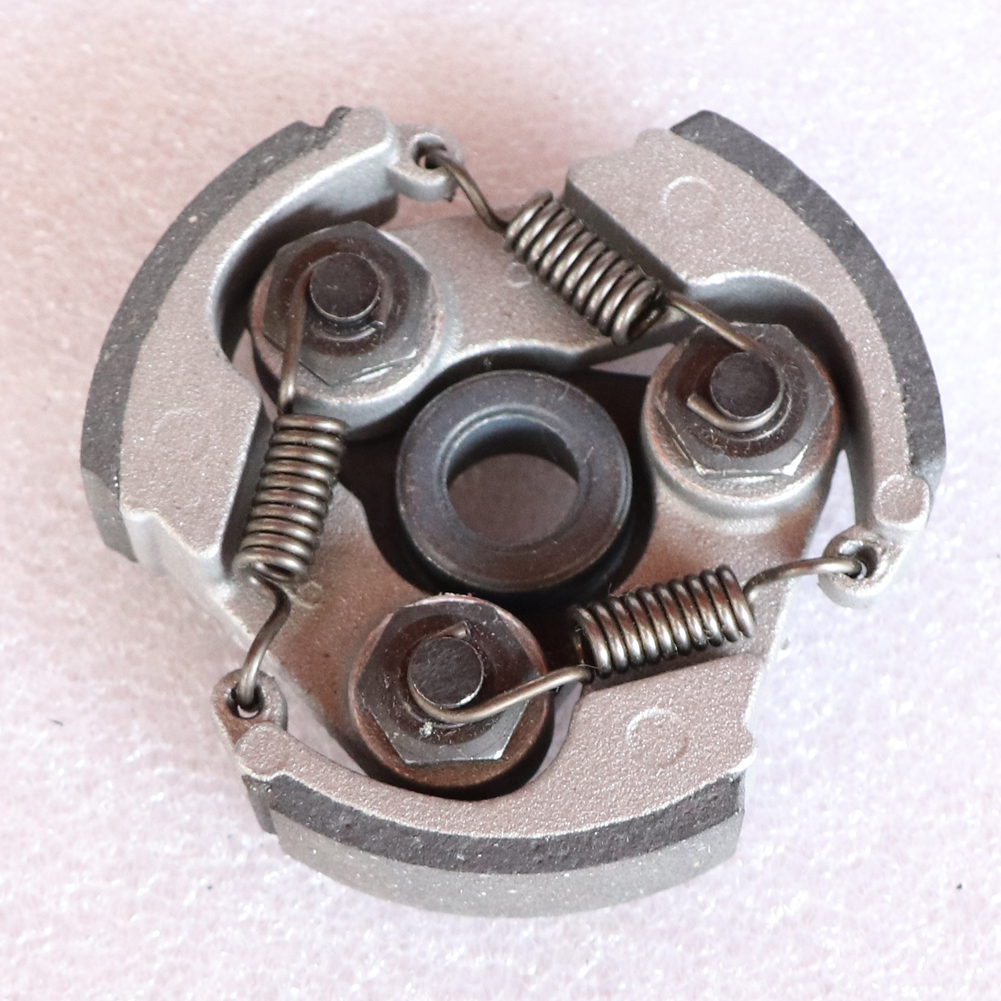

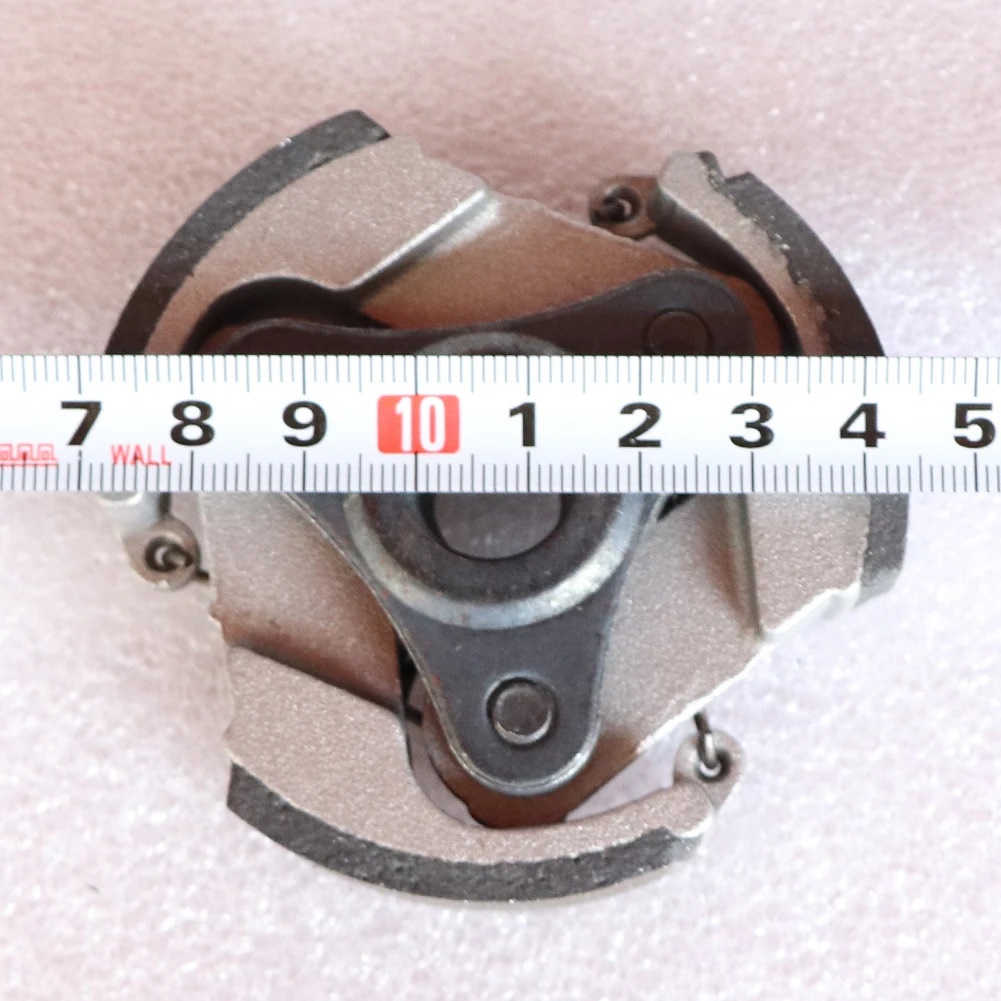

This plate clutch pad is designed for 49cc 2-stroke pocket bikes, ATVs, and quad bikes. It comes with three shoes and ensures long-lasting and stable performance. Follow these instructions for installation.

Tools Required:

1. Socket Wrench Set
2. Screwdriver Set (Flathead and Phillips)
3. Pliers
4. Torque Wrench
   5.Clean Cloth
5. Replacement Gloves (optional)
6. Safety Goggles (optional)

Installation Steps:

1. Preparation:

   • Ensure the engine is cold and the bike is on a stable surface.
   • Gather all required tools.

2. Remove the Old Clutch Plate:

   • Use a socket wrench to remove the bolts securing the clutch cover.
   • Carefully detach the clutch cover and set it aside.
   • Use pliers to remove the old clutch plate from the engine.

3. Clean the Area:

   • Wipe down the clutch area with a clean cloth to remove any dirt or debris.
   • Ensure that there are no remnants of the old clutch plates.

4. Install the New Clutch Plate Pad:

   • Position the new clutch plate pad and align it with the engine.
   • Ensure the three shoes are properly seated against the clutch bell.

5. Secure the Clutch Plate:

   • Use the socket wrench to tighten the bolts, secure the clutch plate in place.
   • Make sure to apply even pressure and do not overtighten.
   • Use a torque wrench to ensure proper specifications if available.

6. Reattach the Clutch Cover:

   • Place the clutch cover back over the assembly.
   • Use the socket wrench to secure it with bolts, ensuring a tight fit.

7. Final Check:

   • Inspect all connections and ensure everything is secured properly.
   • Clean any excess oil or debris from the installation area.

8. Test Run:

   • Start the engine and allow it to warm up.
   • Check for any unusual noises or irregularities in performance.
   • Test the throttle response to ensure proper functioning of the new clutch plate pad.

Conclusion:
With proper installation, the new Clutch Plate Pad will enhance your ride's performance. Enjoy a smoother, more responsive riding experience with your newly installed part.
