Product Installation Instructions for Universal Motorcycle Tachometer Speedometer Meter Gauge

Suitable for 100cc Models Including AX100

Installation Overview:

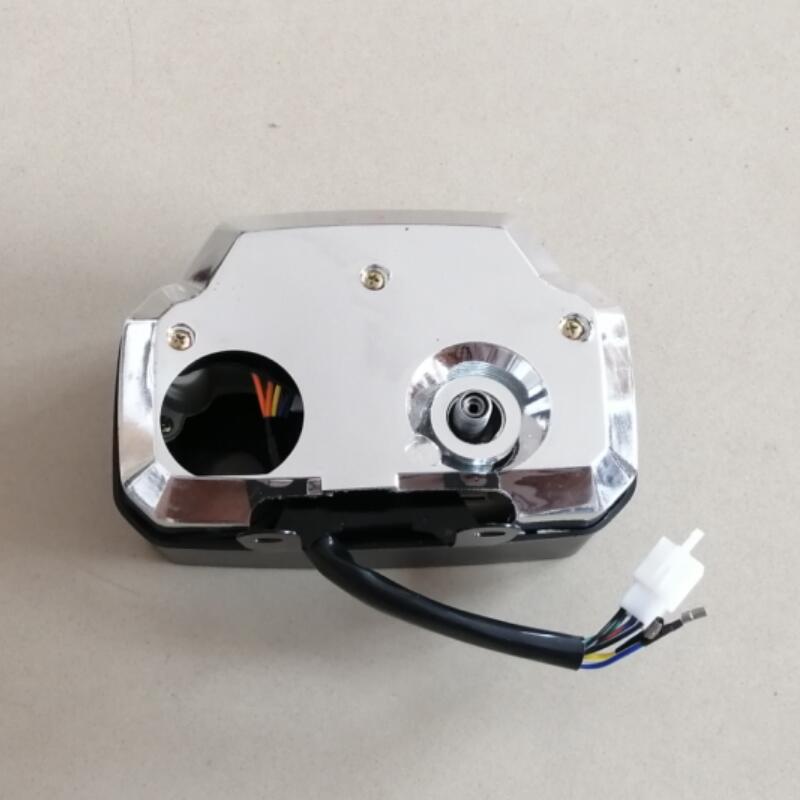

This universal motorcycle tachometer and speedometer meter gauge is designed for easy installation on 100cc models, including the AX100. With real-time speed and RPM data, it is perfect for DIY enthusiasts. The gauge is built for all-weather use and requires no additional maintenance.

Tools Required:

Before beginning the installation process, make sure you have the following tools ready:

1. Screwdriver Set:

   • Philips and flathead screwdrivers will be necessary for securing the gauge in place.

2. Wrenches:

   • A set of metric wrenches is required to tighten bolts as needed.

3. Wire Strippers and Connectors:

   • To properly connect the gauge’s wiring to the motorcycle’s electrical system.

4. Electrical Tape:

   • To insulate the connections and ensure safety.

5. Drill (Optional):

   • Only if new mounting holes are required.

6. Mounting Hardware:

   • Typically included with the gauge; check if additional bolts or brackets are needed.

7. Zip Ties:

   • For organizing wires and ensuring they do not interfere with moving parts.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is turned off and the battery is disconnected to prevent electrical shorts or shocks.

2. Remove the Old Gauge (if applicable):

   • Use the screwdriver to take out any existing speedometer or tachometer. Disconnect the wiring carefully.

3. Mount the New Gauge:

   • Position the new gauge in the desired location. If necessary, use a drill to create mounting holes and secure it with screws and bolts.

4. Wiring Connection:

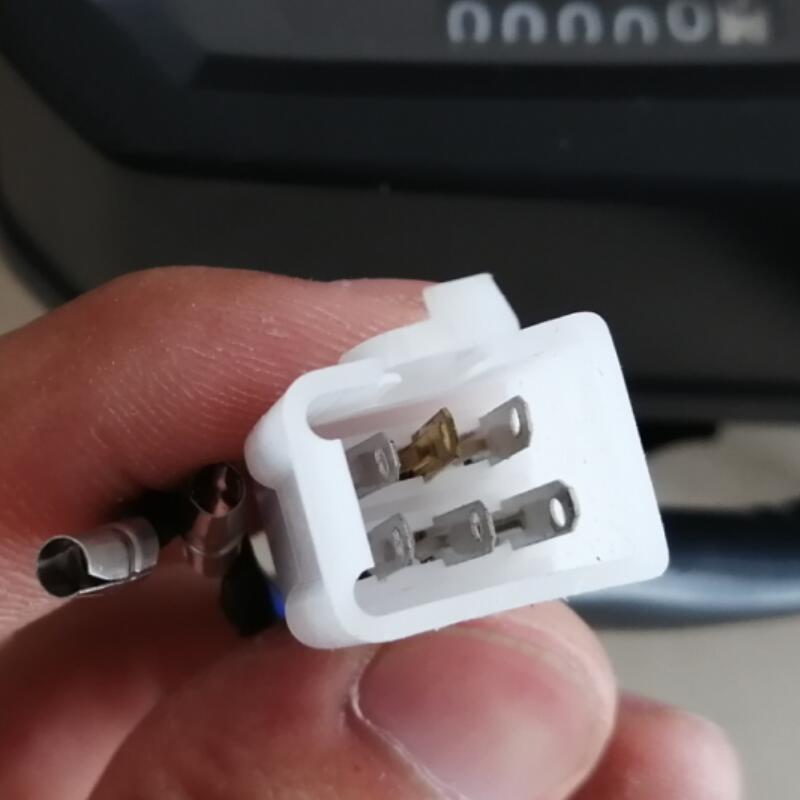

   • Strip the ends of the gauge wires and the corresponding motorcycle wires. Connect them using the appropriate connectors.
   • Refer to the gauge's wiring diagram for proper connections.

5. Secure the Wiring:

   • Use electrical tape to insulate connections and zip ties to organize the wires, keeping them clear from moving parts.

6. Reattach the Battery:

   • Once all connections are made and secure, reconnect the motorcycle battery.

7. Testing:

   • Turn on the motorcycle and verify that the gauge displays speed and RPM accurately.

8. Final Adjustments:

   • If necessary, make any adjustments to the gauge positioning before securing everything in place.

Conclusion:

With the right tools and careful installation, your universal motorcycle tachometer and speedometer meter gauge will enhance your riding experience by providing crucial performance data. Enjoy your ride!
