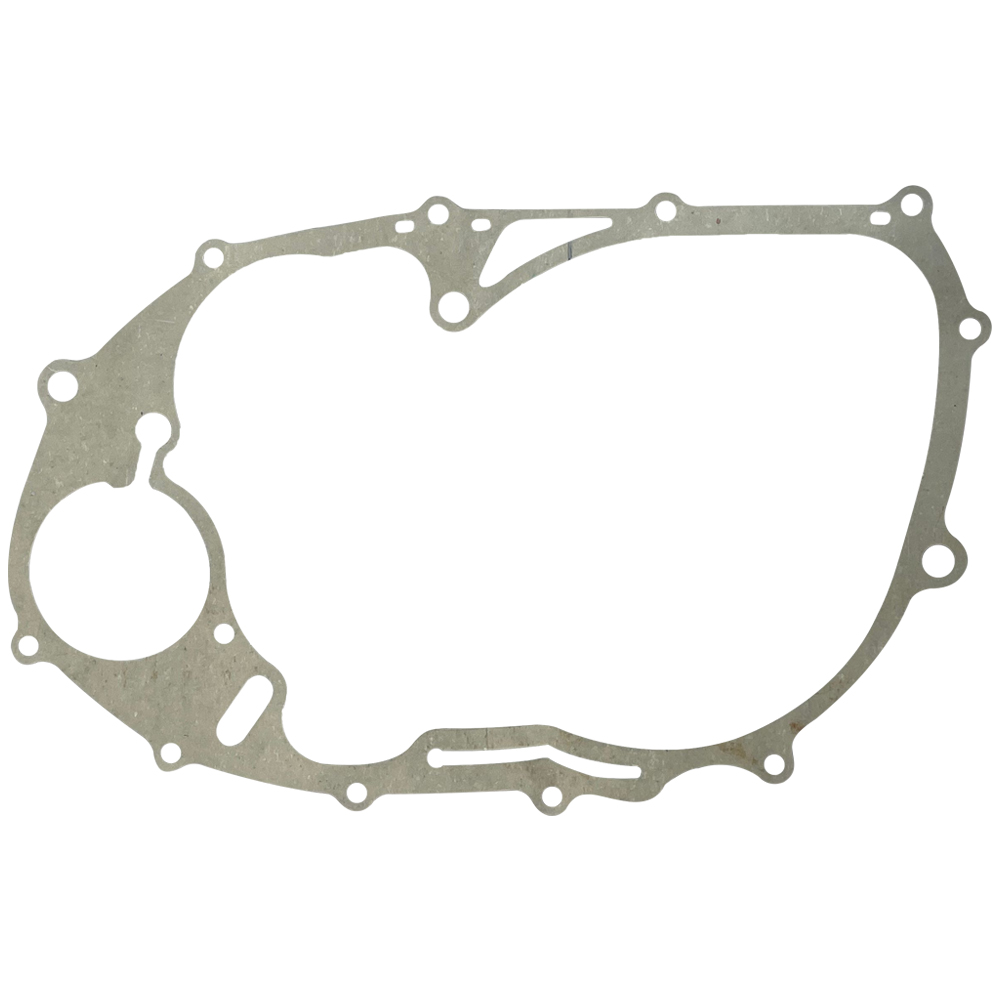

Motorcycle Engine Clutch Cover Gasket Installation Instructions

Compatible Models:

• Virago 535 XV535 (1987-2001)
• V-Star 650 XVS650 (1998-2016)
• Dragstar XVS 650 (1997-2006)

Installation Preparation:

Before you begin the installation, make sure you have the following tools ready:

1. Socket Wrench Set:

   • For removing and tightening bolts securing the clutch cover.

2. Torque Wrench:

   • To ensure that all bolts are tightened to the manufacturer's specified torque specifications.

3. Screwdriver Set:

   • For any screws that may need to be removed during the process.

4. Pliers:

   • To help remove any clips or retainers if necessary.

5. Gasket Scraper or Razor Blade:

   • For cleaning the surface area of ​​old gasket material, if applicable.

6. Clean Rags:

   • To wipe off any oil spills or debris before installation.

7. Engine Oil:

   • Depending on your bike’s requirements, have fresh engine oil ready to top off after installation.

8. Safety Gear:

   • Gloves and safety glasses to protect yourself during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and has cooled down before starting the work.

2. Remove the Clutch Cover:

   • Use the socket wrench to remove the bolts securing the clutch cover. Be sure to keep the bolts in a safe place for reinstallation.

3. Clean the Surface:

   • Carefully scrape away any old gasket material from the clutch cover and engine surface to ensure a good seal.

4. Install the New Gasket:

   • Position the new gasket on the engine surface, making sure it is aligned properly.

5. Reattach the Clutch Cover:

   • Carefully place the clutch cover back onto the engine and align it with the bolt holes.

6. Secure the Bolts:

   • Use the socket wrench to hand-tighten the bolts, then use the torque wrench to tighten them to the manufacturer’s specifications.

7. Final Touches:

   • Wipe off any excess oil around the installation area and check for any loose items.

8. Check Fluid Levels:

   • If necessary, top off the engine oil.

Conclusion:

Congratulations! You have successfully installed the Motorcycle Engine Clutch Cover Gasket. Ensure to check for any leaks before taking your motorcycle for a ride. Regular maintenance will keep your engine in top condition and extend its lifespan.
