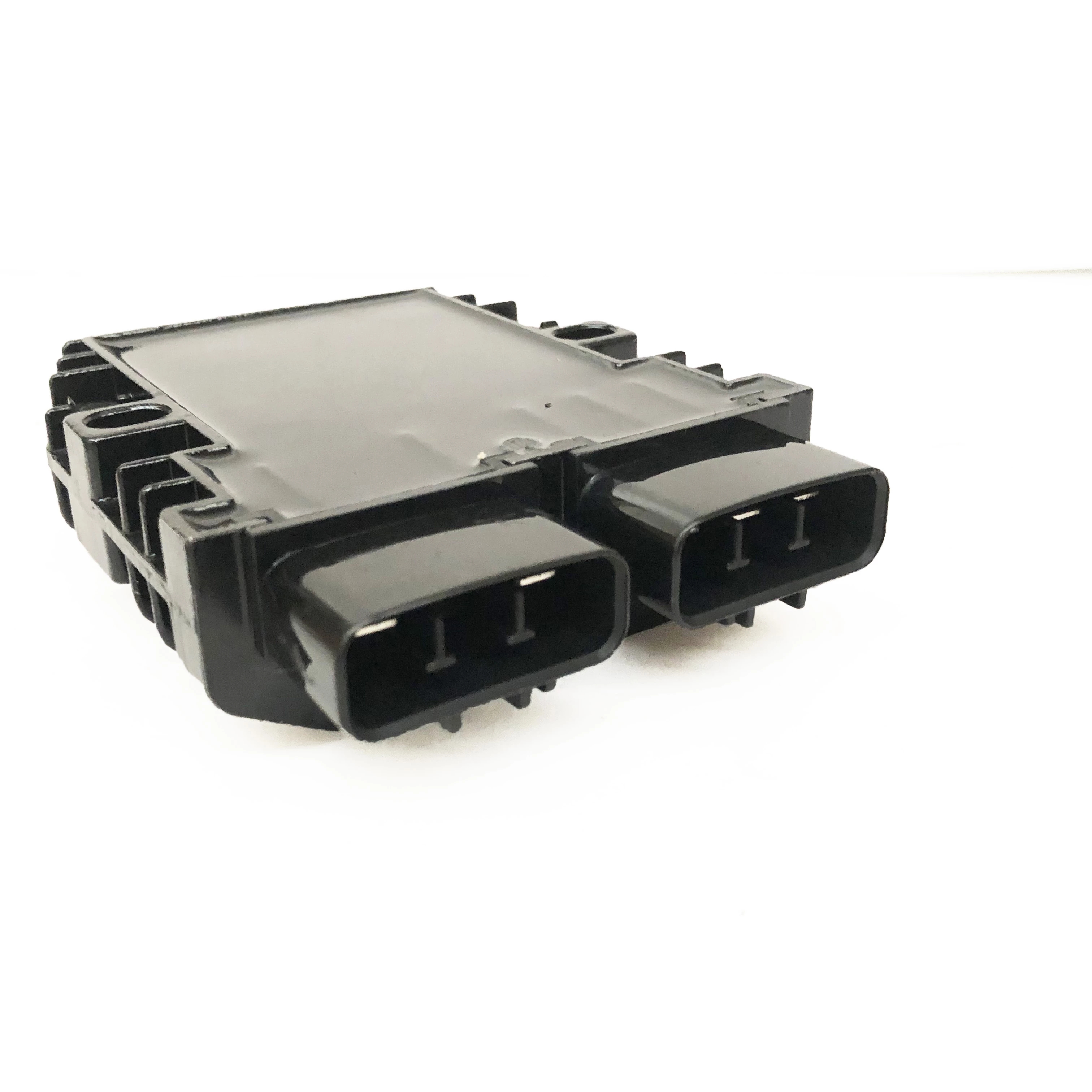

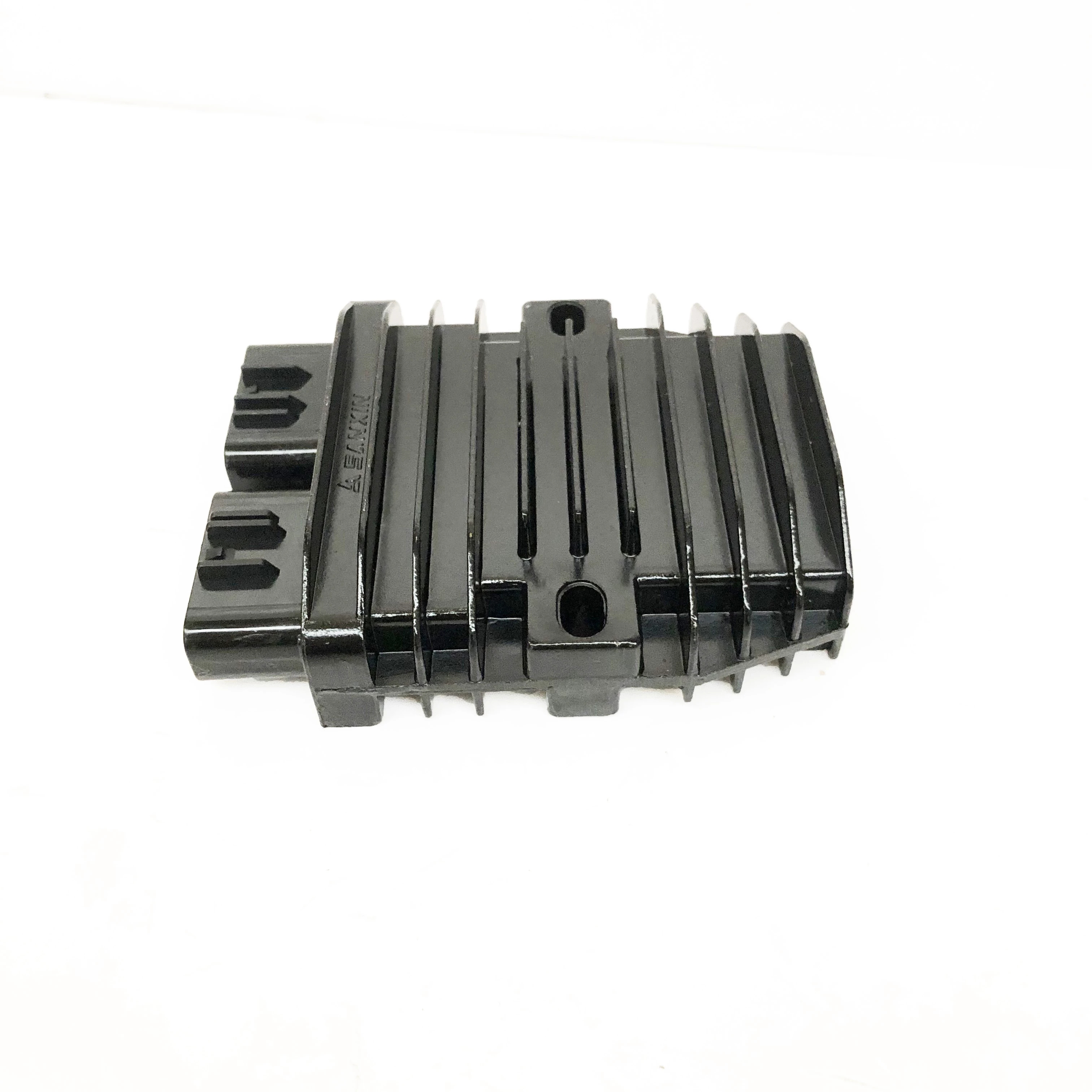

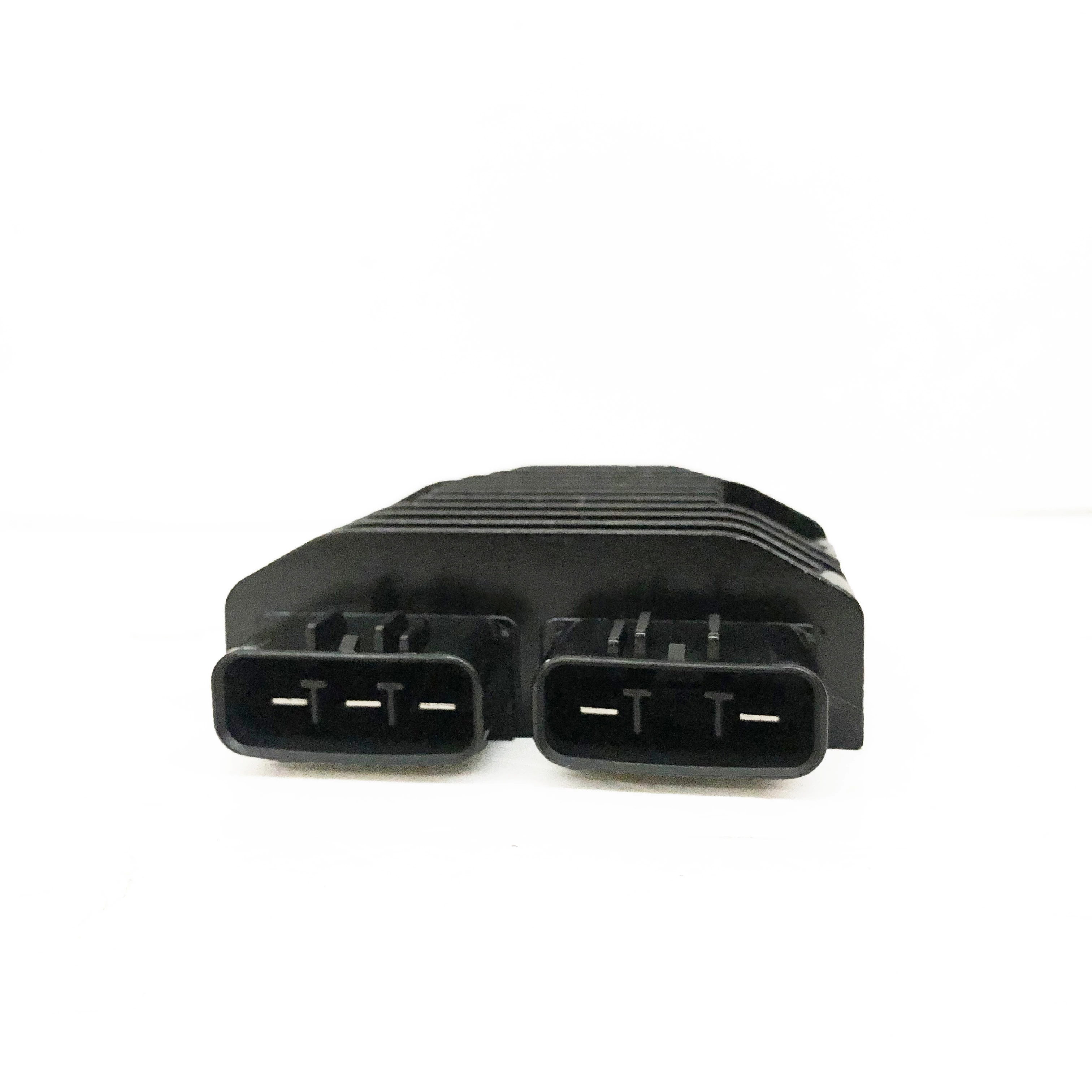

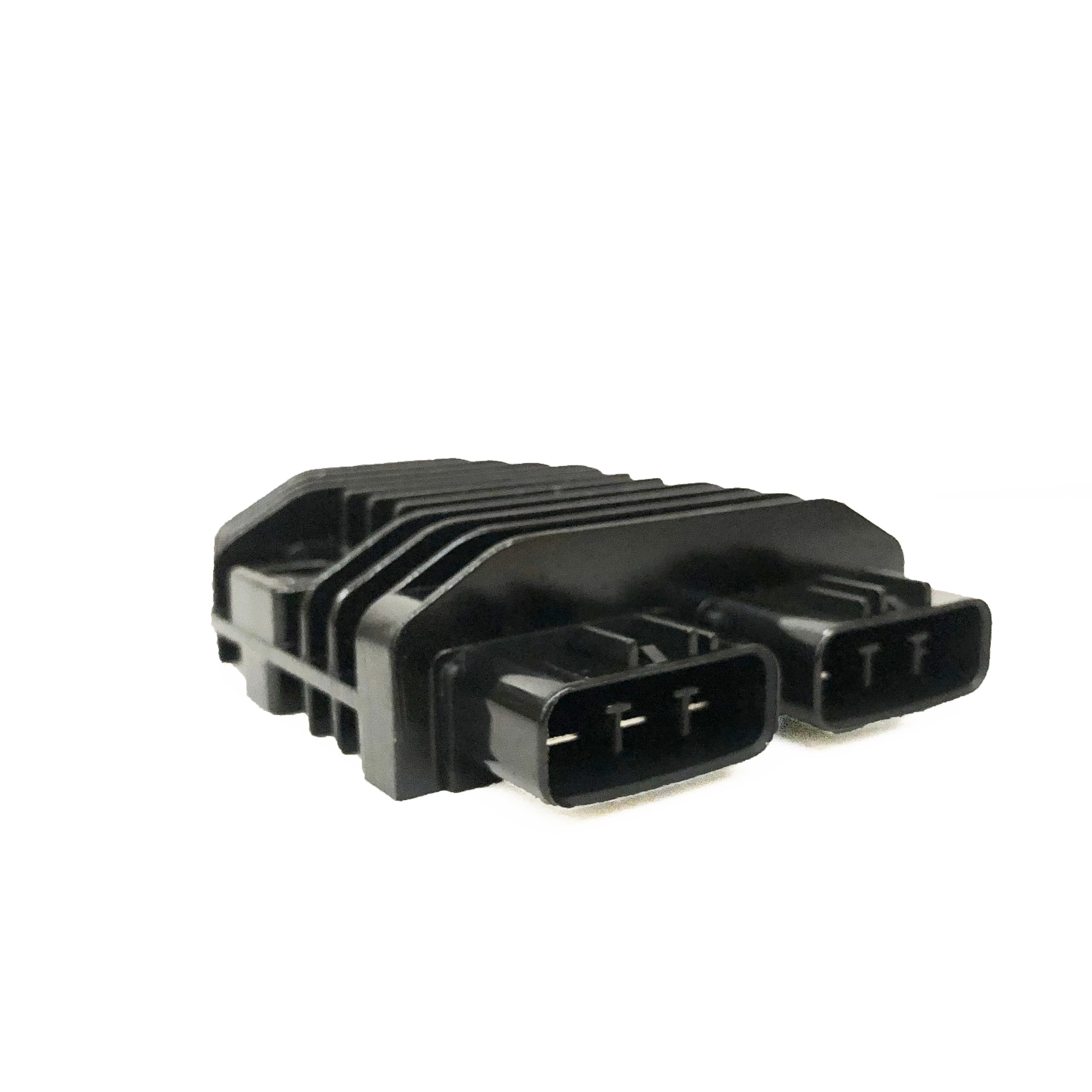

Installation Instructions for 30A EFI Regulator Rectifier

Compatibility

This 30A EFI Regulator Rectifier is compatible with CF500 and CF600 models, suitable for various ATVs, quads, and go-karts.

Overview

This regulator rectifier ensures stable power supply, effectively regulates and rectifies voltage, and maintains engine stability under different operating conditions, preventing electrical failures.

Required Tools

Before starting the installation, please gather the following tools:

1. Socket Wrench Set - For removing and securing bolts.
2. Screwdriver Set - A flathead and Phillips screwdriver for electrical connections.
3. Wire Strippers - If any wiring modifications are necessary.
4. Electrical Tape - For insulating electrical connections if needed.
5. Heat Shrink Tubing - To protect any exposed wiring.
6. Multimeter - To test voltage and ensure proper connections.
7. Torque Wrench - To make sure bolts are tightened to manufacturer specifications.
8. Safety Gloves - To protect your hands during installation.

Installation Steps

1. Safety First: Ensure the engine is turned off and cold before beginning the installation.
2. Locate the Old Regulator Rectifier: Find the existing regulator rectifier on your vehicle.
3. Disconnect Connections: Carefully disconnect the electrical connectors from the old regulator rectifier.
4. Remove the Old Unit: Use your socket wrench to remove the bolts securing the old unit. Set it aside.
5. Install the New Regulator Rectifier: Position the new regulator rectifier in place and secure it with bolts. Make sure it aligns with the vehicle’s original layout.
6. Reconnect Electrical Connectors: Attach the connectors to the new unit, ensuring each connection is snug and secure.
7. Test the Installation: Use a multimeter to test the voltage output of the new regulator rectifier before finalizing the installation.
8. Final Checks: Double-check all connections and bolts for security.
9. Power Up the Engine: Start the engine and monitor its performance to ensure everything is working correctly.

Maintenance

The design of this unit promotes effective heat dissipation, minimizing maintenance requirements. Regularly inspect the connections and the unit for corrosion or damage to ensure longevity.

For further inquiries or assistance, please refer to the user manual or contact customer support. Enjoy a smooth and reliable ride with your newly installed 30A EFI Regulator Rectifier!
