Carburetor Repair Kit Installation Instructions

Tools Required:

1. Screwdriver Set - To remove screws from the carburetor.
2. Socket Wrench Set - For loosening and tightening bolts.
3. Pliers - To grasp and manipulate small parts.
4. Clean Cloth or Rag - For cleaning parts and the work area.
5. Carburetor Cleaner - To clean the carburetor before installation.
6. Safety Goggles - To protect your eyes during the process.
7. Gloves - To keep your hands clean and protect from any chemicals.
8. Torque Wrench (optional) - For ensuring bolts are tightened to specification.

Installation Steps:

1. Preparation:

   • Ensure the vehicle is in a safe, well-ventilated area.
   • Disconnect the battery to prevent any electrical mishaps.

2. Remove the Carburetor:

   • Use the screwdriver and socket wrench to carefully detach the carburetor from the engine.
   • Allow fuel to drain safely before proceeding.

3. Disassemble the Carburetor:

   • Take note of the arrangement of parts as you remove them. This will help during reassembly.
   • Use the pliers to take out any small components if necessary.

4. Clean the Carburetor:

   • Apply carburetor cleaner to remove any dirt or debris.
   • Use a clean cloth to wipe down all surfaces.

5. Install the Repair Kit:

   • Refer to the included installation instructions.

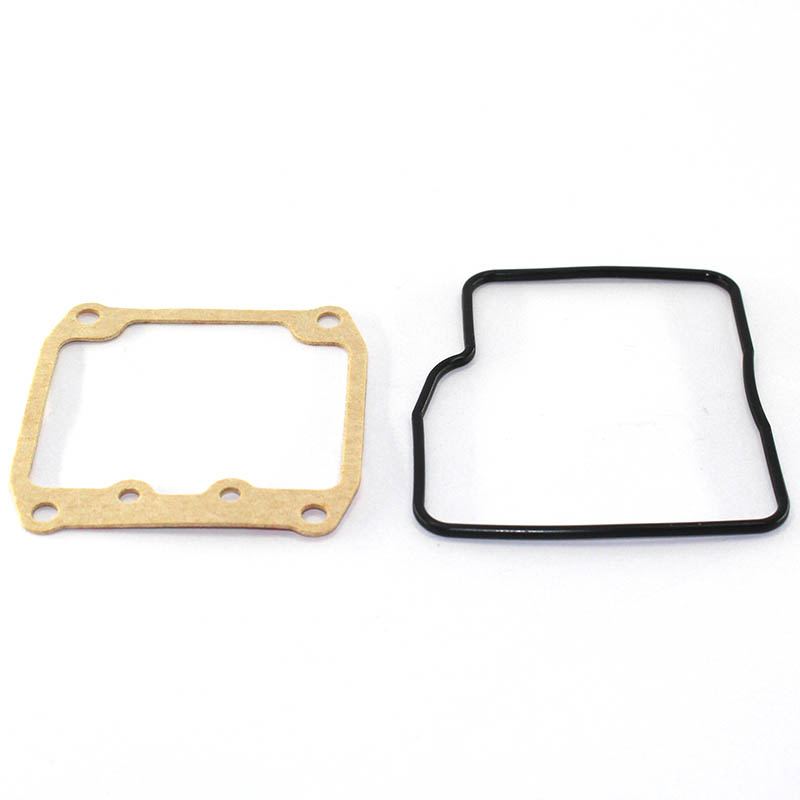

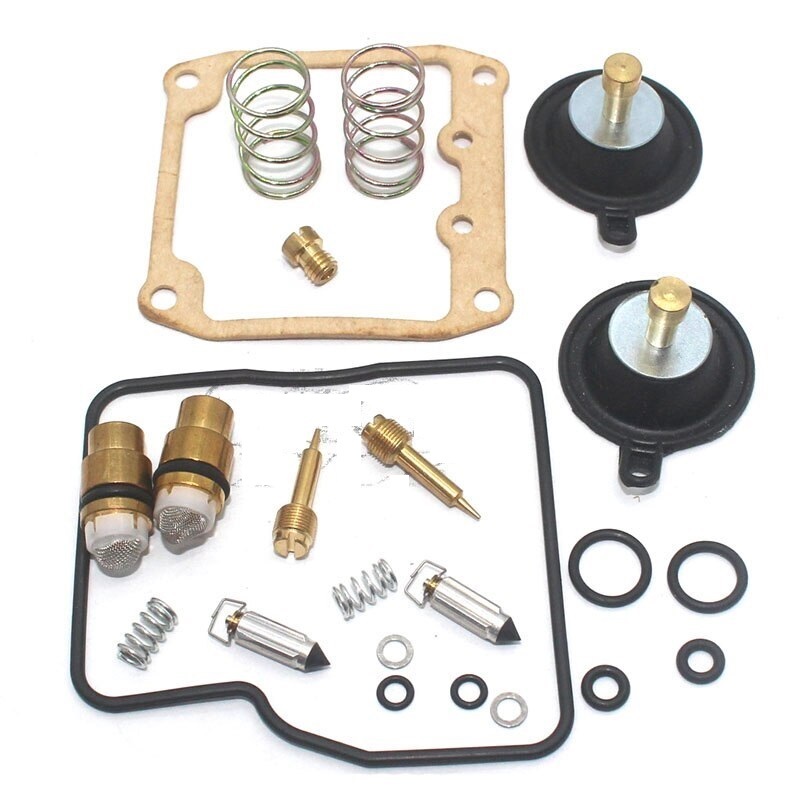

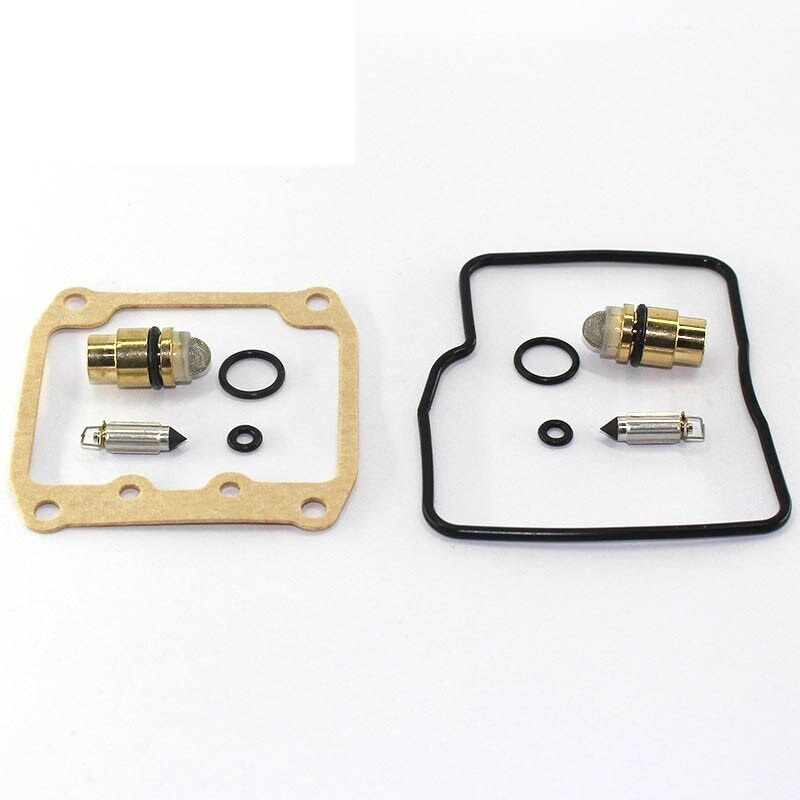

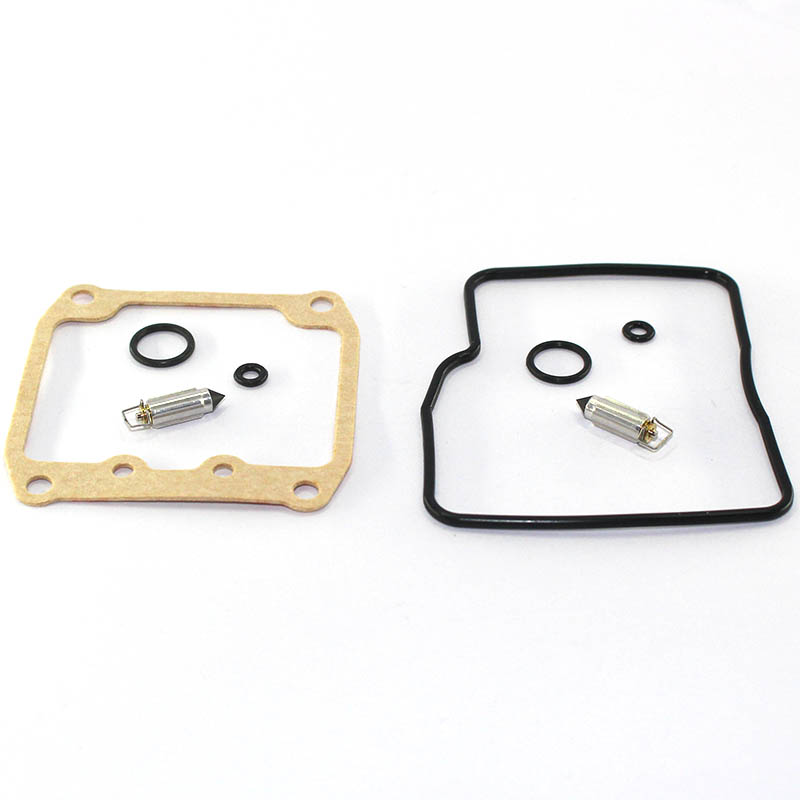

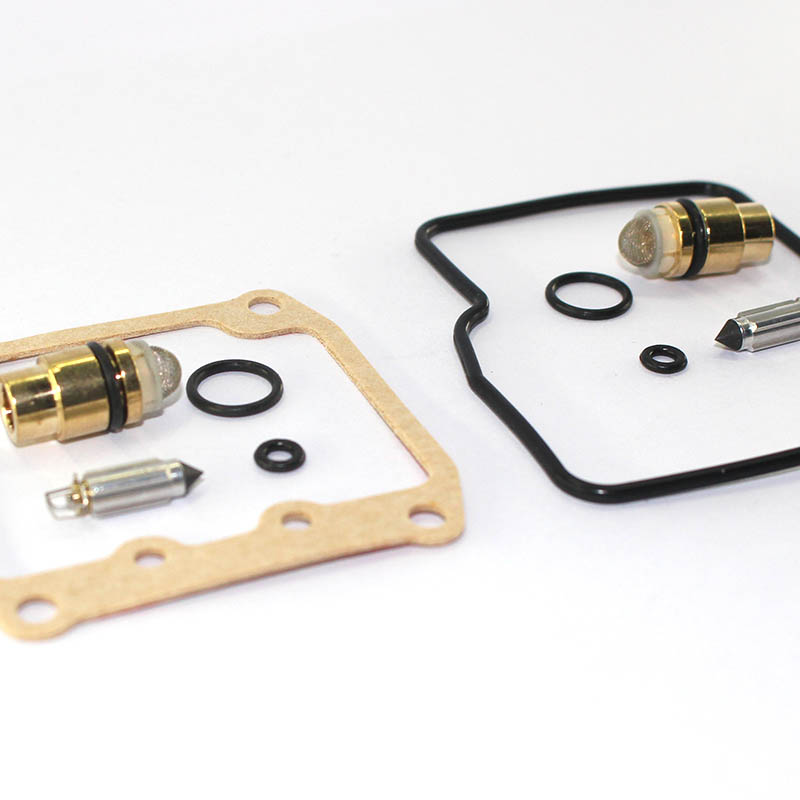

   • Replace the old float, needle, and gaskets with the new components from the kit.

6. Reassemble the Carburetor:

   • Carefully put all parts back together, ensuring everything is in the correct order.
   • Tighten all screws and bolts, ensuring not to over-tighten to avoid stripping.

7. Reinstall the Carburetor:

   • Mount the carburetor back onto the engine, connecting any hoses or wires that were removed.
   • Tighten with the socket wrench as needed.

8. Final Checks:

   • Reconnect the battery.
   • Check for any fuel leaks and ensure everything is secured.
   • Start the engine to ensure smooth operation and proper functioning.

Safety Precautions:

• Always wear safety goggles and gloves during the installation.
• Be cautious of any fuel spills and clean them immediately to prevent hazards.

By following these instructions and using the necessary tools, you can successfully install the Carburetor Repair Kit and enhance your engine's performance.
