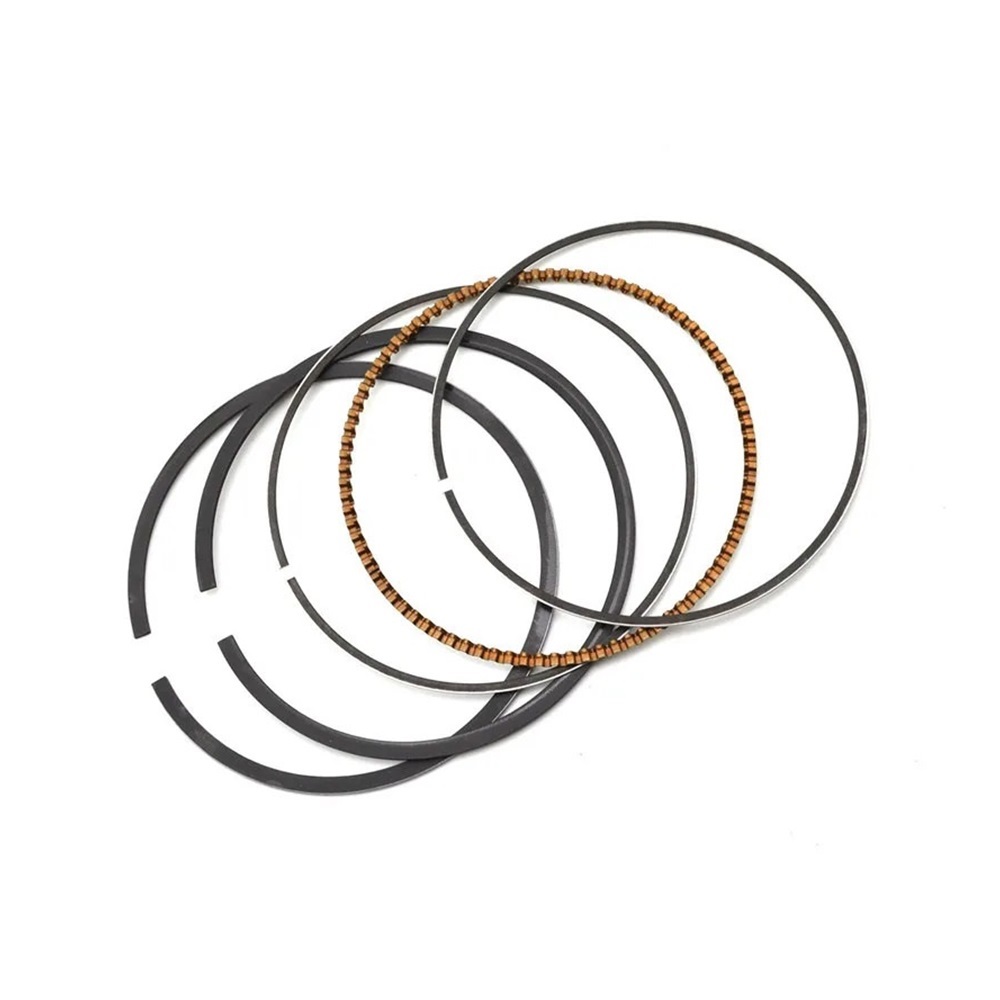

Product Installation Instructions for Motorcycle Piston Rings (55mm to 56mm)

Tools Required:

1. Socket Set - To remove and secure engine components.
2. Torque Wrench - To ensure bolts are tightened to the manufacturer's specifications.
3. Piston Ring Compressor - For easy installation of piston rings.
4. Feeler Gauge - To check ring gap and ensure proper fit.
5. Ratcheting Wrench - For fastening nuts and bolts in confined spaces.
6. Pliers - To assist with handling small parts.
7. Screwdrivers - A set of flathead and Phillips screwdrivers for various attachments.
8. Engine Oil - To coat rings before installation, ensuring smooth movement.
9. Cleaning Supplies - Use a rag and solvent to clean parts before assembly.
10. Gloves & Safety Goggles - To ensure safety during the installation process.

Installation Steps:

1. Preparation: Make sure the working area is clean and well-lit. Gather all tools and parts needed for installation.

2. Drain Engine Oil: Remove the drain plug and let the engine oil fully drain out to avoid spills.

3. Remove Cylinder Head: Use the socket set to undo bolts and carefully lift off the cylinder head.

4. Remove Old Piston Rings: Use the piston ring compressor to gently take off the old rings from the piston. Dispose of them properly.

5. Install New Piston Rings:

   • Lightly oil the new rings.
   • Use the piston ring compressor to install the new rings onto the piston, ensuring they are seated evenly.

6. Reinstall Piston: Position the piston back into the cylinder, ensuring the ring gaps are oriented as per specifications.

7. Replace Cylinder Head: Carefully place the cylinder head back on and secure it with the appropriate torque as specified by the manufacturer.

8. Refill Engine Oil: Replace the drain plug and refill the engine with new oil.

9. Final Check: Ensure all components are tightened correctly and double-check for any leftover tools or parts.

10. Test Run: Start the engine and allow it to warm up, monitoring for any unusual noises or leaks.

Conclusion:

Following these instructions will ensure proper installation of your new piston rings. Always consult your motorcycle’s manual for specific guidelines related to your model. Enjoy improved performance and efficiency on your rides!
