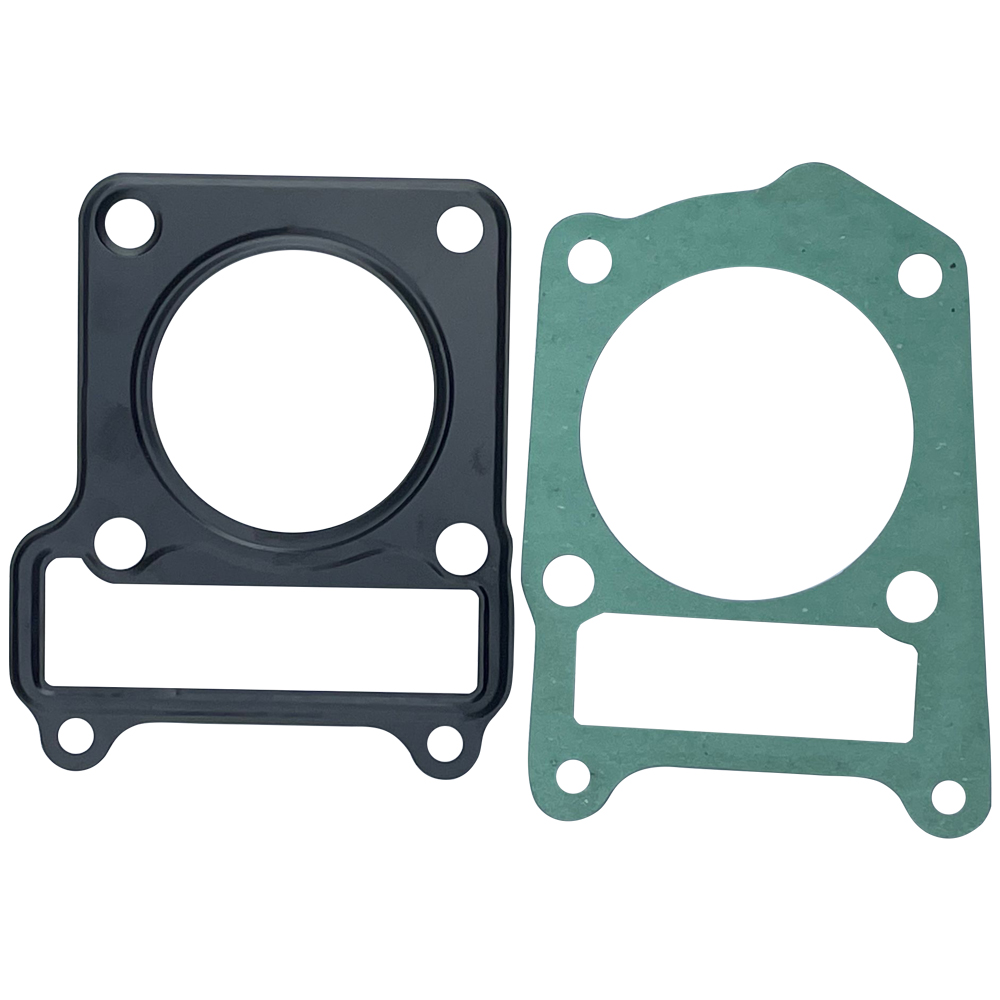

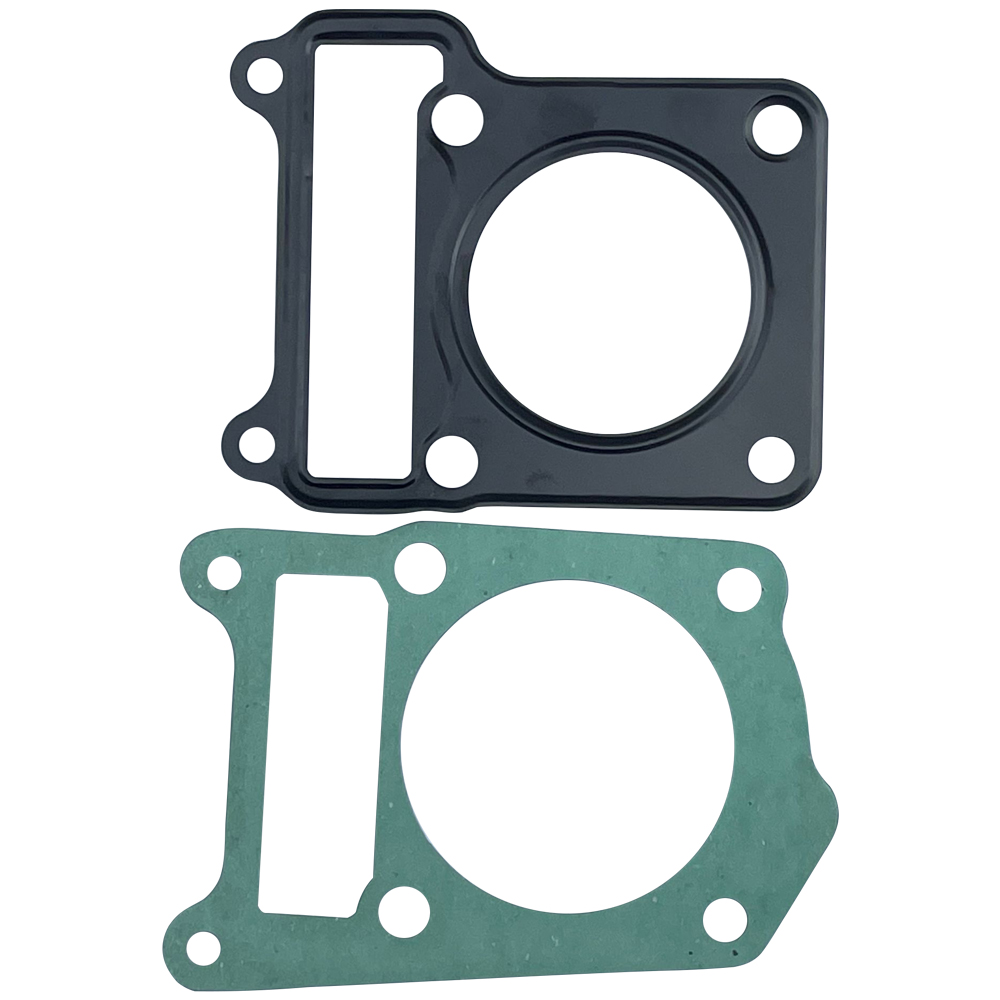

Installation Instructions for Motorcycle Cylinder Crankcase Generator Clutch Cover Gasket Kit

Tools Required:

1. Socket Set - (Metric sizes: 8mm, 10mm, 12mm)
2. Torque Wrench - To ensure proper tightening of bolts
3. Screwdriver Set - (Flat-head and Phillips-head)
4. Pliers - For gripping and maneuvering
5. Gasket Scraper - For removing old gaskets
6. Shop Towels - For cleaning surfaces and wiping down
7. Motor Oil - To lubricate bolts and new gasket (optional)
8. Safety Goggles - To protect your eyes during installation
9. Gloves - To keep your hands clean and protected

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and turn off the engine.
   • Allow the engine to cool down completely before starting the installation.

2. Remove Old Gasket:

   • Use a gasket scraper to carefully remove the old gasket material from the crankcase and clutch cover surfaces. Make sure the surfaces are clean.

3. Clean Surfaces:

   • Wipe down the crankcase and clutch cover with shop towels to remove any debris or oil.

4. Apply New Gasket:

   • Place the new gasket in position on the crankcase or clutch cover. Ensure it aligns perfectly with the bolt holes.

5. Reattach Cover:

   • Carefully position the clutch cover back onto the crankcase aligning it with the gasket. Hand-tighten the bolts initially to hold the cover in place.

6. Tighten Bolts:

   • Use the torque wrench to tighten the bolts to the manufacturer’s recommended torque specifications. Make sure to tighten in a crisscross pattern for even pressure.

7. Final Checks:

   • Ensure all bolts are securely tightened and that the gasket is seated correctly without any wrinkles or displacement.

8. Testing:

   • Start the motorcycle and check for any leaks around the gasket area.

9. Clean Up:

   • Properly dispose of the old gasket material and any oil spills.

Tips:

• Always refer to your motorcycle’s service manual for specific torque specifications and guidelines.
• If unsure, consult a professional mechanic for assistance.

By following these steps, you can successfully install the Motorcycle Cylinder Crankcase Generator Clutch Cover Gasket Kit, ensuring optimal performance and longevity for your motorcycle.
