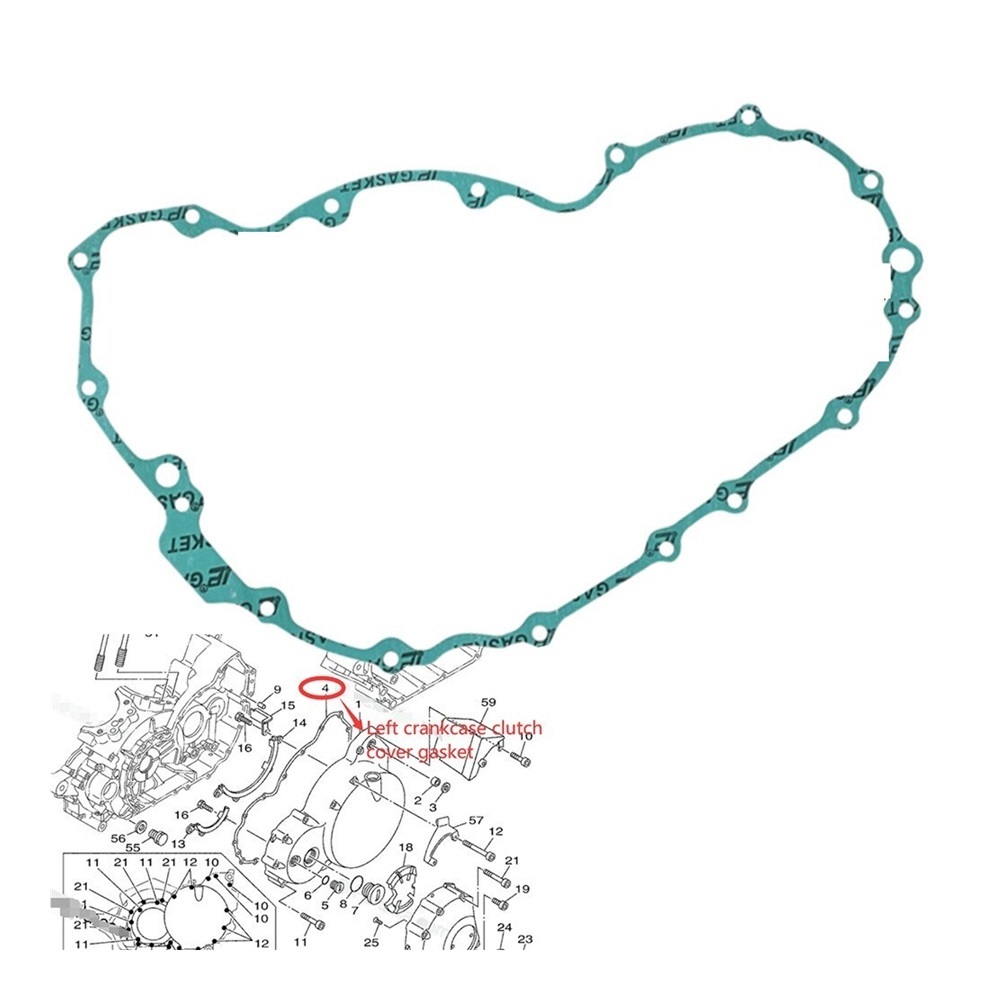

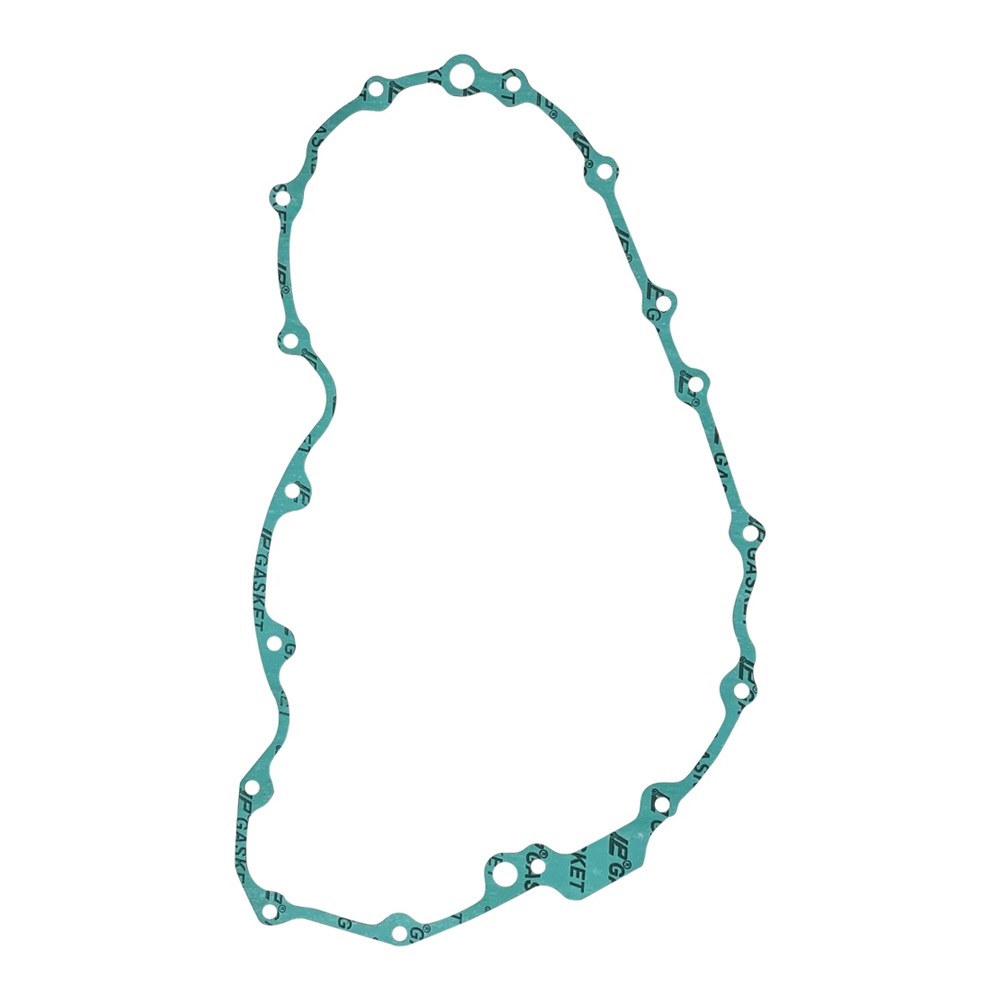

Product Installation Instructions: Motorcycle Left Crankcase Clutch Cover Gasket

Compatibility:

Designed specifically for Road Star 1700 XV1700 (2002-2014) and Road Star 1600 XV1600 (1999-2003) to ensure a perfect fit.

Tools Required:

• Socket Wrench Set (including 8mm, 10mm, and 12mm sockets)
• Torque Wrench
• Screwdriver Set (Phillips and Flathead)
• Pliers
• Gasket Scraper or Razor Blade (for removing old gasket material)
• Clean Cloth or Rag (for cleaning surfaces)
• Engine Oil (for lubrication)
• Safety Goggles (for eye protection)
• Gloves (to protect your hands)

Installation Steps:

1. Preparation:

   • Ensure your motorcycle is parked on a stable surface and the engine is cool to avoid burns.
   • Disconnect the battery for safety.

2. Remove the Clutch Cover:

   • Use the appropriate socket wrench to remove the bolts securing the clutch cover.
   • Carefully lift off the clutch cover and set it aside.

3. Clean the Surface:

   • Use a gasket scraper or razor blade to remove any old gasket material from the crankcase and the clutch cover.
   • Wipe the surfaces clean with a cloth to ensure a good seal for the new gasket.

4. Position the New Gasket:

   • Take the new gasket and align it properly on the clutch cover.
   • Ensure it sits evenly and fits snugly against the cover.

5. Reattach the Clutch Cover:

   • Carefully position the clutch cover back onto the crankcase.
   • Insert and hand-tighten the bolts to secure the cover in place.

6. Torque the Bolts:

   • Use a torque wrench to tighten the bolts to the manufacturer’s recommended specification.
   • Follow a crisscross pattern to ensure even pressure on the gasket.

7. Reconnect the Battery:

   • Once everything is securely in place, reconnect the battery.

8. Final Check:

   • Start the engine and check for any leaks around the clutch cover.
   • Ensure that the engine is running smoothly without any unusual noises.

Conclusion:

By following these instructions and using the required tools, you can successfully install the Motorcycle Left Crankcase Clutch Cover Gasket. Enjoy a smoother riding experience with enhanced engine performance!
