Product Installation Instructions for Motorcycle Piston Rings

Preparation:

Before starting the installation of the motorcycle piston rings, ensure you have the following tools and materials ready:

1. Tools Needed:
   -Socket wrench set
   -Torque wrench
   -Piston ring compressor

   • Screwdrivers (flathead and Phillips)
   • Needle-nose pliers
     -Clean rags or paper towels
   • Engine oil (for lubrication)
   • Gasket scraper or razor blade
     -Clean container for bolts and small parts
   • Safety goggles and gloves

2. Materials Needed:

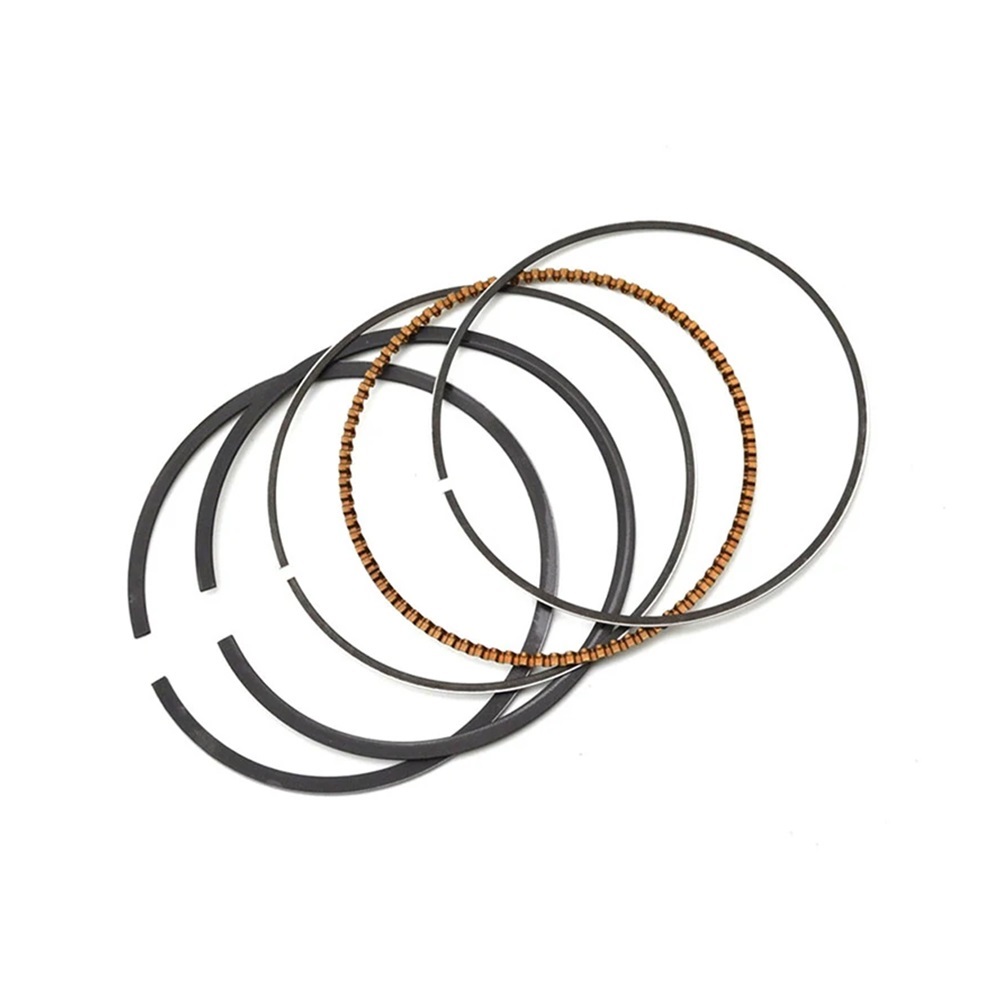

   • New piston rings compatible with 250cc models (size range: 85mm to 86.5mm)
   • Replacement gaskets (if necessary)
   • Engine assembly lube (optional but recommended)

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and securely positioned.
   • Disconnect the battery to prevent accidental starts during installation.
   • Remove the seat and any components blocking access to the engine.

2. Remove the Cylinder Head:

   • Detach the cylinder head by loosening the bolts with a socket wrench.
   • Carefully lift off the cylinder head and set it aside.

3. Remove the Old Piston Rings:

   • Take out the old piston from the cylinder.
   • Use the piston ring compressor to remove the old piston rings from the piston.

4. Install New Piston Rings:

   • Clean the piston grooves to remove any debris or old oil.
   • Lubricate the new piston rings with engine oil and carefully install them into the piston grooves, ensuring they are evenly spaced.

5. Reinstall the Piston:

   • Use the piston ring compressor to insert the piston back into the cylinder.
   • Align the piston with the connecting rod and carefully push it down into the cylinder.

6. Reattach the Cylinder Head:

   • Replace any gaskets if required.
   • Reinstall the cylinder head and torque the bolts according to the manufacturer’s specifications.

7. Final Checks:

   • Ensure all tools and loose parts are accounted for.
   • Reconnect the battery and any components removed during installation.

8. Testing:

   • Start the engine and check for any unusual noises or leaks.
   • Allow the engine to reach operating temperature and monitor its performance.

Conclusion:

By following these steps and using the right tools, you can successfully install the motorcycle piston rings and enhance the performance of your 250cc model. Enjoy your ride!
