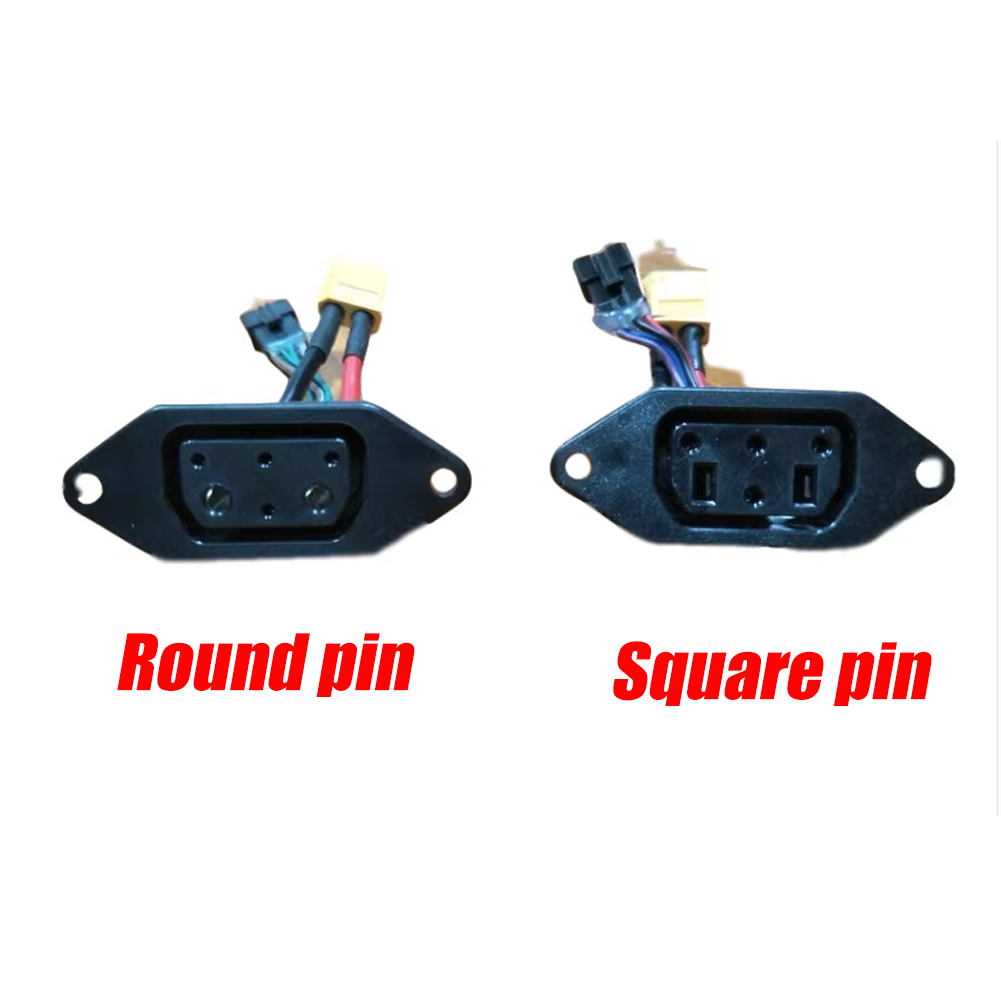

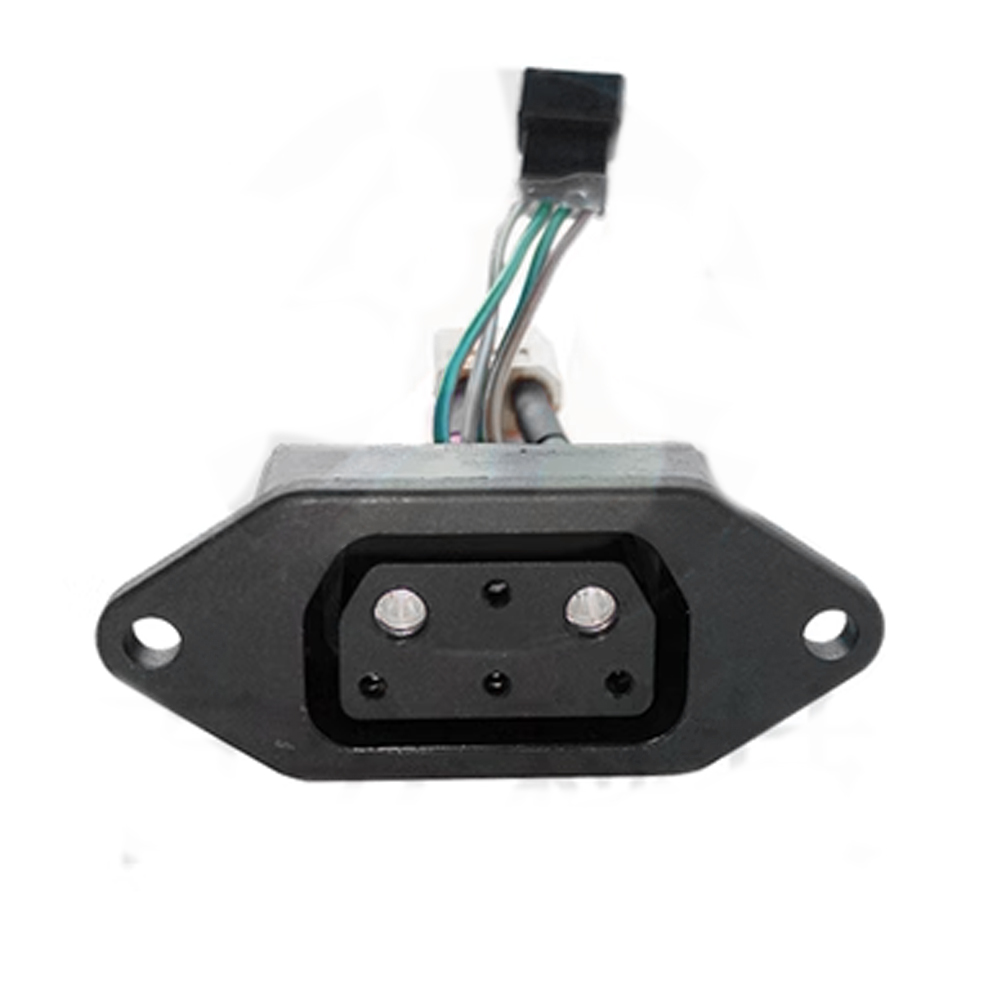

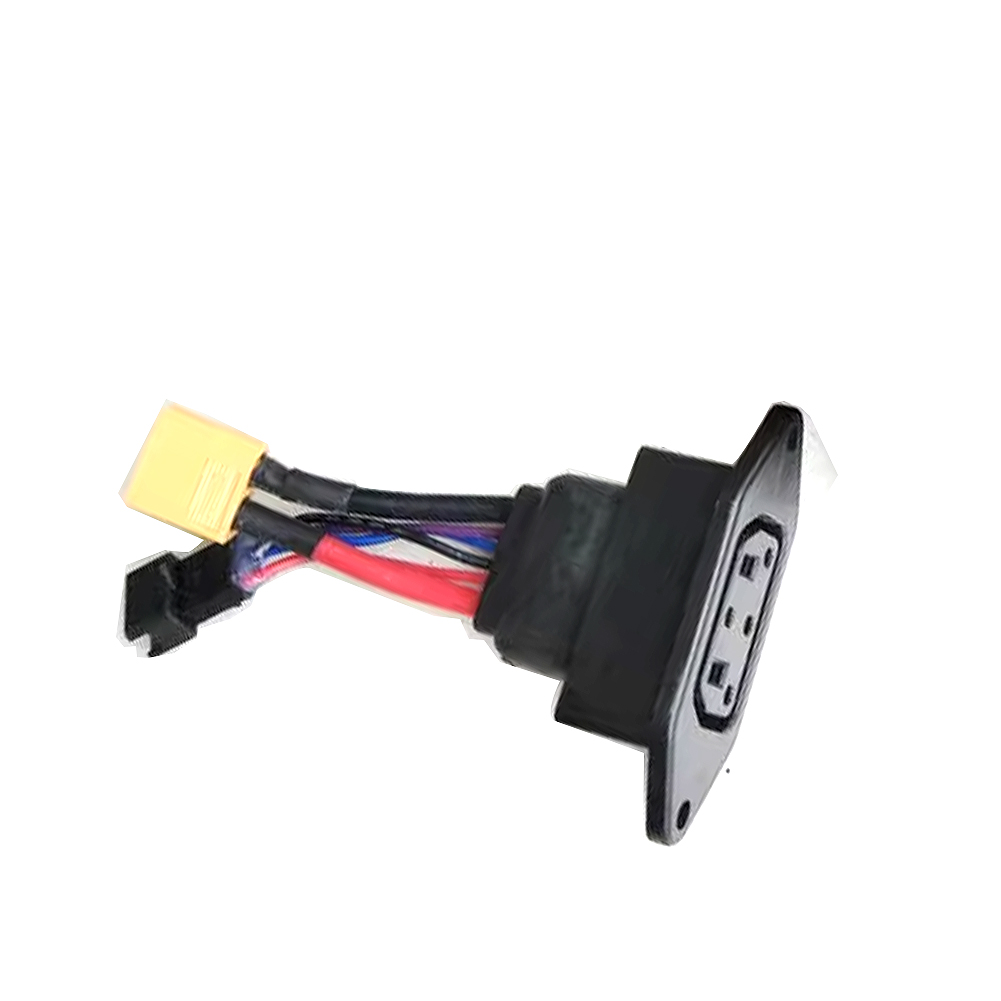

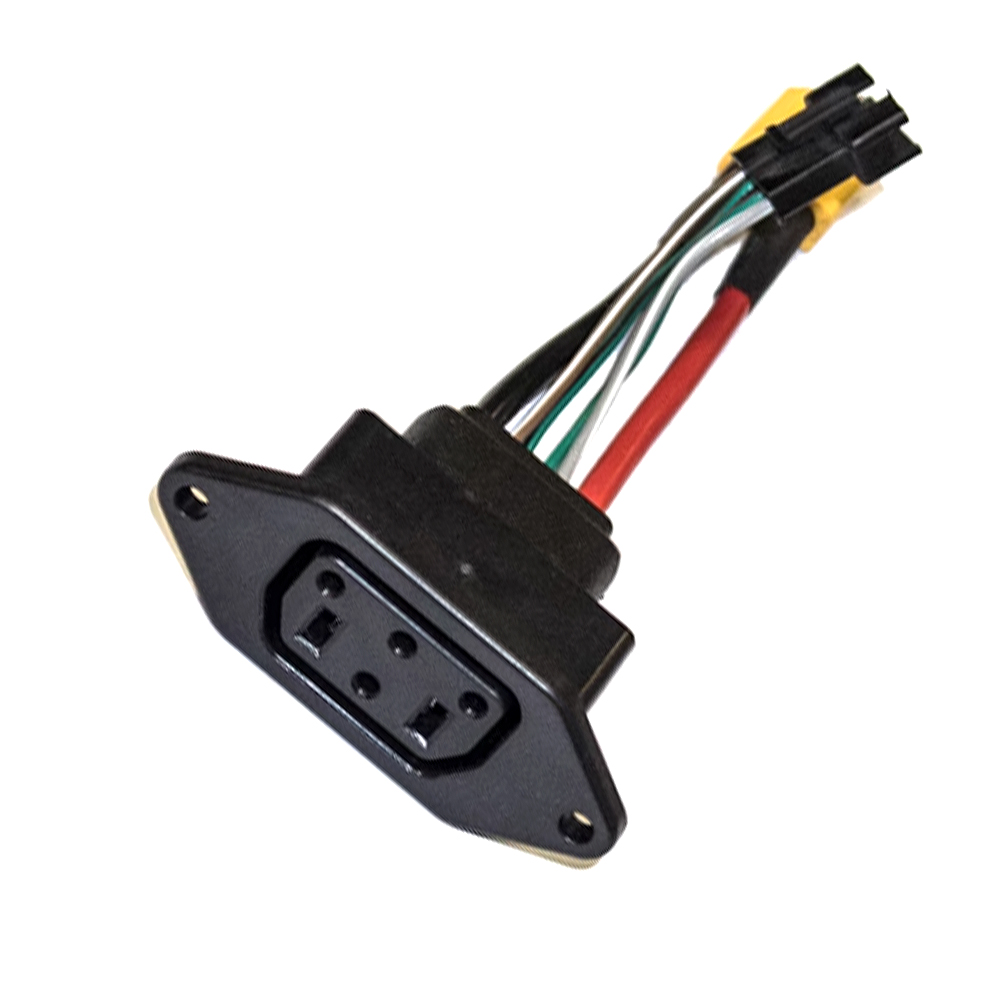

Installation Instructions for Universal Lithium Connector Charger Socket Cable

Tools and Materials Required:

1. Screwdriver Set

   • A Phillips and flathead screwdriver for securing the charging socket.

2. Wire Strippers

   • To prepare and strip the wires if needed for connection.

3. Electrical Tape

   • For securing any exposed wire connections and ensuring safety.

4. Heat Shrink Tubing (optional)

   • For additional insulation of the wire connections.

5. Multi-meter (optional)

   • To check voltage and ensure proper connectivity.

6. Mounting Screws and Anchors

   • Included with your charging socket; ensure you have the correct size for your installation surface.

7. Drill (optional)

   • If you need to create holes for mounting screws.

Installation Steps:

1. Select Installation Location
   Choose a suitable location where the socket will be easily accessible and where your devices can be charged comfortably.

2. Prepare the Socket
   If necessary, modify the socket according to the specific requirements of your installation situation.

3. Wiring Connections

   • If connecting to existing wiring, use wire strippers to prepare the wires as needed.
   • Connect the wires to the charging socket, ensuring proper polarity (positive and negative).

4. Secure Connections
   Use electrical tape or heat shrink tubing to insulate any exposed wire connections.

5. Mount the Socket

   • Position the socket at the desired location and mark where the screws will be placed.
   • If necessary, drill holes for the mounting screws and anchors.
   • Securely attach the charging socket using the screwdriver and included mounting screws.

6. Final Check
   Use a multi-meter to check the voltage and ensure everything is connected properly before first use.

7. Test the Socket
   Plug in your device to test the socket functionality, ensuring it charges correctly.

Remember to refer to any specific product instructions that may be included with your Universal Lithium Connector Charger Socket Cable for additional details or safety precautions.
