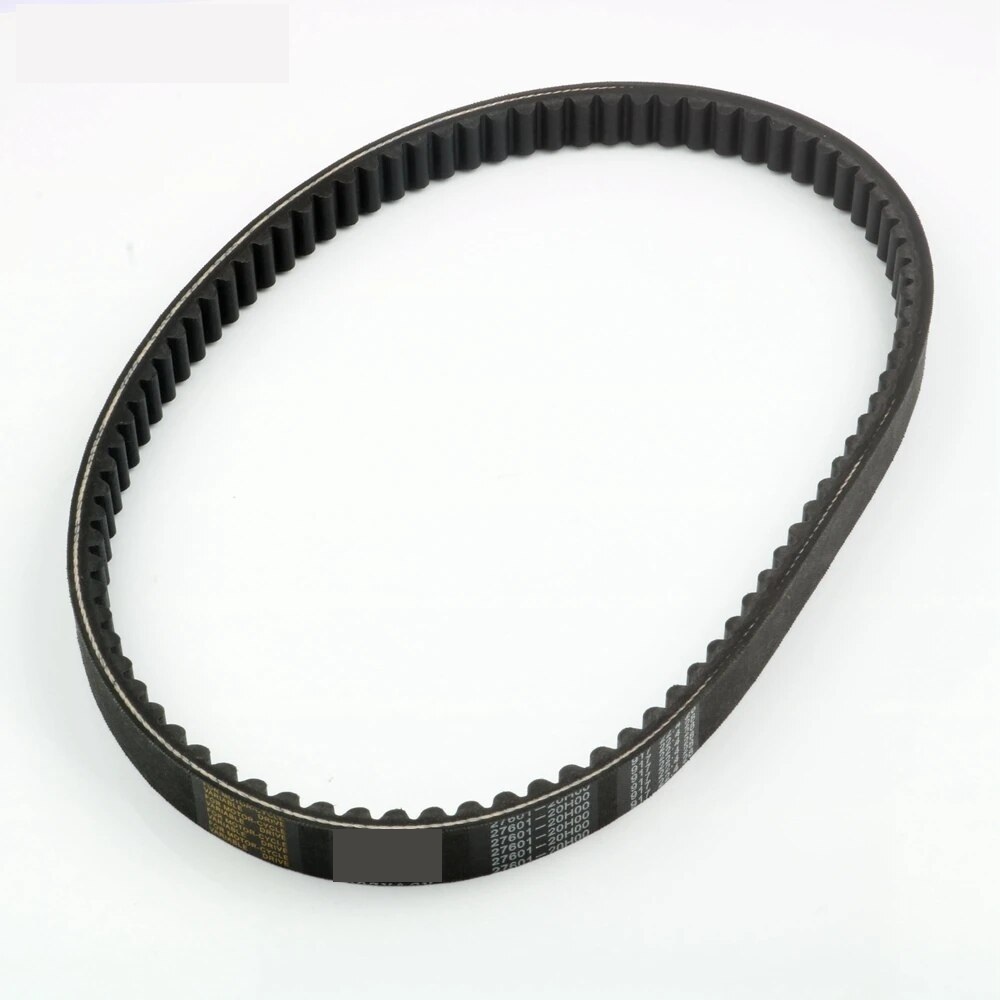

Product Installation Instructions for Scooter CVT Drive Belt (125 UX125 Model 917)

Compatibility:
This CVT drive belt is compatible with the 125 UX125 model, covering various models from 2008 to 2011, ensuring a perfect fit.

Materials Needed:
Before you start the installation process, please make sure you have the following tools ready:

1. Socket Wrench Set:
   To remove the bolts and nuts from the scooter's components.

2. Screwdriver Set:
   A flathead and a Phillips screwdriver to assist in removing panels and securing parts.

3. Pliers:
   Useful for gripping and maneuvering small components during installation.

4. Torque Wrench:
   To ensure that bolts are tightened to the manufacturer's specifications.

5. Scissors or Utility Knife:
   To cut any zip ties or packaging materials that may interfere with installation.

6. Gloves:
   To protect your hands during the installation process.

7. Safety Goggles:
   Recommended for eye protection while working with tools and components.

Installation Steps:

1. Preparation:
   Ensure the scooter is parked on a flat surface. Turn off the engine and allow it to cool completely.

2. Remove the Cover:
   Use your screwdriver to remove any screws or bolts securing the CVT cover. Carefully take off the cover to expose the drive belt area.

3. Inspect the Old Belt:
   Examine the old CVT drive belt for wear or damage. If it requires replacement, proceed with removal.

4. Remove the Old Belt:
   Gently slide off the old drive belt from the variator and clutch. Take note of how it is positioned for easier installation of the new belt.

5. Install the New Belt:
   Place the new CVT drive belt in the same position as the old one, ensuring it sits correctly on the variator and clutch.

6. Reassemble the Cover:
   Once the new drive belt is installed, replace the CVT cover and secure it with screws or bolts.

7. Final Check:
   Double-check that all parts are correctly installed and tightened to prevent any operational issues.

8. Test Drive:
   Start your scooter and perform a test drive to ensure everything is functioning smoothly.

Conclusion:
Your new CVT drive belt is now installed and ready to enhance your scooter's performance. Enjoy a smoother and more reliable riding experience!
