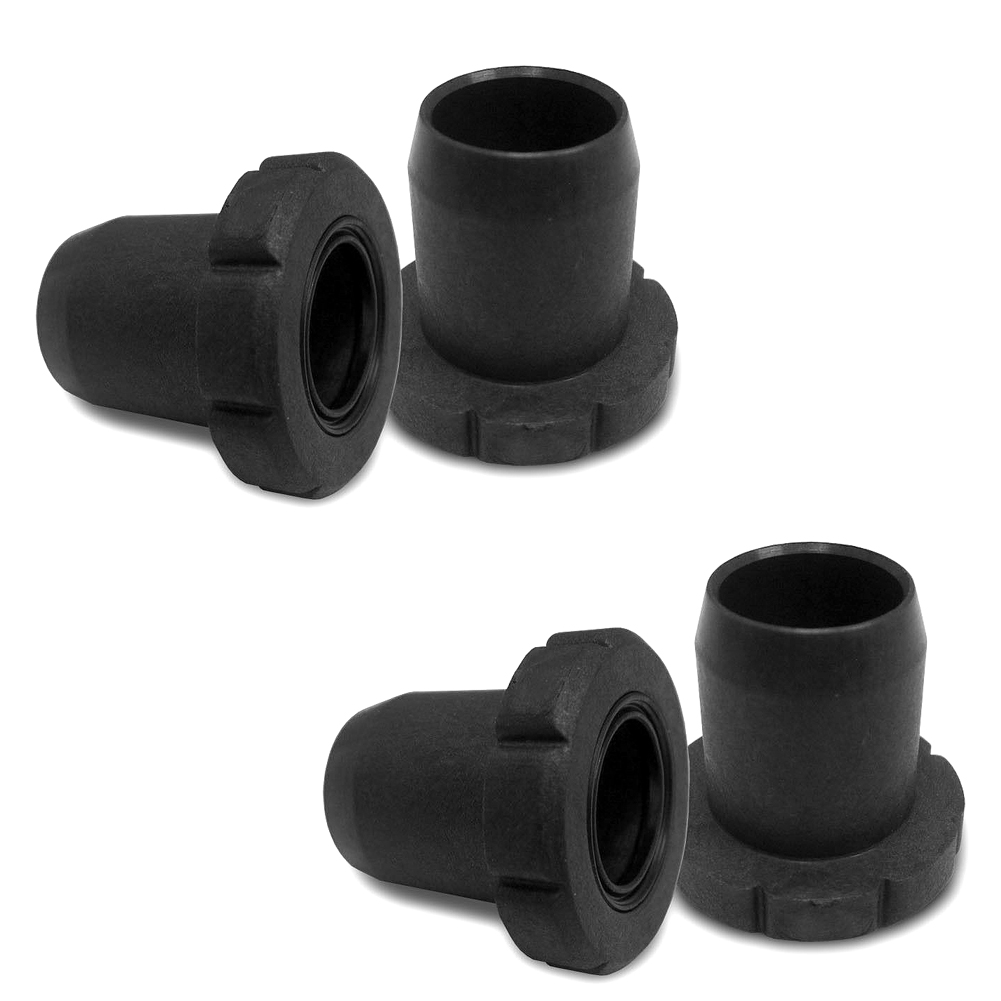

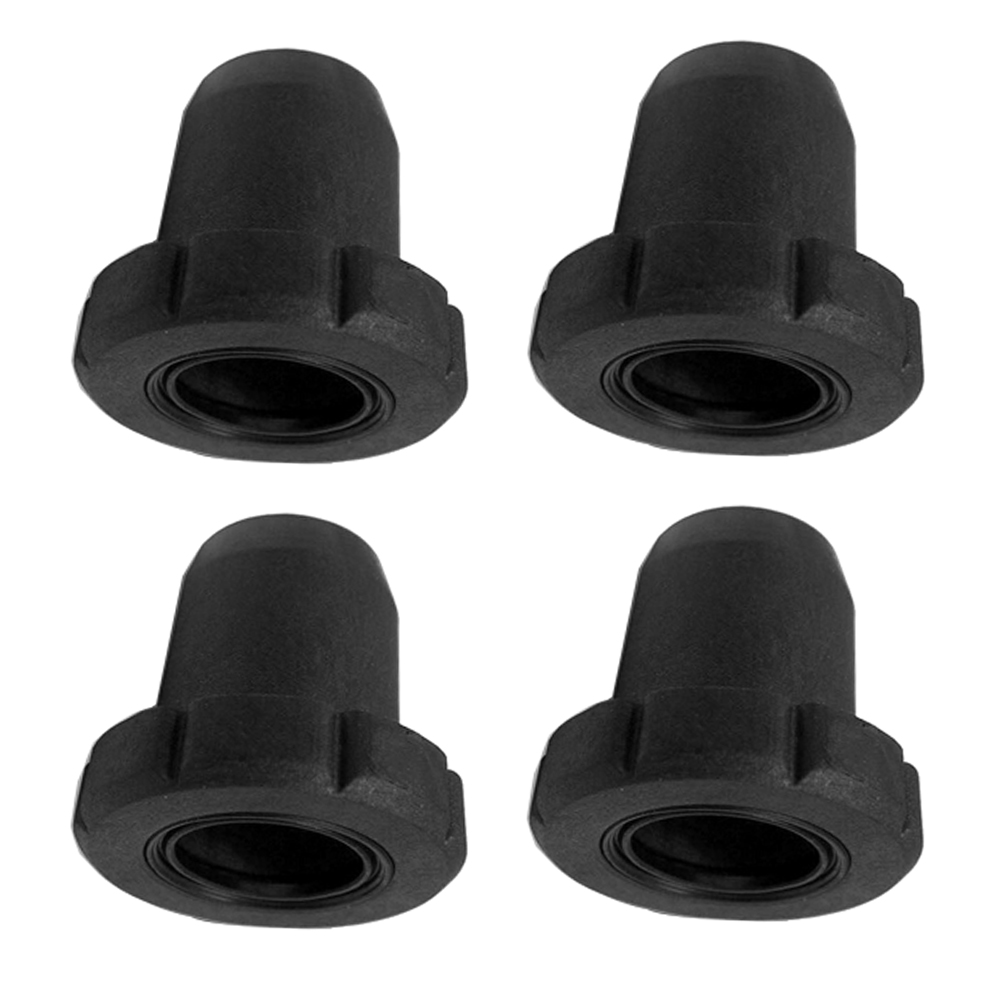

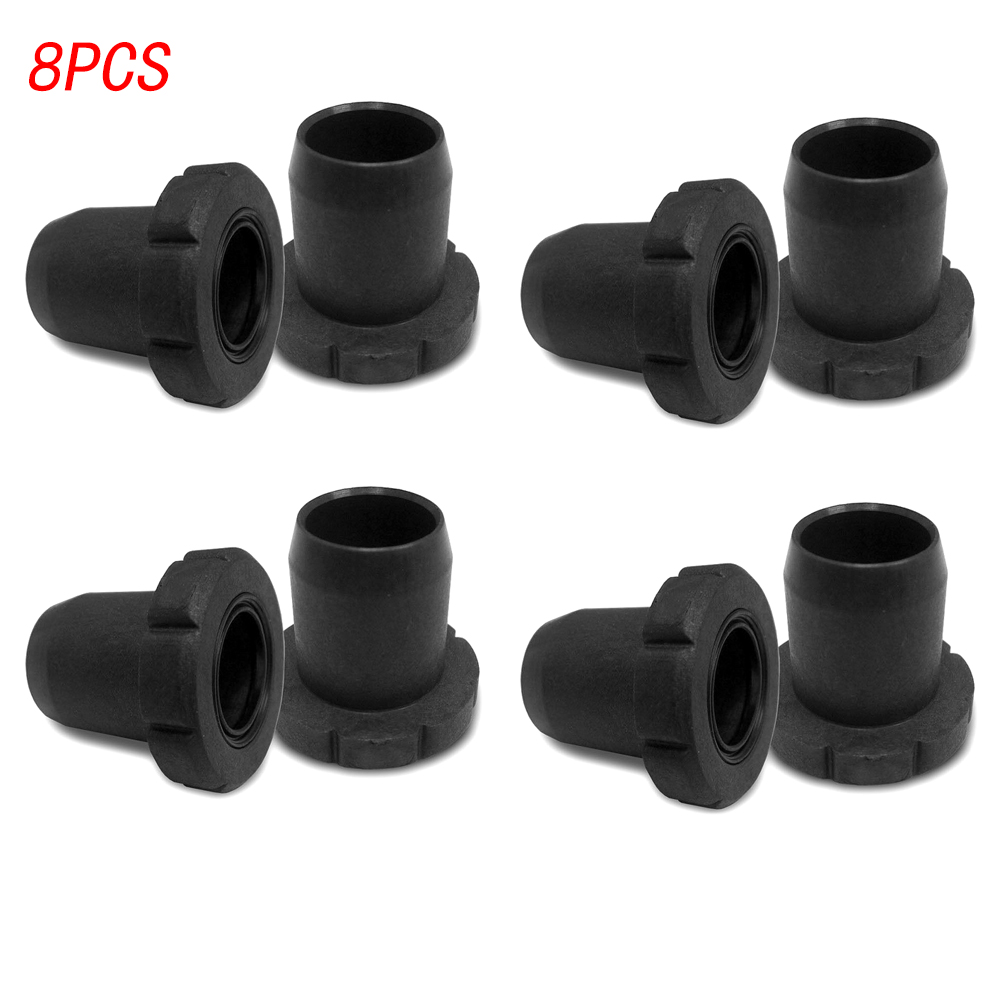

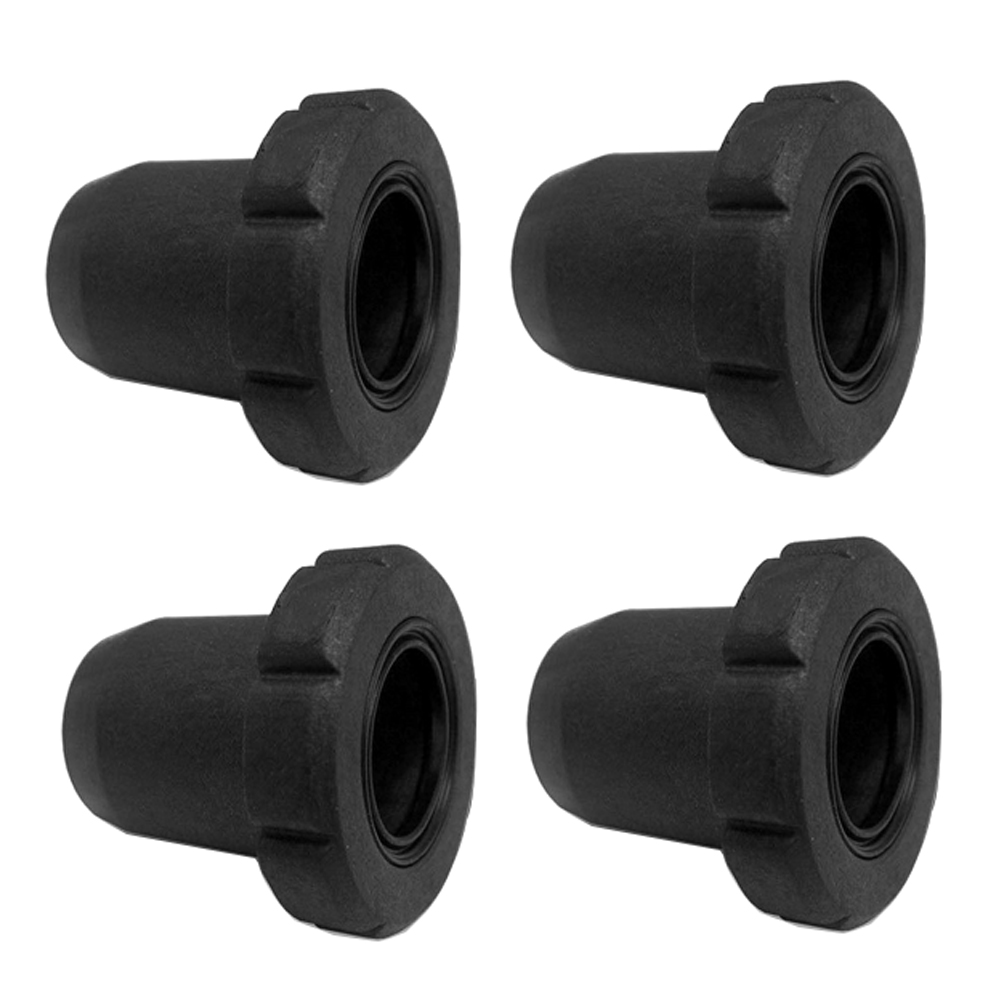

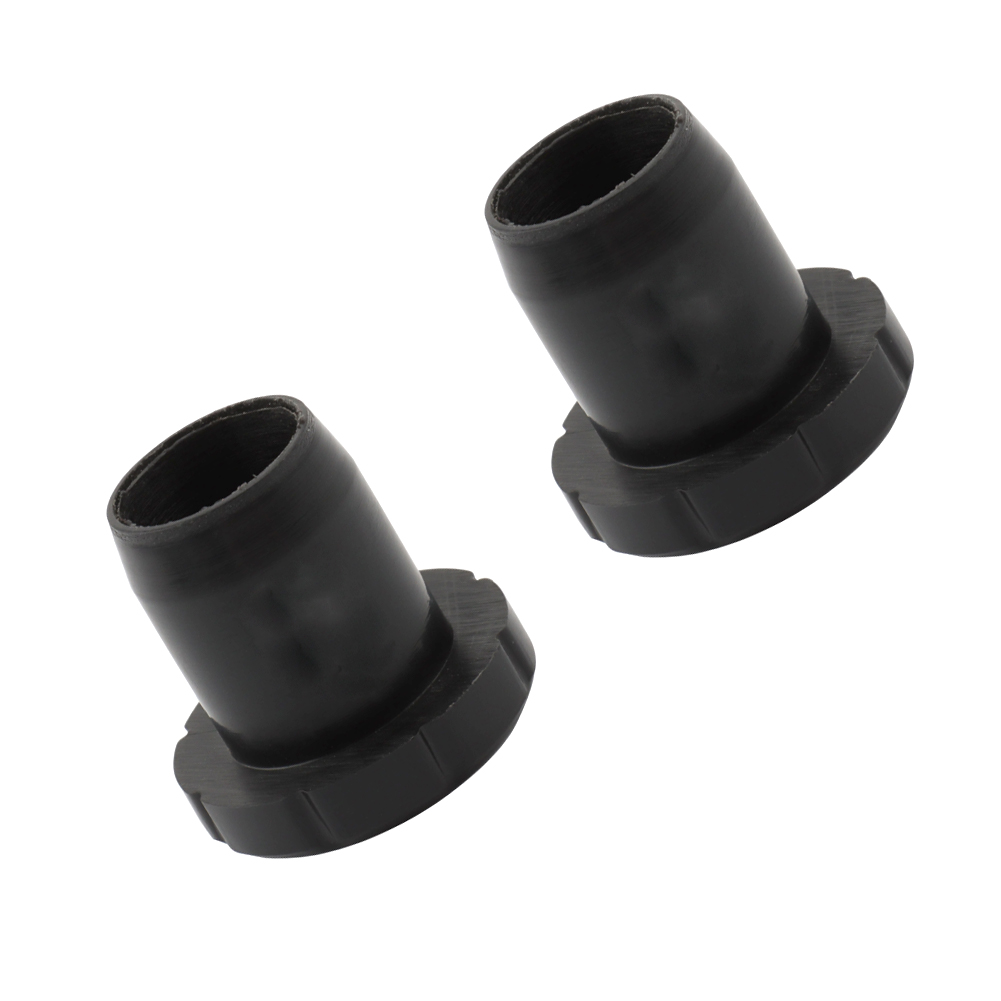

ATV Front and Rear A-Arm Bushing Kit Installation Instructions

Compatible Models:

• 450
• 570
• 325
• 400
• 800
• 500 4X4

Tools Required:

1. Socket Wrench Set: Various sizes to fit different bolts.
2. Torque Wrench: To ensure bolts are tightened to manufacturer specifications.
3. Pliers: For gripping and pulling.
4. Flathead Screwdriver: To help pry out old bushings.
5. Rubber Mallet: For gently tapping in new bushings.
6. Grease: For lubricating new bushings to enhance performance.
7. Jack and Jack Stands: To lift the vehicle securely.
8. Safety Glasses: To protect your eyes during installation.
9. Work Gloves: To protect your hands and improve grip.

Installation Steps:

1. Preparation:

   • Ensure the ATV is parked on a flat surface.
   • Wear safety glasses and gloves.

2. Lift the ATV:

   • Use a jack to lift the front or rear of the ATV, and secure it with jack stands.

3. Remove the Old A-Arm Bushings:

   • Using the socket wrench, remove the bolts securing the A-arms to the frame.
   • Carefully pry out the old bushings using a flathead screwdriver if necessary.

4. Install New Bushings:

   • Apply a small amount of grease to the new bushings for better fit and performance.
   • Gently tap the new bushings into place using a rubber mallet.

5. Reattach the A-Arms:

   • Reattach the A-arms to the frame with the bolts you removed earlier.
   • Tighten the bolts securely using the torque wrench to the manufacturer’s specifications.

6. Check Your Work:

   • Ensure all bolts are tightened and that the bushings are fully seated.
   • Inspect the installation for any abnormalities.

7. Lower the ATV:

   • Carefully remove the jack stands and lower the ATV to the ground.

8. Test Drive:

   • Take the ATV for a short test drive to ensure everything is working smoothly.

Note:

• Always refer to your vehicle’s manual for specific torque settings and additional guidance.
• If you experience any issues during installation or have questions, consult a professional mechanic.

By following these instructions, you will successfully install the ATV Front and Rear A-Arm Bushing Kit and enhance your vehicle's suspension performance, improving handling and comfort.
