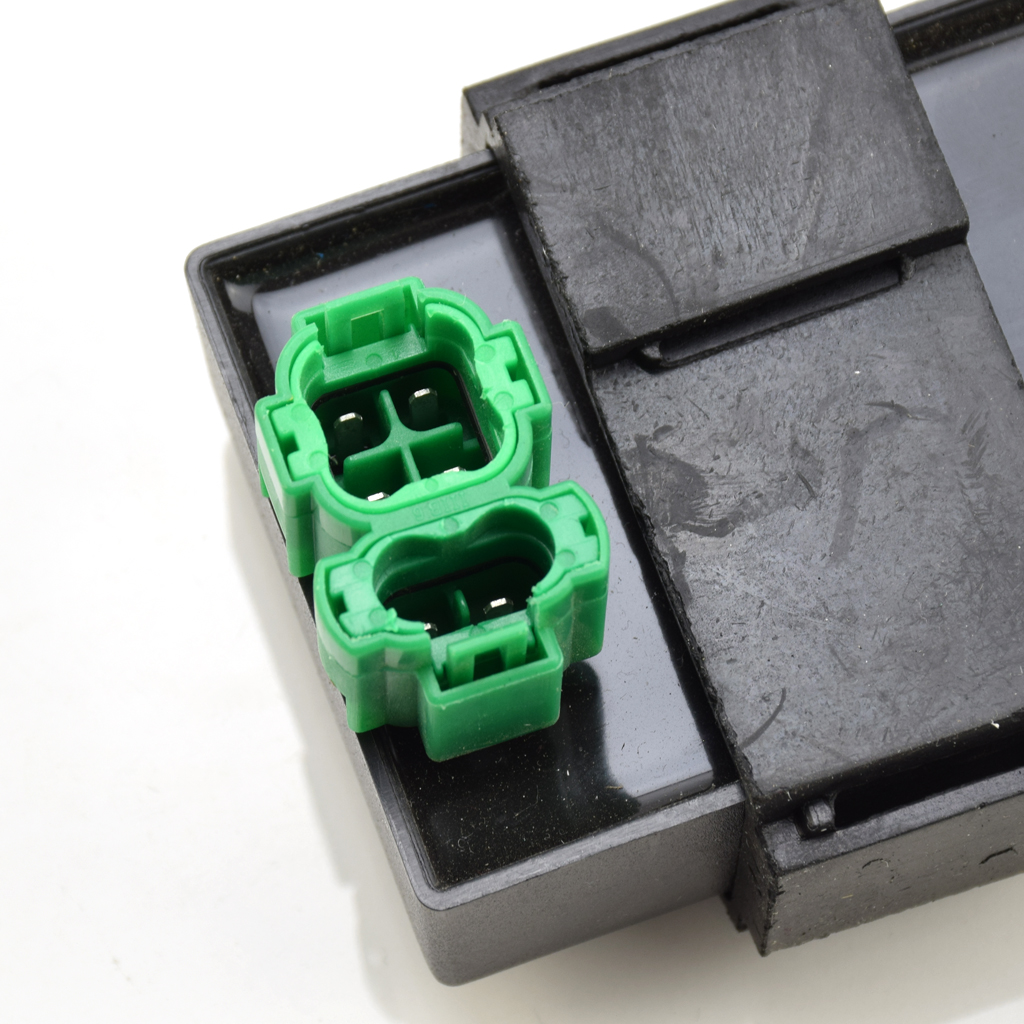

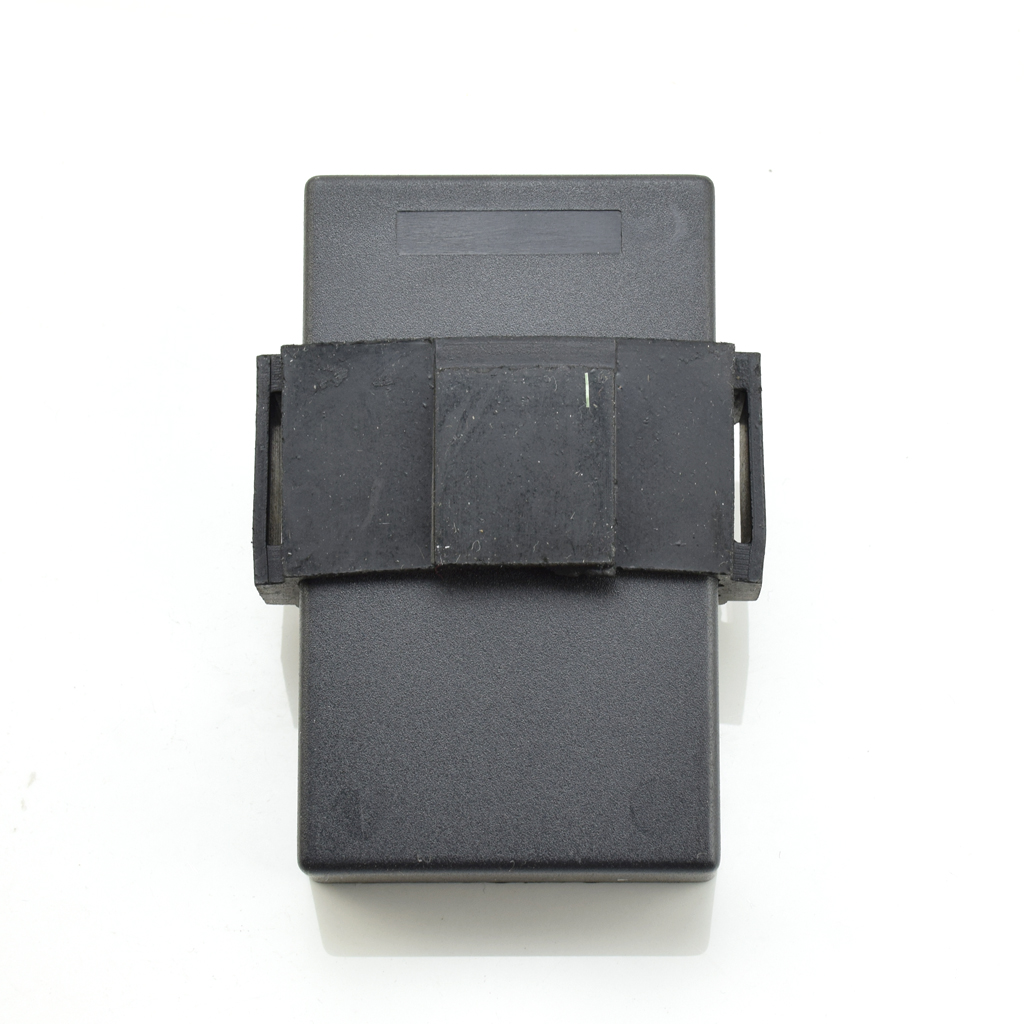

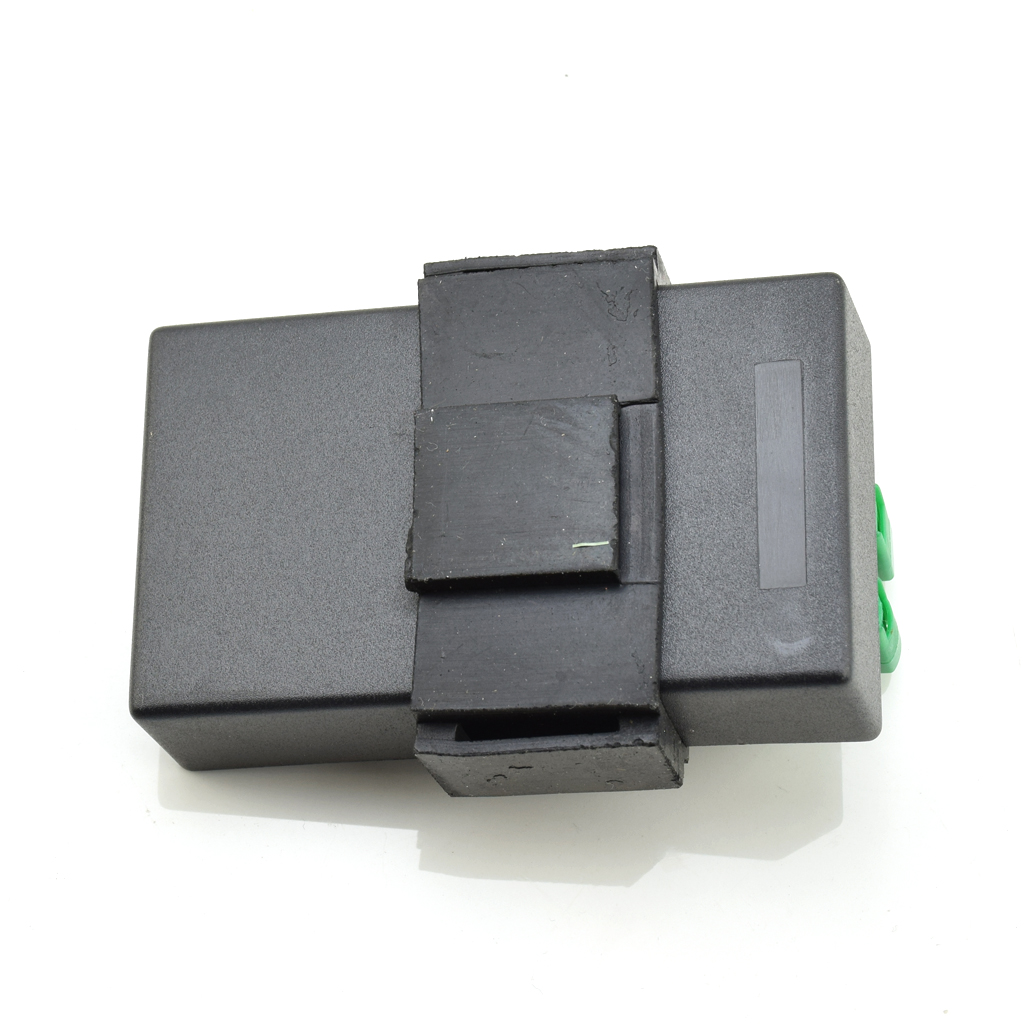

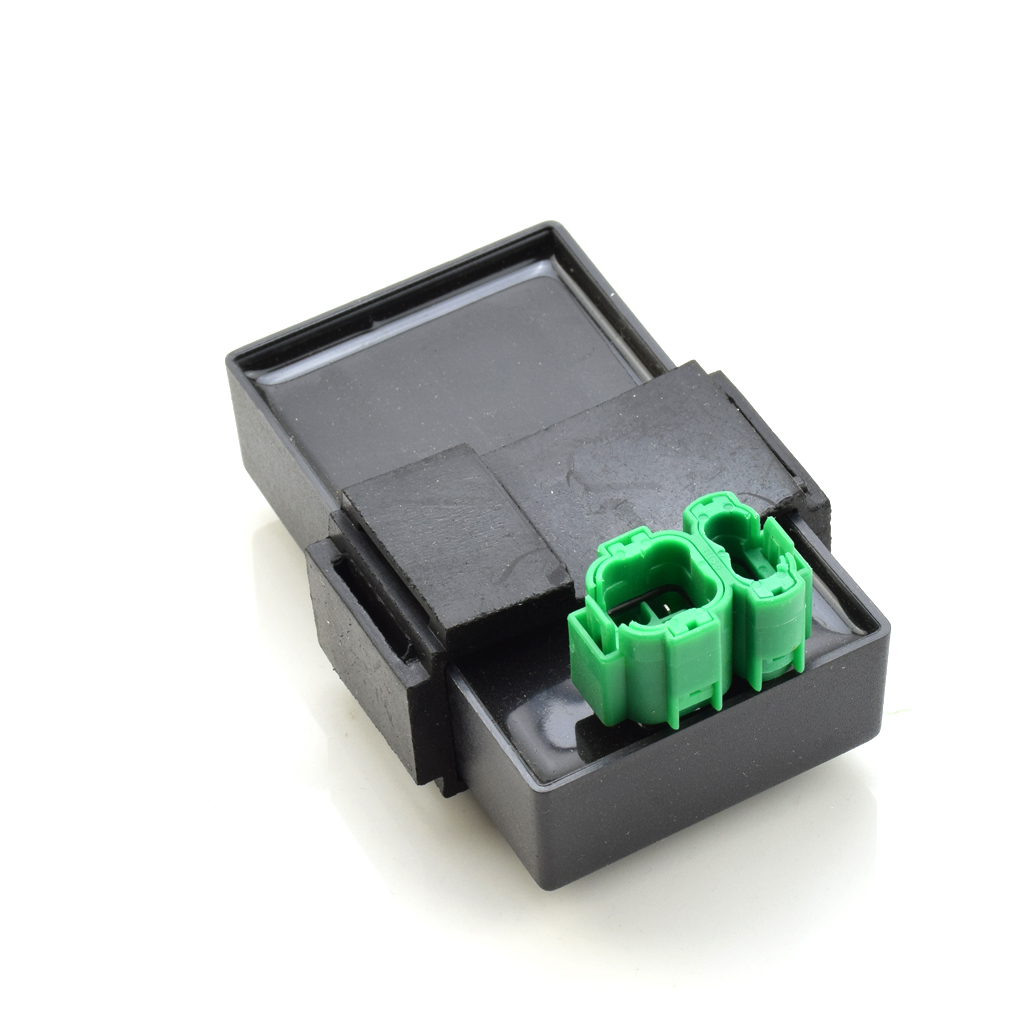

Installation Instructions for Scooter Ignition Assembly for 6-pin GBL DIO ZX AF34 AF35 Models

Introduction

This ignition assembly is specifically designed for 6-pin GBL DIO ZX AF34 AF35 models, ensuring compatibility and stability. With an easy installation process, it is suitable for users of all skill levels, providing enhanced engine performance and durability.

Tools Required

Before starting the installation, make sure you have the following tools:

1. Screwdriver Set (Phillips and Flathead)
2. Socket Wrench Set
3. Wire Strippers/Crimpers
4. Electrical Tape
5. Pliers
6. Torque Wrench (if applicable)
7. Multimeter (for testing electrical connections)
8. Safety Gloves (for protection)
9. Safety Glasses (for eye protection)
10. Cleaning Cloth (to clean any components)

Installation Steps

1. Preparation

   • Ensure the scooter is parked on a flat surface and the engine is cool.
   • Disconnect the battery to prevent any electrical hazards.

2. Remove the Old Ignition Assembly

   • Using the screwdriver, remove the screws securing the old ignition assembly.
   • Carefully disconnect the wiring harness from the old unit and set it aside.

3. Install the New Ignition Assembly

   • Take the new 6-pin ignition assembly and connect it to the wiring harness.
   • Make sure each connection is secure and properly insulated with electrical tape.

4. Secure the Assembly

   • Position the new ignition assembly in the designated location.
   • Use the screws and screwdriver to secure it in place.

5. Reconnect the Battery

   • Reconnect the battery and ensure all connections are tight.

6. Testing

   • Use a multimeter to check that all electrical connections are functioning properly.
   • Start the scooter to ensure the ignition assembly is working and the engine responds smoothly.

7. Final Checks

   • Double-check all screws and connections to ensure everything is secure.
   • Clean any excess debris or fingerprints from the installed components.

Conclusion

With the installation of the Scooter Ignition Assembly complete, your scooter should now perform better and have an extended lifespan. Enjoy improved riding performance and peace of mind knowing your scooter is equipped with reliable components.
