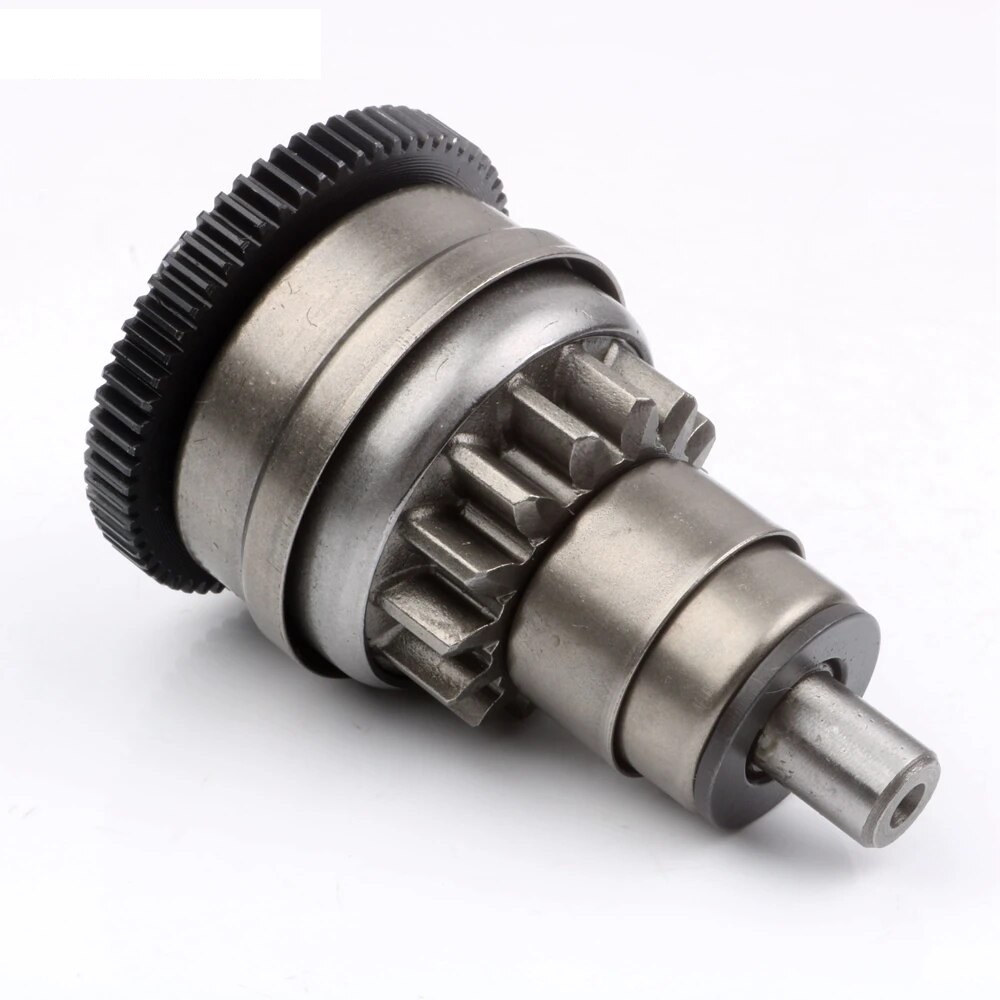

Product Installation Instructions for Compatible 50cc Starter Bendix Gear and Starter Clutch

Tools Required:

1. Socket Set (including 8mm and 10mm sockets)
   2.Wrench Set
2. Screwdrivers (Phillips and Flathead)
3. Torque Wrench
4. Pliers
   6.Cleaning Cloth
5. Safety Goggles
   8.Gloves

Installation Steps:

1. Preparation:

   • Ensure that the engine is turned off and cooled down.
   • Disconnect the battery to prevent any electrical accidents.
   • Gather all the required tools and materials for installation.

2. Remove Old Starter Components:

   • Use the socket set to unscrew the bolts securing the starter motor.
   • Carefully disconnect any wiring connected to the starter motor.
   • Remove the old Bendix gear and starter clutch from the engine.

3. Clean the Area:

   • Use a cleaning cloth to wipe down the area around the starter motor.
   • Inspect the mounting surface for any debris or old gasket material.

4. Install New Starter Bendix Gear and Clutch:

   • Place the new starter Bendix gear in the designated position.
   • Install the new starter clutch, ensuring it fits snugly onto the drive shaft.

5. Reconnect the Starter Motor:

   • Align the starter motor with the mounting holes and secure it using the previously removed bolts.
   • Tighten the bolts to the manufacturer's specified torque using a torque wrench.

6. Reconnect Wiring:

   • Attach any electrical connections back to the starter motor, ensuring a secure fit.

7. Final Checks:

   • Make sure all components are securely fastened.
   • Reconnect the battery and perform a visual inspection of all wiring.

8. Testing:

   • Start the engine to ensure that the new starter Bendix gear and clutch are functioning correctly.
   • Listen for any unusual noises and ensure smooth operation.

9. Completion:

   • Once confirmed that everything is operating properly, reassemble any remaining components that were removed during the installation.

Safety Precautions:

• Always wear safety goggles and gloves while working on the engine.
• Make sure the working area is well-ventilated and free from any flammable materials.

By following these instructions, you will successfully install the Compatible 50cc Starter Bendix Gear and Starter Clutch for your small engine application.
