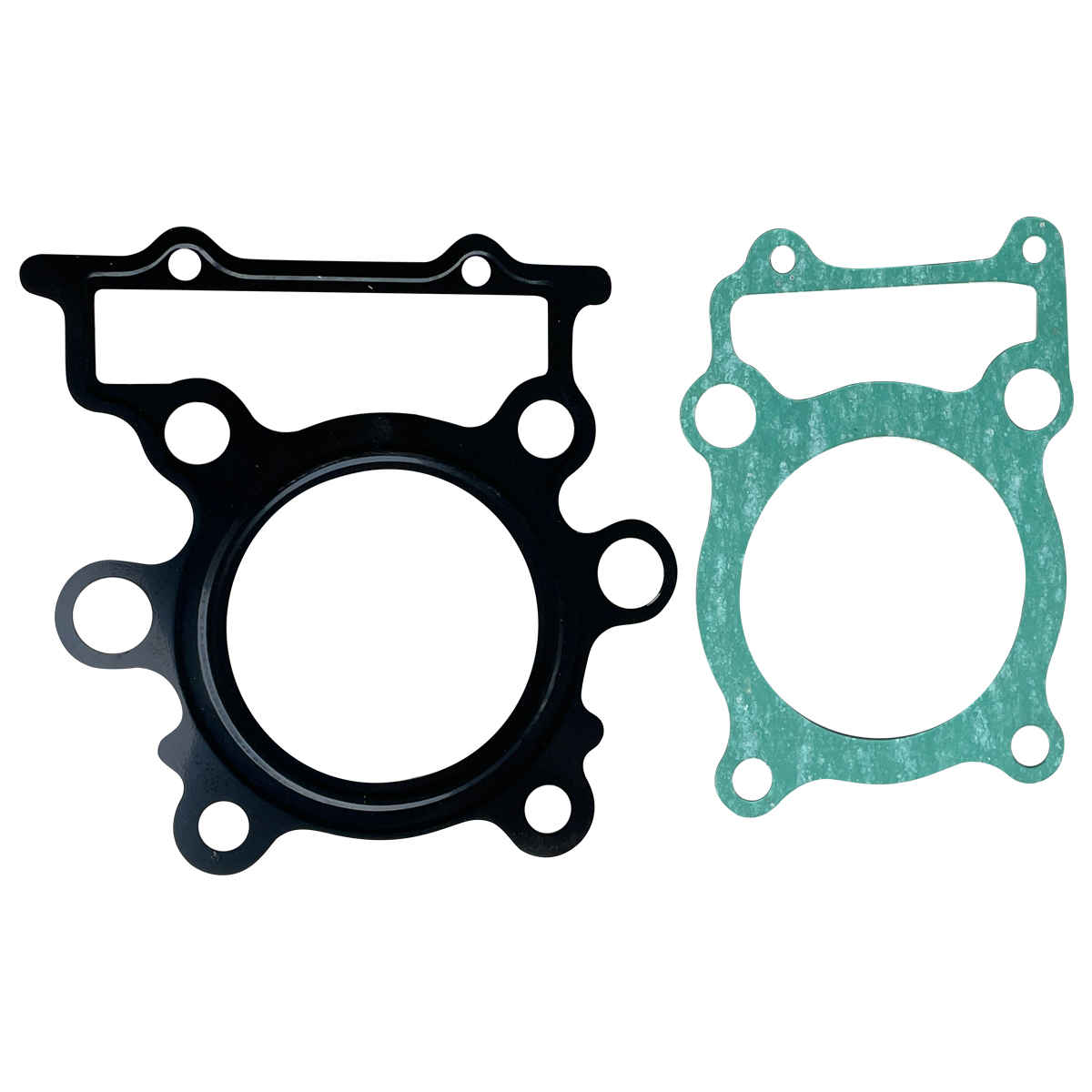

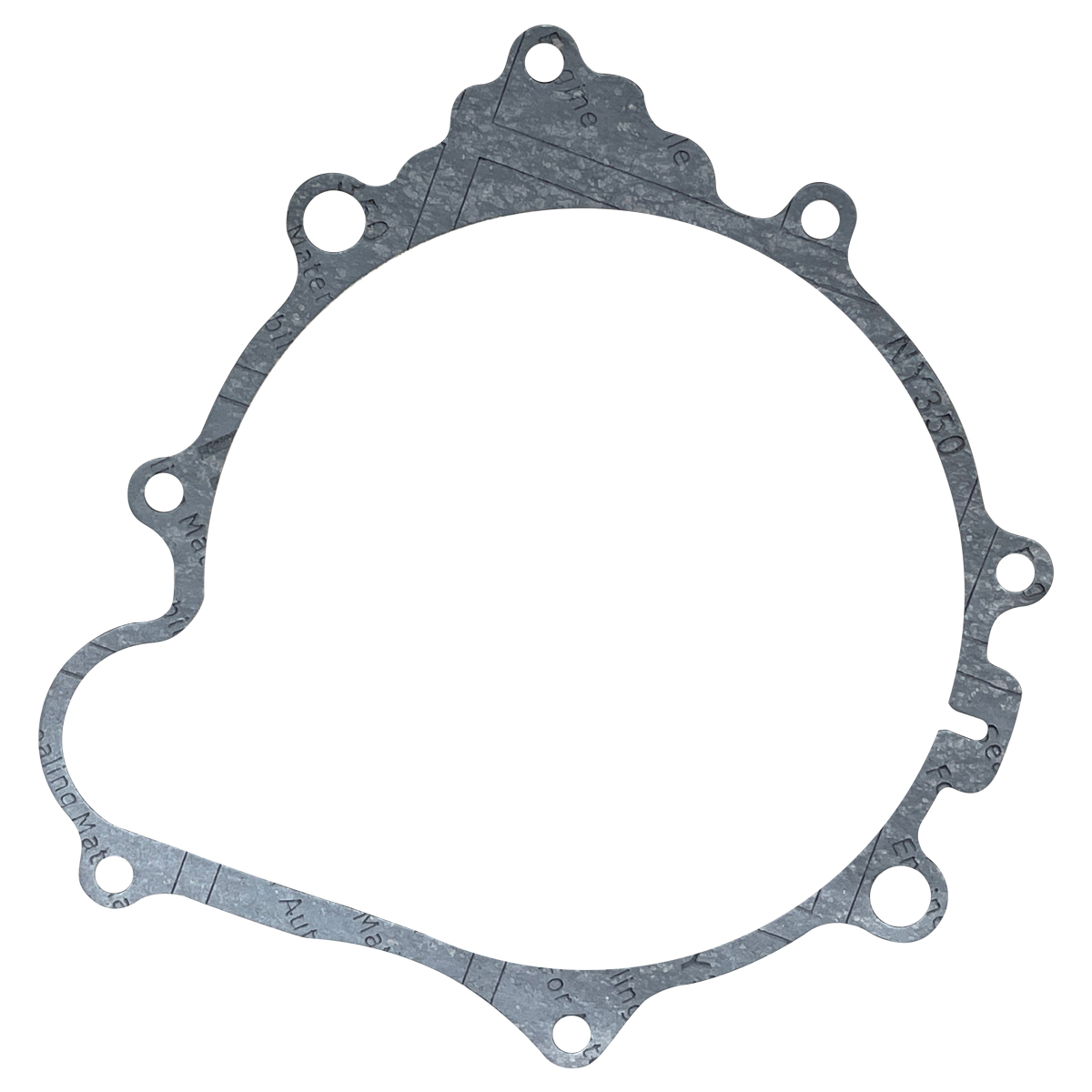

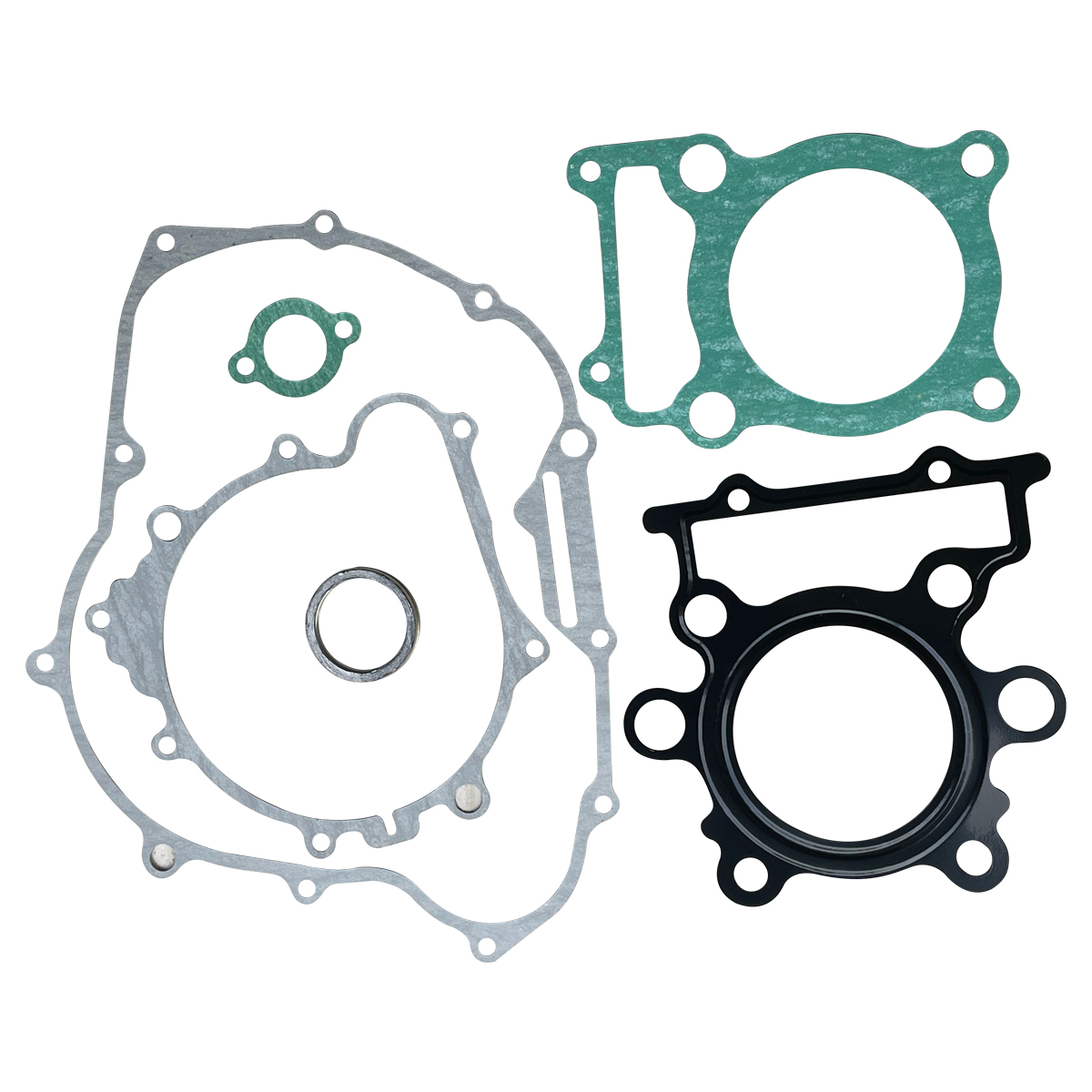

Installation Instructions for Motorcycle Engine Clutch Cover Cylinder Gasket Set Compatible with TTR250 TT250R (1999-2006, 2001-2004)

Tools Required:

1. Socket Set
2. Torque Wrench
3. Screwdriver Set (Phillips and Flathead)
4. Gasket Scraper
   5.Clean Cloth or Rag
5. Engine Oil (for gasket lubrication)
6. Safety Goggles
   8.Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the engine is cold.
   • Disconnect the battery to prevent any electrical issues during installation.

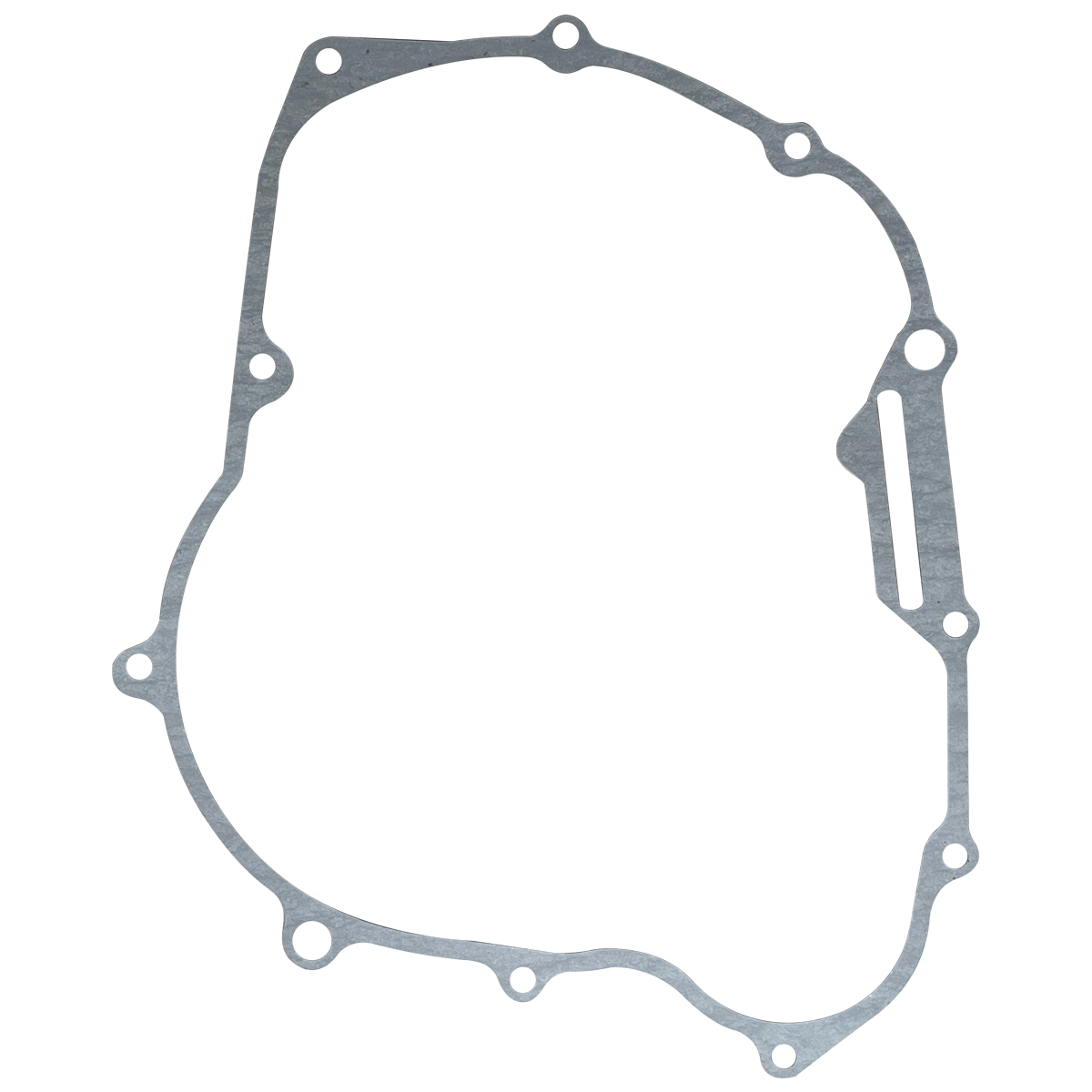

2. Remove the Clutch Cover:

   • Use a socket set to remove the bolts securing the clutch cover.
   • Gently tap the cover with a rubber mallet if it is stuck. Avoid using metal tools that could damage the cover.

3. Clean the Surface:

   • Carefully scrape off any old gasket material from the engine surface using a gasket scraper.
   • Wipe the area with a clean cloth to remove debris and oil. Ensure the surface is clean for optimal sealing.

4. Install the New Gasket:

   • Place the new gasket onto the engine surface, ensuring it is aligned properly with all holes and contours.
   • Apply a thin layer of engine oil to the gasket to help it seat better.

5. Reattach the Clutch Cover:

   • Position the clutch cover back onto the engine, ensuring it fits snugly against the gasket.
   • Start threading the bolts by hand to avoid cross-threading, then use the socket set to tighten them.

6. Torque the Bolts:

   • Use the torque wrench to tighten the bolts to the manufacturer’s specified torque settings. This step is crucial to prevent leaks.

7. Reconnect the Battery:

   • Once the clutch cover is securely in place, reconnect the battery.

8. Final Check:

   • Start the engine and let it run for a few minutes. Check for any leaks around the clutch cover.
   • If everything looks good, you’re ready to ride!

Additional Tips:

• Always wear safety goggles and gloves during the installation process.
• Dispose of the old gasket and any waste materials properly.
• Refer to your motorcycle's service manual for specific torque specifications and additional information.

By following these steps, you will ensure a proper installation and enhance the performance and longevity of your motorcycle engine. Enjoy your ride!
