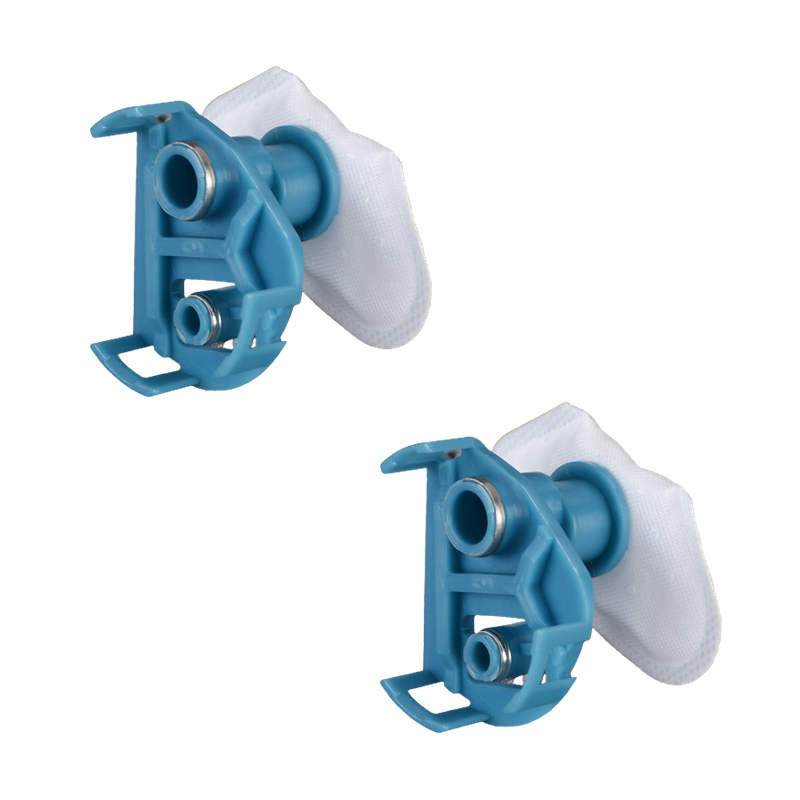

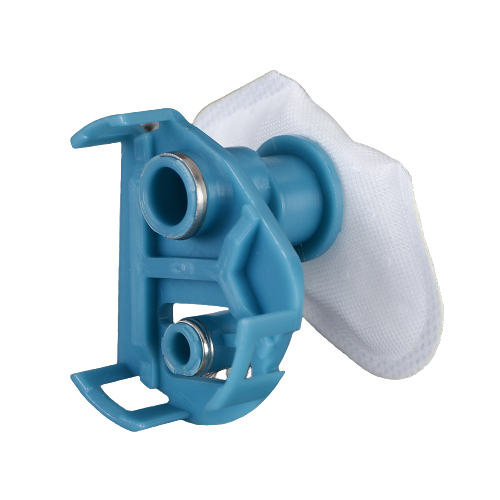

Product Installation Instructions for Fuel Pump Strainer

Compatible Models: YZF R6, MT01, FZ1 NA, FZ1 S, FZ1 SA, FAZER, XVS1300, XJR1300C, XVS1300CTF, V Star
Available at Amazon Store

Installation Overview:

This fuel pump strainer is designed to be compatible with various motorcycle models, ensuring that multiple users can benefit from its reliable performance. Follow this simple guide to install your new fuel pump strainer.

Tools Required:

• Flat head screwdriver
• Phillips head screwdriver
• Ratchet set and socket (for removing the fuel tank if necessary)
  -Pliers
  -Clean cloth or paper towels
• Fuel line disconnect tool (if applicable)
• Safety goggles
• Gloves

Installation Steps:

1. Preparation:

   • Make sure your motorcycle is turned off and parked in a well-ventilated area.
   • Disconnect the negative terminal of the battery to prevent any electrical issues during installation.

2. Access the Fuel Pump:

   • Depending on your motorcycle model, you may need to remove the fuel tank or access panel. Use the appropriate ratchet and socket to do this.
   • If your model has fuel line connections, use the fuel line disconnect tool to safely detach them.

3. Remove the Old Fuel Pump Strainer:

   • Locate the existing fuel pump strainer. It is typically attached to the fuel pump.
   • Use pliers or a screwdriver to remove any clamps or fasteners holding the strainer in place.
   • Carefully remove the old strainer from the fuel pump.

4. Install the New Fuel Pump Strainer:

   • Take the new fuel pump strainer out of its packaging.
     -Align it correctly with the fuel pump and push it into place.
   • Secure the strainer with any clamps or fasteners previously removed.

5. Reassemble the Motorcycle:

   • If you removed the fuel tank, carefully reposition it and secure it using the appropriate tools.
   • Reconnect the fuel lines, ensuring they are snug and leak-free.
   • Reconnect the negative terminal of the battery.

6. Test the Installation:

   • Turn on the motorcycle and allow the fuel pump to prime.
   • Check for any leaks around the fuel pump area.
   • Take a short ride to ensure optimal performance.

Final Notes:

Remember to wear safety goggles and gloves throughout the installation process. Clean up any spills to avoid hazards. With the new fuel pump strainer in place, you can enjoy enhanced engine performance and extended fuel system life.

If you have any questions or require further assistance, please consult a professional mechanic. Thank you for choosing our fuel pump strainer!
