Motorcycle Gasket Kit Installation Instructions

Prepared Tools:

1. Basic Tools:

   • Socket set (including 8mm, 10mm, and 12mm sockets)
   • Ratchet wrench
     -Torque wrench
   • Phillips and flathead screwdrivers
   • Adjustable wrench
     -Pliers

2. Additional Tools:

   • Gasket scraper or razor blade (for removing old gaskets)
   • Cleaning cloths or paper towels (for cleaning surfaces)
   • Loctite or gasket maker (optional)
   • Oil (for lubricating seals)

3. Safety Equipment:

   • Safety goggles
   • Gloves

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable and level surface.
   • Disconnect the battery to prevent any electrical issues during installation.

2. Remove Old Gaskets:

   • Use a gasket scraper or razor blade to carefully remove old gaskets from the crankcase, clutch cover, and magneto cover.

3. Clean Surfaces:

   • Clean all surfaces where new gaskets will be installed. Use cleaning cloths to remove any debris or residue.

4. Install New Gaskets:

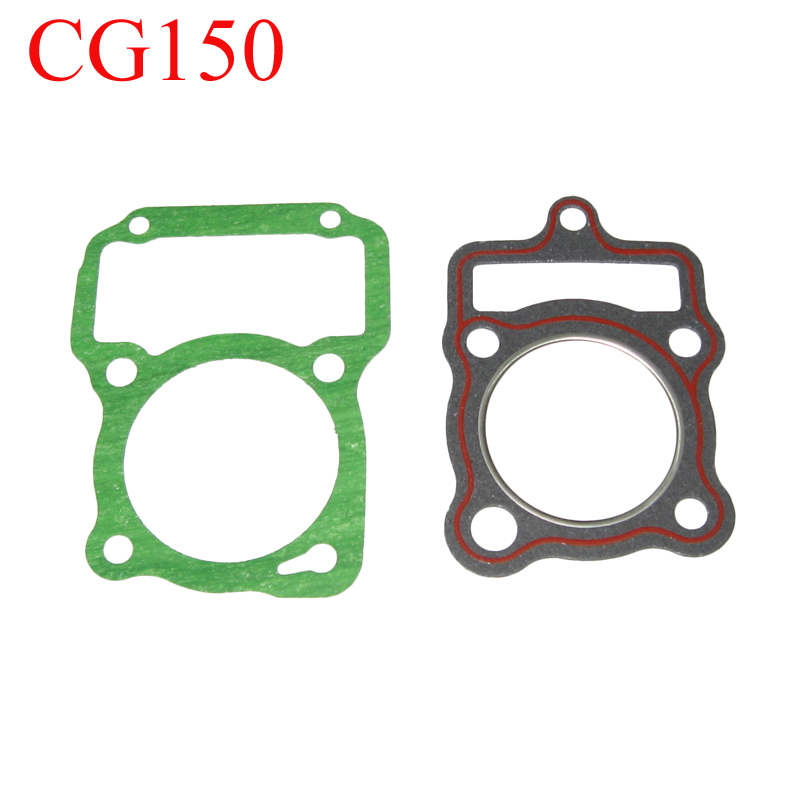

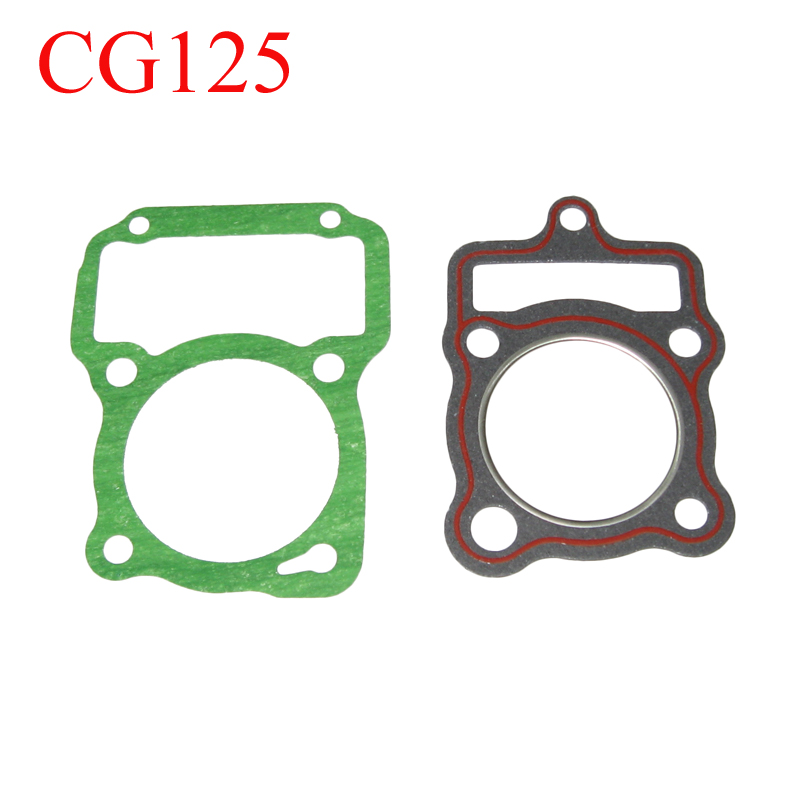

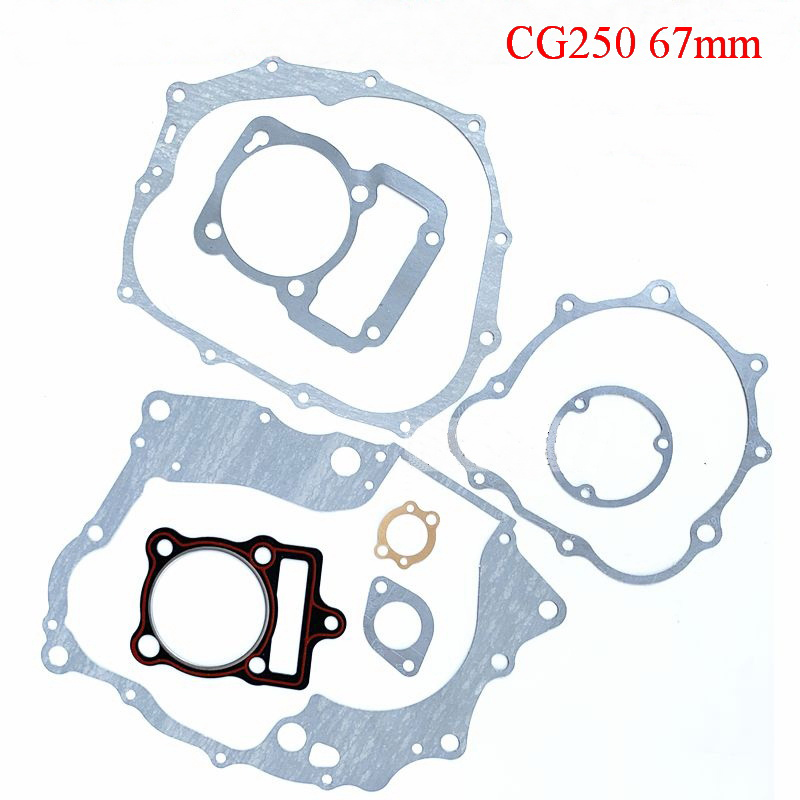

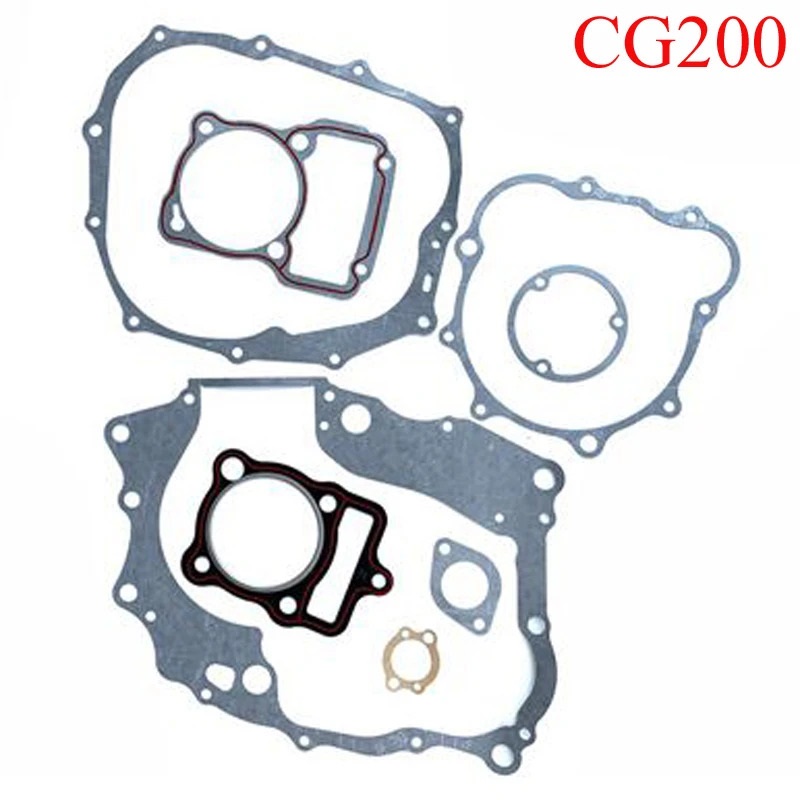

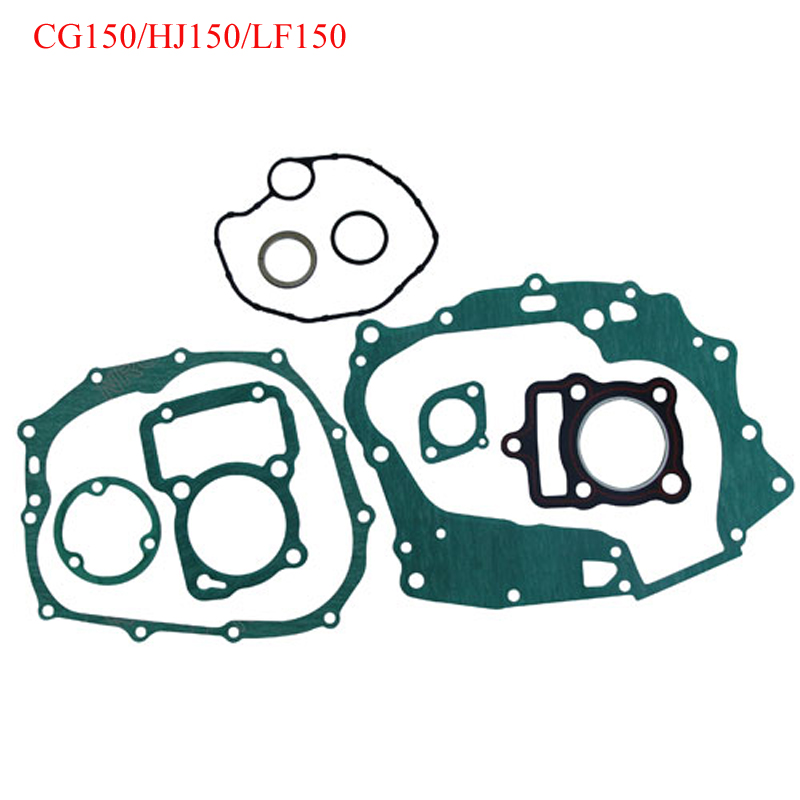

   • Select the appropriate gasket from the kit based on your cylinder size (56.5mm, 62mm, 63.5mm, 67mm).
   • Carefully position the gasket onto the respective engine component (crankcase, clutch cover, magneto cover).

5. Reassemble Components:

   • Reattach the crankcase, clutch cover, and magneto cover to the engine.
   • Ensure all fasteners are properly aligned and inserted.

6. Torque Specifications:

   • Use a torque wrench to tighten all bolts to the manufacturer's specifications to ensure proper sealing.

7. Final Checks:

   • Double-check that all components are securely fastened and that no tools are left in the engine area.
   • Reconnect the battery.

8. Test Run:

   • Start the motorcycle and check for any leaks around the newly installed gaskets.
   • Allow the engine to warm up and monitor for any abnormal noises or issues.

By following these instructions and using the proper tools, you'll be able to successfully install the Motorcycle Gasket Kit and keep your motorcycle running smoothly.
