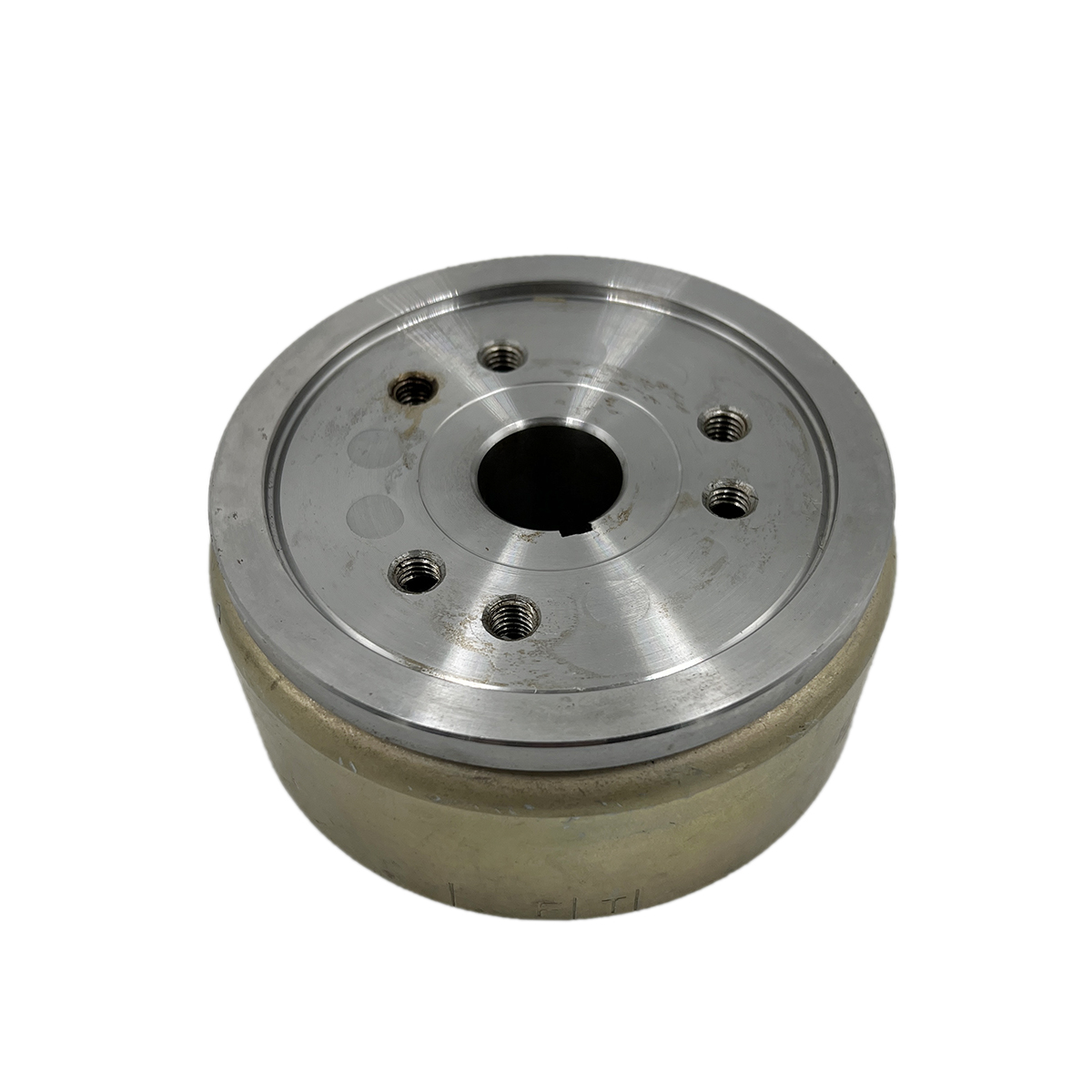

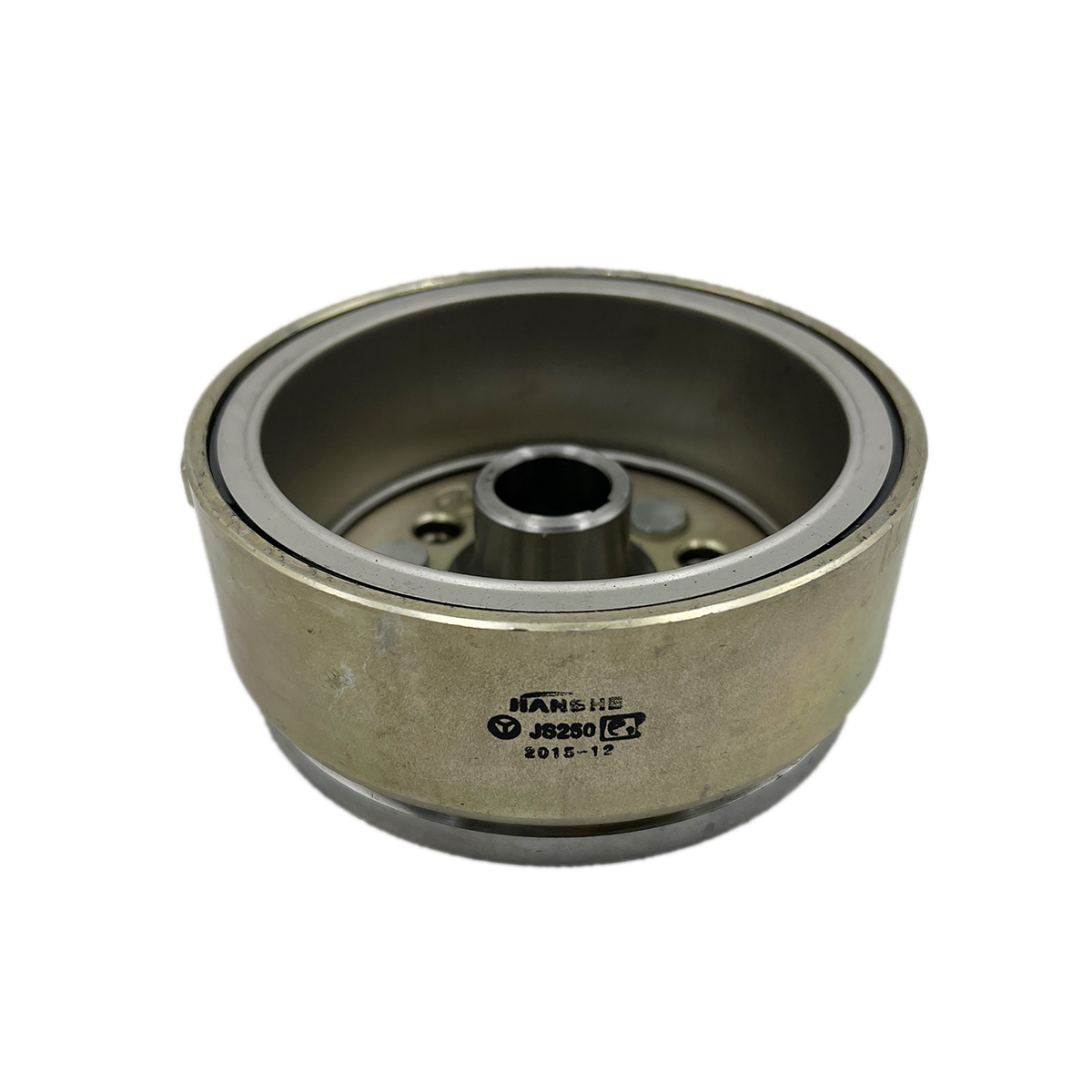

Product Installation Instructions for Flywheel Rotor for 250cc ATV Quad Engine

Tools Required:

1. Socket Set: Various sizes (including 8mm, 10mm, 12mm, and 14mm sockets)
2. Ratchet Wrench
3. Torque Wrench: For proper tightening of bolts
4. Screwdriver Set: Flat and Phillips head
5. Pliers: For holding and gripping parts
6. Engine Oil: For lubrication
7. Clean Cloth: For cleaning surfaces
8. Safety Goggles: To protect your eyes during installation
9. Gloves: To keep your hands clean and protected

Installation Steps:

1. Preparation:

   • Ensure the ATV is on a stable surface and the engine is turned off and cool.
   • Disconnect the battery to prevent any electrical issues.

2. Remove Existing Flywheel Rotor:

   • Use the socket set to remove the bolts securing the existing flywheel rotor.
   • Carefully pull the rotor off the crankshaft. If it's stuck, gently tap it with a rubber mallet to loosen it.

3. Clean the Area:

   • Use a clean cloth to wipe the crankshaft and ensure there is no debris or old lubricant left.

4. Install the New Flywheel Rotor:
   -Align the new flywheel rotor with the crankshaft ensuring it fits snugly.

   • Hand-tighten the bolts first and then use the torque wrench to tighten them to the manufacturer’s specifications.

5. Reconnect the Battery:

   • Once the rotor is securely installed, reconnect the battery.

6. Test the ATV:

   • Start the engine and allow it to idle to ensure everything is functioning properly.
   • Check for any unusual noises or vibrations.

Safety Precautions:

• Always wear safety goggles and gloves during installation.
• Make sure all tools are properly stored away after use to avoid accidents.

By following these steps and using the recommended tools, you can successfully install the Flywheel Rotor and enhance the performance of your 250cc ATV.
