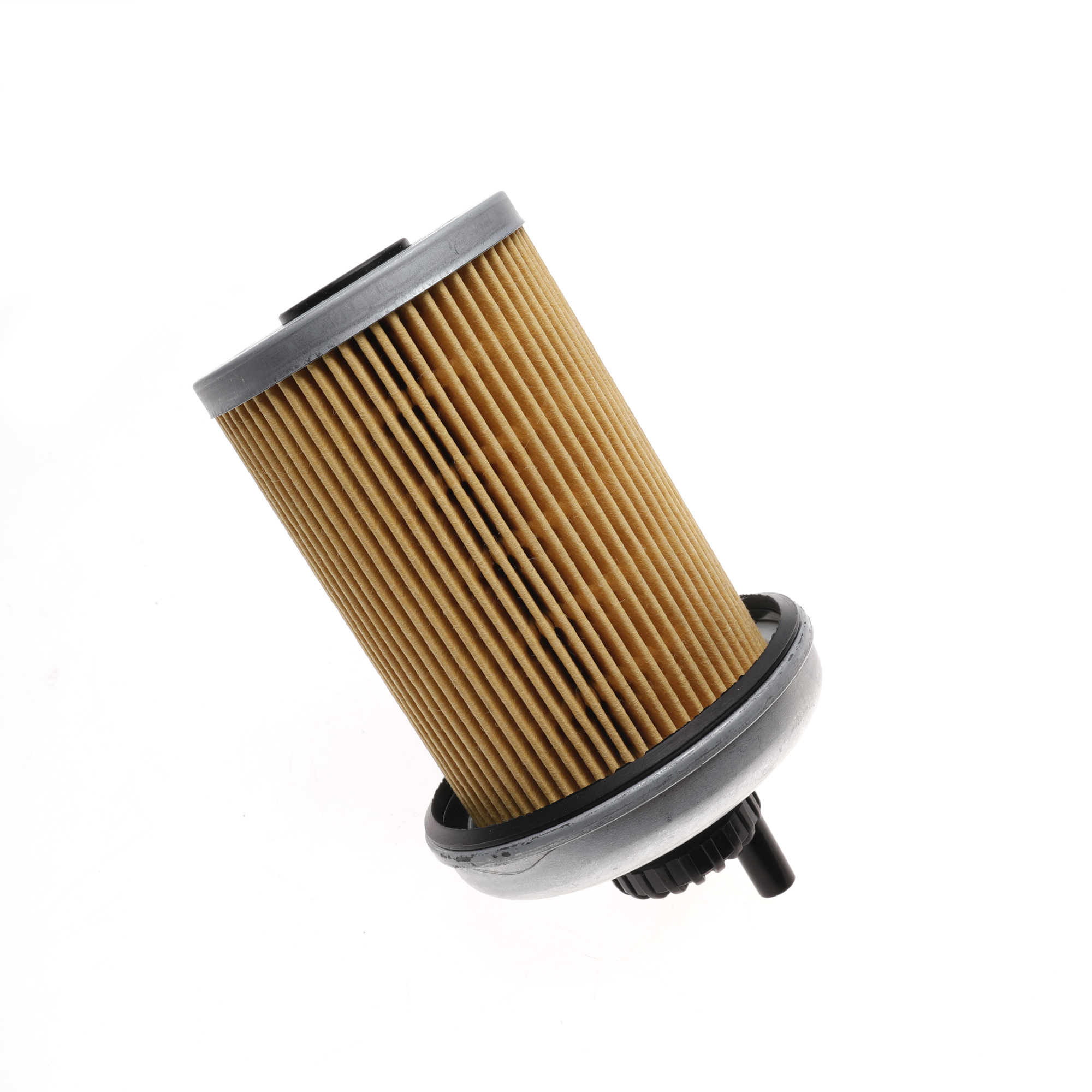

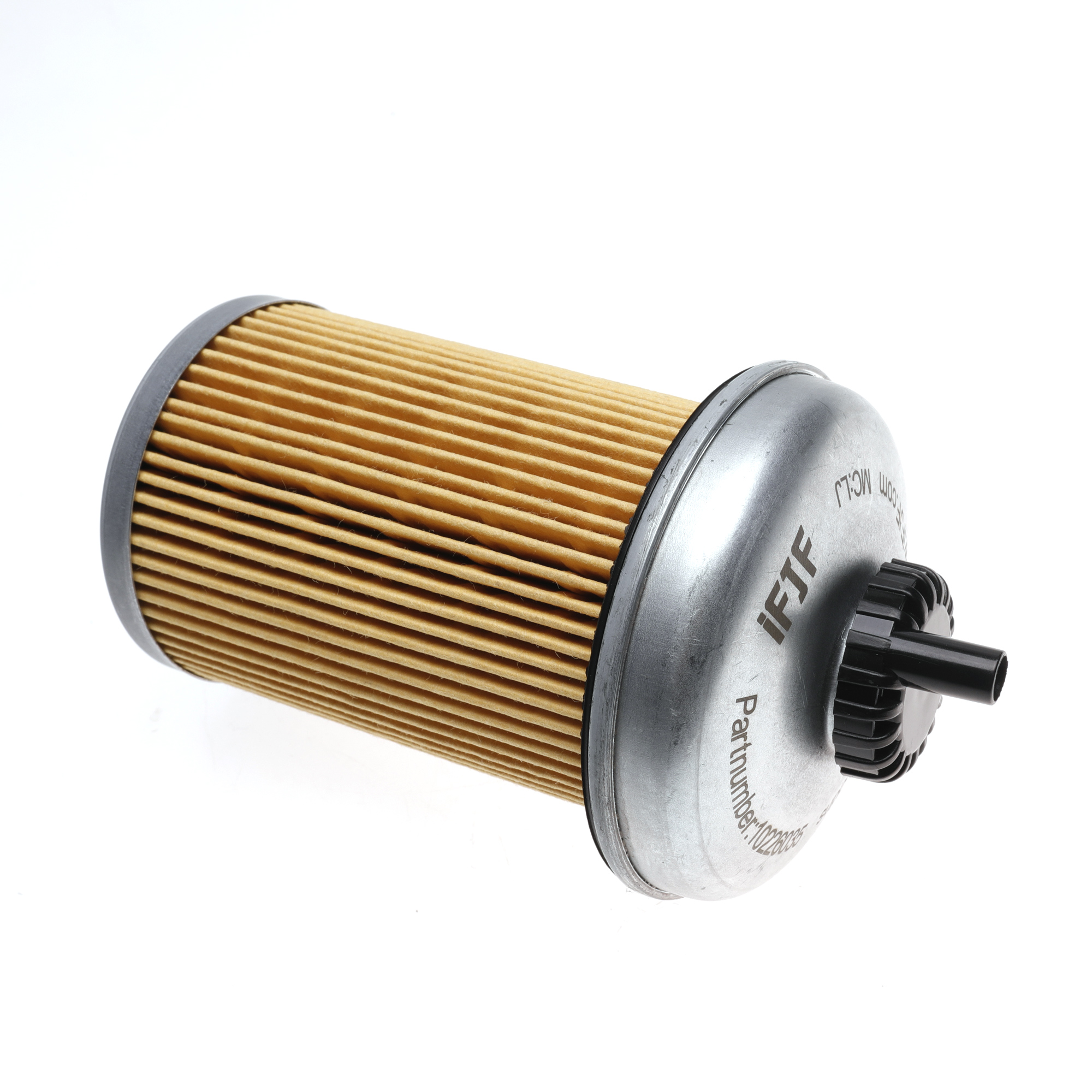

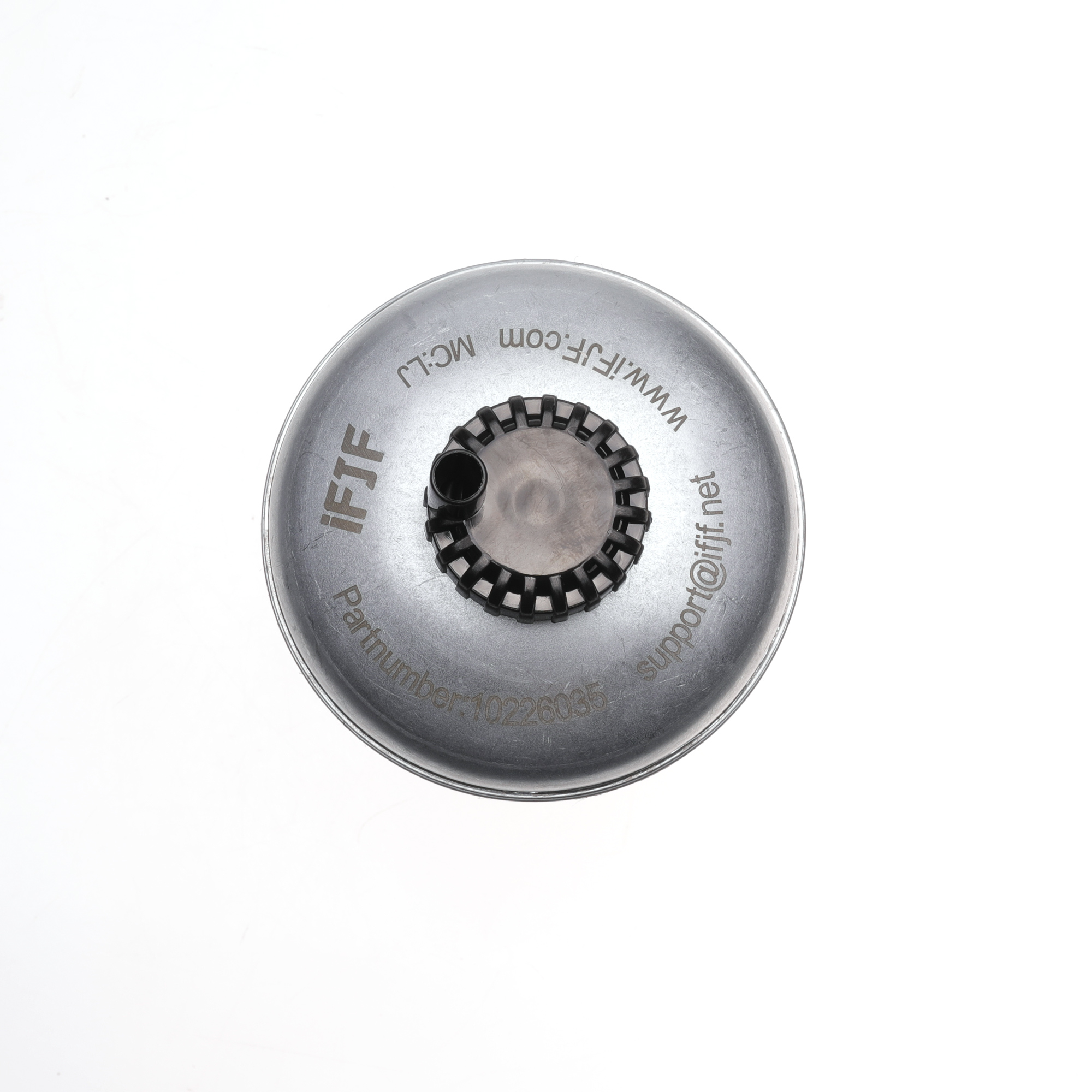

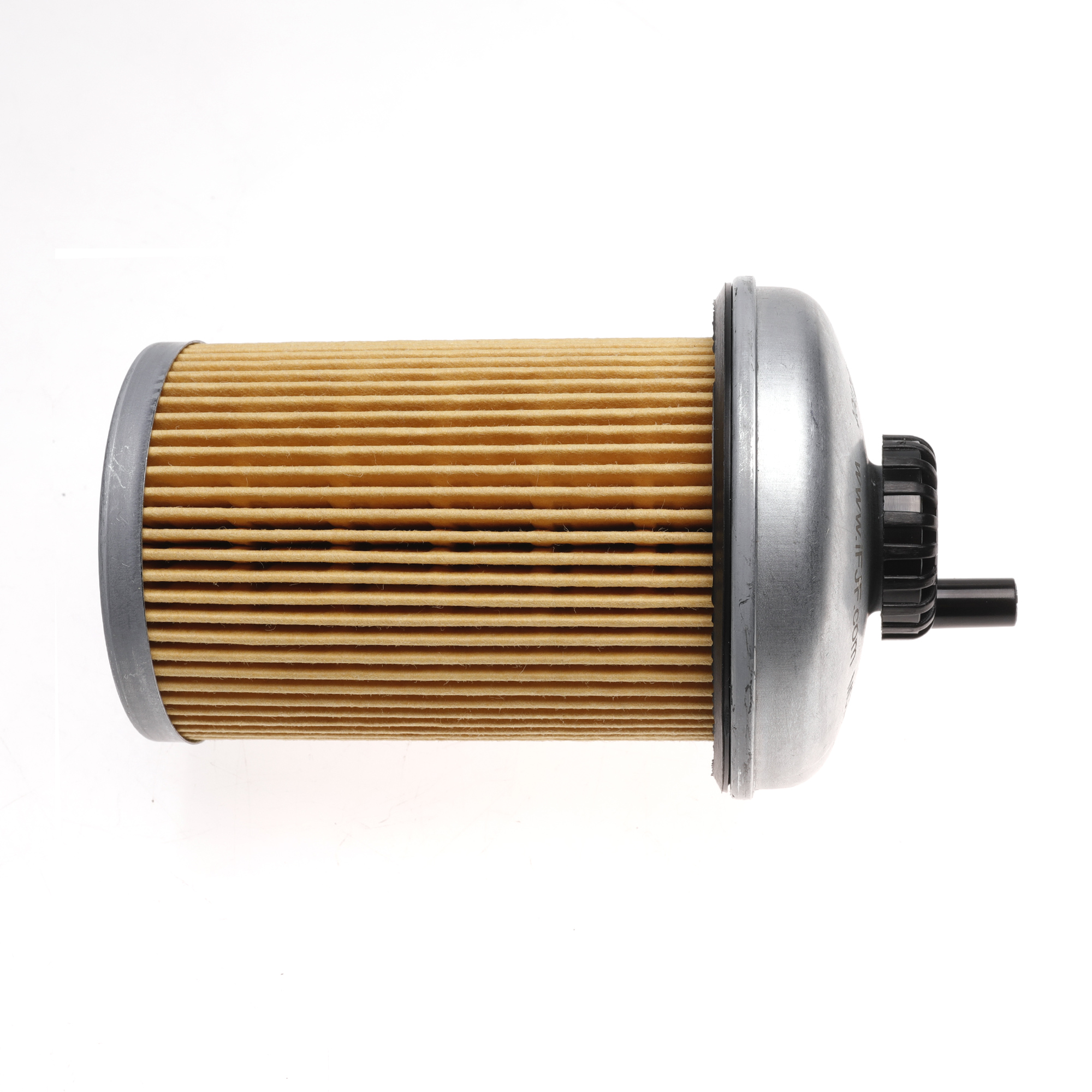

TP1256 Diesel Fuel Filter Water Separator Element Installation Instructions

Compatibility

This fuel filter water separator is compatible with various diesel vehicles, including specific models of GMC Trucks, Hummer H1, and Liebherr Excavators.

Features

• Efficient Filtration: Utilizes advanced filtration technology to effectively remove water and impurities from fuel, protecting the engine and extending its lifespan.
• Easy Installation: Designed to meet OEM standards for straightforward installation without the need for complex tools, making the replacement process smoother.
• Durable Materials: Constructed from corrosion-resistant materials, it maintains performance in harsh environments, suitable for various working conditions.
• Cost-Effective: Reasonably priced, making this replacement part an ideal choice for enhancing vehicle performance and maintaining cost efficiency.

Tools Required

To successfully install the TP1256 Diesel Fuel Filter Water Separator Element, please gather the following tools:

1. Wrench Set: For loosening and tightening fittings.
2. Screwdriver Set: For removing any screws that may hold the filter in place.
3. Fuel Line Wrench: (optional) for a better grip on fuel lines without damaging them.
4. Rags or Shop Towels: To clean up any spilled fuel during the replacement.
5. Safety Goggles: To protect your eyes from any splashes during installation.
6. Gloves: To protect your hands from fuel and sharp edges.

Installation Steps

1. Prepare the Vehicle: Park the vehicle on a flat surface, turn off the engine, and engage the parking brake.
2. Locate the Fuel Filter: Identify the location of the existing fuel filter water separator in your vehicle's engine compartment.
3. Disconnect Fuel Lines: Using the appropriate tools, carefully disconnect the fuel lines from the existing filter. Be cautious of any pressurized fuel.
4. Remove the Old Filter: Unscrew or unclip the old filter from its mounting.
5. Install the TP1256 Filter: Position the new filter in place and securely attach it according to the manufacturer's specifications.
6. Reconnect Fuel Lines: Reattach the fuel lines, ensuring a tight fit to prevent leaks.
7. Check for Leaks: Start the engine and inspect the installation area for any signs of leakage.
8. Dispose of the Old Filter Properly: Follow local regulations for the disposal of the old fuel filter.

Conclusion

By following these instructions and using the required tools, you'll be able to install the TP1256 Diesel Fuel Filter Water Separator Element efficiently. Enjoy enhanced performance and engine protection with your new filter!
