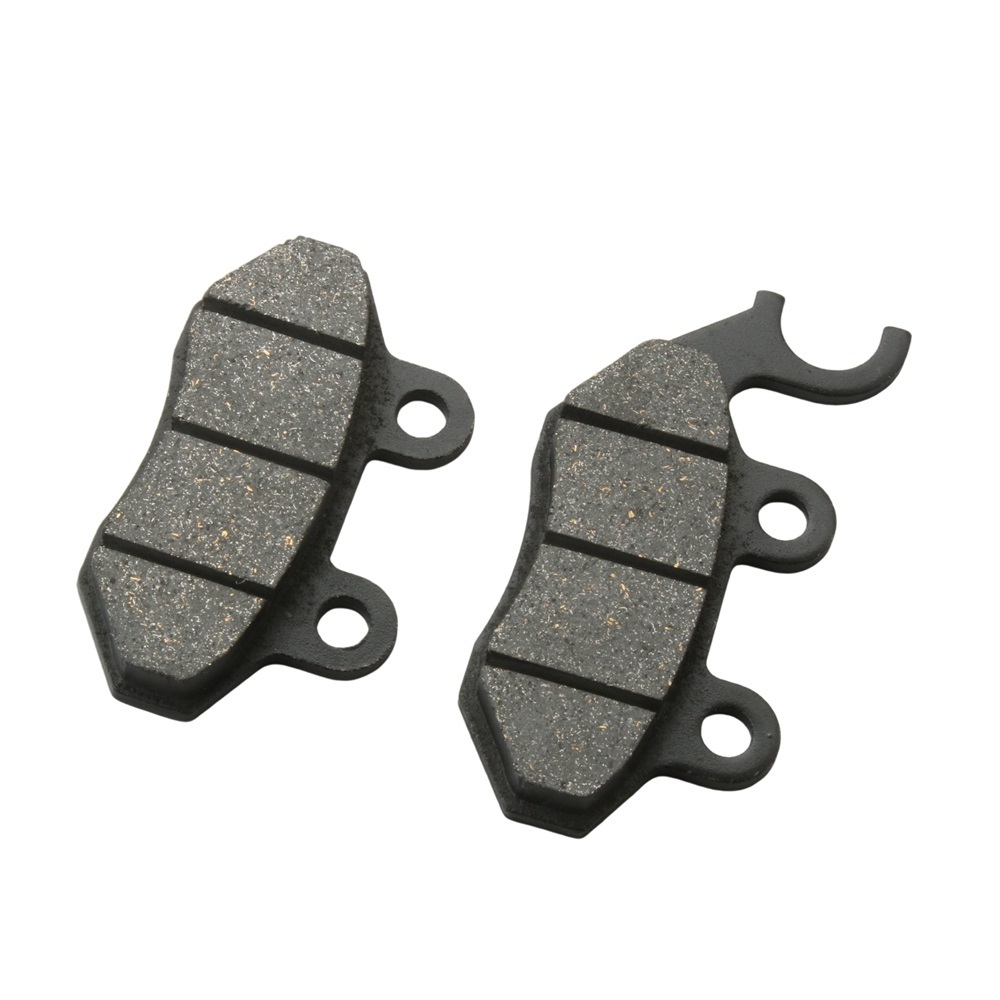

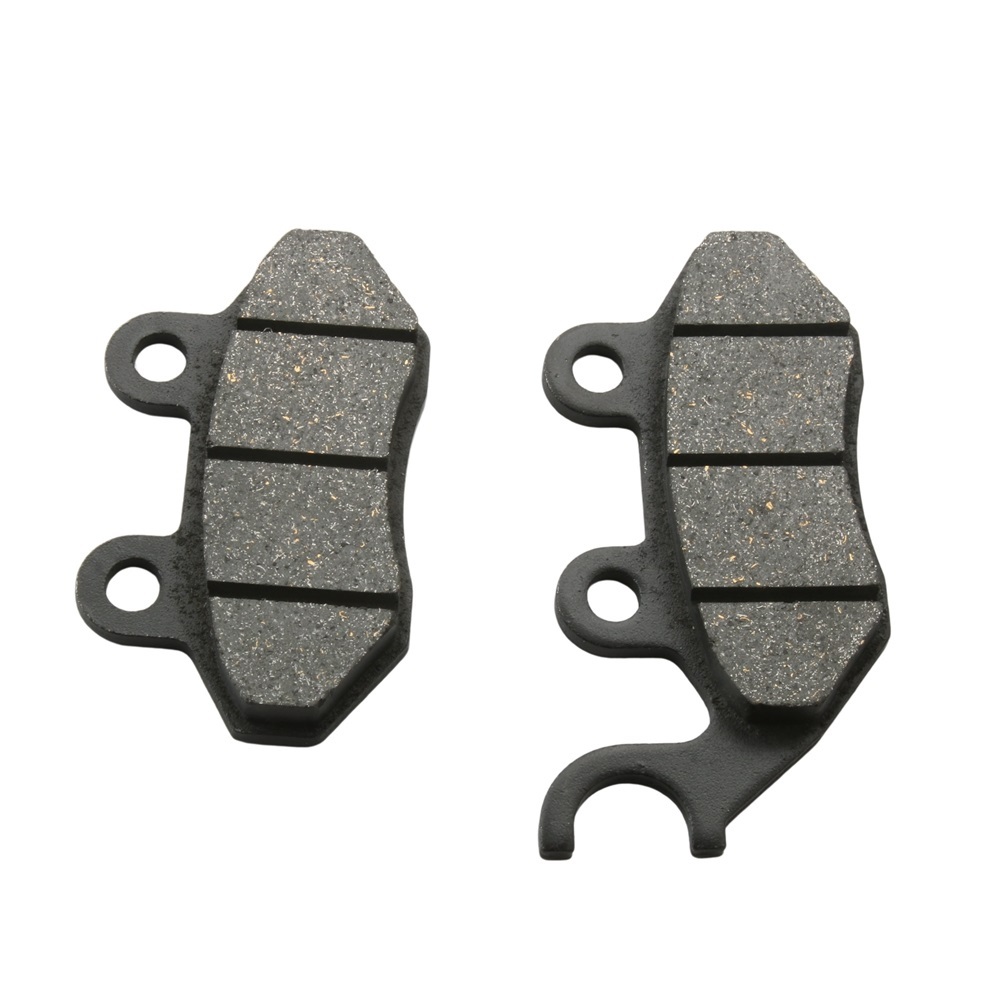

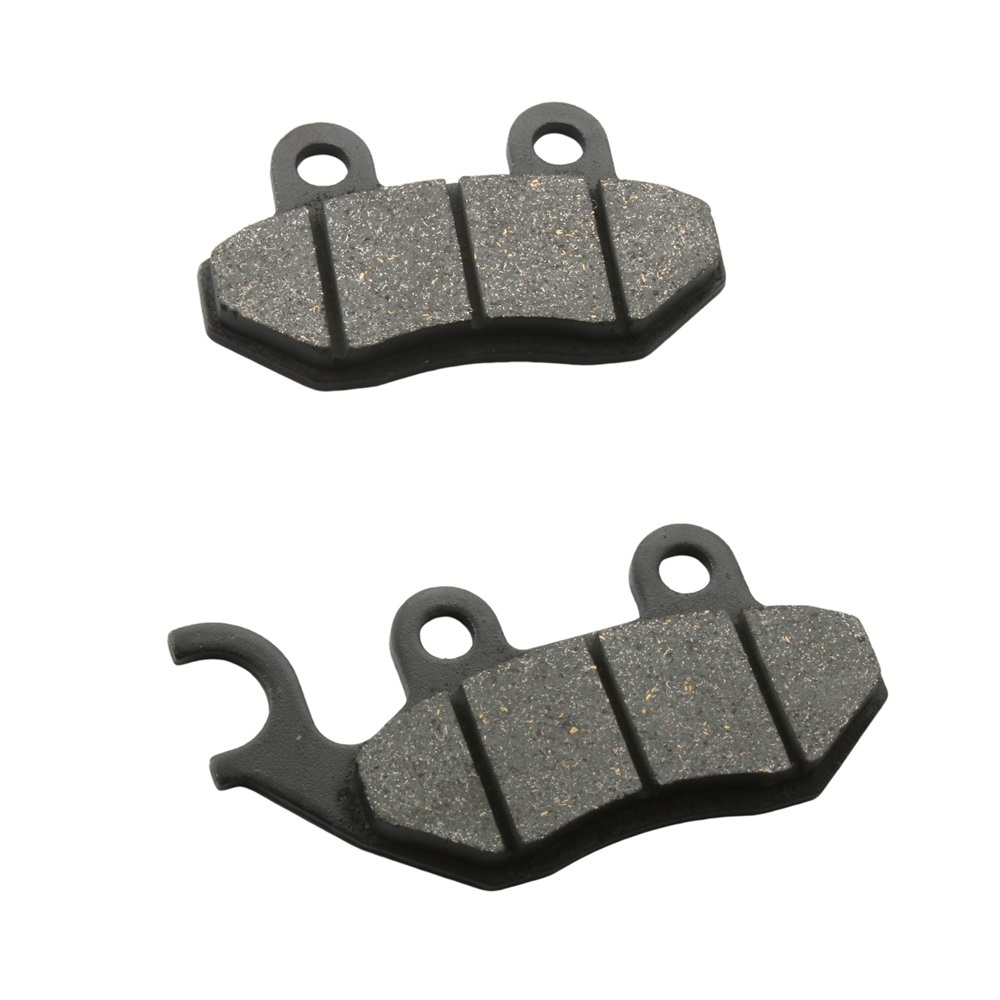

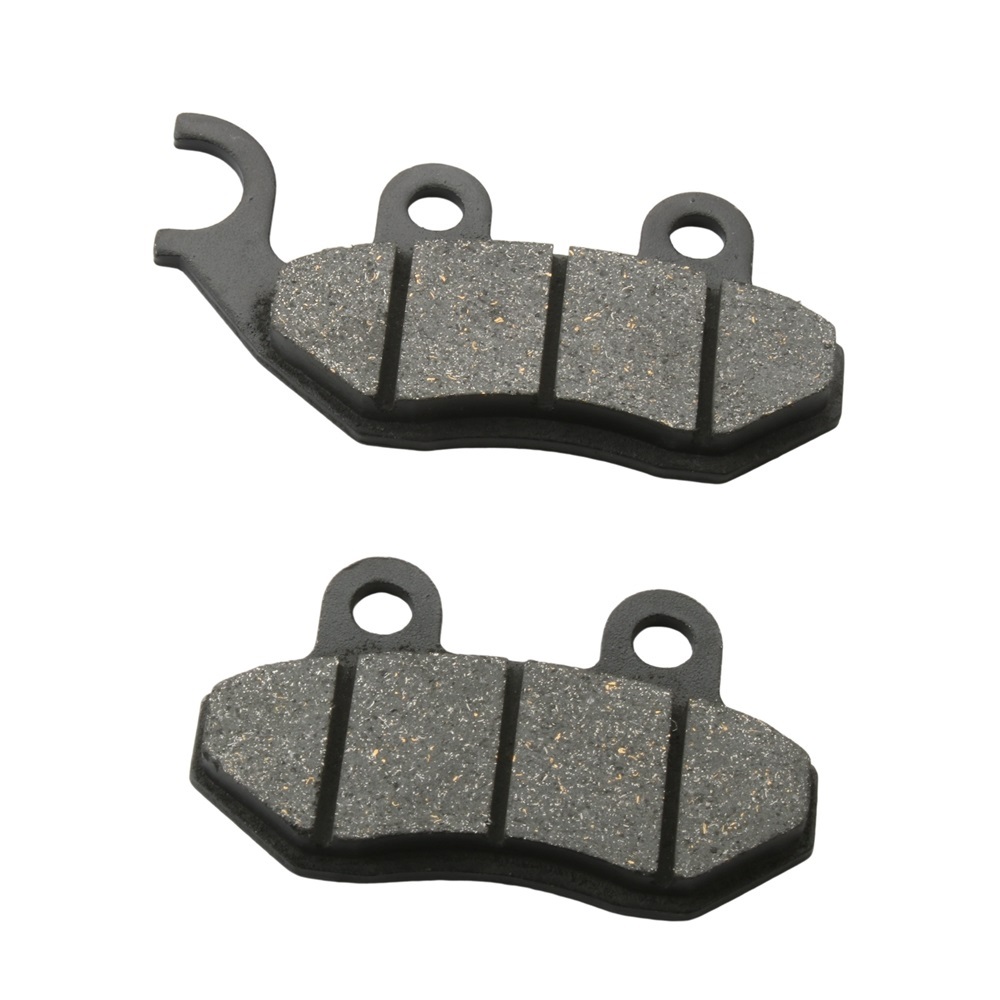

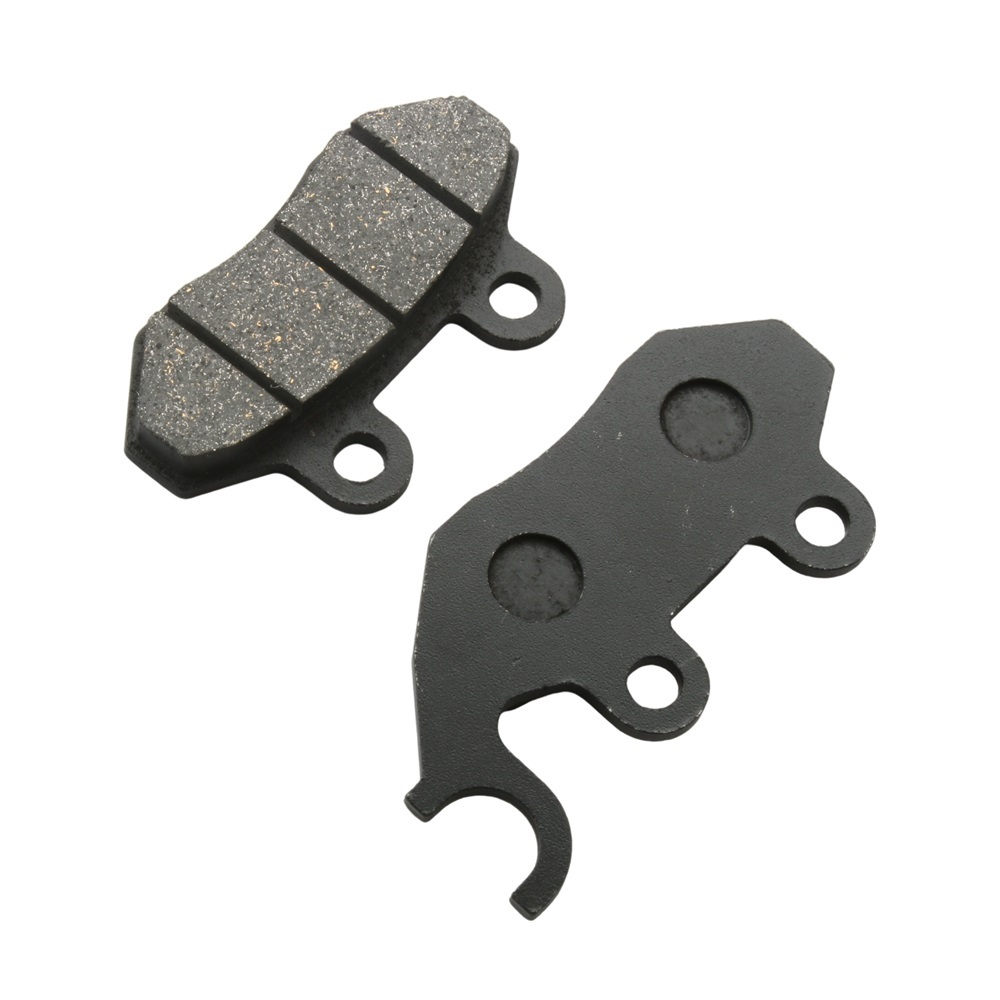

Installation Instructions for Versatile Scooter Brake Pads

Thank you for purchasing the Versatile Scooter Brake Pads compatible with various 125-300cc models such as City Com, Super Duke, Orbit II, Symphony, Jet 14, and more. To ensure a smooth installation process, please follow the instructions below carefully.

Tools Required:

1. Socket Wrench Set - To remove and attach bolts.
2. Torque Wrench - To ensure proper tightening of bolts.
3. Screwdriver Set - For any required screws.
4. Pliers - For handling small components if necessary.
5. Brake Cleaner - To clean the brake assembly before installation.
6. Rags or Paper Towels - For cleaning and wiping down parts.
7. Gloves - To keep your hands clean and safe.
8. Safety Glasses - To protect your eyes during installation.

Installation Steps:

1. Preparation:

   • Ensure your scooter is parked on a level surface.
   • Turn off the ignition and remove the key.
   • If necessary, disconnect the battery.

2. Remove the Wheel:

   • Using the socket wrench, carefully remove the bolts securing the wheel to the scooter.
   • Once all bolts are removed, gently lift the wheel off.

3. Access the Brake Assembly:

   • Locate the brake caliper and remove it using the socket wrench.
   • Take care not to damage any surrounding components.

4. Remove Old Brake Pads:

   • Carefully slide out the old brake pads from the caliper.
   • Dispose of the old pads responsibly.

5. Clean the Brake Assembly:

   • Use brake cleaner and rags to clean the brake caliper and rotor thoroughly.

6. Install New Brake Pads:

   • Insert the new Versatile Brake Pads into the caliper, ensuring they are secured in place.

7. Reattach the Brake Caliper:

   • Position the brake caliper back onto the rotor and secure it with the previously removed bolts.
   • Use the torque wrench to tighten the bolts to the manufacturer's recommended specifications.

8. Reinstall the Wheel:

   • Place the wheel back onto the scooter and align it with the axle.
   • Secure the wheel by tightening the bolts with the socket wrench.

9. Final Checks:

   • Ensure all components are securely fastened and that there are no loose parts.
   • Reconnect the battery if it was disconnected.

10. Test the Brakes:

• Before riding, gently press the brake lever multiple times to ensure proper engagement of the new brake pads.
• Take a short test ride in a safe area to ensure the brakes function properly.

Safety Reminder: If you feel uncertain about any step, please consult a professional mechanic. Enjoy a safe and enjoyable riding experience with your new brake pads!
