Motorcycle Cylinder Cover Gasket Installation Instructions

Tools Required:

1. Socket Wrench Set: Standard and deep sockets in metric sizes.
2. Torque Wrench: To ensure proper tightening of bolts.
3. Screwdrivers: Both flathead and Phillips screwdrivers.
4. Pliers: For handling and manipulating components as needed.
5. Gasket Scraper: To safely remove old gasket material.
6. Cleaning Cloths: To wipe down surfaces and remove debris.
7. Engine Degreaser: For cleaning the engine surfaces before installation.
8. Rags or Shop Towels: To catch any excess fluids and keep the area clean.
9. Safety Glasses and Gloves: To protect yourself during the installation process.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface and the engine is cool.
   • Disconnect the battery to prevent any electrical issues during the process.

2. Remove the Cylinder Cover:

   • Use the socket wrench to remove the bolts securing the cylinder cover.
   • Carefully take off the cylinder cover to reveal the old gasket.

3. Clean the Surfaces:

   • Use the gasket scraper to remove any remnants of the old gasket from the cylinder head and cover.
   • Apply engine degreaser and wipe clean using the cleaning cloths to ensure a perfect sealing surface.

4. Install the New Gasket:

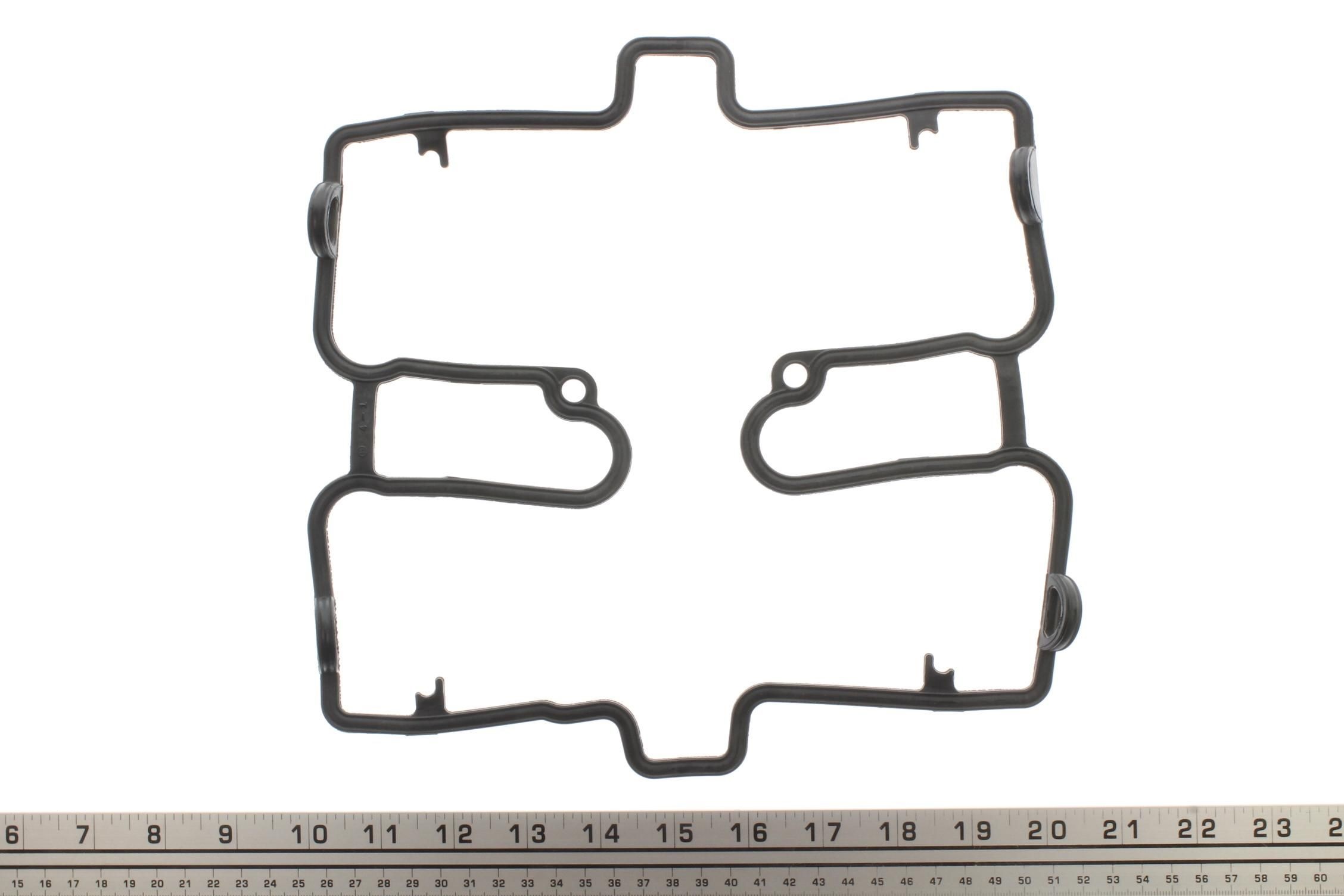

   • Place the new motorcycle cylinder cover gasket onto the cylinder head. Make sure it aligns perfectly with all bolt holes.

5. Reattach the Cylinder Cover:

   • Carefully position the cylinder cover back onto the motorcycle, ensuring the gasket remains in place.
   • Begin inserting the bolts by hand to avoid cross-threading.

6. Torque the Bolts:

   • Using a torque wrench, tighten the bolts according to the manufacturer's specifications. This step is crucial to avoid leaks.

7. Reconnect the Battery:

   • Reattach the battery terminals when installation is complete.

8. Test the Installation:

   • Start the engine and check for any leaks around the newly installed gasket.

Conclusion:

By following these steps and using the tools listed, you can successfully install the Motorcycle Cylinder Cover Gasket on your K KLE500, EN500, Vulcan LTD 500, or GPZ500S model. This installation will enhance your motorcycle's performance and ensure a reliable seal for many rides to come.
