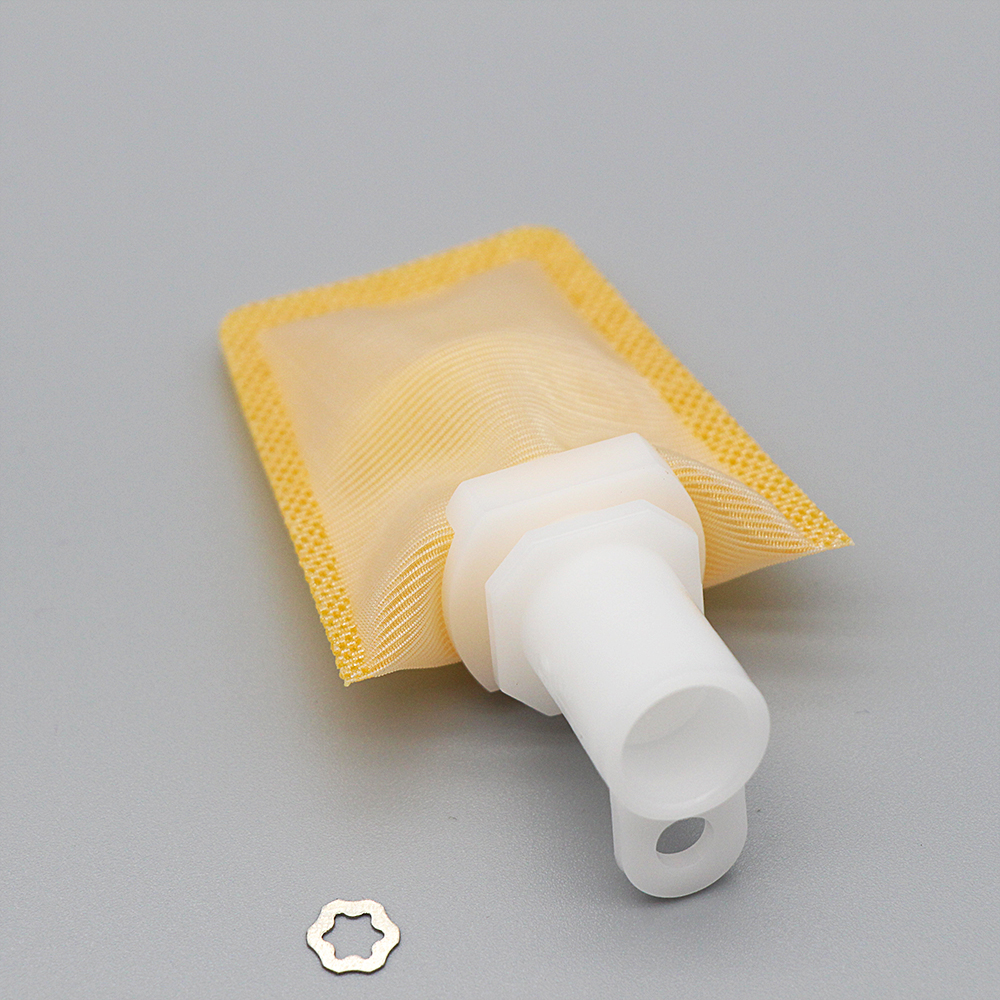

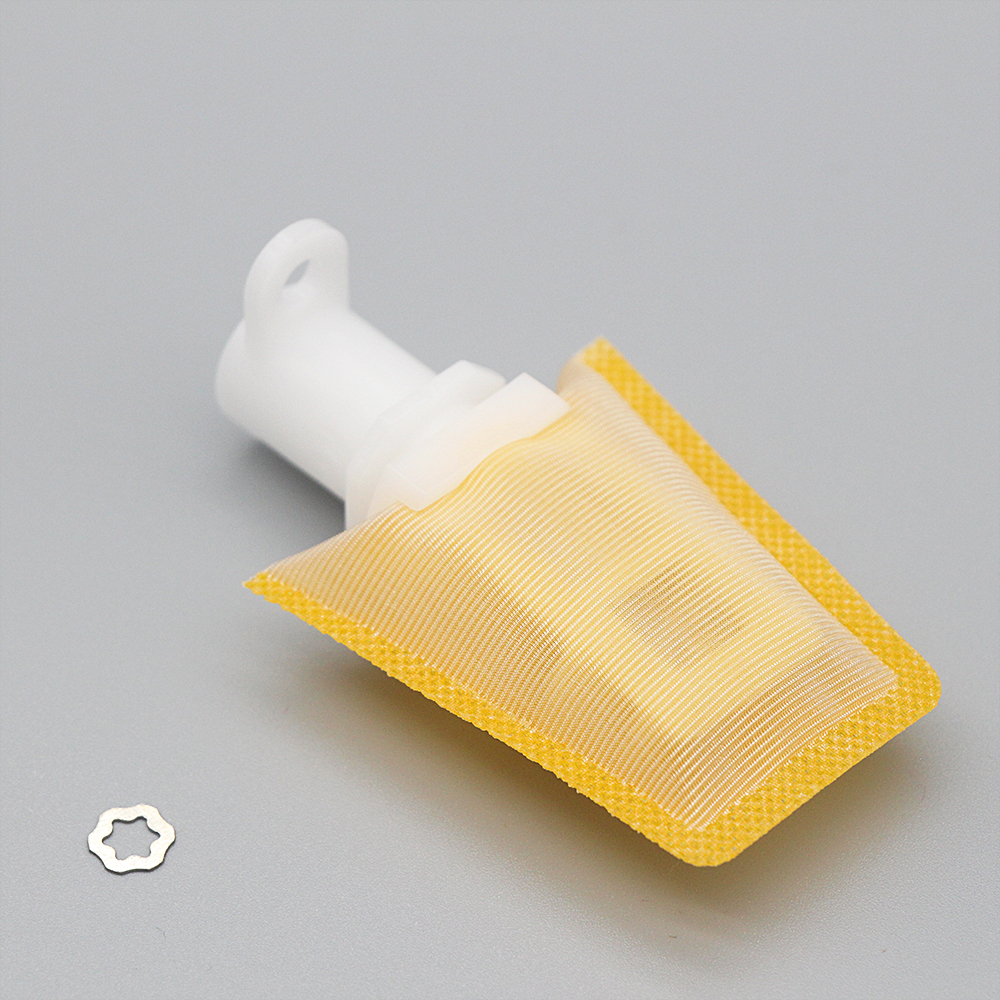

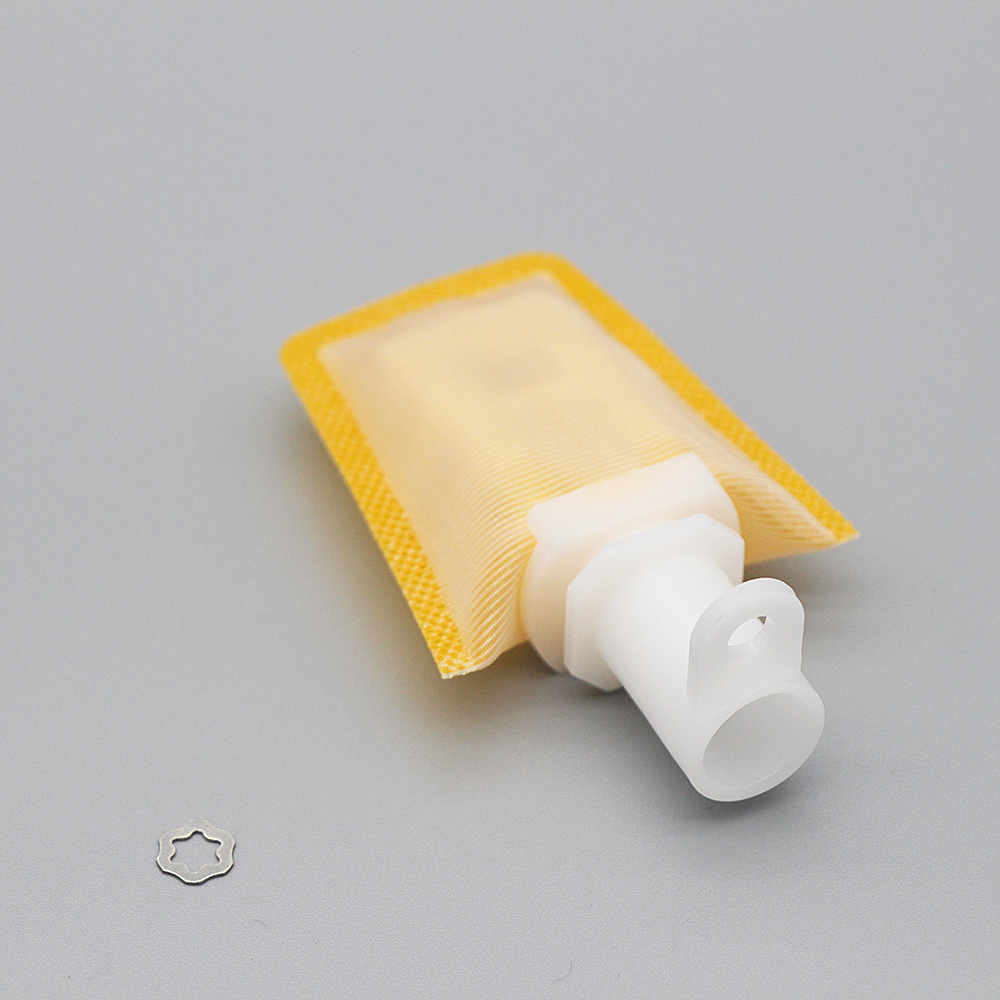

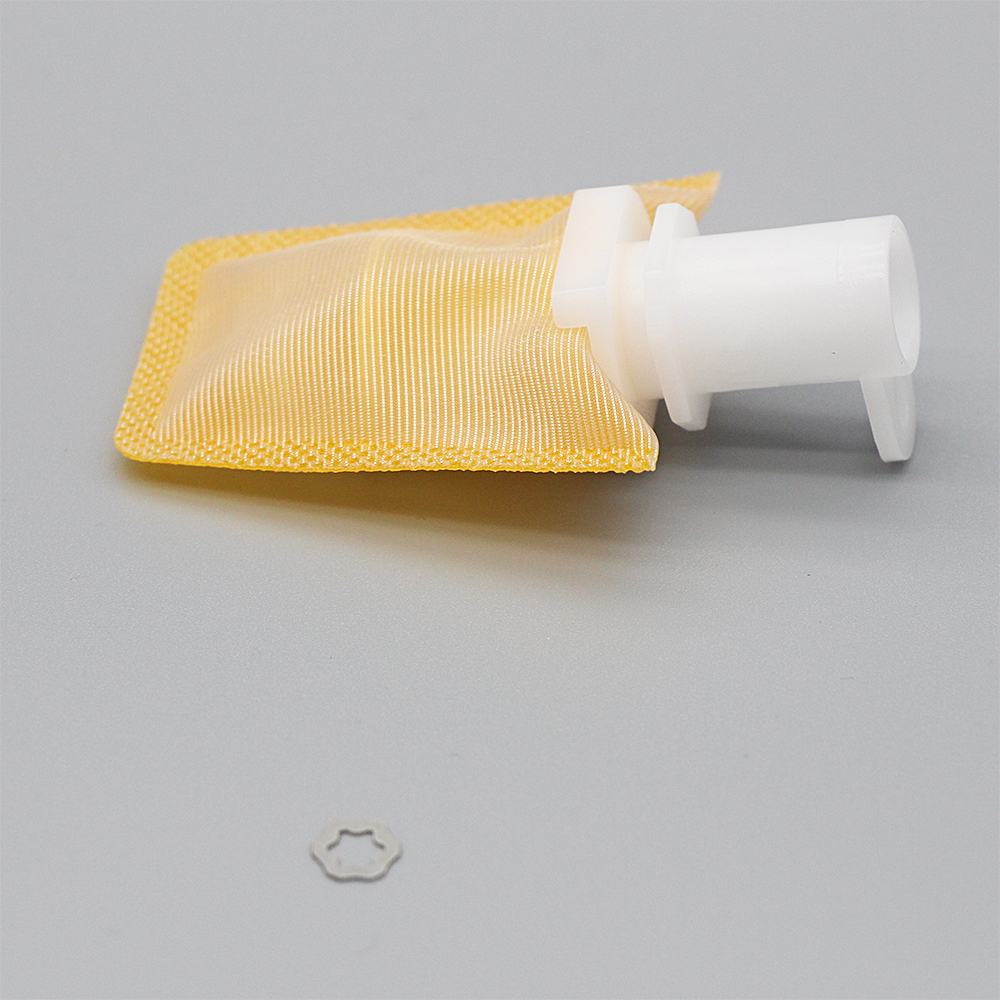

Installation Instructions for Motorcycle Fuel Pump Filter Strainer for VZ800 Intruder, M800 Boulevard, and M50 Models (2005 to 2017)

Tools Required:

1. Socket Set - To remove bolts and screws from the fuel tank and pump.
2. Screwdriver Set - For any additional screws that may need to be removed.
3. Pliers - Useful for disconnecting fuel lines.
4. Fuel Line Disconnect Tool - If applicable, for easier removal of fuel lines without damage.
5. Rags - To clean up any spilled fuel and keep the workspace tidy.
6. Container - To catch any fuel that may spill during the installation process.
7. Safety Glasses - To protect your eyes from fuel splashes.
8. Gloves - To protect your hands from fuel and sharp edges during the installation.
9. Torque Wrench - To ensure that any bolts are tightened to the manufacturer's specifications.

Installation Steps:

1. Preparation:

   • Ensure the motorcycle is on a stable surface, and turn off the fuel supply.
   • Disconnect the motorcycle's battery to prevent any electrical issues.

2. Remove the Fuel Tank:

   • Use the socket set and screwdrivers to carefully remove the bolts and screws securing the fuel tank.
   • Lift the fuel tank and set it aside, ensuring no fuel spills out.

3. Access the Fuel Pump:

   • Locate the fuel pump and disconnect any fuel lines and electrical connectors carefully using pliers and the fuel line disconnect tool, if necessary.

4. Replace the Fuel Filter Strainer:

   • Remove the old fuel pump filter strainer from the fuel pump.
   • Install the new fuel pump filter strainer by following the manufacturer's instructions for alignment and fitting.

5. Reassemble the Components:

   • Reattach the fuel pump to its housing, ensuring all connectors and lines are securely fastened.
   • Reinstall the fuel tank in the reverse order of removal.

6. Final Checks:

   • Reconnect the motorcycle battery.
   • Turn on the fuel supply and check for any leaks around the connections.
   • Start the motorcycle and verify that it runs smoothly, ensuring that the filter is functioning correctly.

Note:
Always consult the motorcycle’s service manual for specific instructions related to your model and ensure that all safety precautions are followed during the installation process.

By following these instructions, you will have successfully installed the Motorcycle Fuel Pump Filter Strainer, enhancing your motorcycle's performance and longevity.
